Since its launch in 2020, the Wharfedale DIAMOND 12 Series has received widespread praise as a standard for performance and value in affordable hi-fi speakers. After over five years of consistent success, awards, and positive reviews from audio enthusiasts and critics alike, the DIAMOND 12 Series has established itself as one of the most enduring and best-selling speaker series.

Now, Wharfedale is excited to introduce the updated DIAMOND 12i Series. This new series features luxurious, modern finishes and subtle acoustic improvements that build on the strong foundation of the original design.

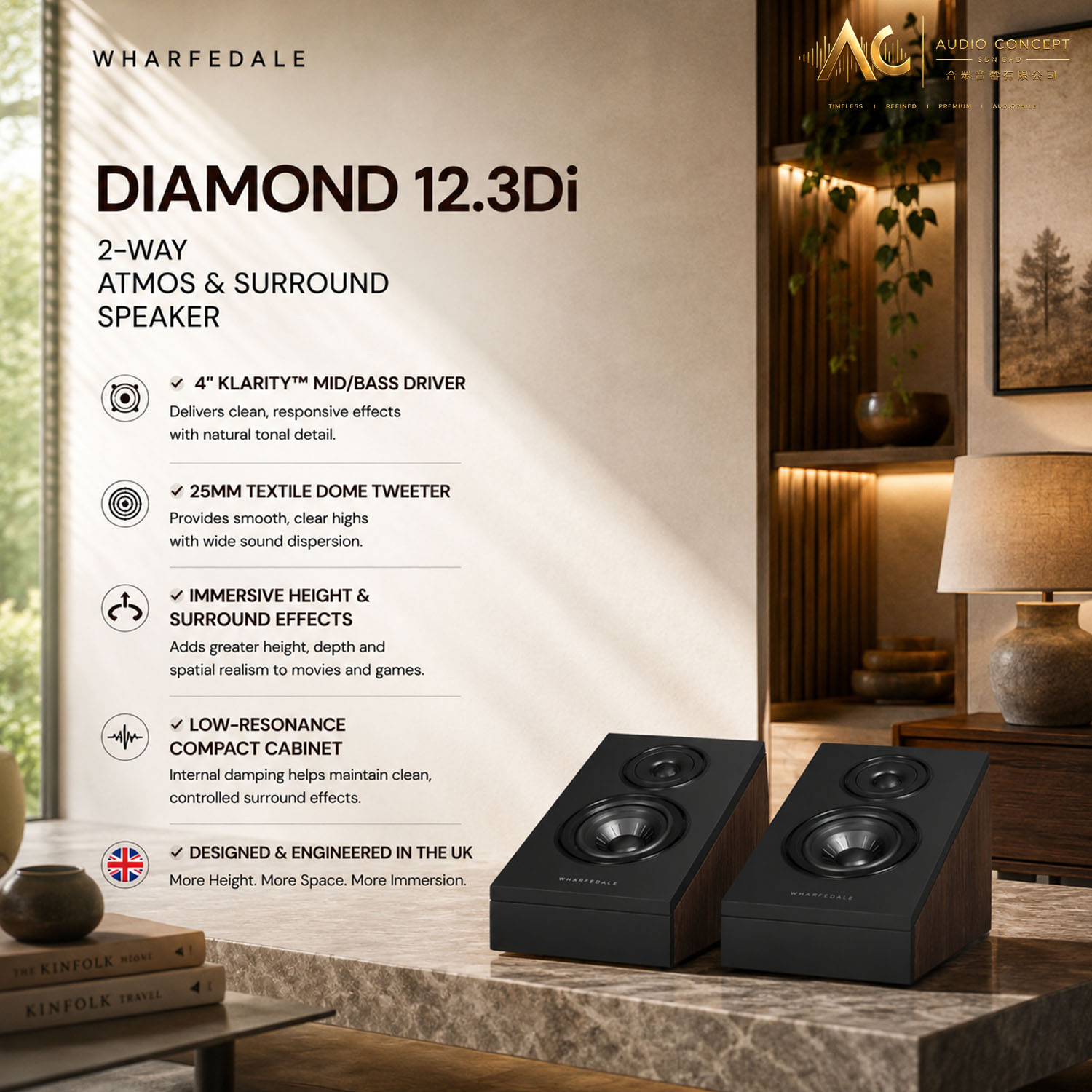

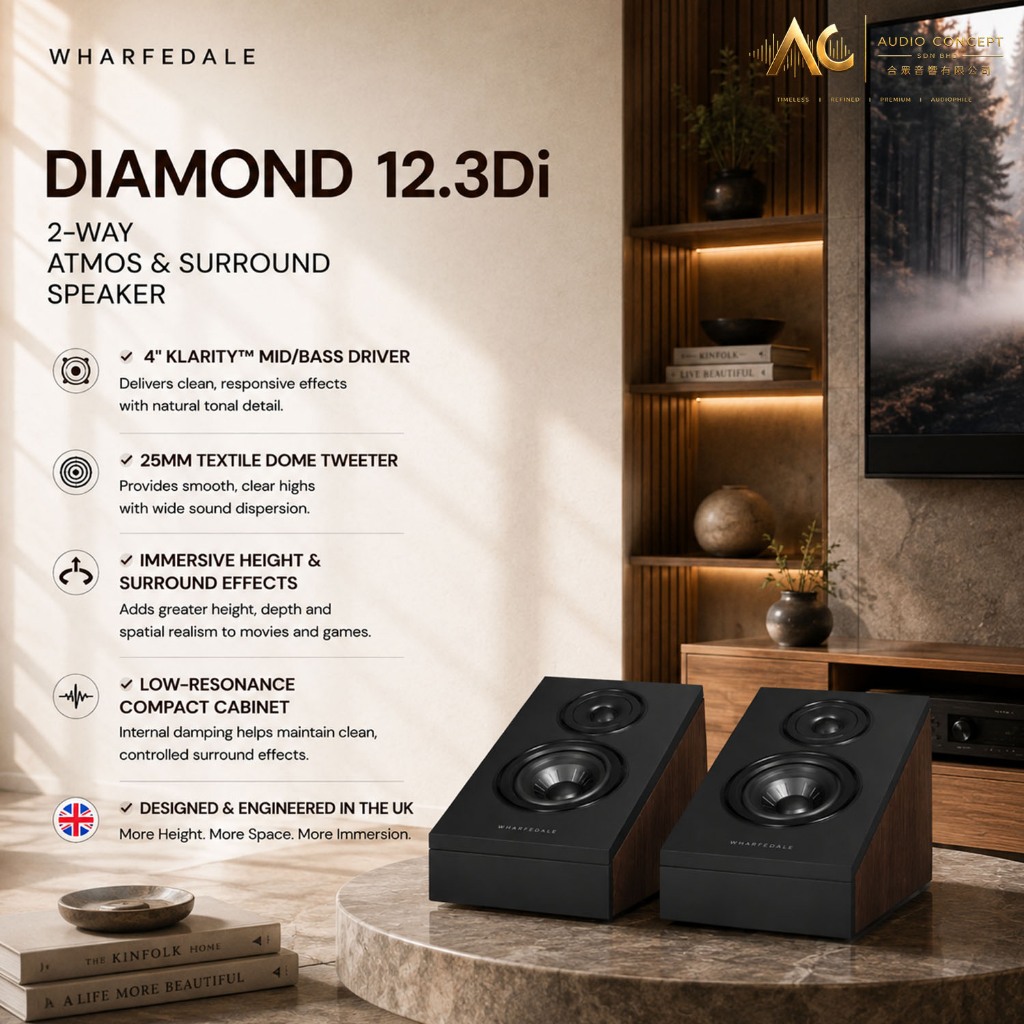

• General Description – 2-way atmos speaker
• Enclosure Type – closed-box system
• Transducer Complement – 2-way
• Bass Driver – 4″ (100mm) advanced PP Cone
• Treble Driver – 1″ (25mm) Textile Dome
• Sensitivity (2.83V @ 1m) – 82dB
• Recommended Amplifier Power – 20-100W
• Peak SPL – 95dB
• Nominal Impedance – 8Ω Compatible
• Minimum Impedance – 4.3Ω
• Frequency Response (+/-3dB) – 110Hz – 20kHz
• Bass Extension (-6dB) – 90Hz
• Crossover Frequency – 3kHz
• Cabinet Volume (in litres) – 2.7L

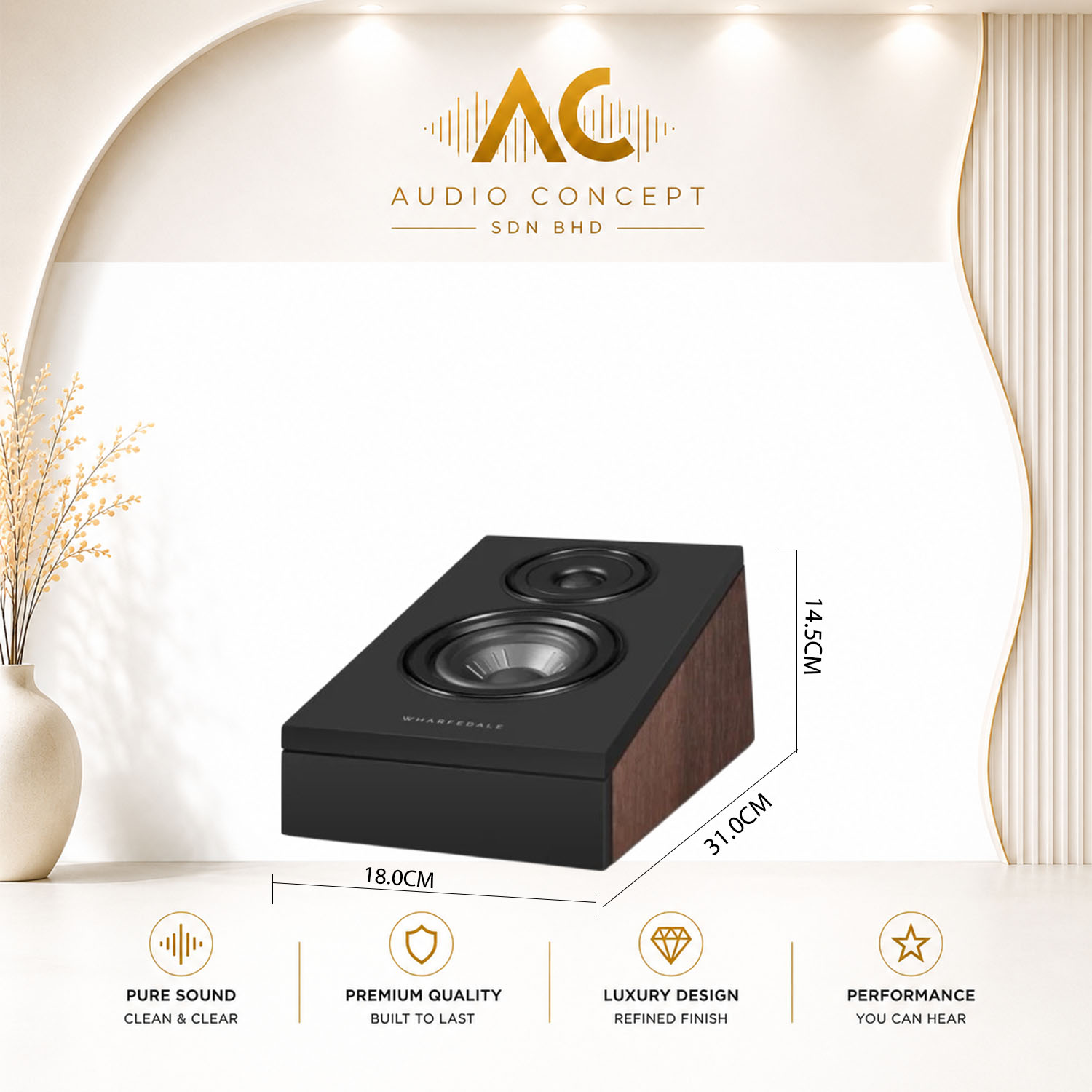

• Dimensions ( H x W x D ) – 145 x 180 x 310mm
• Net Weight – 3.2kg/pcs

Known for quality, affordability, and exceptional build quality, the Wharfedale Diamond series has always prioritised fit and finish. The new luxurious finishes enhance the loudspeaker’s premium look and feel, matching its impressive sound performance.

The DIAMOND 12i mid/bass driver cones remain unchanged and are made from Klarity™, a special blend of polypropylene and mica that provides excellent stiffness and low distortion. This results in a cone that is lightweight, well-damped, and very responsive, delivering natural, expressive dynamics and precise transient response.

A low-damping surround enhances the cone’s efficiency and dynamic range, while ribbed shaping and profile simulation ensure a smooth, linear frequency response without added distortion.

Each mid/bass driver features a precise magnet system with an aluminium compensation ring to reduce the effects of inductance changes as the voice coil moves. This advanced motor system minimises intermodulation and distortion, producing cleaner, more accurate sound.

The voice coil is wrapped around a high-power epoxy/glass fibre bobbin, which performs significantly better than standard materials at this price point, offering greater power handling, thermal stability, and structural strength.

High frequencies are produced by a 25mm woven polyester dome with a high-loss damping coating, resulting in extended, smooth treble response. The front plate is designed acoustically with a flat profile and minimal waveguide to enhance dispersion and output. The result is clear, natural high frequencies with excellent off-axis performance.

—————————————————————-
