WBT 0710 (Cu-Gold / AG-Silver) Pure Pole Terminals / Plug(4Pcs/Set)

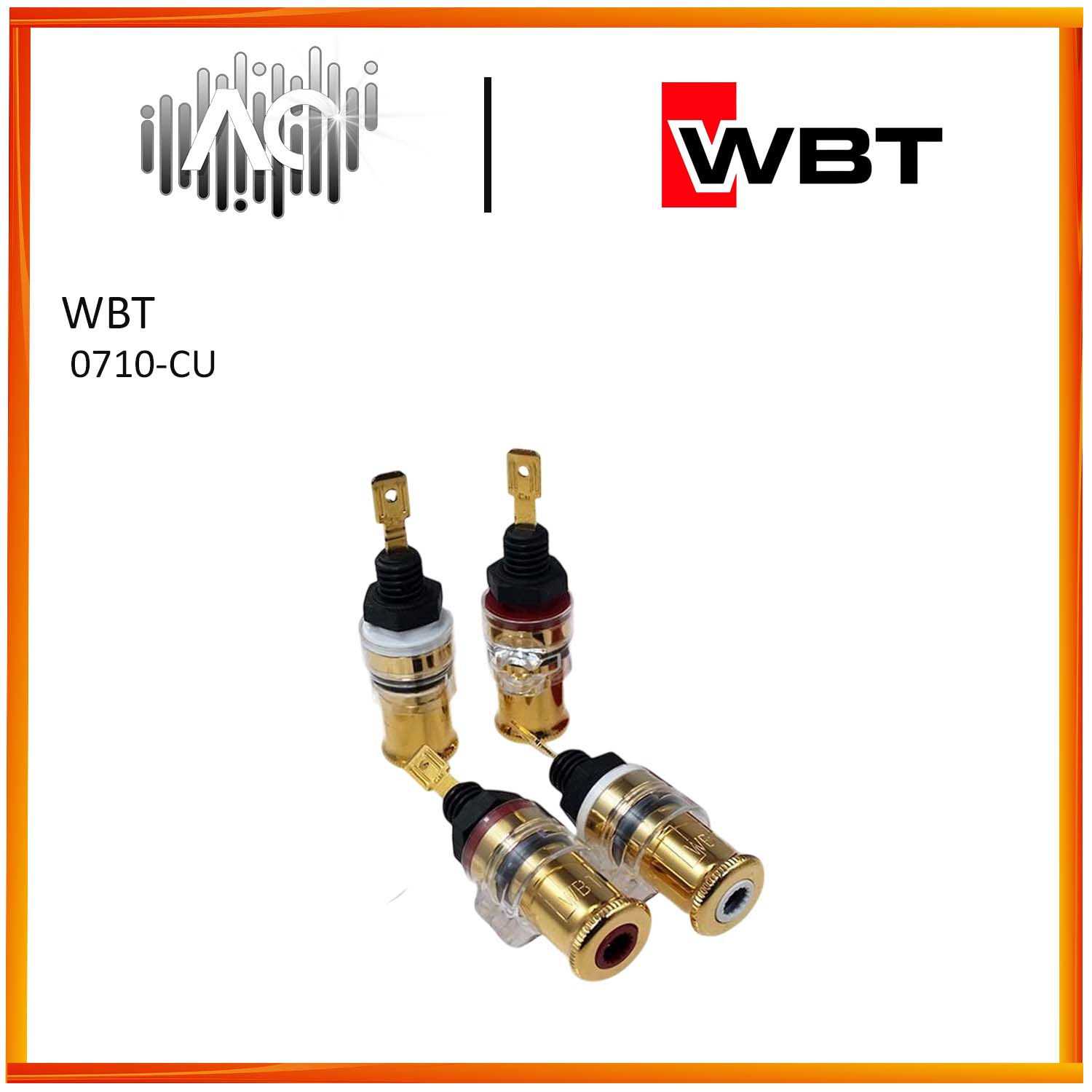

WBT-0710 (CU)

Conductor cross-section (max.): outside: 10 mm² (7 AWG) inside: 4 mm² (11 AWG)
Connection technology: outside: 4 mm banana plug, spades (6 – 8 mm spade), crimping inside: soldering or 6.3 mm flat push-on cable shoe
Wall thickness: from 0.9 to 6.5 mm (from 4.5 mm without the puzzle plate)

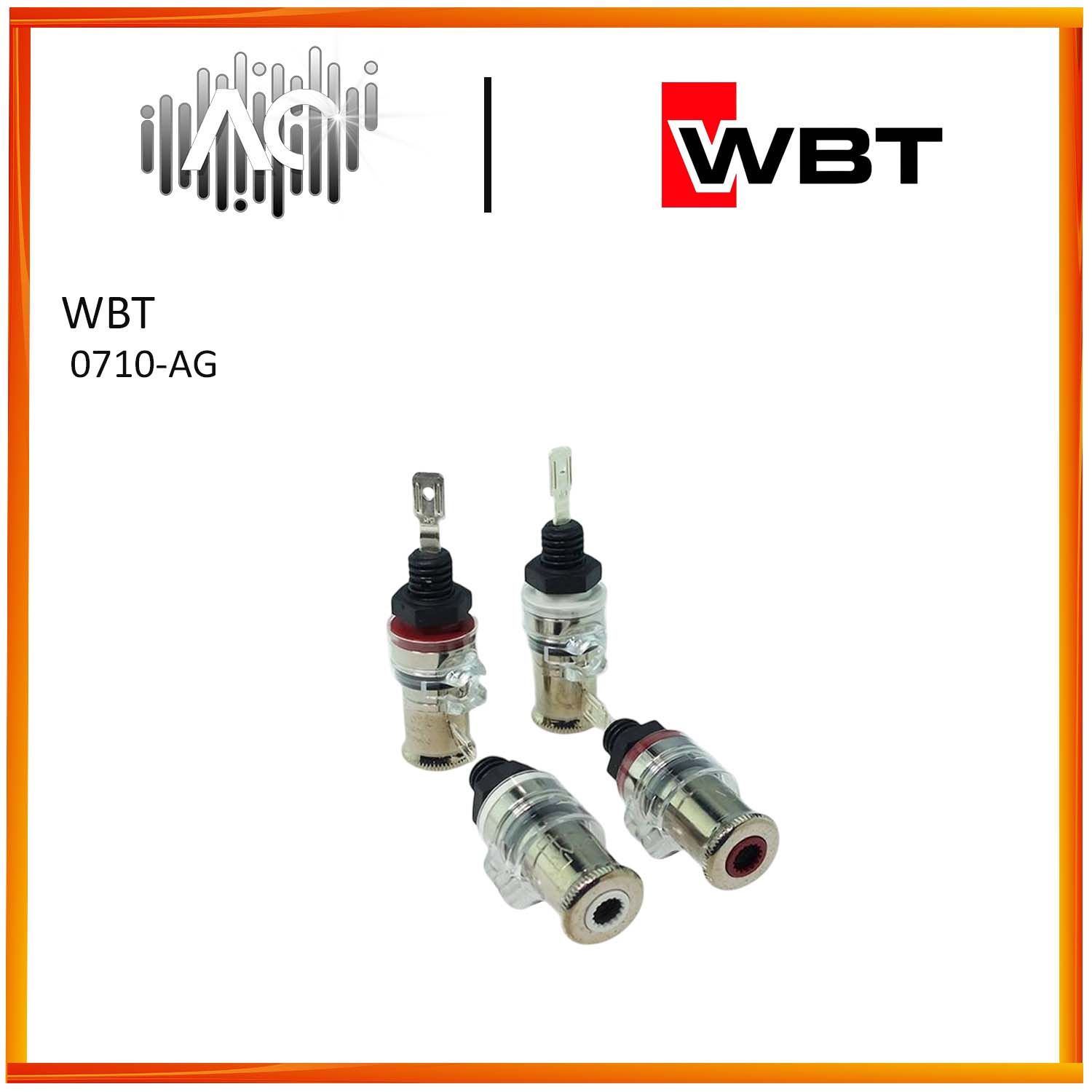

WBT-0710 (AG)

Signal conductor made of fine silver*
Free from eddy current effects
No problems with mass storage
CE and IEC compliant
Max. constant current 30 A, admissible peak current 200 A
Surface protection through nickel-free gold plating

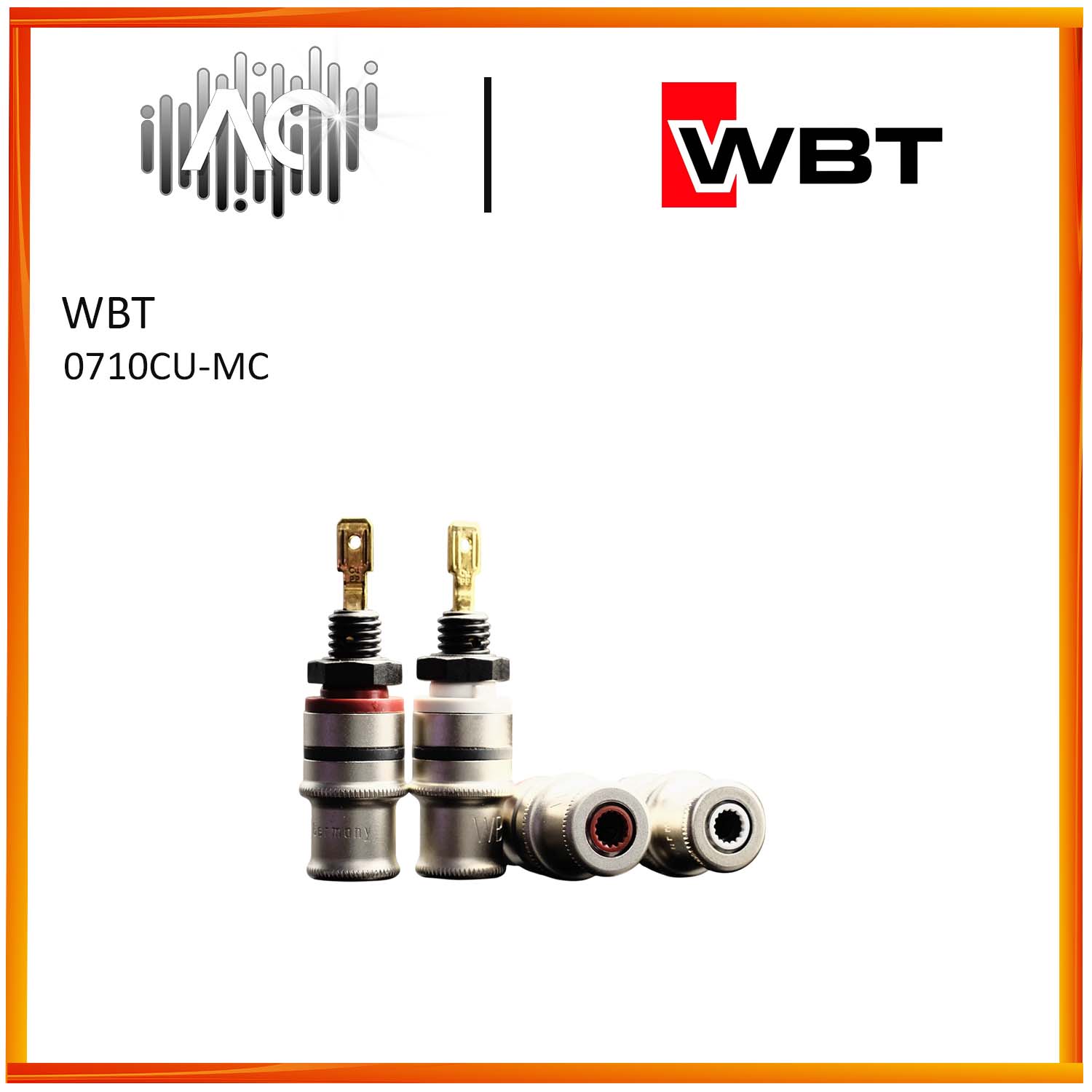

WBT-0710 (Cu mC):

Signal conductor made of high-purity copper
CE and IEC compliant
Casing made of glass fibre and mineral reinforced plastic
Surface protection of the signal conductor by means of 24 carat direct gold plating (nickel-free)
Max. constant current 30 A, peak current 200 A
Twist-proof mounting
Puzzle plate system

The design principle means that this construction has an electrical insulating effect. Decorative brass elements give the WBT-0710 nextgen™ its attractive appearance and make it pleasant to the touch without impairing electrical safety. As a result, the component meets all the relevant standards and safety regulations.

External connection The ingenious angling of the signal conductor permits secure connection of spades, banana plugs and crimped cable ends.

Internal connection Solder lugs that can be folded over if needed. WBT recommends the surface-friendly silver solder WBT-0800 (see also solder connection).

Mounting insulators are supplied and ensure not only insulated but also twist-proof mounting and polarity identification. Counter nuts, double step washers with lug and puzzle plates are also supplied. The puzzle plates can be clipped into one another. This ensures precise terminal spacing of 19 or 30 mm, but above all absolute torsion protection. The nuts on appliances with high intrinsic mechanical vibration levels like loudspeakers should be additionally secured using the WBT serrated lock washer WBT-9150, for example.
