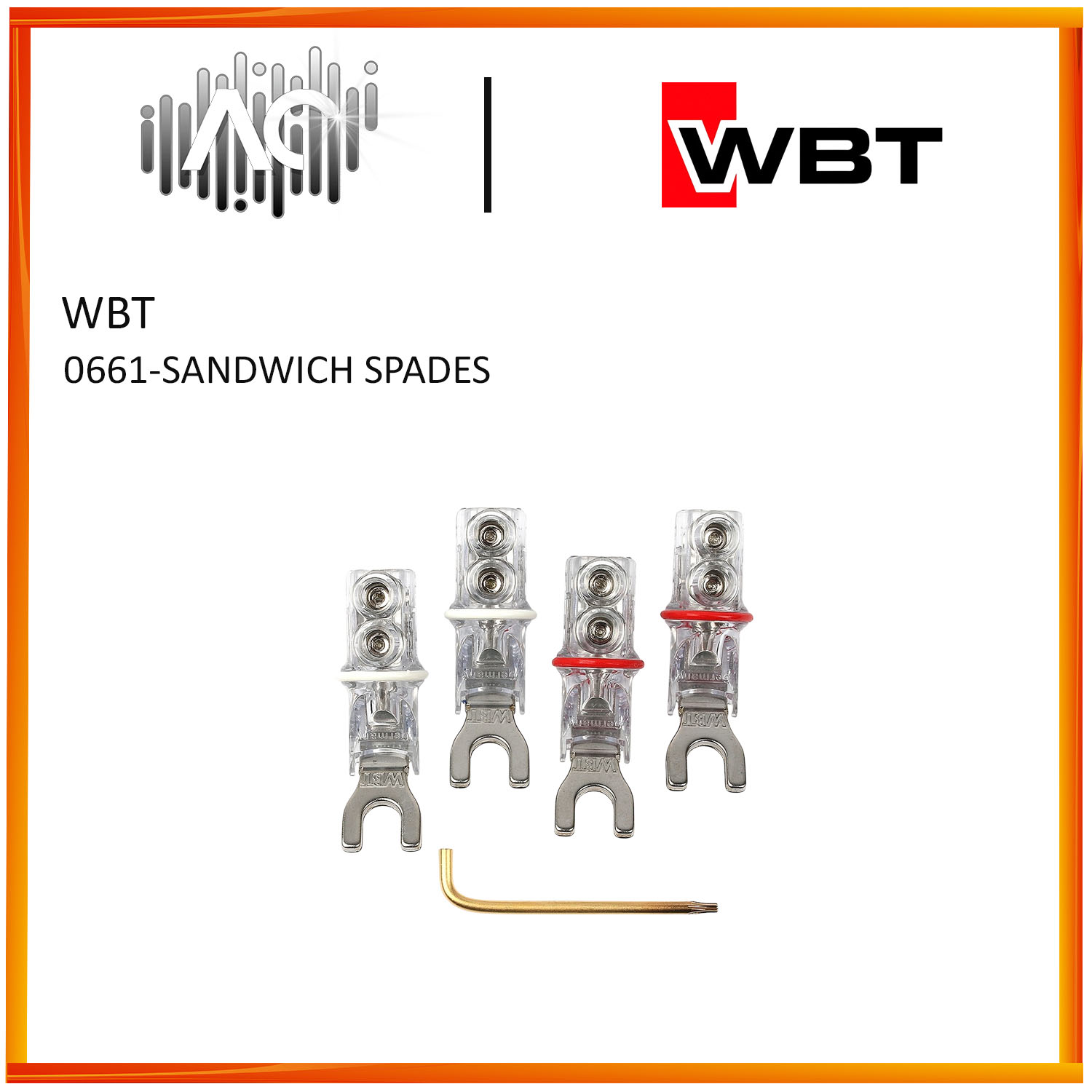

WBT 0661 (Cu-Gold / AG-Silver)Pure Sandwich Spade With 6mm Fork Width (4Pcs/Set)

WBT 0661 (CU)

High-current spade
Signal conductor made of pure copper
24 carat direct gold plating (nickel-free)
Sandwich spade for constantly high contact pressure
Elastomer oscillation damper for superb vibration damping and fracture resistance
CE and IEC compliant
Crimping using the WBT double Torx screw system

It was turn for the well-tried WBT Sandwich Spades to undergo their very special 'nextgen' update. The signal conductors (of the Cu versions) have always been built by pure copper and their construction was based already on the minimal mass principle. New thing is that the base body of the spade now represents a nearly metal-free construction to become a 100% nextgen connector. You will certainly enjoy a much more detailed and spacious sound performance of your HiFi set!

The key of the superb quality of this spade lies in the patented* Sandwich design of its contact fork: Elastomer oscillation dampers eliminate airborne noise and mechanical vibrations as well as magnetostrictions. This ensures almost total suppression of contact microphonics, and there is no interfering ancillary noise. The fracture resistance of the connection is improved at the same time. The sandwich design of the contact forks (sandwich spades) with elastomer inserted in a steel cap generates high and uniform contact pressure while minimising transition resistance. Four punched contact points on the bottom of the fork ensure precision contact. The quality of signal transmission is markedly improved, particularly with high currents or small voltages. The surface of the copper conductor is protected against oxidation by nickel-free 24 carat gold plating to underpin the low transition resistance levels in the long term.

The spade is connected to the cable by means of crimping. The two Torx screws with fine thread are making for a reliable connection with high tensile strength.

The plug elements are fully insulated and meet the CE and IEC safety requirements.

WBT 0661 (AG)

1/4 inch / 6.4mm sandwich spade connector. Pure Fine Silver contact is direct Platinum plated to protect against tarnish. High current spade lug with elastomeric shock absorber for progressive contact pressure eliminating structure born and air born noise as well as magnetostriction. Fully insulated body is safe to use and conforms to international safety standards. Easy fit for wire sizes up to 10mm² / 8AWG.

WBT make two types of nextgen™ spades, particularly suitable for larger-gauge cables (up to 10mm squared). The Cu version features gold-plated pure copper surfaces and the Ag version is platinum plated fine silver.

The nextgen™ 0661 are 6mm to fit standard binding posts and are designed to attach to cables without solder.
