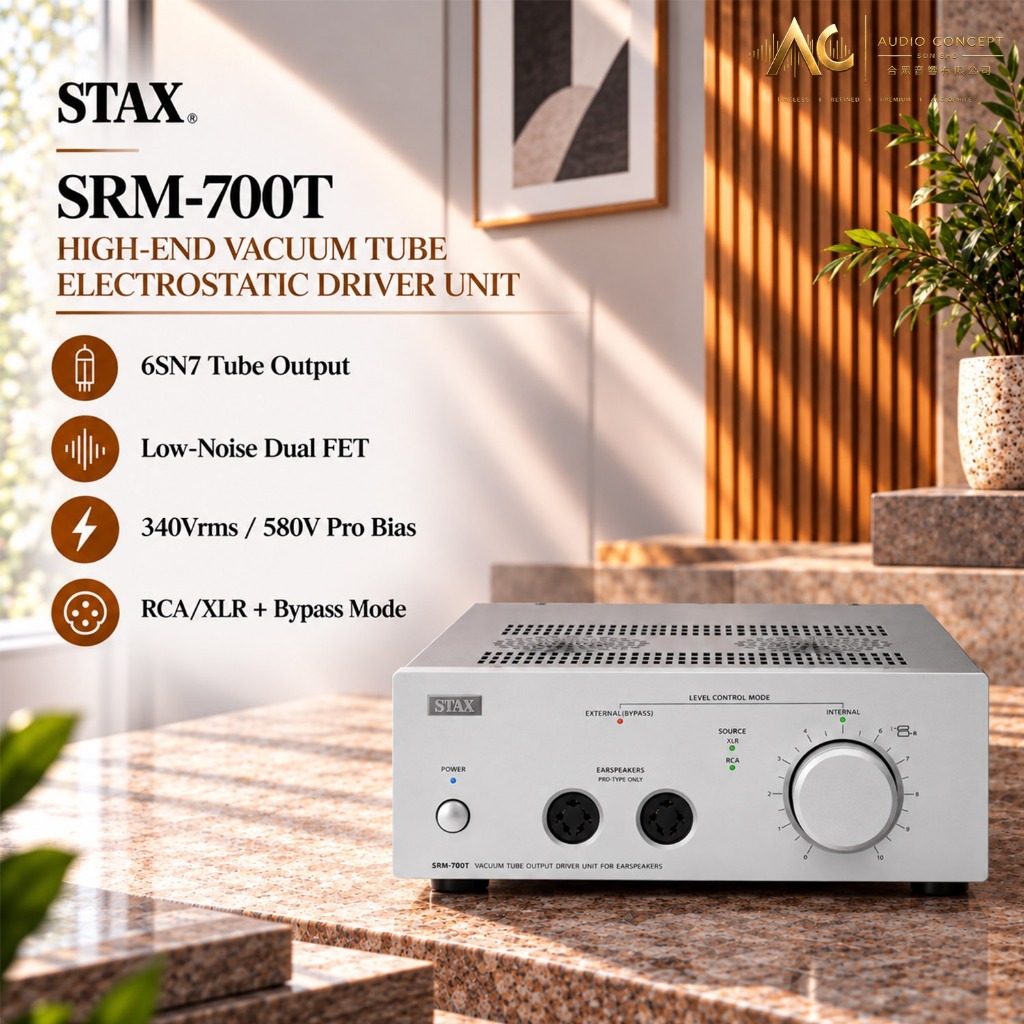

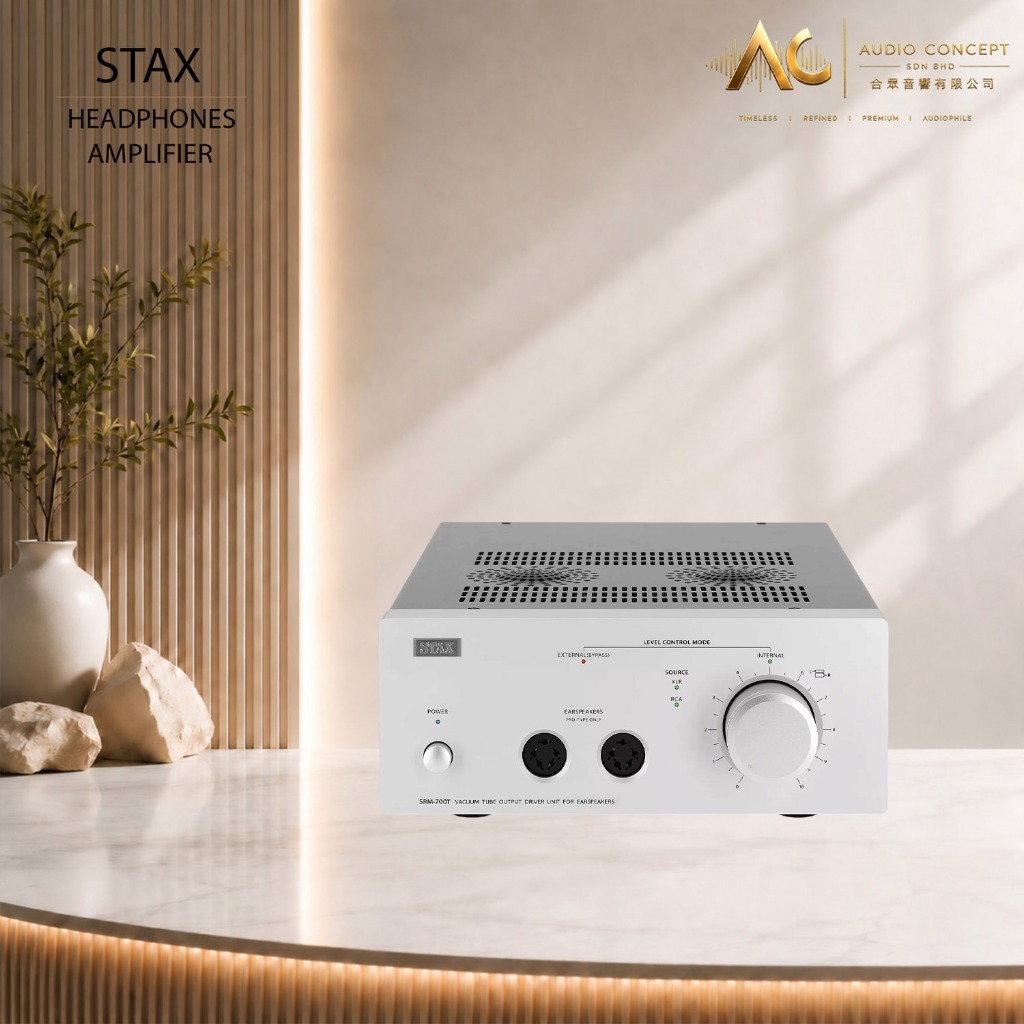

STAX SRM-700T

Specifications

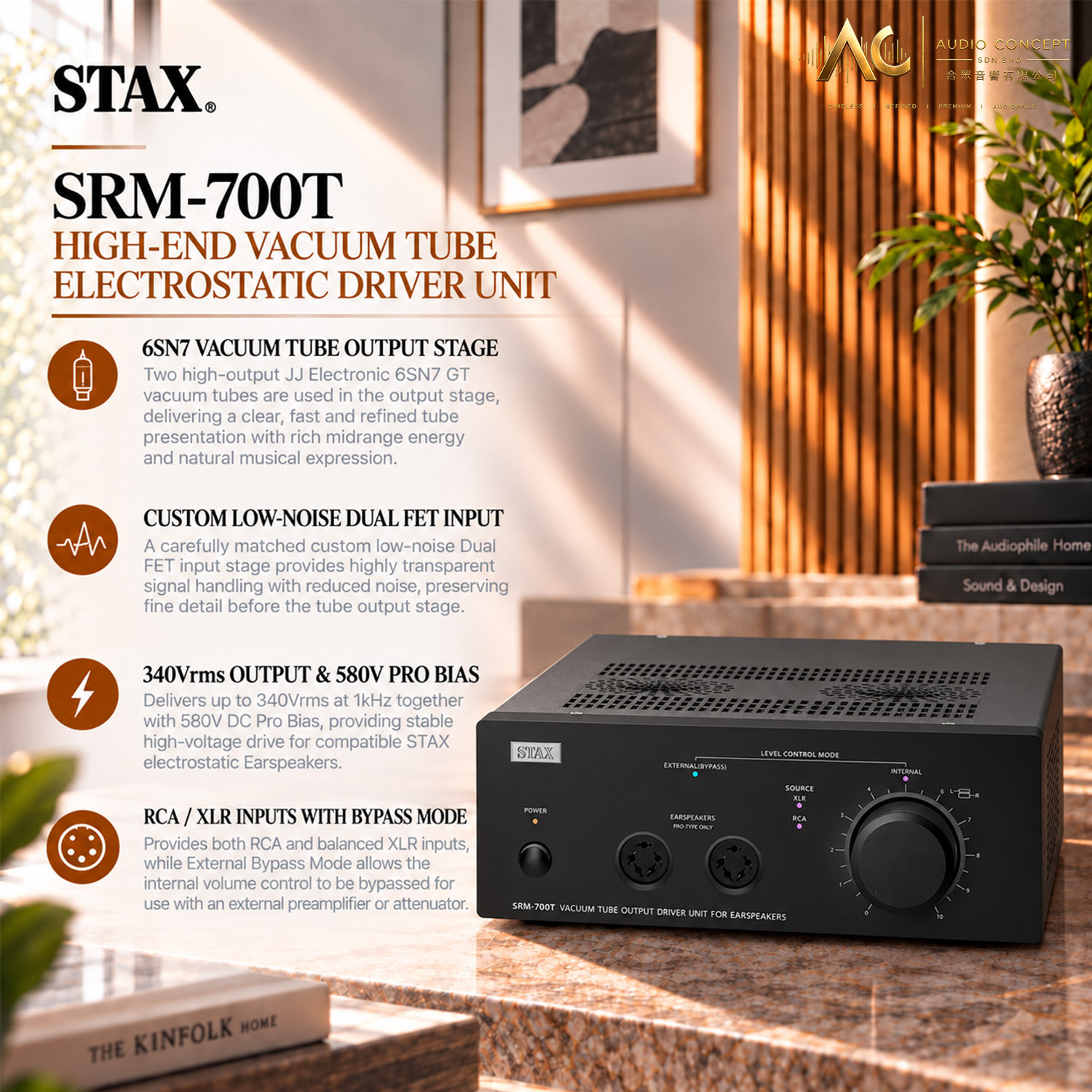

• Type : FET input + vacuum tube output hybrid DC amplification driver unit
• Vacuum tube : 6SN7 x2
• Frequency response : DC – 100kHz (with one SR-009S)
• Gain : 60dB
• Harmonic distortion : 0.01% or less (1kHz/100Vrms output)
• Input impedance : 50kΩ (RCA), 50kΩx 2 (XLR)
• Maximum output voltage : 340Vrms (1kHz)
• Bias voltage : PRO 580V
• Operating temperature / humidity : 0 to 35 degrees C / less than 90% (non condensing)

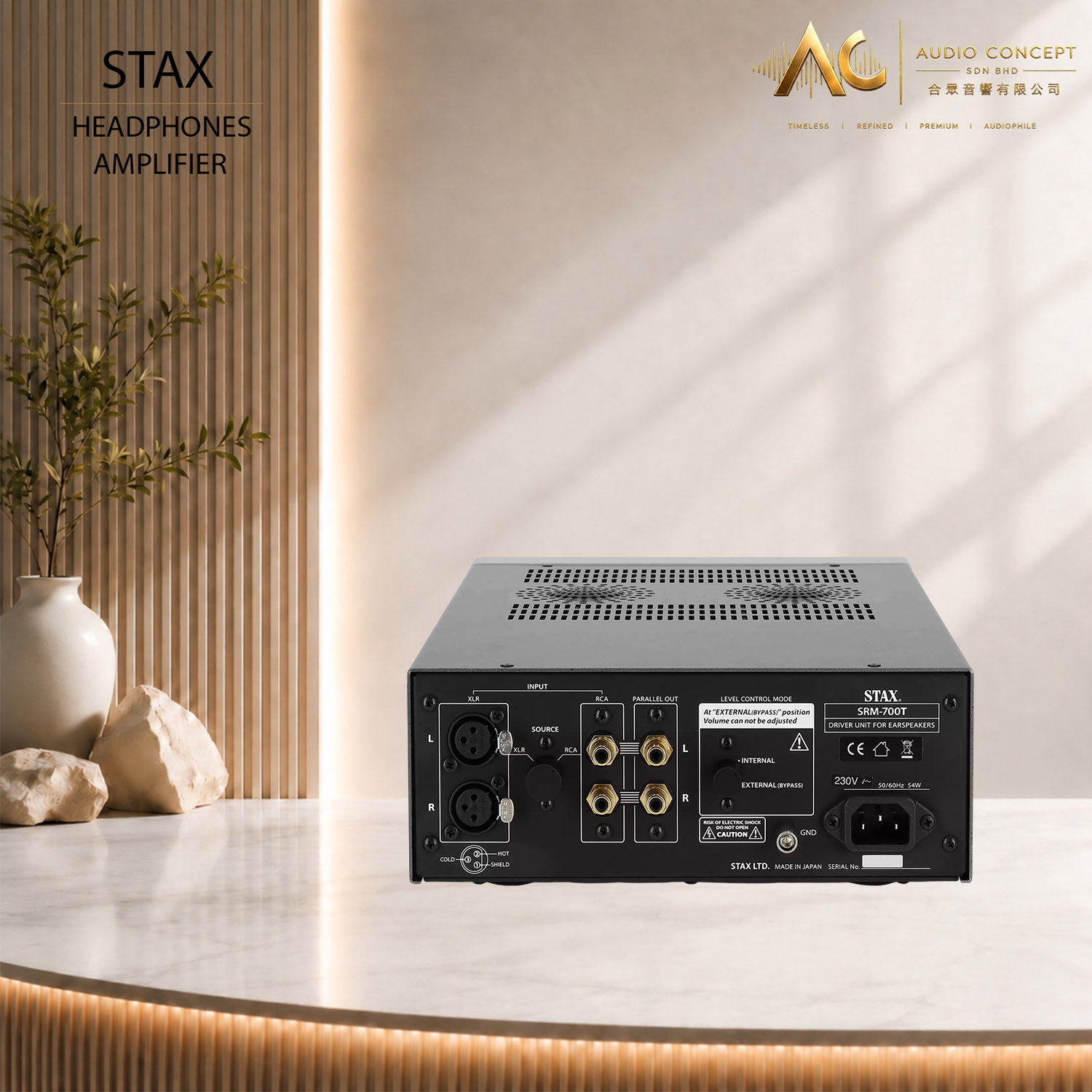

• Input terminal : RCA x 1, XLR x 1
• Output : RCA parallel output terminal
• Power consumption : 54W

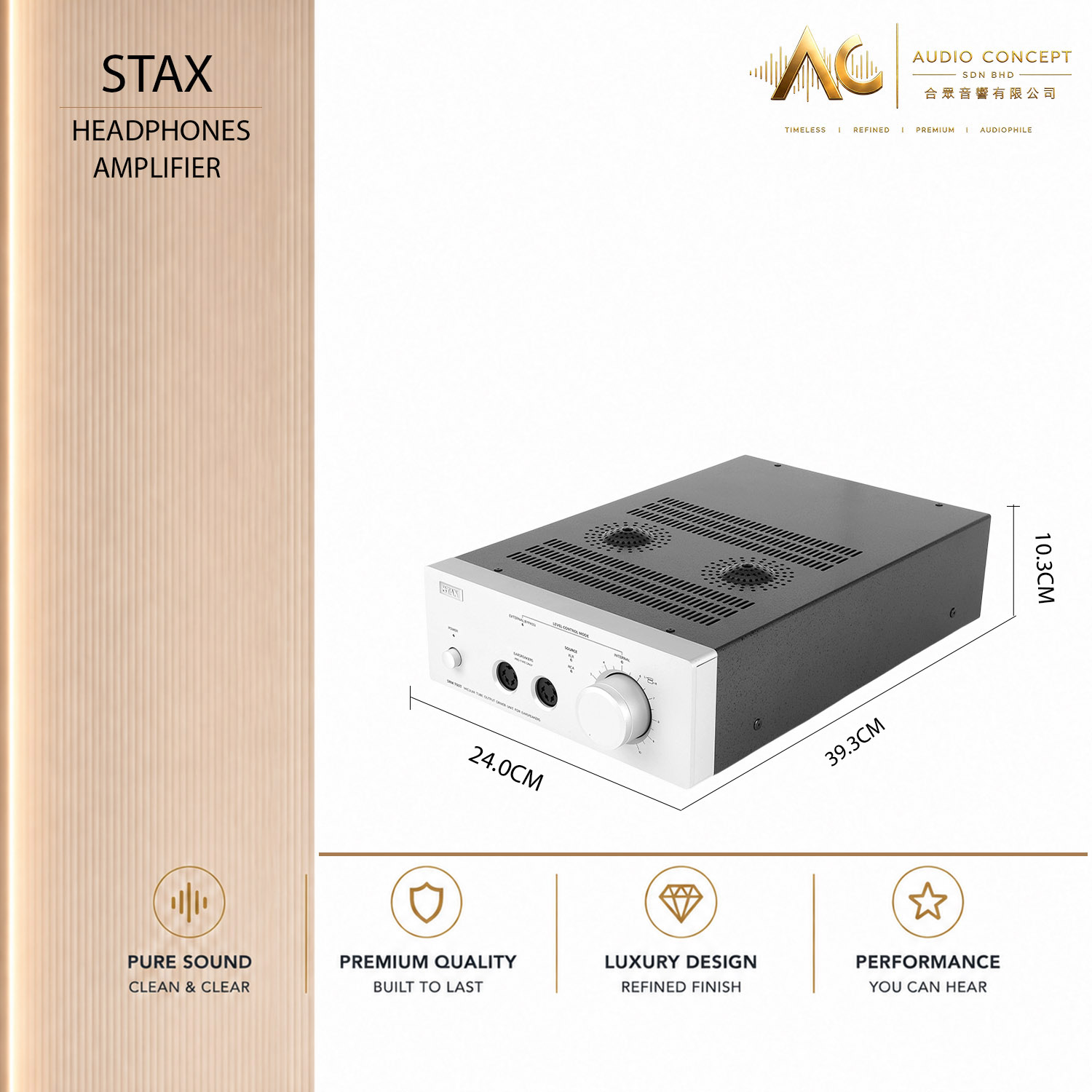

• Dimension : 240 W x 103 H x 393 D mm (maximum protruding portion included)
• Weight : 5.7kg
