STAX SRM-270

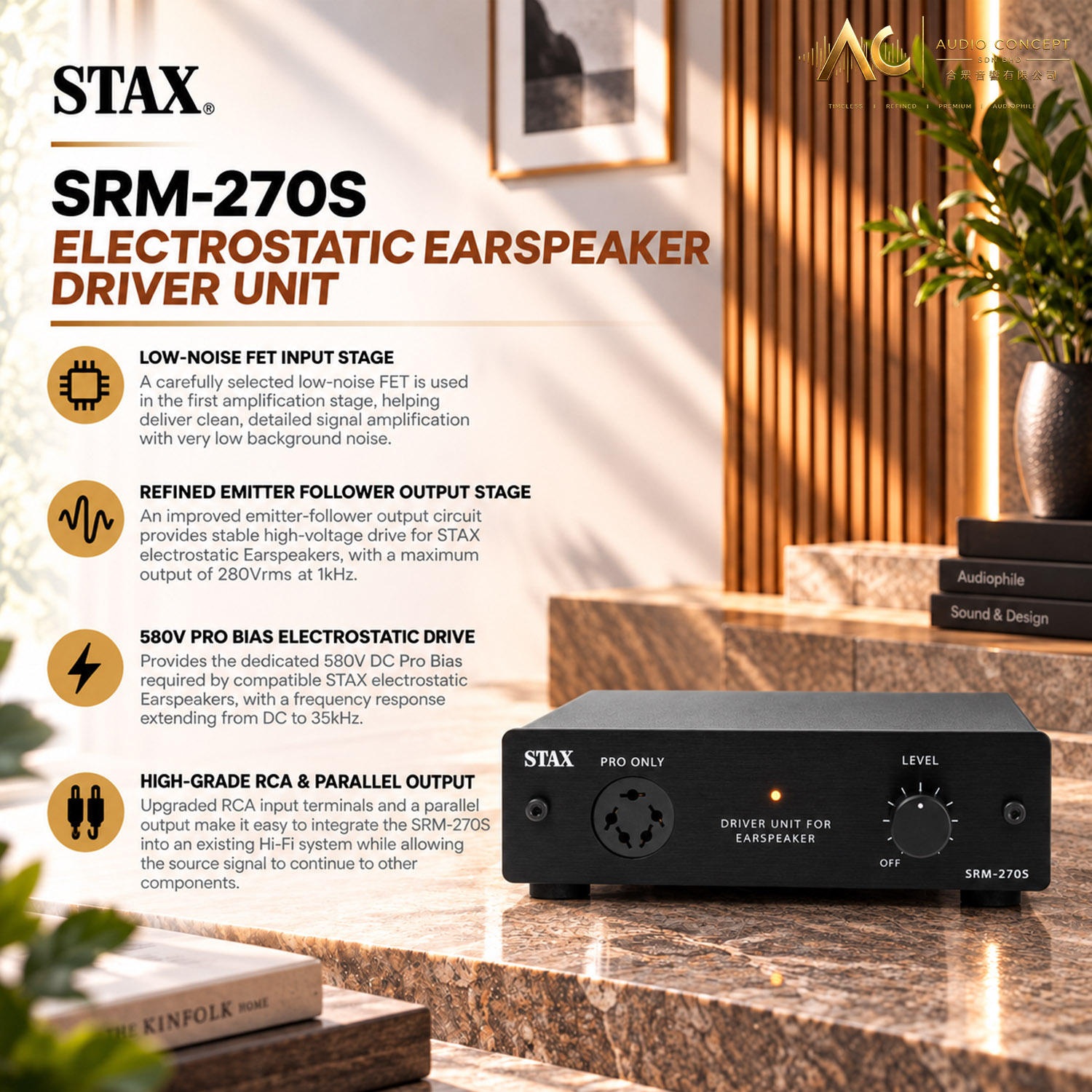

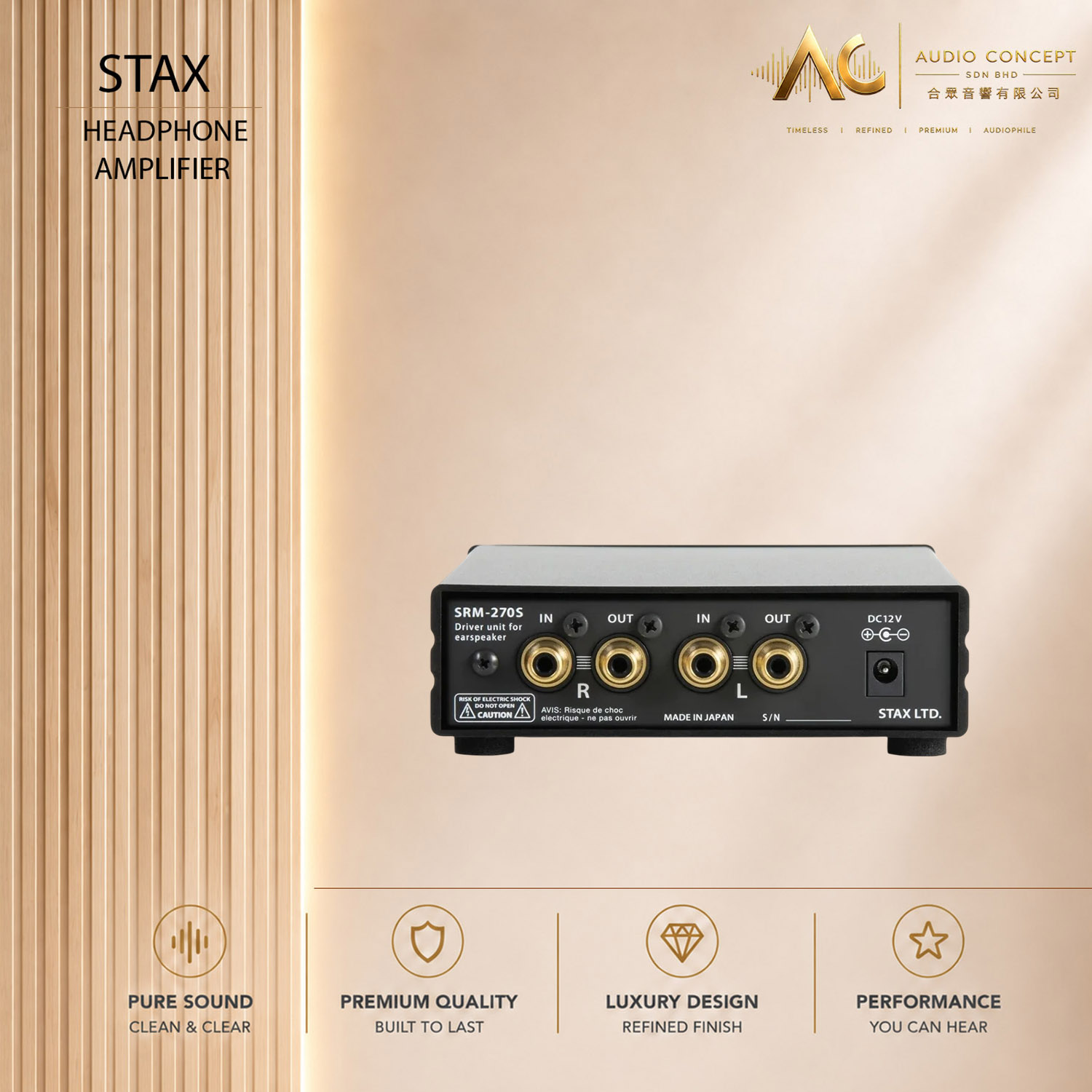

The SRM-270S has updated the design of the previous model (SRM-252S) by improving the quality of the RCA pin jack, adopting a 3mm thick front aluminum panel, and adopting an aluminum extrusion case that has been enlarged and has improved heat dissipation. The first stage of the amplifier is equipped with the latest low-noise FET, and the output stage is equipped with an improved emitter follower circuit. The latest design know-how that follows the trend of driver development in recent years is condensed into a compact housing. Since the input and output are equipped with parallel out terminals, it can be easily combined with your current system. The SRS-X1000 system has a high degree of freedom in installation, and is an all-purpose set model that can be recommended not only for music but also for personal movie watching on a desktop or bedside. High-quality RCA terminals. The parallel out terminal allows easy introduction into existing systems.

– Enhanced Heat Dissipation : A 3mm-thick front aluminum panel and a larger aluminium extrusion case for effective heat management. aluminum case for effective heat management.

– High-Grade Connectivity : RCA pin jacks and a 3mm-thick front aluminum panel ensure a pristine connection.

– Low Noise FET : Selected for the First Stage amplifier, paired with a refined emitter follower circuit in the Output Stage for unparalleled clarity.

– Compact Chassis: Easy for placement, transportability and aesthetic appeal

Specifications :

• Frequency response : DC to 35,000Hz/+0, -3dB
• Harmonic distortion : 0.01% or less/1kHz 100V rms
• Amplification : 58dB (800x)
• Rated input level : 125mV/100V rms output
• Maximum output voltage : 280V rms/1kHz
• Input impedance : 25kΩ
• Input terminal : RCA x 1
• Output terminal : Parallel out x 1
• Bias voltage : DC580V
• Power supply voltage : AC adapter included
• Power consumption : DC12V/500mA

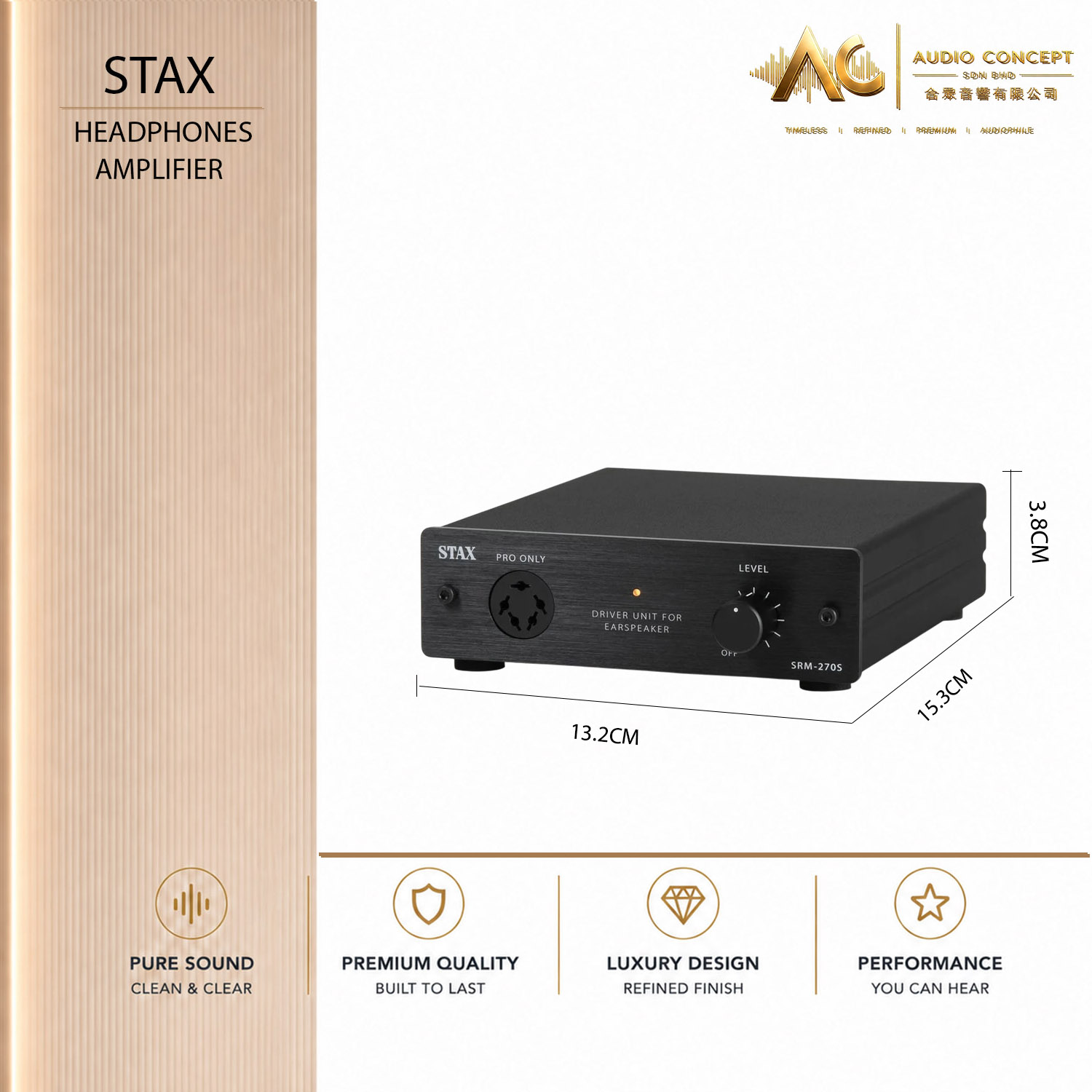

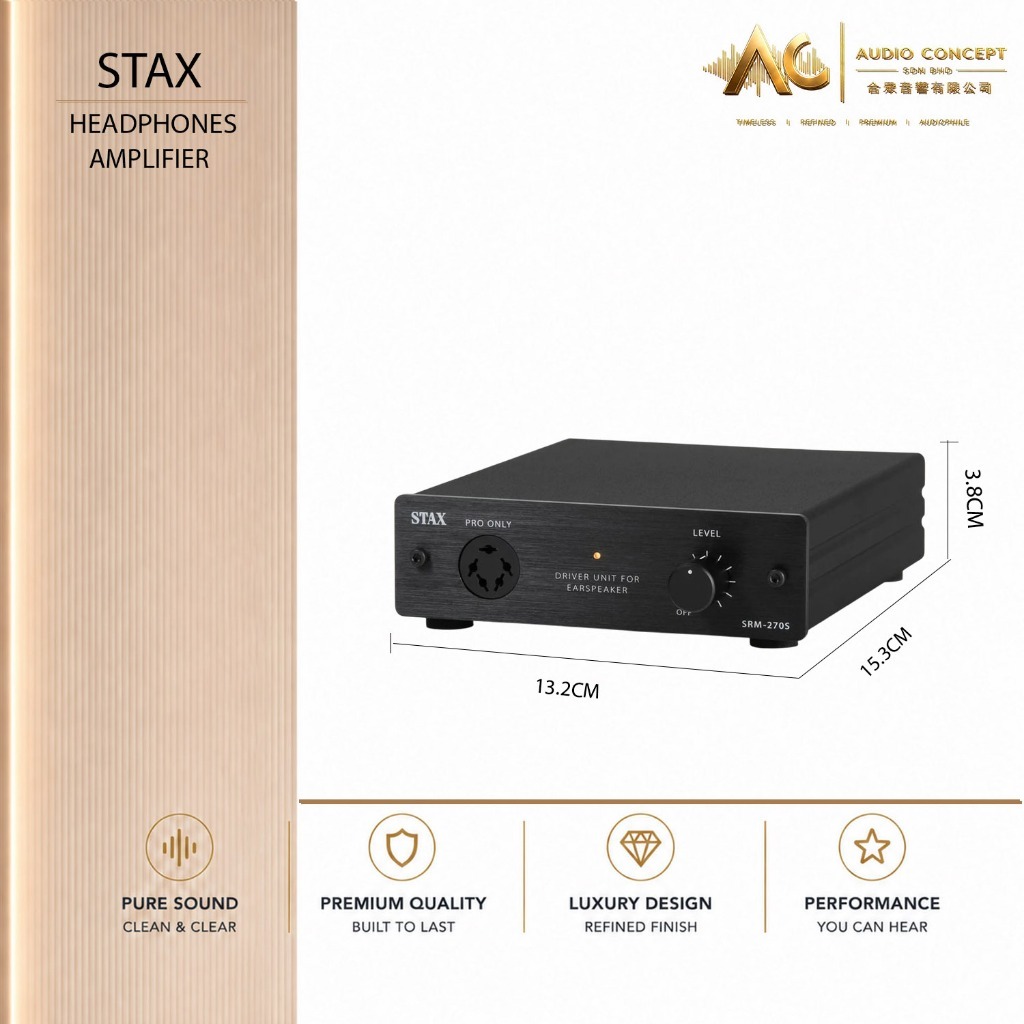

• External dimensions : 132(W) x 38(H) x 153(D)mm (excluding protrusions)
• Weight : 540g
• Country of origin : Japan

——————————————————
