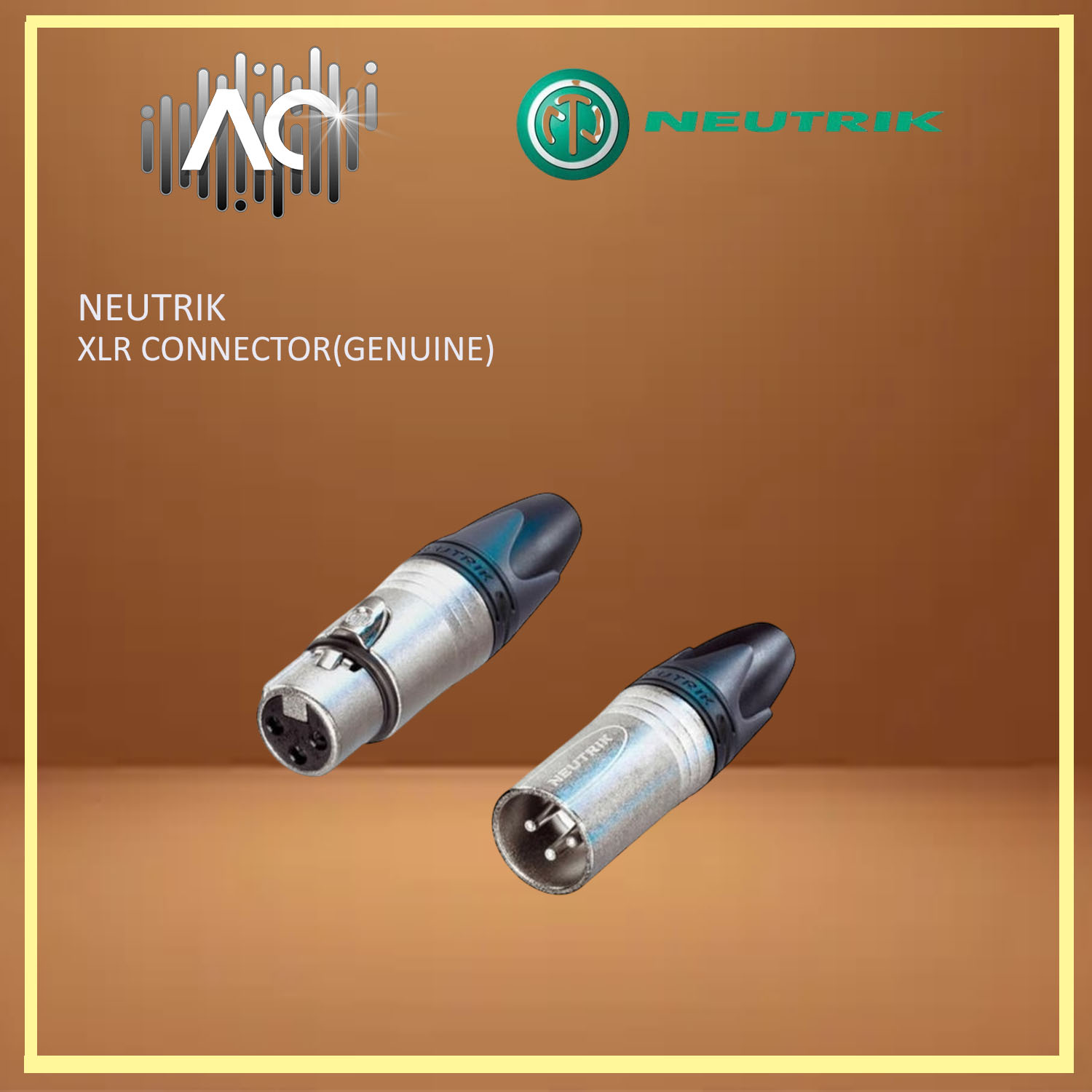

Neutrik NC3MXX 3-Pin (Male / Female) XLR Cable Connector (GENUINE)

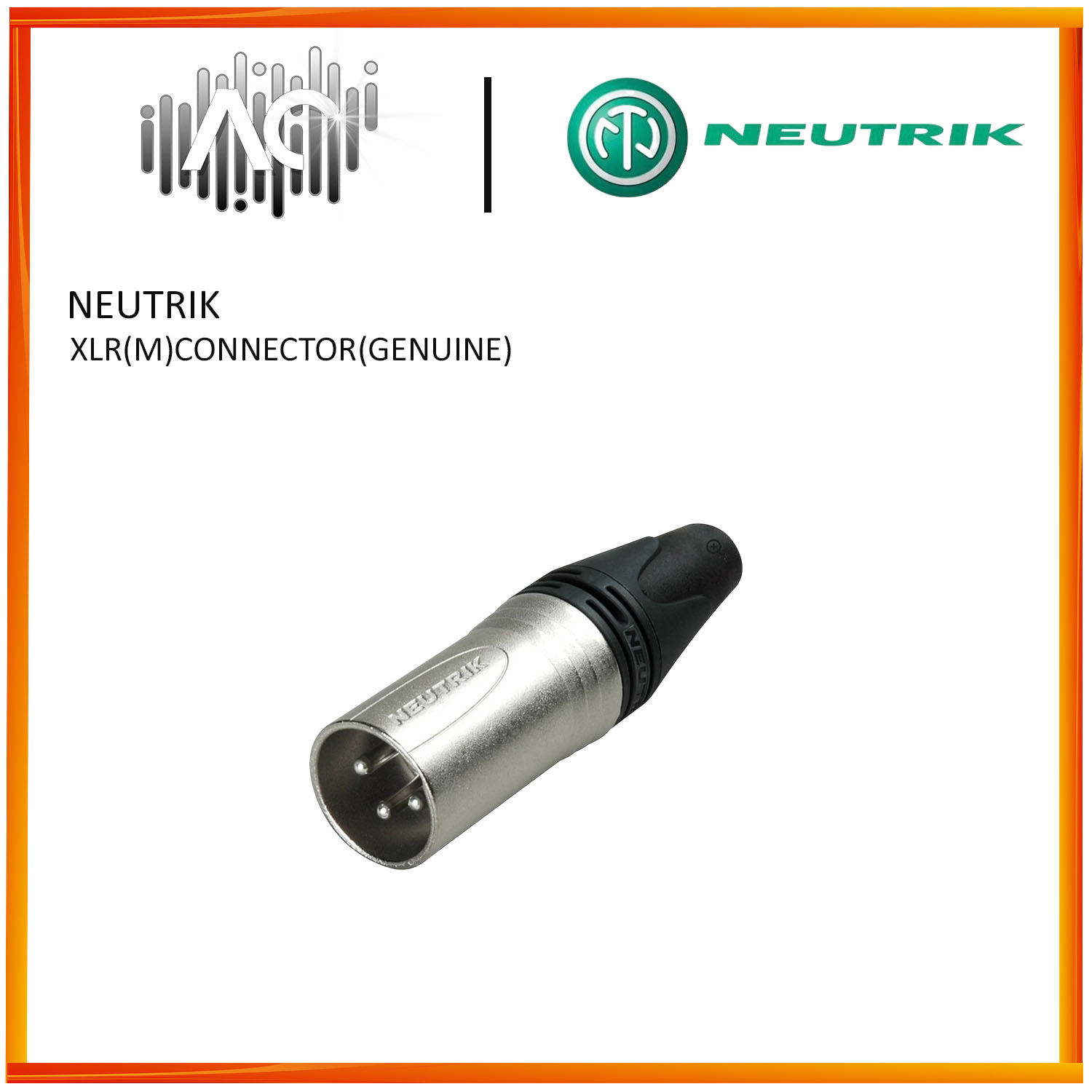

3 pole male cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

• Male connector with improved locking recess without "window", more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design – valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well protected against any damage

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

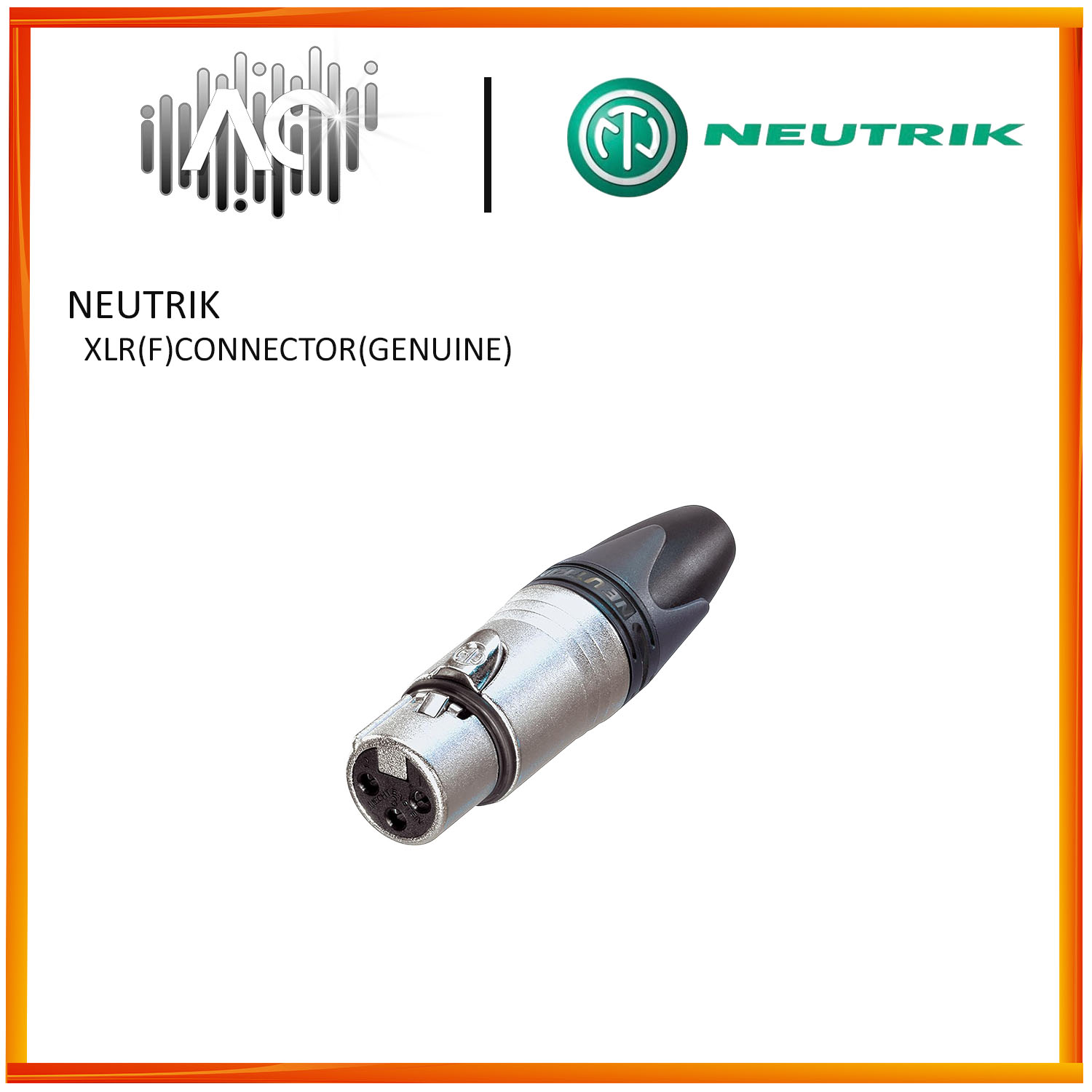

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuit
• Improved chuck type strain relief provides higher pull-out force & makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design – valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well protected against any damage

Capacitance between contacts – ≤ 4 pF

Contact resistance – ≤ 3 mΩ

Dielectric strength – 1,5 kVdc

Insulation resistance – > 10 GΩ (initial)

Rated current per contact – 16 A

Rated voltage – < 50 V

Cable O.D. – 3.5 – 8.0 mm

Insertion force – ≤ 20 N

Withdrawal force – ≤ 20 N

Lifetime – > 1000 mating cycles

Wiresize – max. 2.5 mm²

Wiresize – max. 14 AWG

Wiring – Solder contacts

Locking device – Latch lock

Material

Boot – Polyurethan

Contact plating – 2 µm Ag

Contacts – Brass (CuZn39Pb3)

Insert – Polyamide (PA66)

Locking element – Zinc diecast (ZnAl4Cu1)

Shell – Zinc diecast (ZnAl4Cu1)

Shell plating – Nickel

Strain relief – Polyacetal (POM)

Environmental

Flammability – UL 94 V-0

Standard compliance – IEC 61076-2-103

Protection class – IP 40

Solderability – Complies with IEC 68-2-20

Temperature range – -30 °C to +80 °C
