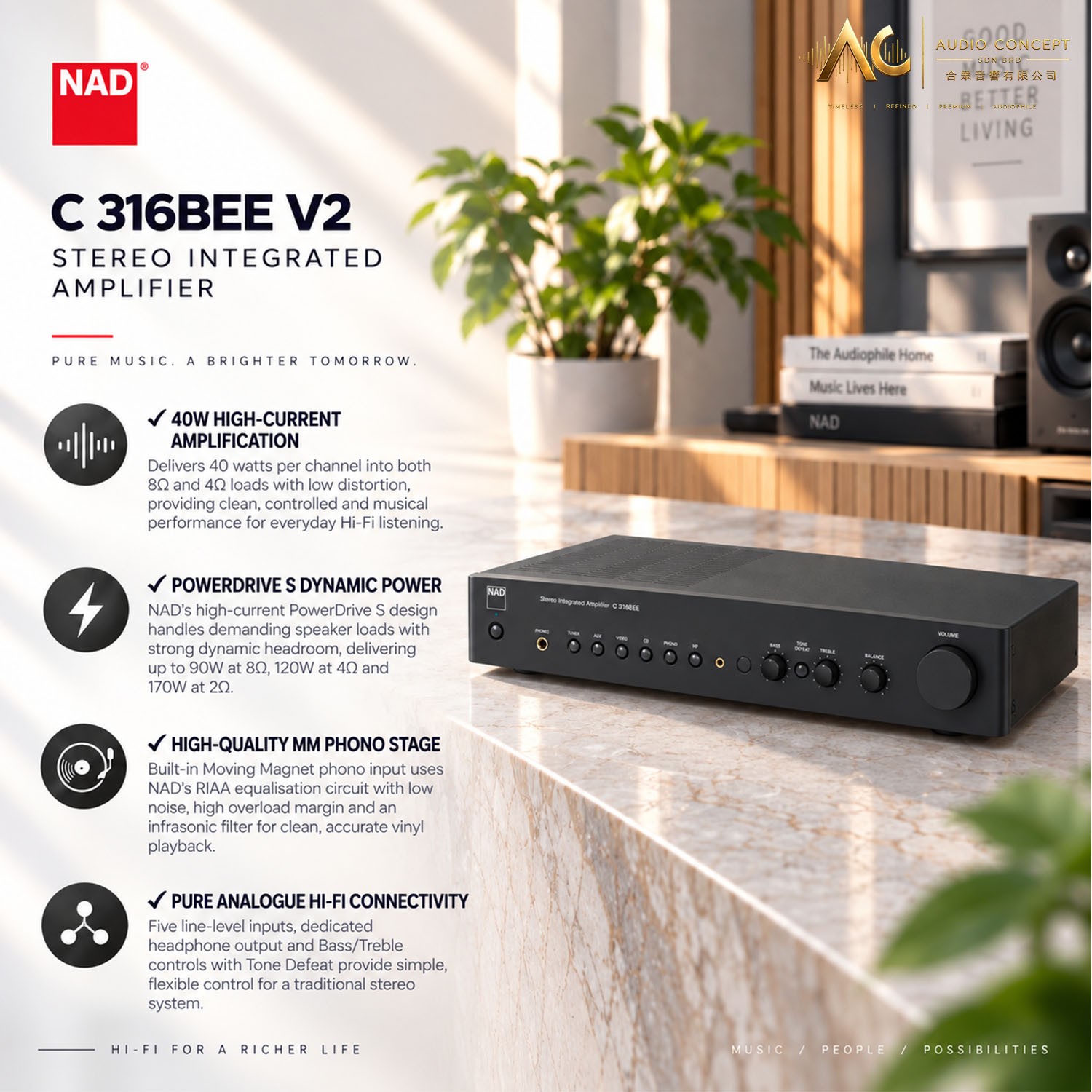

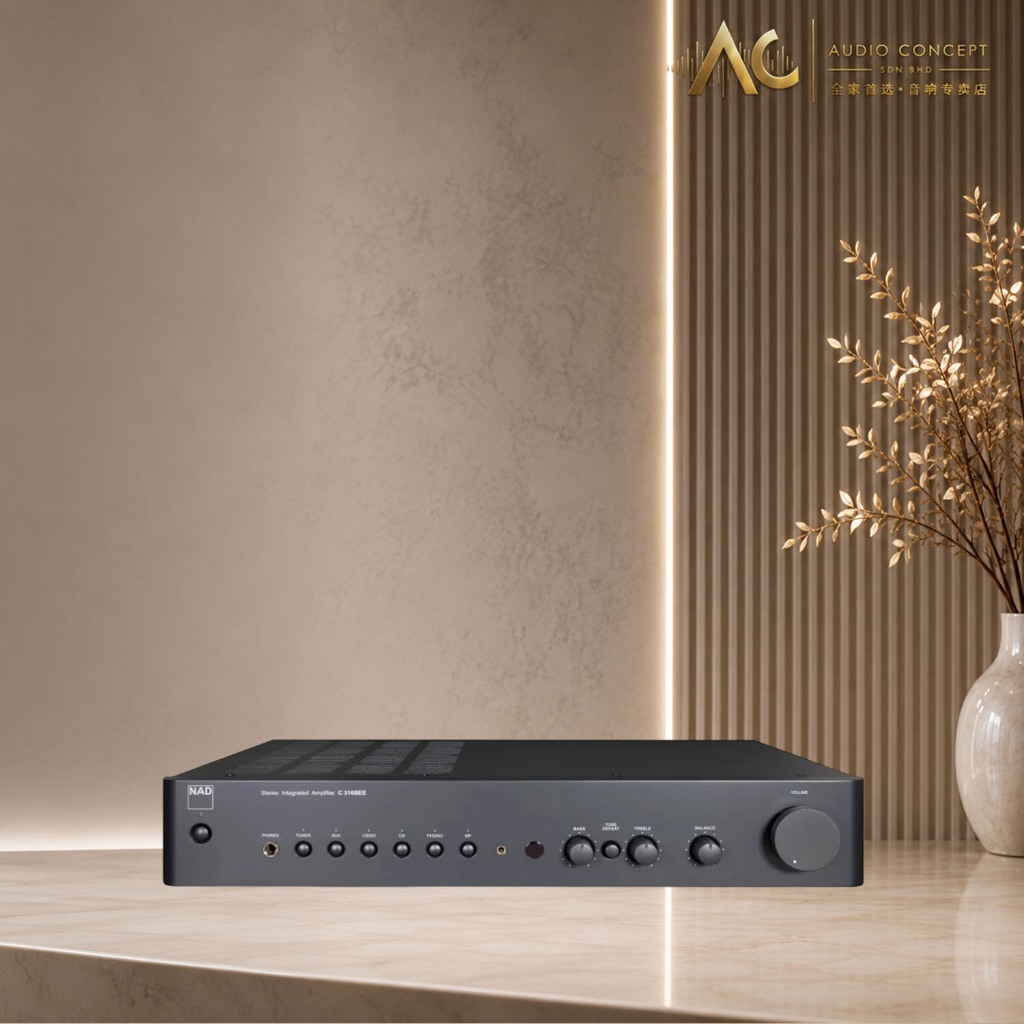

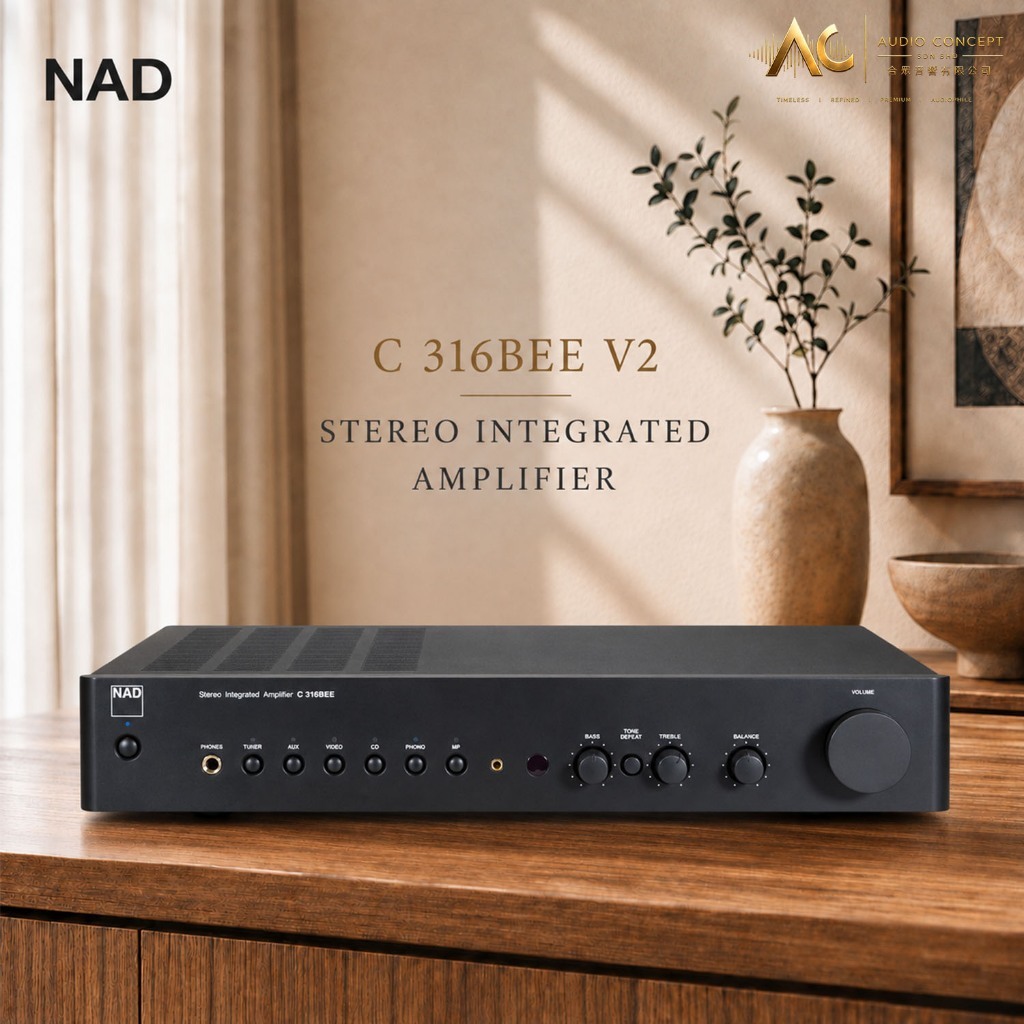

C 316BEE V2
STEREO INTEGRATED AMPLIFIER
The NAD C 316BEE V2 Stereo Integrated Amplifier is designed for listeners who want outstanding musical performance in a simple, affordable system. Built around NAD’s proven PowerDrive technology, it delivers confident, dynamic sound that brings life and energy to your music. A high-quality MM phono stage makes it an ideal partner for turntables, while its analogue-focused design keeps listening engaging and direct. Compact, refined, and purpose-built, the C 316BEE V2 offers a rewarding listening experience that exceeds expectations.

Line In / Headphone Out

• THD (20 Hz – 20 kHz) : <0.03 % in 300 ohms at 2 V out
• Signal-to-Noise Ratio : >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
• Frequency response : ±0.3 dB (20 Hz – 20 kHz)
• Output impedance : 8 ohms

Line In / Speaker Out

• Continuous output power into 8 ohms and 4 ohms : THD (20 Hz – 20 kHz)
• Signal-to-Noise Ratio : >95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) >97 dB (A-weighted, 500 mV input, unity gain in 32 ohms)
• Clipping power (at 1 kHz 0.1 % THD) : >45 W in 8 ohms >60 W in 4 ohms
• IHF dynamic power8 ohms: 90 W 4 ohms : 120 W 2 ohms: 170 W
• Damping factor : >200 (ref. 8 ohms, 1 kHz)
• Frequency response : ±0.3 dB (20 Hz – 20 kHz, Tone Defeat ON) Treble: ± 5dB at 10 kHz Bass: ± 8 dB at 100 Hz
• Channel separation : >70 dB (1 kHz)
• Maximum input level : 4.3V (1 kHz THD 0.1%)
• Input sensitivity (for 40 W in 8 ohms) : 200 mV
• Standby power : <0.5 W

Phono In / Speaker Out

• THD (20 Hz – 20 kHz) : <0.03 % (1 W to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio : >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
• Frequency response (RIAA deviation) : +0.3 dB (20 Hz – 20 kHz, Tone Defeat ON)
• Maximum input level : 71 mV (1 kHz THD 0.1%)
• Input sensitivity (for 40 W in 8 ohms) : 2.95 mV

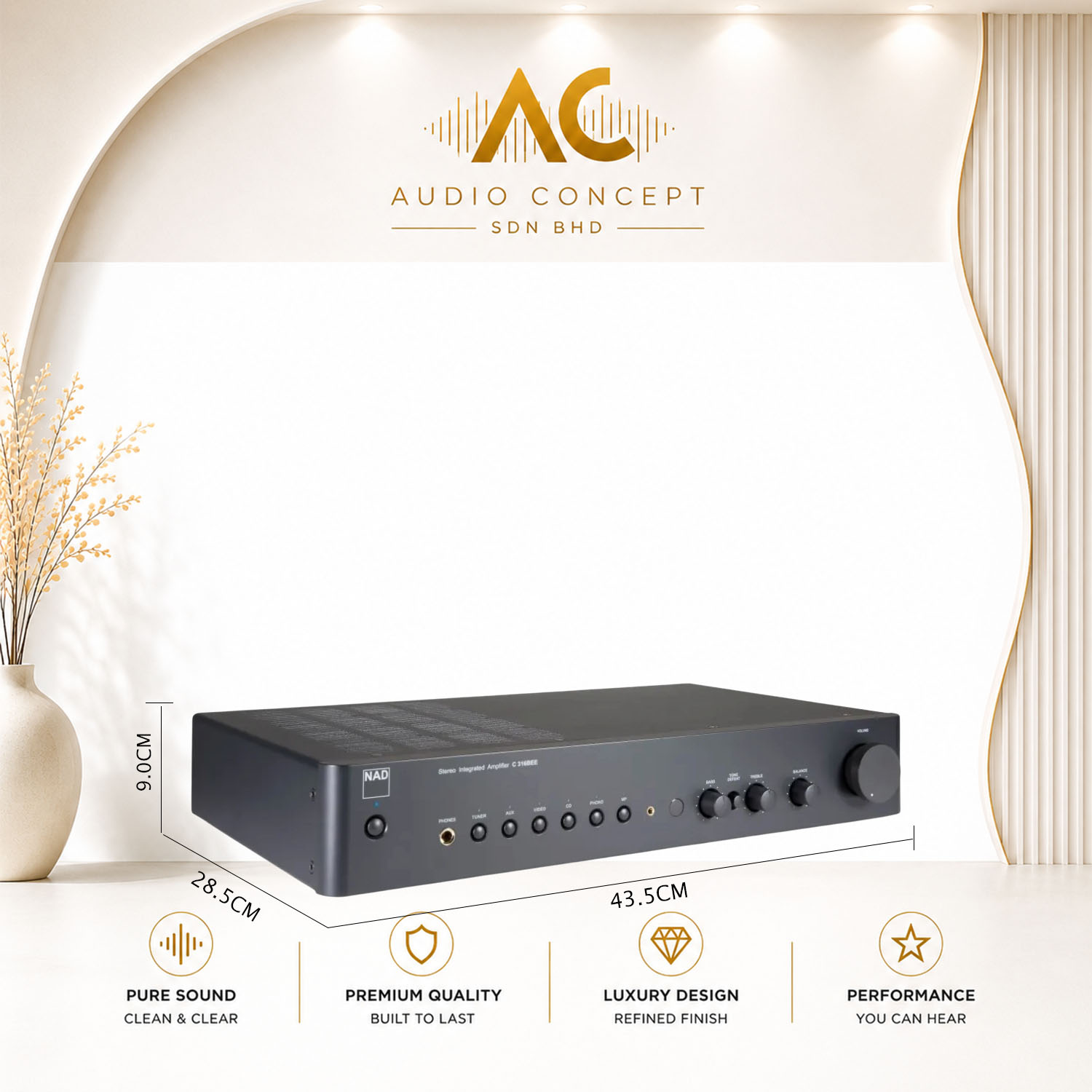

Dimension and Weight

• Gross dimensions (W x H x D) : 17 1/8 x 3 9/16 x 11 1/4 inches 435 x 90 x 285 mm
• Net weight : 5.5 kg (12.1 lbs)
• Shipping weight : 6.4 kg (14.1 lbs)

————————————-
