ZEN CAN 3

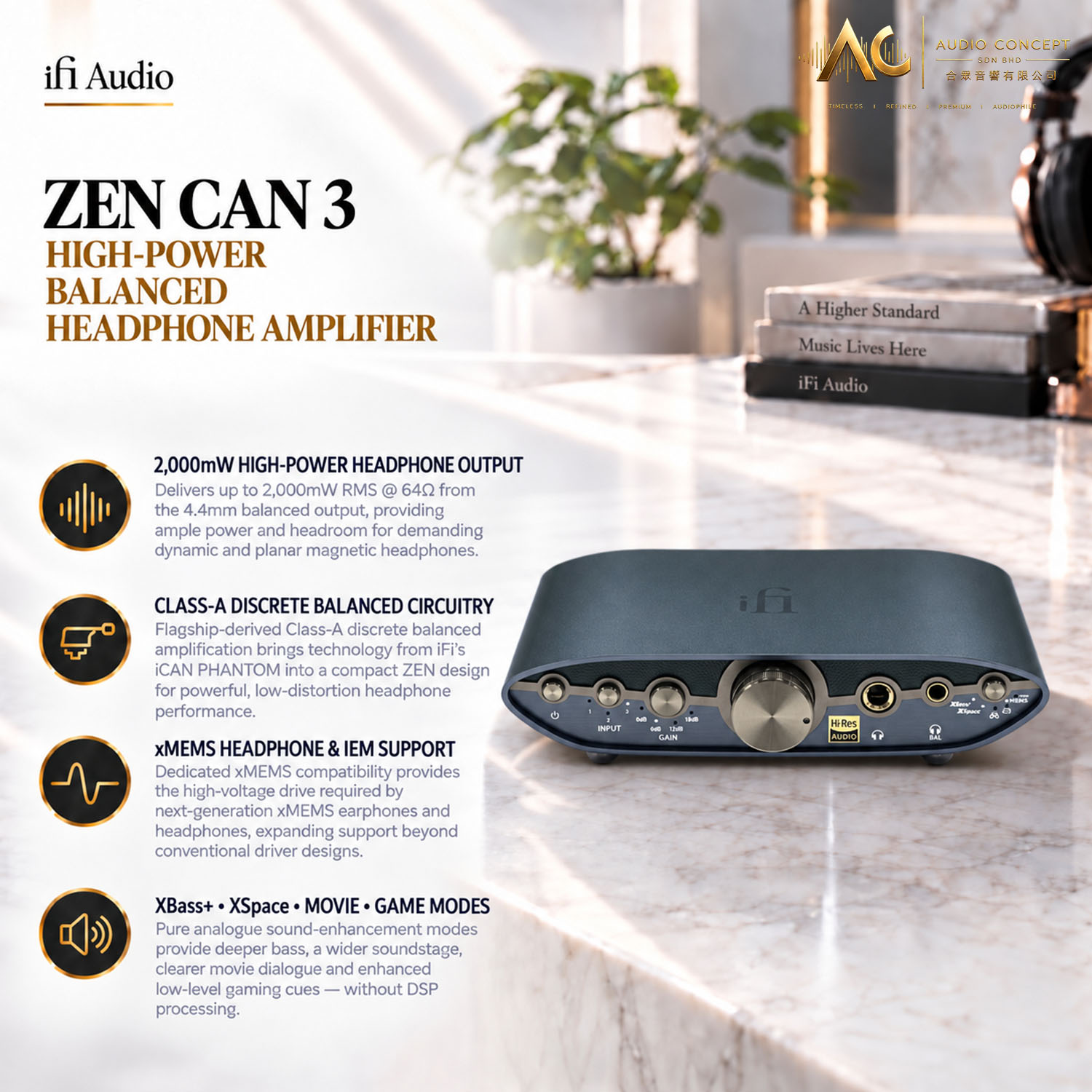

This all-analogue amplifier delivers 2,000mW of power, supports xMEMS drivers, and offers five EQ modes – including presets that electrify gaming and movie marathons.

In today's busy, fast-paced, and noisy world, we recognize the transformative power of music. Our new headphone amplifier, with its sleek design and unparalleled performance, immerses you in a world of pure harmony. Rediscover your music and experience true purity with the ZEN CAN 3

Specifications
ANALOGUE INPUTSSE
RCA L/R: 2.0V nominal @ 0dBFS, 1MegOhm Zin
SE 3.5mm: 1.0V nominal @ 0dBFS, 1 MegOhm Zin
BAL 4.4mm: 4.0V nominal @ 0dBFS, 24kOhm Zin

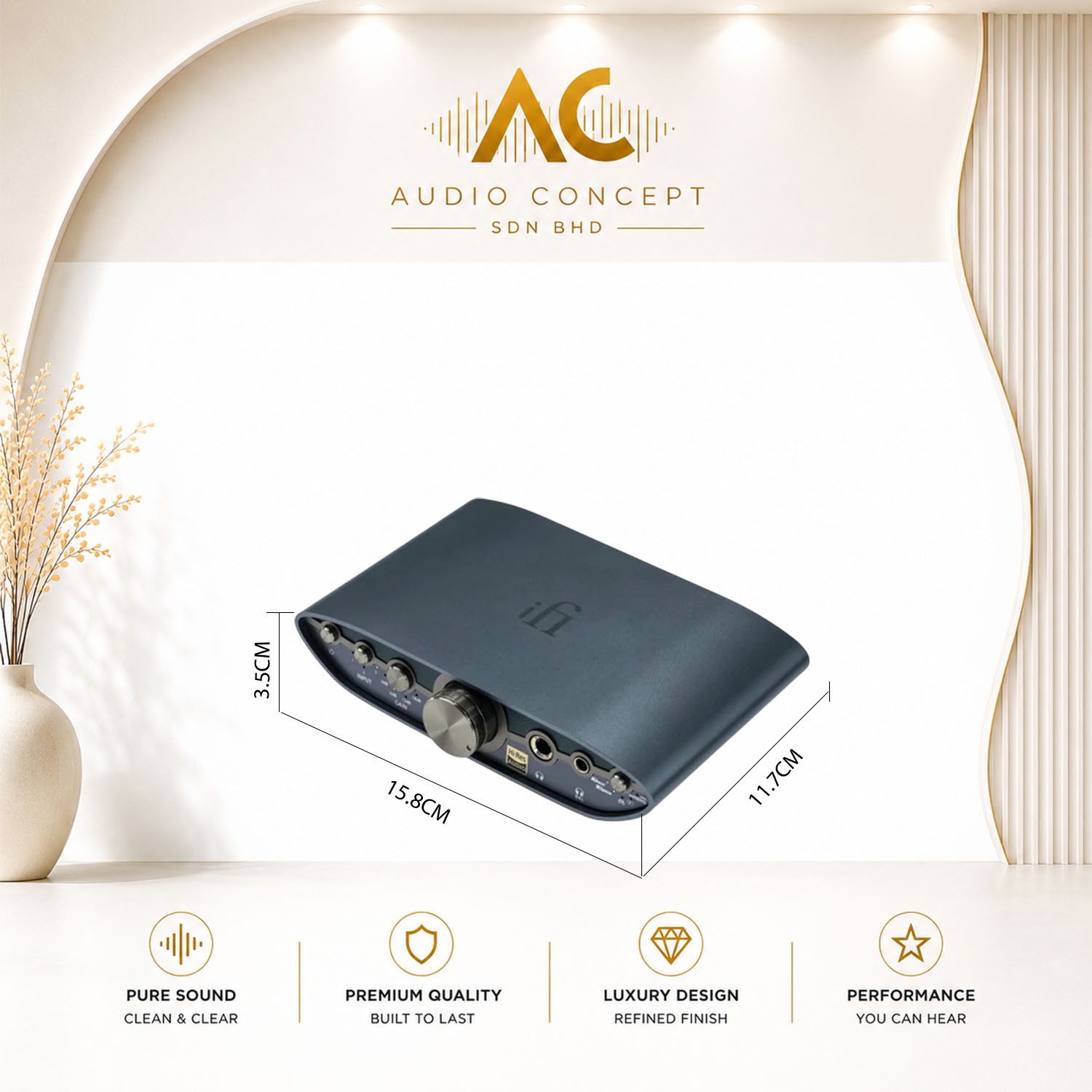

DIMENSIONS : 158x117x35mm (6.2×4.6×1.4”)
DNRLine Section : ≥119dB(A)

Headphone Section :
BAL 4.4mm : ≥119dB(A) @ 0dBFS
SE 6.35mm : ≥119dB(A) @ 0dBFS
FREQUENCY RESPONSE : 10Hz-200kHz (-3dB)
GAIN : 0dB, 6dB, 12dB, 18dB

HEADPHONE OUTPUT MAX Headphone Section :
BAL 4.4mm :>15.1V/385mW (@ 600 Ohms), >6.2V/1,200mW (@ 32 Ohms)
SE 6.35mm : >7.6V/98mW (@ 600 Ohms), >7.2V/1,600mW (@ 32 Ohms)
HEADPHONE OUTPUT RMS Headphone Section:
BAL 4.4mm : >11.5V/2,000mW (@ 64 Ohms)
SE 6.35mm : >7.2V/1,600mW (@ 32 Ohms)
INPUT VOLTAGE : DC 5V/2.5A
AC 100-240V, 50/60Hz

MAXIMUM INPUT LEVEL
SE RCA : 3.8V RMS
SE 3.5mm : 1.92V RMS
BAL 4.4mm : 7.4V RMS
NET WEIGHT : 495g (1.09 lbs)
OUTPUT IMPEDANCE Line Section : <200 Ohms

Headphone Section :
BAL 4.4mm HP : <2 Ohms
SE 6.35mm HP : <1 Ohm
POWER CONSUMPTION
No Signal : ~5W
Max Signal : ~13W
SNR Line Section : ≥125dB (7.3V 4.4mm Input 0dB @ 200kOhm)

Headphone Section :
BAL 4.4mm: ≥125dB (7.3V 4.4mm Input 0dB @ 600 Ohms)
SE 6.35mm: ≥122dB (1.9V Input 0dB @ 600 Ohms)
THD+NLine Section : 0.006% (0dB 200kOhm load)

Headphone Section :
BAL 4.4mm: <0.006% (@ 360 mW/2.4V 16 Ohms)
SE 6.35mm: <0.006% (@ 100mW/1.27V 16 Ohms)
——————————
