With generous power in reserve, AMP-F8 delivers up to 500W at 8Ω in bridged mode, driving large floorstanding speakers with ease. From a focused listening room to a more open space, it gives music the strength to expand, the control to stay composed, and the scale to feel alive.

With THD+N as low as 0.003%, AMP-F8 is engineered for faithful signal reproduction. Lower THD+N means less unwanted coloration, allowing instrument texture, vocal breath, detail retrieval, and layering to be reproduced with clarity and ease.

With a 115dB Signal-to-Noise Ratio (SNR) , AMP-F8 presents a cleaner sonic background. As the noise floor recedes, note decay, spatial layering, instrument imaging, and subtle vocal breaths emerge with greater clarity.

Dynamics, Unleashed

A large filter capacitor array with 24 custom audio-grade filter capacitors helps reduce subtle power supply ripple and support cleaner current delivery. When dynamic peaks arrive, AMP-F8 responds quickly with ample current, keeping large-scale passages powerful and composed.

Parallel Architecture

Excellent Linearity

AMP-F8 adopts a high-fidelity Class AB amplification architecture, with three pairs of precision-matched high-current MOSFETs for each channel. The parallel architecture helps distribute current more evenly, reduce distortion risks, and maintain excellent linearity across different loads. It delivers strong speaker drive with a natural, smooth sound texture.

• Model – AMP-F8
• Product Type – Stereo Power Amplifier
• Operating Mode – Class AB
• Stereo Mode – 180W RMS @8Ω / 280W RMS @4Ω
• Bridged Mode – 500W RMS @8Ω
• Input Interfaces – XLR Balanced ×1 / RCA Unbalanced ×1
• Input Impedance – XLR Balanced 10kΩ / RCA Unbalanced 10kΩ
• XLR Input Sensitivity (180W @8Ω / 1kHz) – 5.2V (23dB Gain) / 2.6V (29dB Gain)
• RCA Input Sensitivity (180W @8Ω / 1kHz) – 2.65V (23dB Gain) / 1.3V (29dB Gain)
• Power Requirement – 100V–120V 60Hz / 220V–240V 50Hz
• Maximum Power Consumption – 1200W

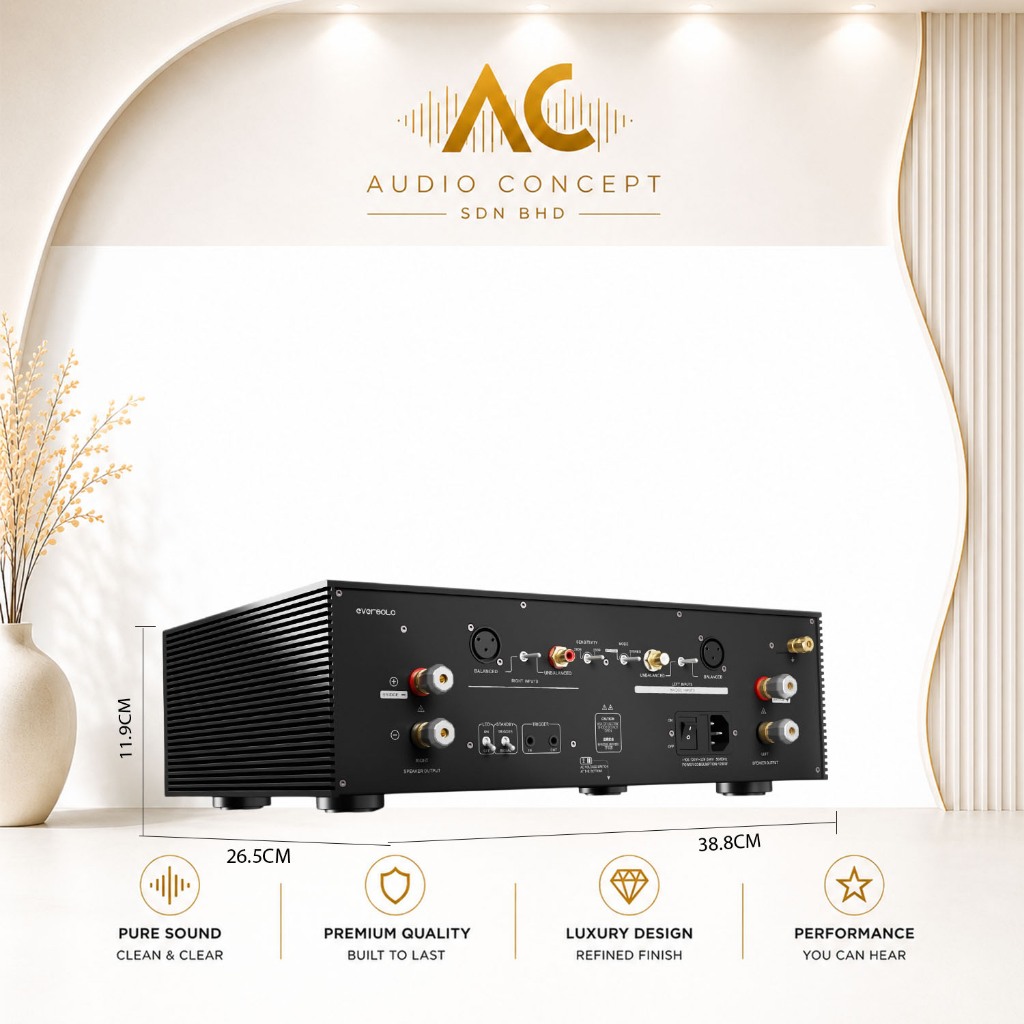

• Dimensions – 265mm × 388mm × 119mm (W × D × H)
• Net Weight – 15.9kg
• Gross Weight – 18.6kg

Built to Perform

Day After Day

Premium speaker terminals are rigorously tested for a secure connection. With an optimized internal layout, AMP-F8 maintains stable thermal performance through extended listening and high-output playback. Solid materials and refined craftsmanship help it perform consistently, day after day.

——————————————————————————————————————————
