ELYSIAN 1 is the latest addition to the flagship loudspeaker series from Wharfedale, pushing the boundaries of capability and performance. A genuine example of luxury audio, ELYSIAN offers indulgence in design, materials, aesthetics and performance, now in a more compact standmount format.

Each component part is engineered to the very highest standard. The drivers, the crossover, the cabinet every aspect has been developed in harmony and without cost constraint to push the project to its performance limit. This thorough and no-compromise approach has led the Wharfedale engineers to create a benchmark in affordable, audiophile-grade luxury loudspeakers. Cutting-edge design and class-leading technology are combined to deliver musical reproduction that will proudly challenge the world’s finest loudspeakers.

• Model – ELYSIAN 1
• General description – 2-way standmount speaker
• Enclosure type – bass reflex
• Transducer complement – 2-way
• Bass driver – 7" (180mm) coated fibre glass / matrix cone
• Treble driver – 27 x 90mm AMT
• Sensitivity (2.83V @ 1m) – 89dB
• Recommended amplifier power – 25-175W
• Peak SPL – 108dB
• Nominal impedance – 4Ω (compatible 8Ω)
• Minimum impedance – 3.8Ω
• Frequency response(+/-3dB) – 49Hz ~ 22kHz
• Bass extension(-6dB) – 44Hz
• Crossover frequency – 2.6kHz
• Cabinet Volume(in litres) – 21.6L

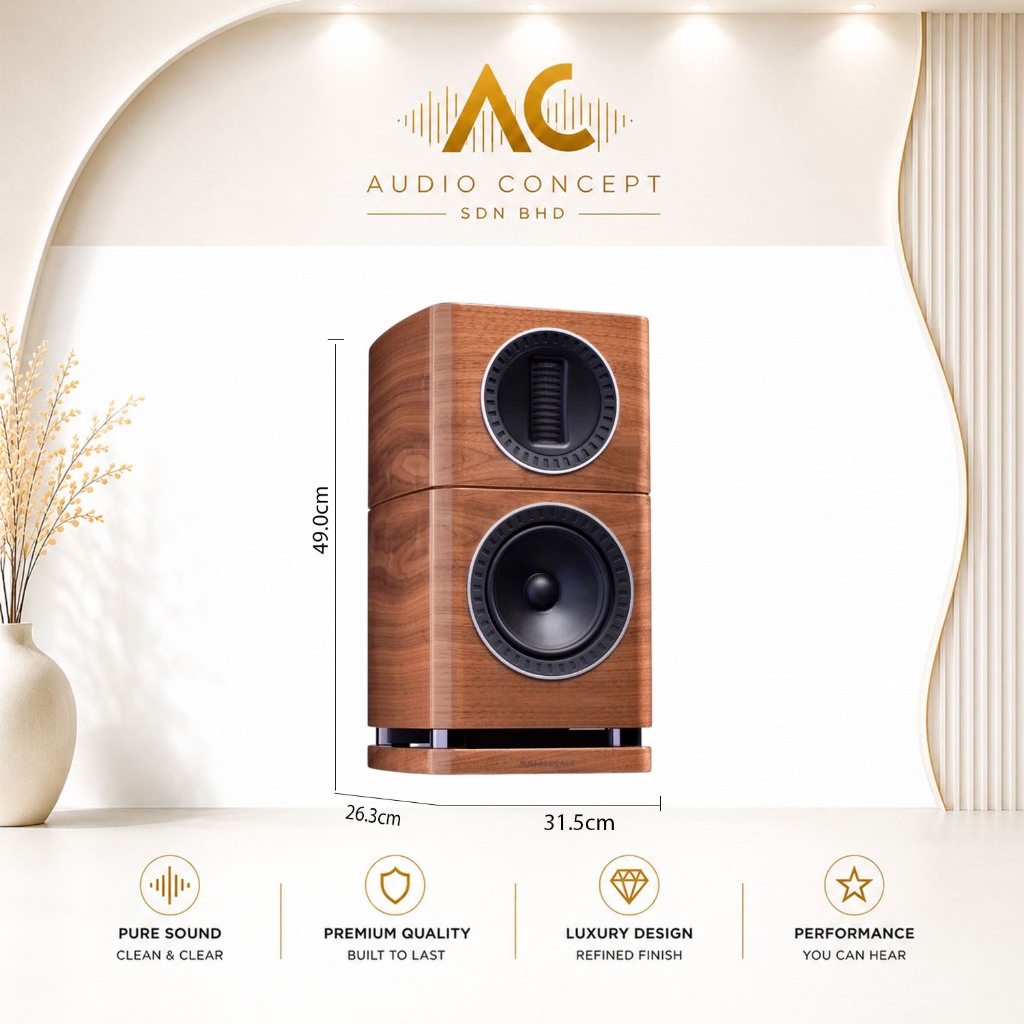

• Dimensions (mm) – Height (on plinth – )490mm / Width263mm / Depth (with terminals)(285+30)mm
• Net weight – 15kg/pcs

A proven concept in the form of the award winning ELYSIAN 4 and ELYSIAN 2 models, the ELYSIAN 1 continues with the specially engineered AMT HF driver; a radically different way of moving air, using a large, pleated, lightweight diaphragm driven across its surface by rows of strategically placed metallic strips immersed in a strong magnetic field. The pleats in the diaphragm contract and expand under the influence of the musical drive, squeezing the air between them to form the desired waveform. Featuring an ultra-lightweight diaphragm material called ‘PET‘ and an acoustically damped rear chamber, the ELYSIAN AMT stands out against comparable high-frequency units by delivering even more spellbindingly clear and sweetly extended high frequencies.

Operating in a two-way configuration, ELYSIAN 1 is also fitted with a custom, glass fibre matrix cone bass unit. Terminated with a highly flexible rubber surround and driven by a specially developed low-distortion motor system, the 180mm (7”) bass units are capable of reaching down below 49Hz, revealing the full body and impact of percussion, stringed and wind instruments with detail and depth that other standmount speaker options just cannot reach.

—————————————————————————
