Since 1982, Wharfedale’s famous DIAMOND speakers have served as the classic entry point to true high-fidelity sound, their exceptional sonic value for money earning numerous ‘product of the year’ accolades in the UK and around the world. This autumn, with the introduction of the all-new DIAMOND 12 Series, Wharfedale once again raises the bar for affordable, high-performance loudspeakers.
With this newest addition to the record-breaking, award-winning DIAMOND 12 series, Wharfedale takes surround sound to the next level with the DIAMOND 12 3D surround speaker.
Covering the audience in a dome of sound, following Wharfedale’s long history in cinematic and home theatre solutions, you can now have a 3D cinema-audio listening experience at home with your DIAMOND 12 series configuration
Klarity affords focus
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low colour and expression
The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A magnet of forces
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system
A voice coil beyond this class
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
DIAMOND highs
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate
Recommended amplifier power – balances the acoustic load and improves the SPL (sound pressure level) measurement.
- Model – Diamond 12 3D
- General description – 2-way atmos speaker
- Enclosure type – closed-box system
- Transducer complement – 2-way
- Bass driver – 4"(100mm) advanced PP Cone
- Treble driver – 1"(25mm) Textile Dome
- AV shield – No
- Sensitivity(2.83V @ 1m) – 82dB
- Recommended amplifier power – 20-100W
- Peak SPL – 95dB
- Nominal impedance – 8Ω Compatible
- Minimum impedance – 4.3Ω
- Frequency response(+/-3dB) – 110Hz ~ 20kHz
- Bass extension(-6dB) – 90Hz
- Crossover frequency – 3kHz
- Cabinet Volume (in litres) – 2.7L

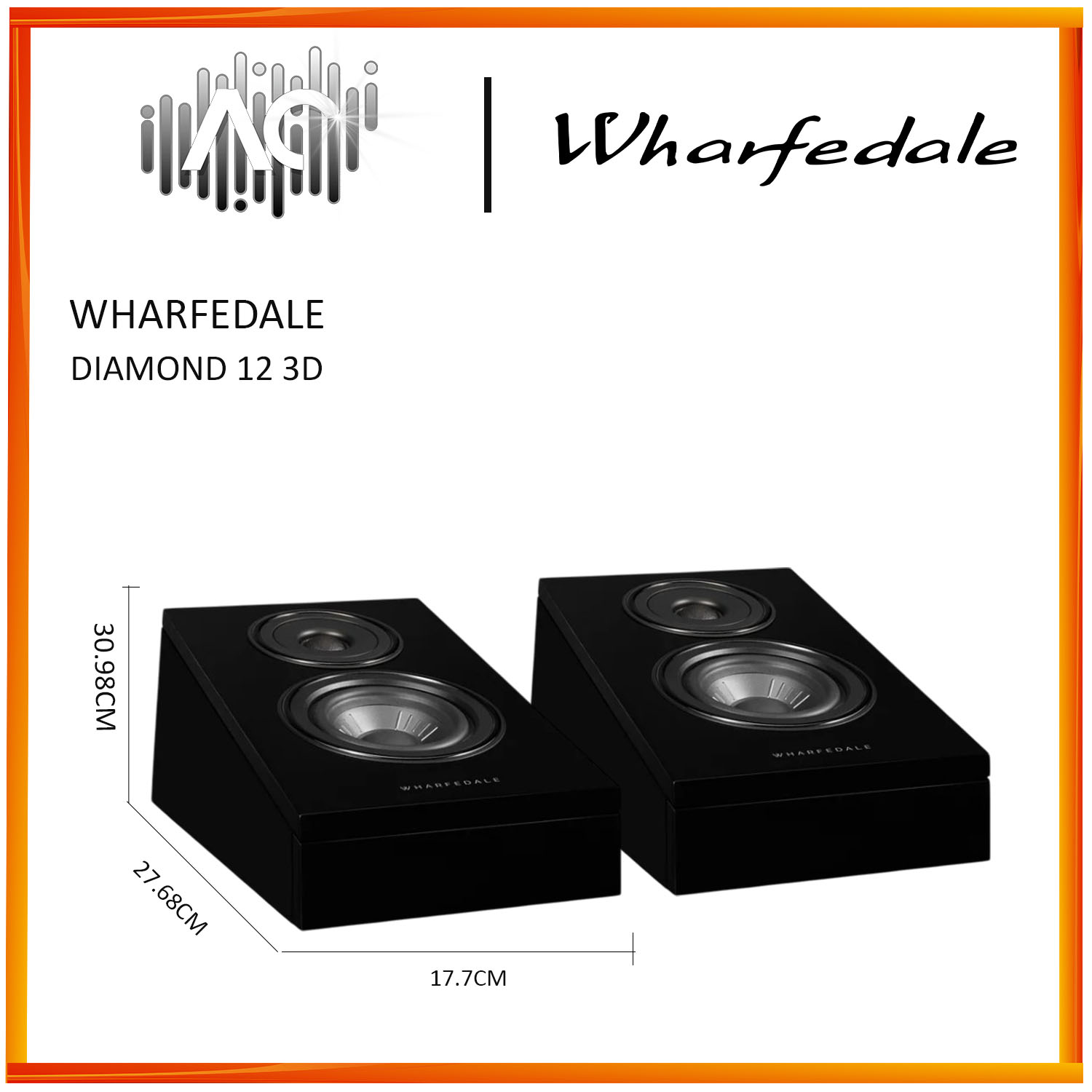

- Dimensions ( H x W x D ) – 145 x 180 x 310 mm
