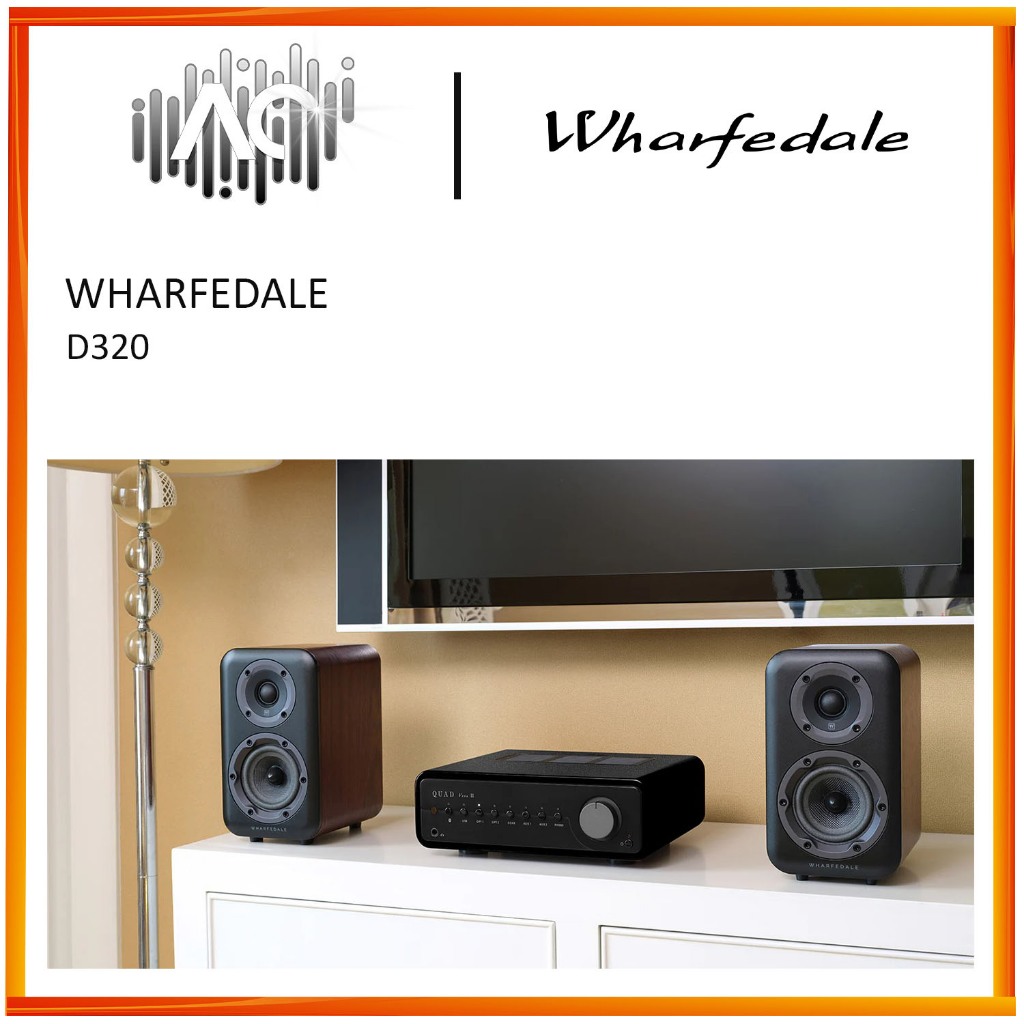

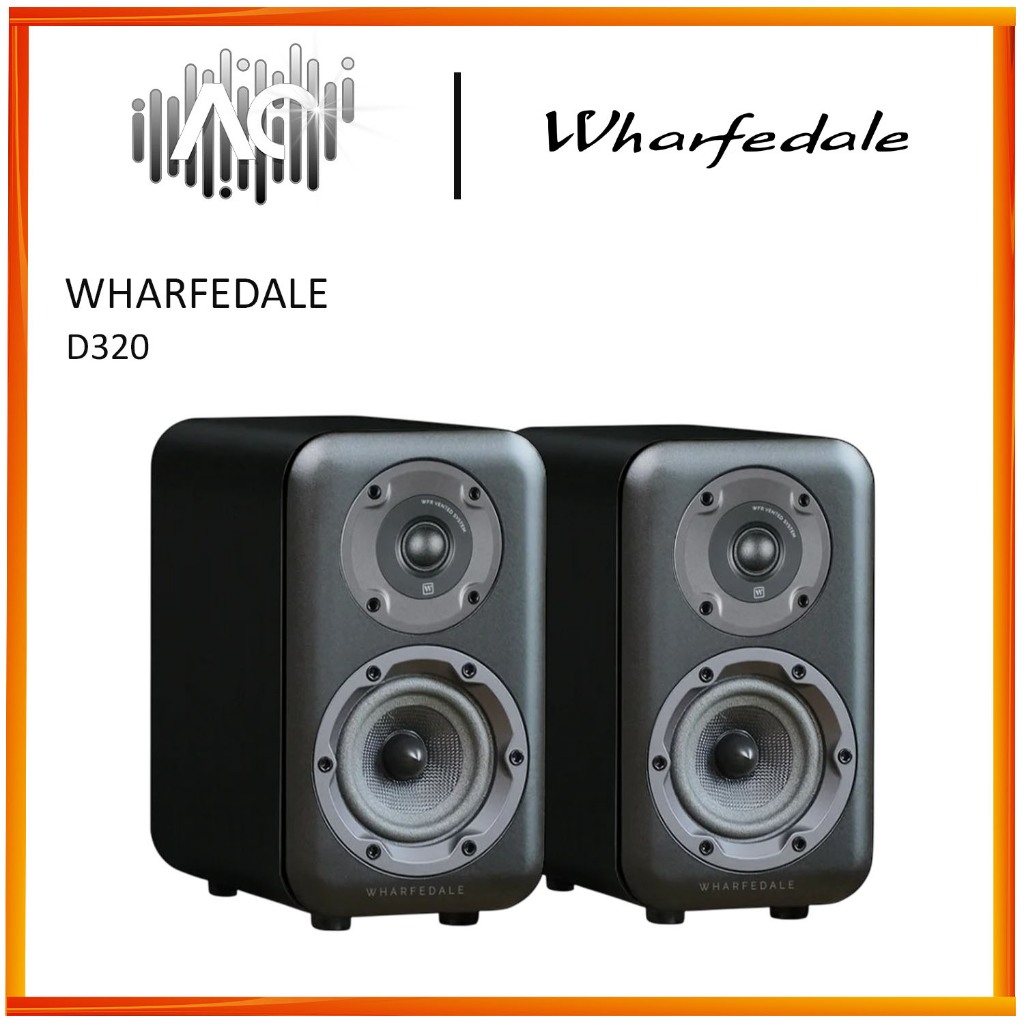

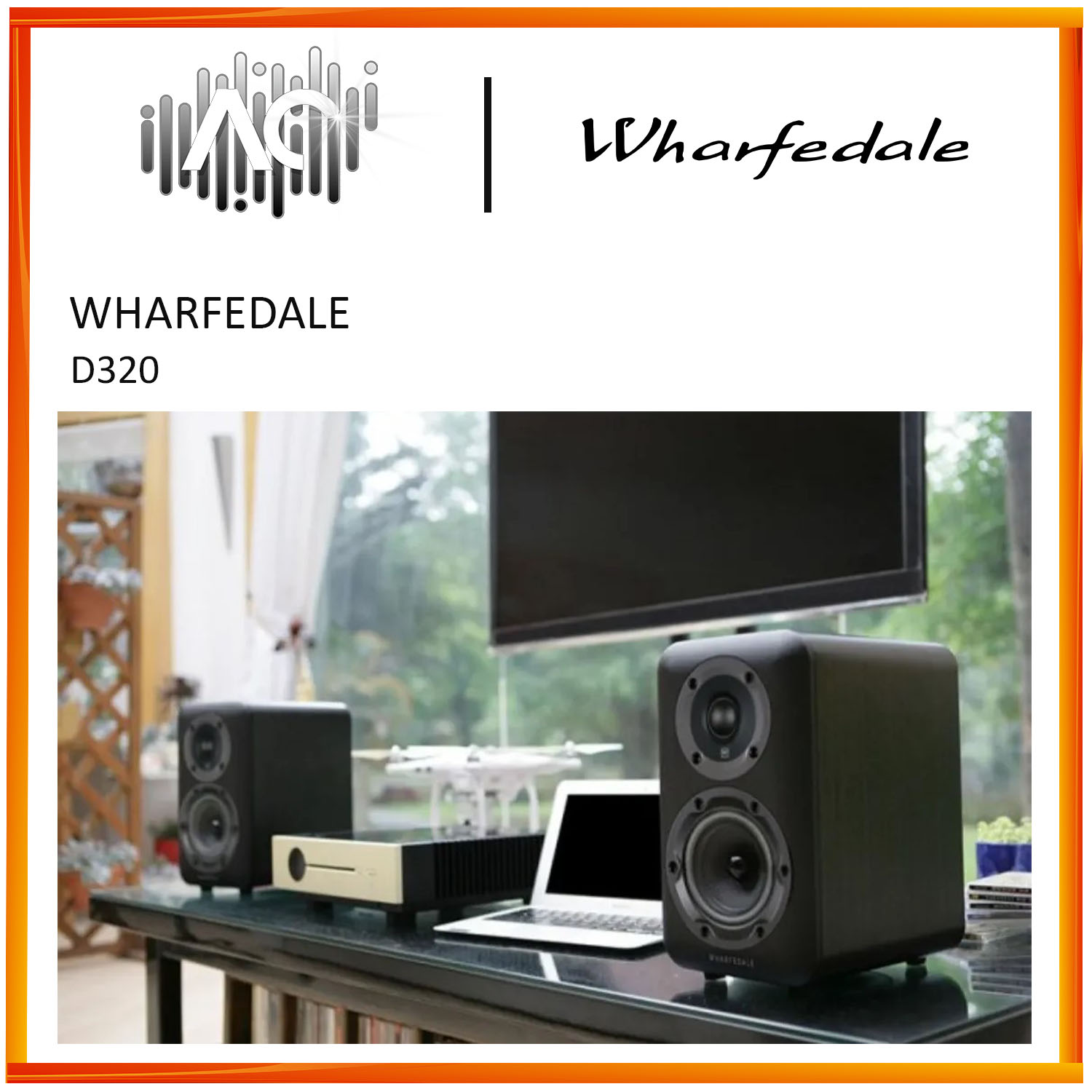

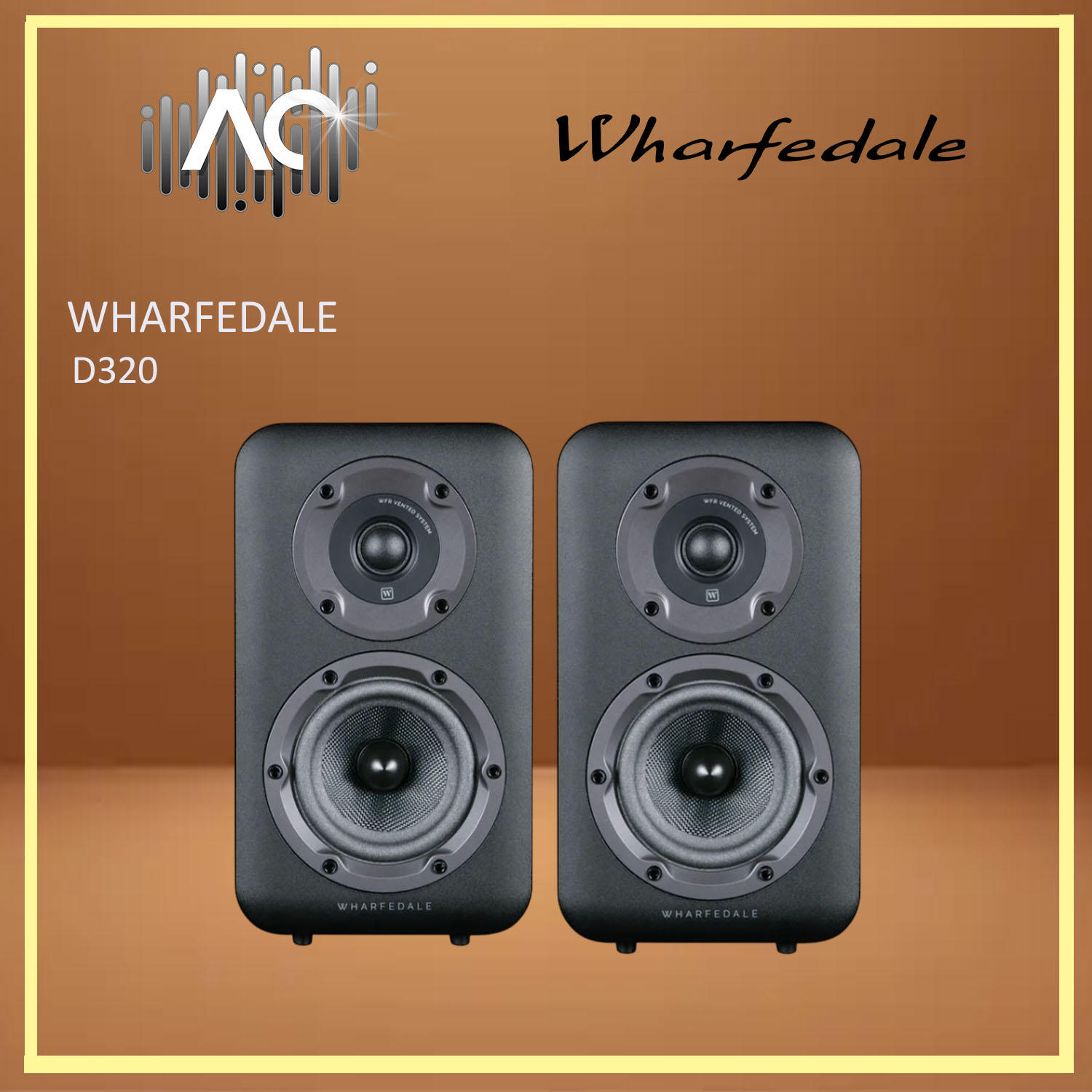

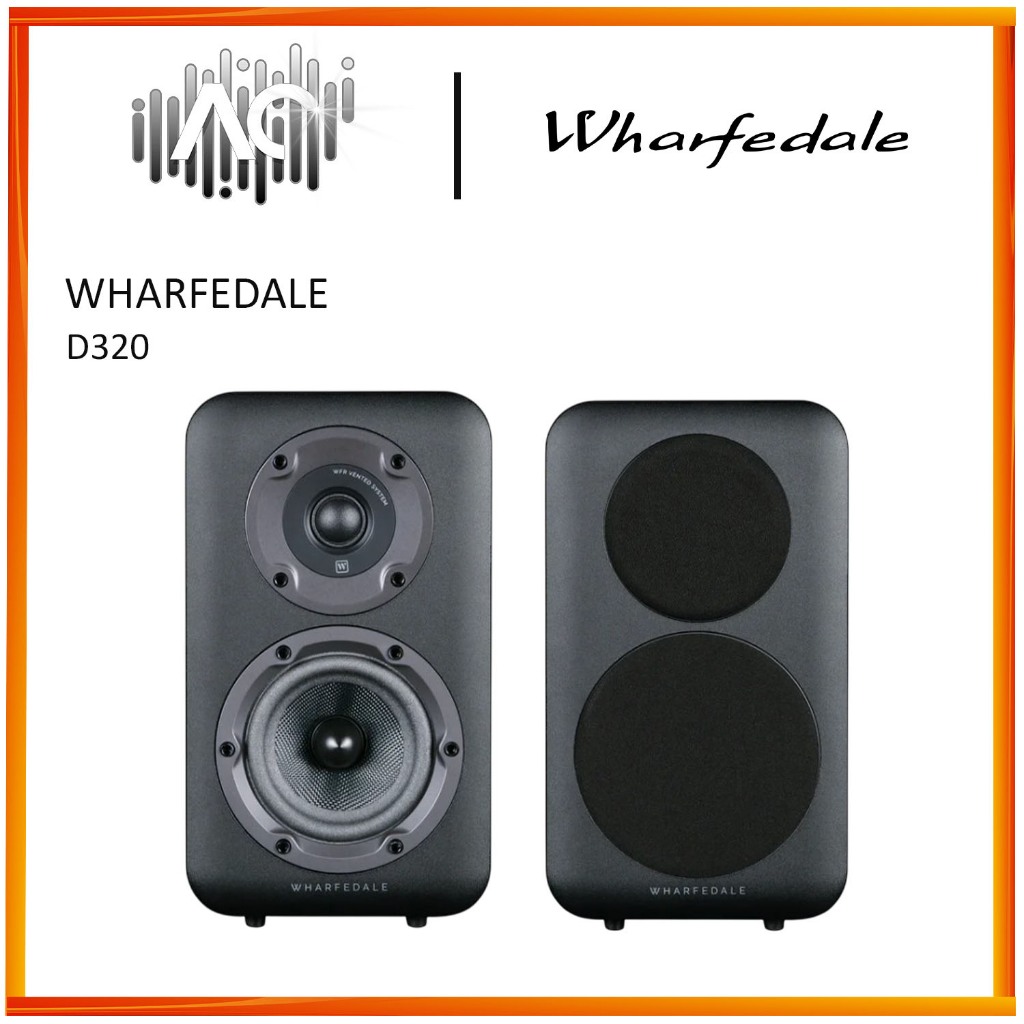

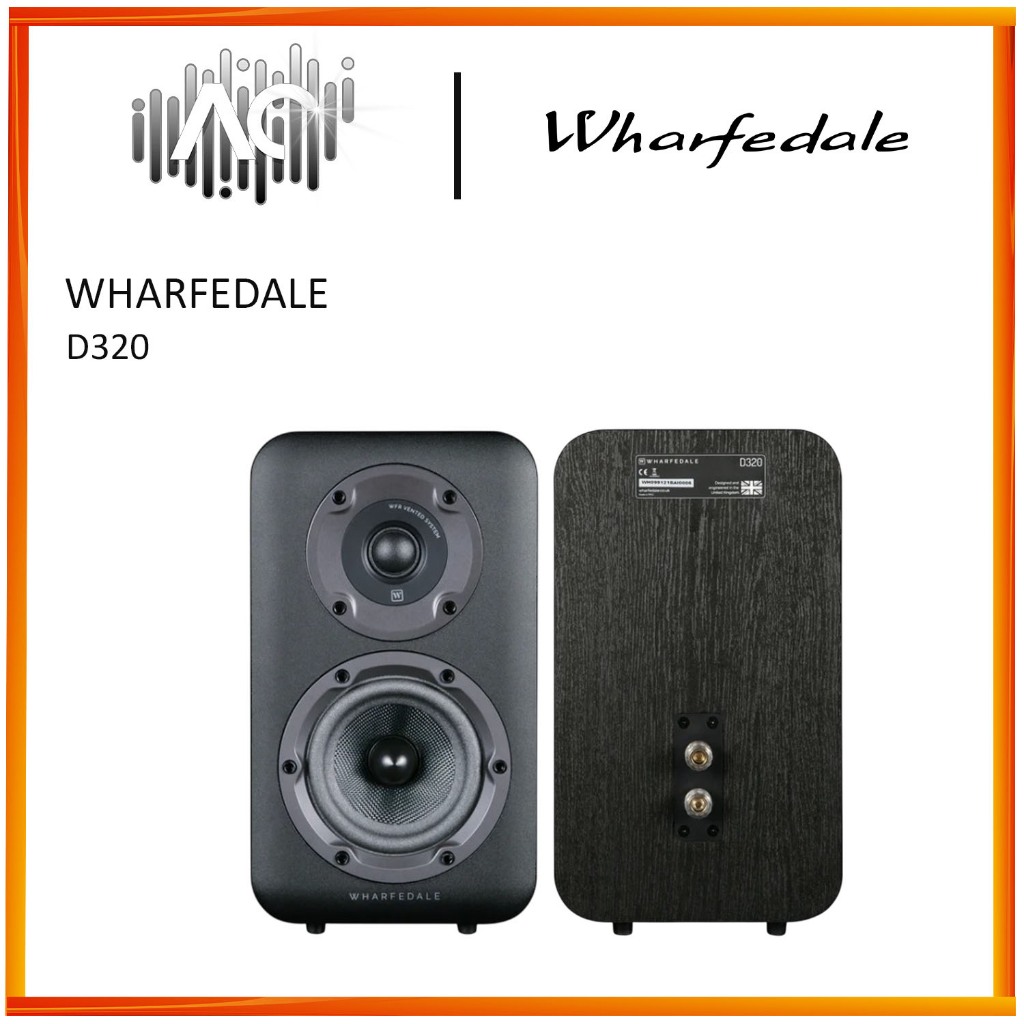

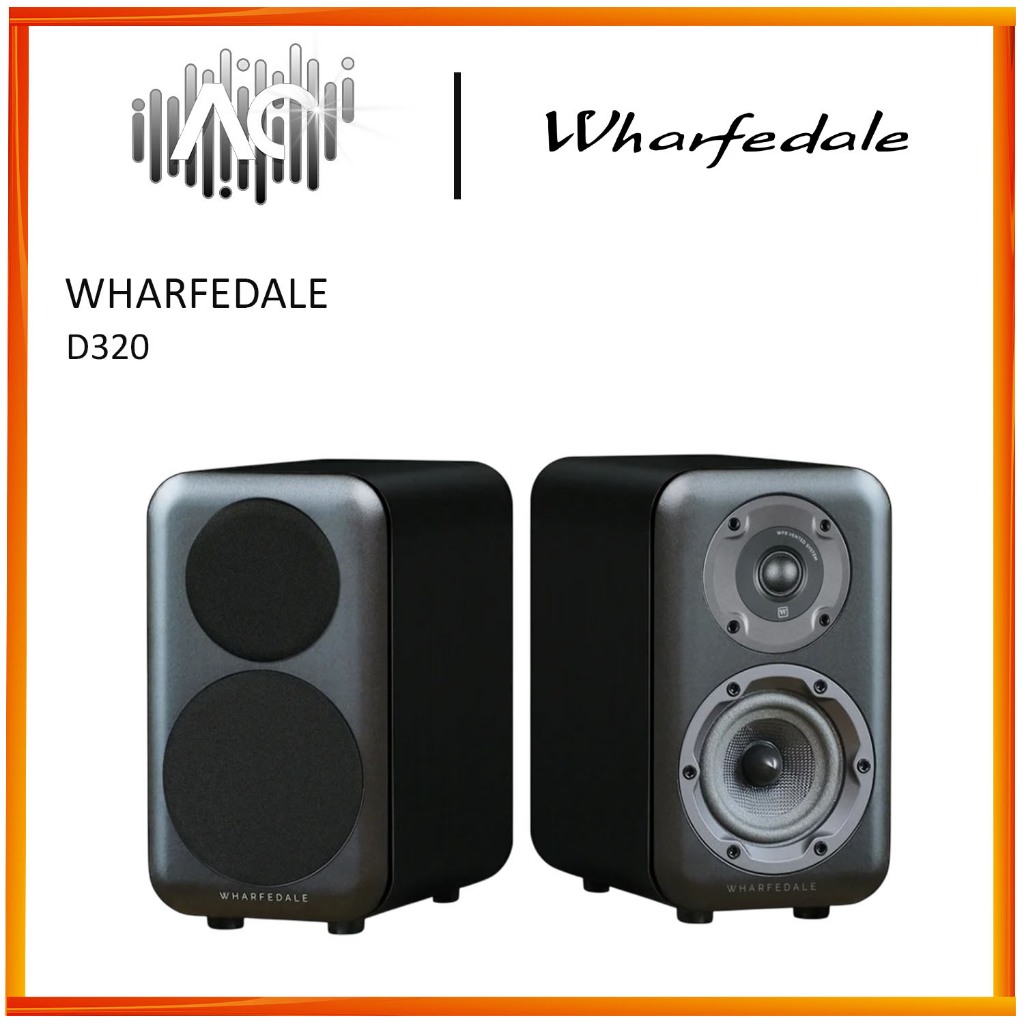

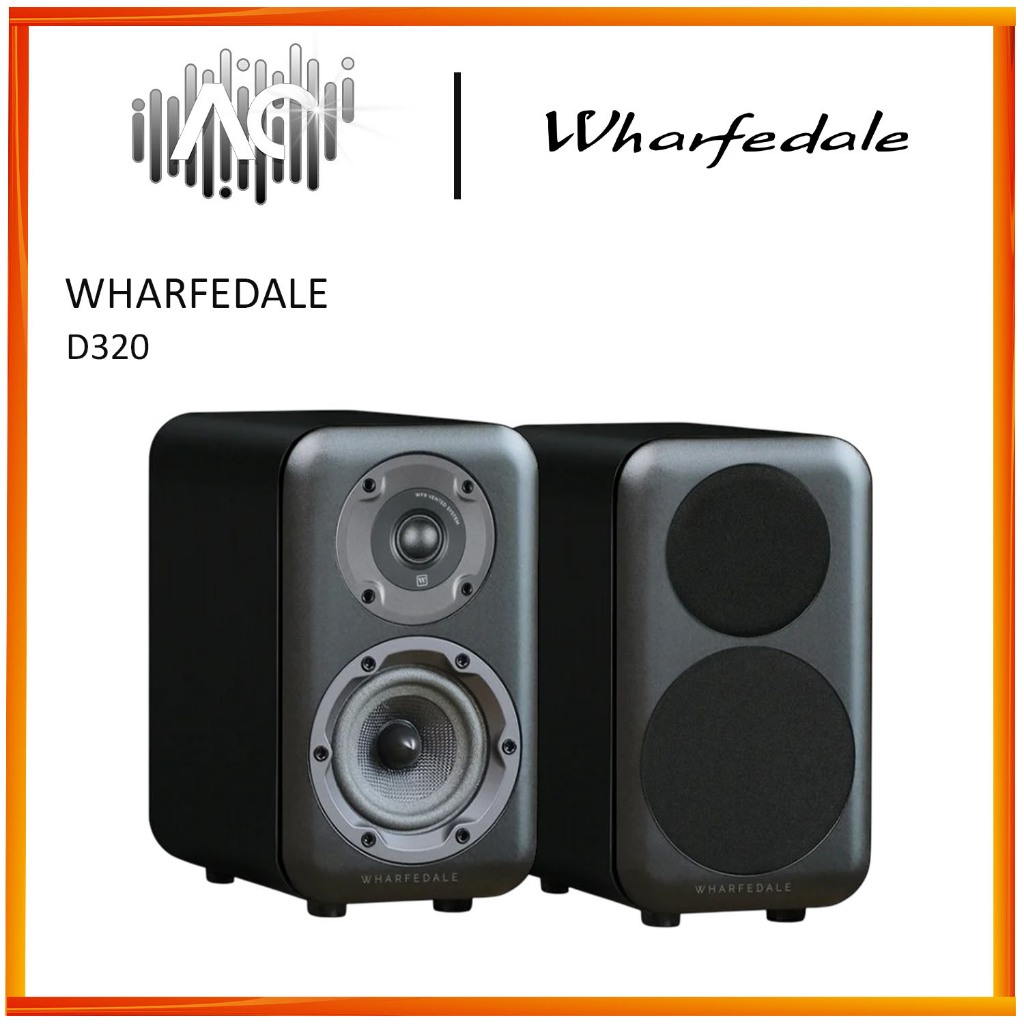

Wharfedale D320 Bookshelf Speaker

In the early 1980s, Wharfedale created the blueprint for modern ‘budget’ hi-fi speakers. Almost four decades on, Wharfedale again redefines the low-cost, high-performance speaker concept with the all-new range, the D300 Series.

Running concurrently with the existing Diamond 11 Seblack finishries, attaining even lower price points, the D300 series has modishly styled enclosures incorporate many similar technologies, re-designed and engineered specifically for this new range. The drive units and bass reflex system are especially noteworthy

Model – D320

• General description – 2-way bookshelf speaker

• Design philosophy and core technology
• Enclosure type – bass reflex
• Transducer complement – 2-way

ABR

• Bass driver – 5″(130mm) Black Woven Kevlar Cone

Midrange driver

• Treble driver – 1″(25mm) Soft Dome

Full-range driver

• AV shield – No
• Sensitivity (2.83V @ lm) – 87dB
• Recommended amplifier power – 25 – 100W

• Peak power handling
• Peak SPL – 95dB
• Nominal impedance – 4Ω(Compatible 8Ω)
• Minimum impedance – 3.8Ω
• Frequency response (+/-3dB) – 56Hz ~ 20kHz
• Bass extension (-6dB) – 50Hz
• Crossover frequency – 2.4kHz
• Cabinet Volume (in litres) – 8.2L

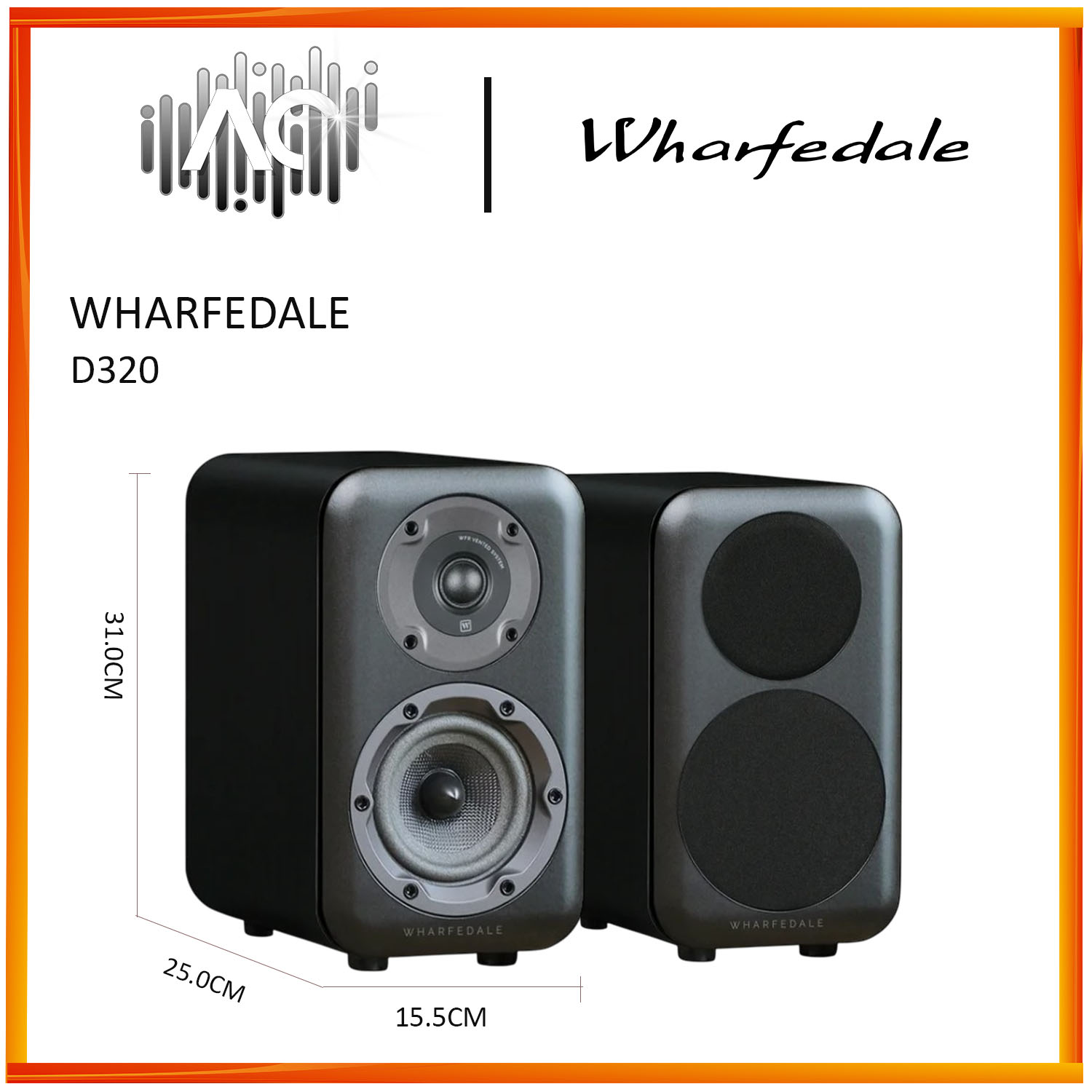

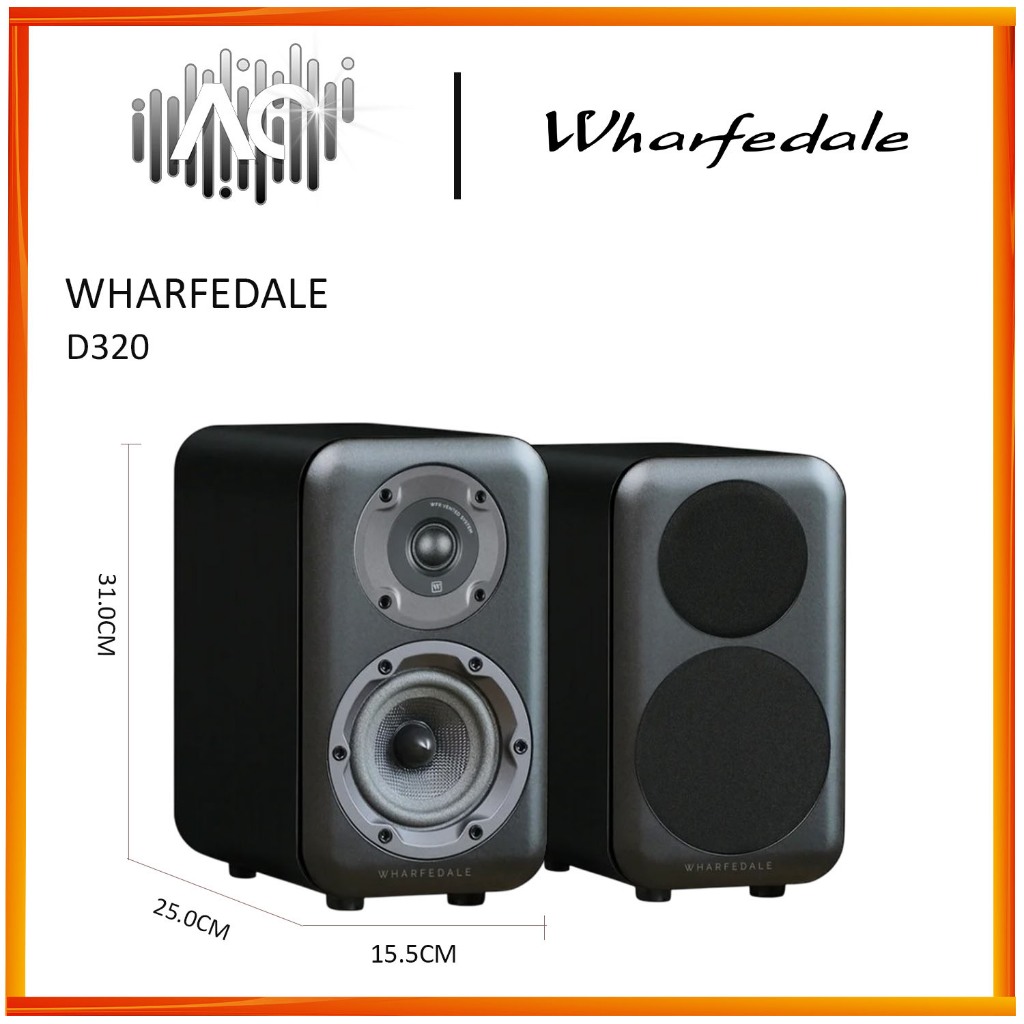

Dimensions (mm)

• Height (on plinth) – (310 + 10)mm
• Width – 180mm
• Depth(with terminals) – (250 + 28)mm
• Carton size – 490 x 345 x 425mm
• Net weight – 5.0kg/pcs
• Gross weight – 11.5kg/ctn
