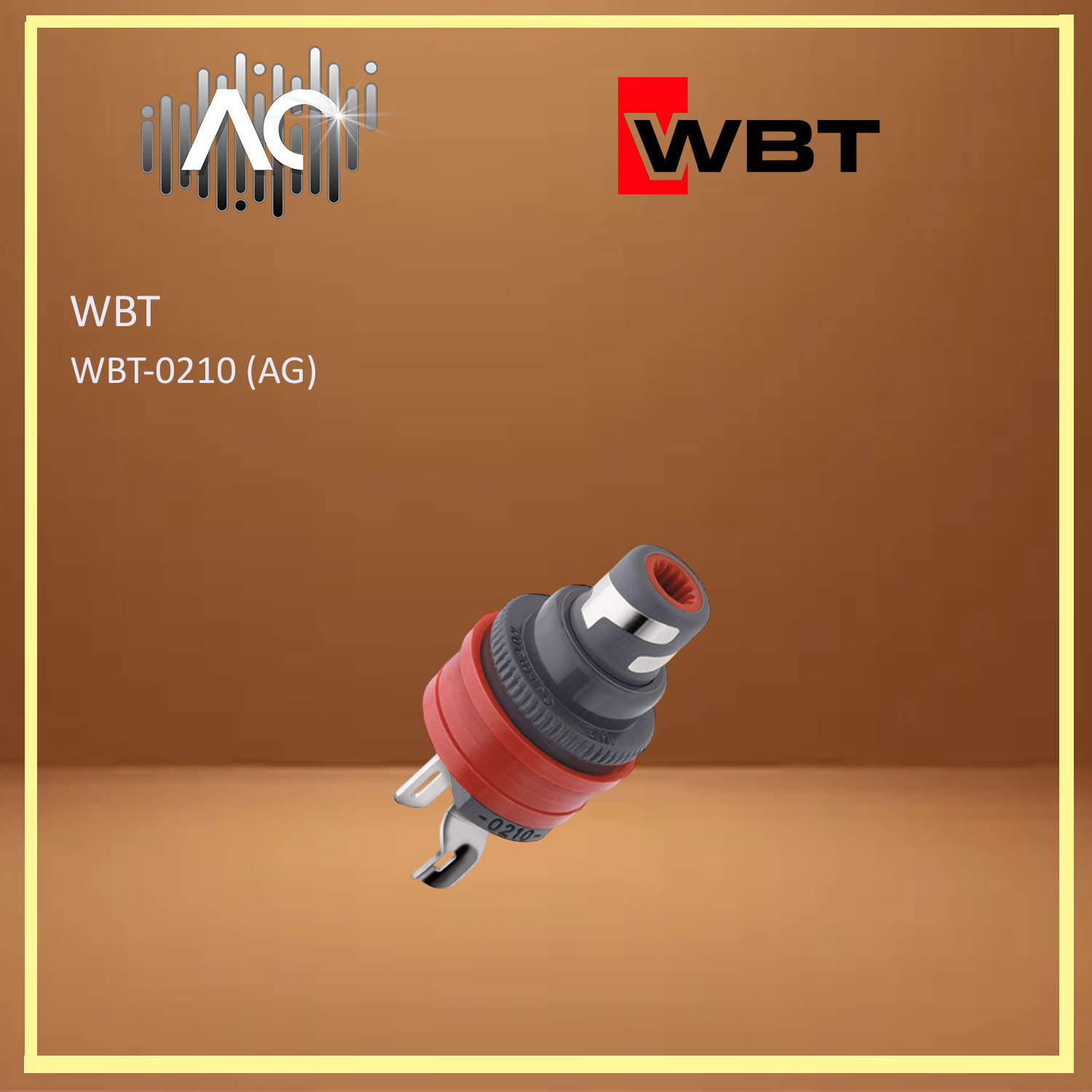

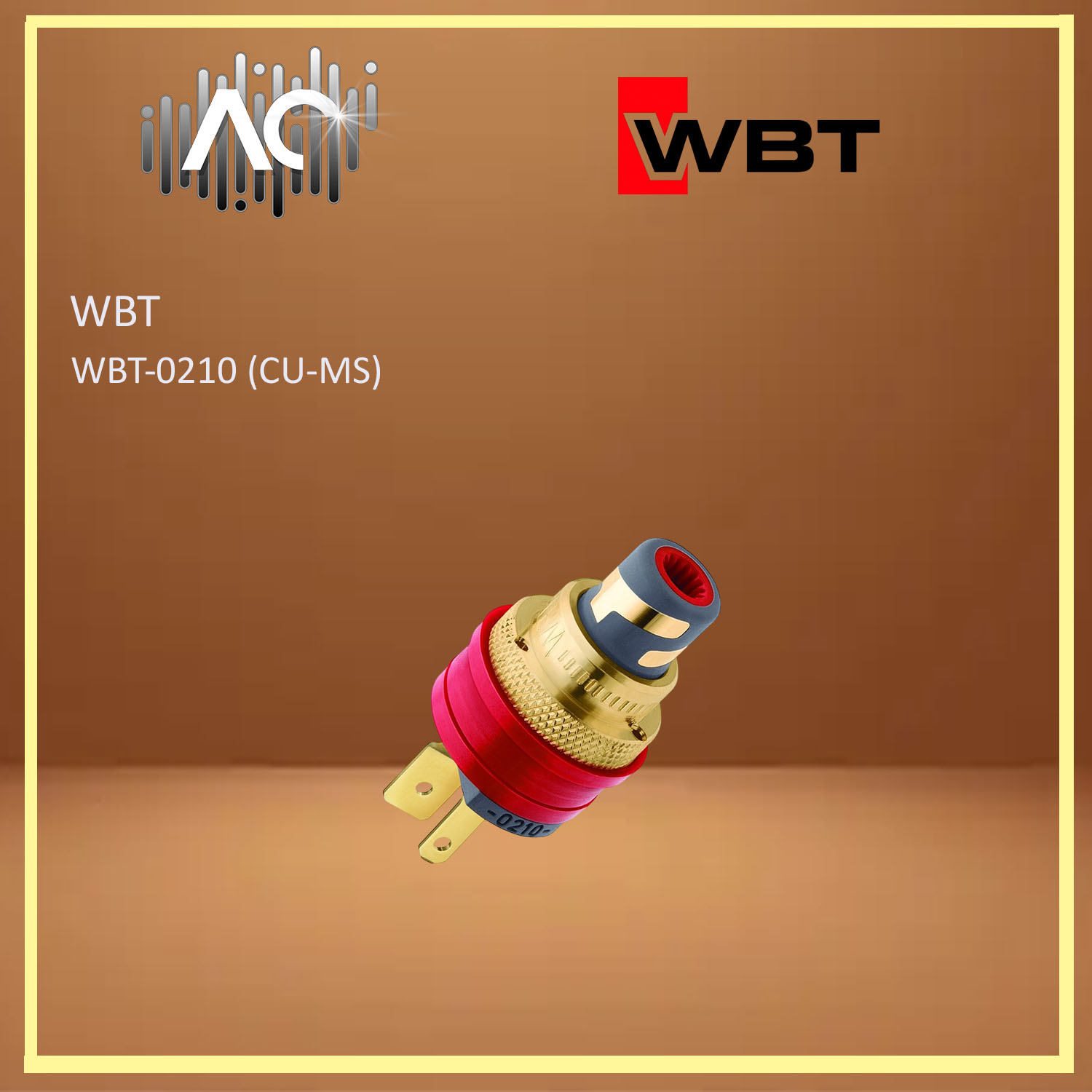

Your RCA type socket WBT-0210 is a product of the nextgen™ series, the next generation of WBT‘s RCA type connectors. nextgen™ RCA connectors do feature a wealth of innovations, all of them good enough to fill audiophiles with enthusiasm. On their nextgen™ products WBT uses exclusively pure copper or
fine silver in case of the silver version WBT-0210 Ag as conductor material. Ultimate conductivity therefore is guaranteed. Thanks to the gold and platinum finish the contacts are perfectly protected against corrosion. The conductors filigree construction insures that the nextgen™ socket is totally free from interferences
especially from eddy current. Therefore, you will enjoy a much more dynamic and precise signal transmission in your nextgen™ connectors.
The special bonus: 75 ohms characteristic impedance
Other than conventional RCA type connectors which feature a characteristic impedance between 20 and 35 ohms due to their construction, the impedance of nextgen™ connectors are set on 75 ohms. This makes the nextgen™ WBT-0210 the first and true socket offering an ultra bandwidth in comparison to standard RCA sockets. Especially with the extreme bandwidth of digital connections in HiFi and Home Cinema the match of the characteristic impedance is crucial. Why shouldn‘t you please yourself giving you this special bonus for your digital connections?
Outer contact
The outer contact of the nextgen™ RCA socket features a double-wave design embracing the socket‘s solid Ultramid1 body. The intelligent wave form insures that a reliable contact is made any time with any standard RCA type plug and, of course, with the new nextgen™ WBT RCA connectors. It is very much due to this special wave design and to the reduction of the conductor material to the optimum, that WBT-0210 is free from distortions including eddy current. Furthermore, the nextgen™ technology is also the secret of WBT-0210‘s ability of transferring signals ultra rapidly.
The inner contact
The inner contact is designed as an active spring contact which guarantees that even in conjunction with a RCA type plug not complying with the standards a reliable contact is made. For this purpose the inner socket features a biprism contact surrounded by a spring ring made of bronze.
Materials
- internal and external socket made of pure E-Cu (99.996%) (or fine silver in WBT-0210 Ag)
- socket body made of Utramid1
Surfaces
- both surfaces: single-layer direct gold-plating with Au 0.3 μm, free from ferromagnetic properties
Connections
- for soldering, for cables up to 1.5 mm2 (17AWG), flat push-on cable shoe
Mounting
- comfortably by hand using the knurled nut
- for series processing we recommend the use of (external) circlip pliers
- recommended distance of two sockets from center to center: 17.78 mm = 7/10 inch (standard)
