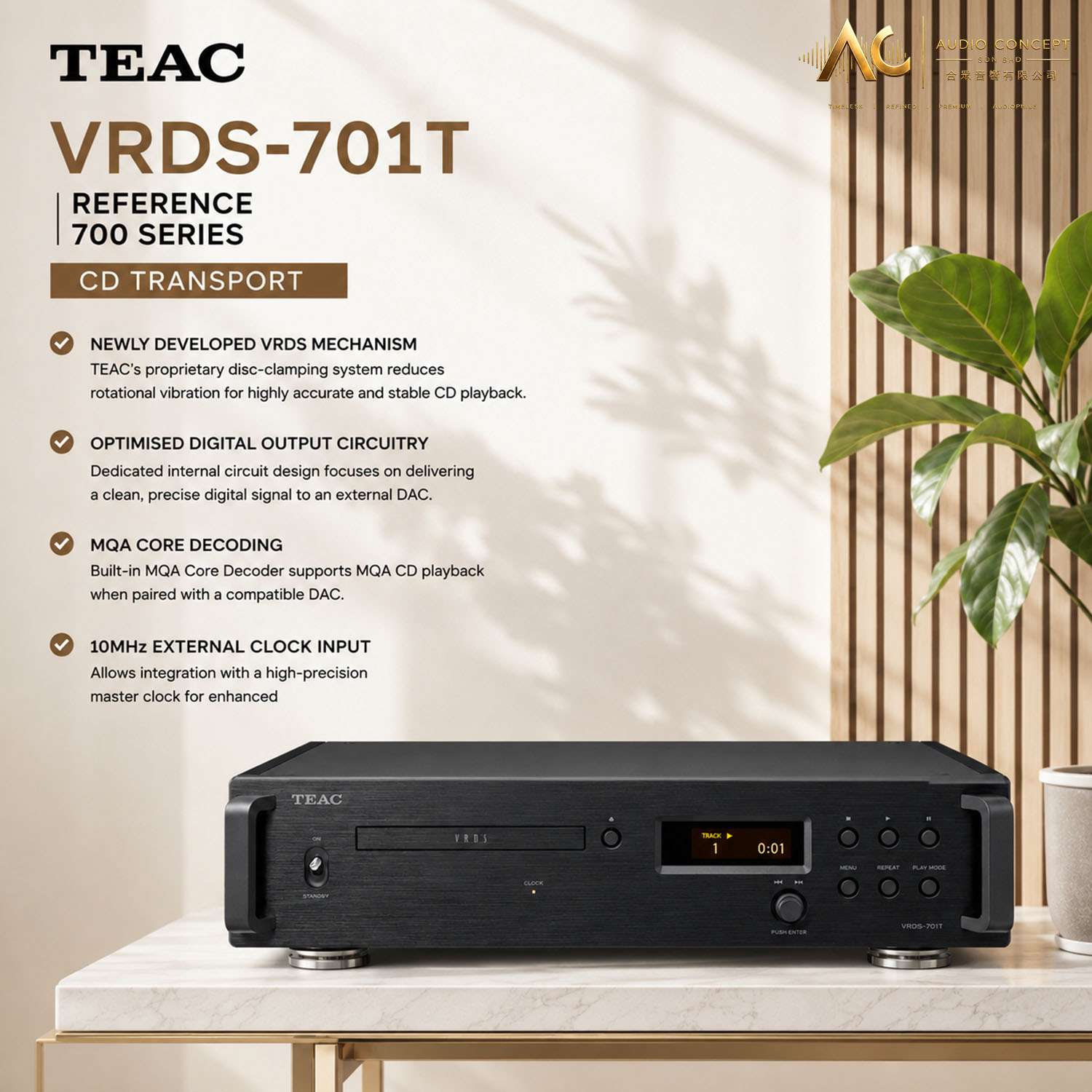

The VRDS-701T CD transport utilizes our newly-developed VRDS mechanism.

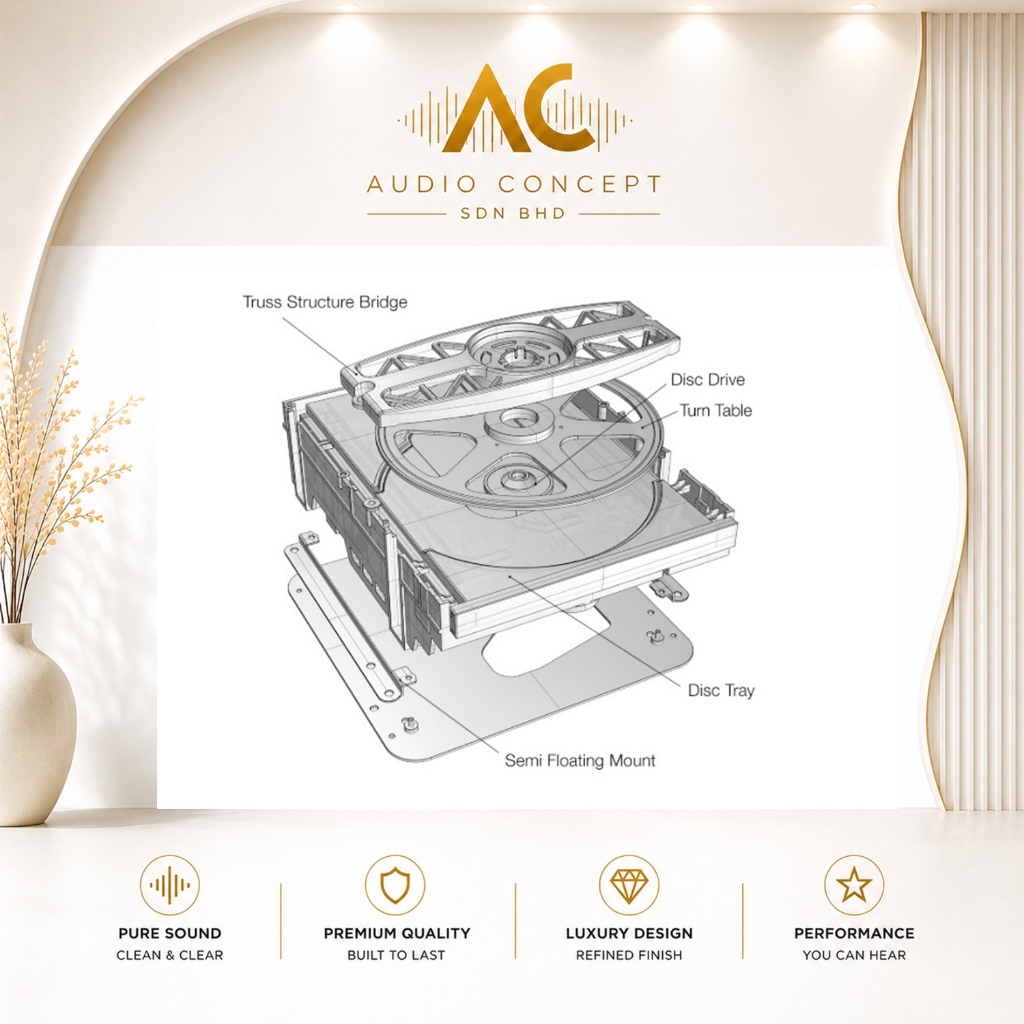

   The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration
by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.
Used in combination with a UD-701N, which is part of the same series, playback is possible
using the discrete DAC in the UD-701N as well as with MQA full decoding.
Of course, you can also use it together with a DAC of your choosing, and build a system as you like.
The inclusion of a 10MHz clock input enables flexible integration
with systems that are synchronized using an external clock.

Spec description

CD section

• Supported media – Audio CD, CD (CD-R/CD-RW) * 8cm CDs not supported.

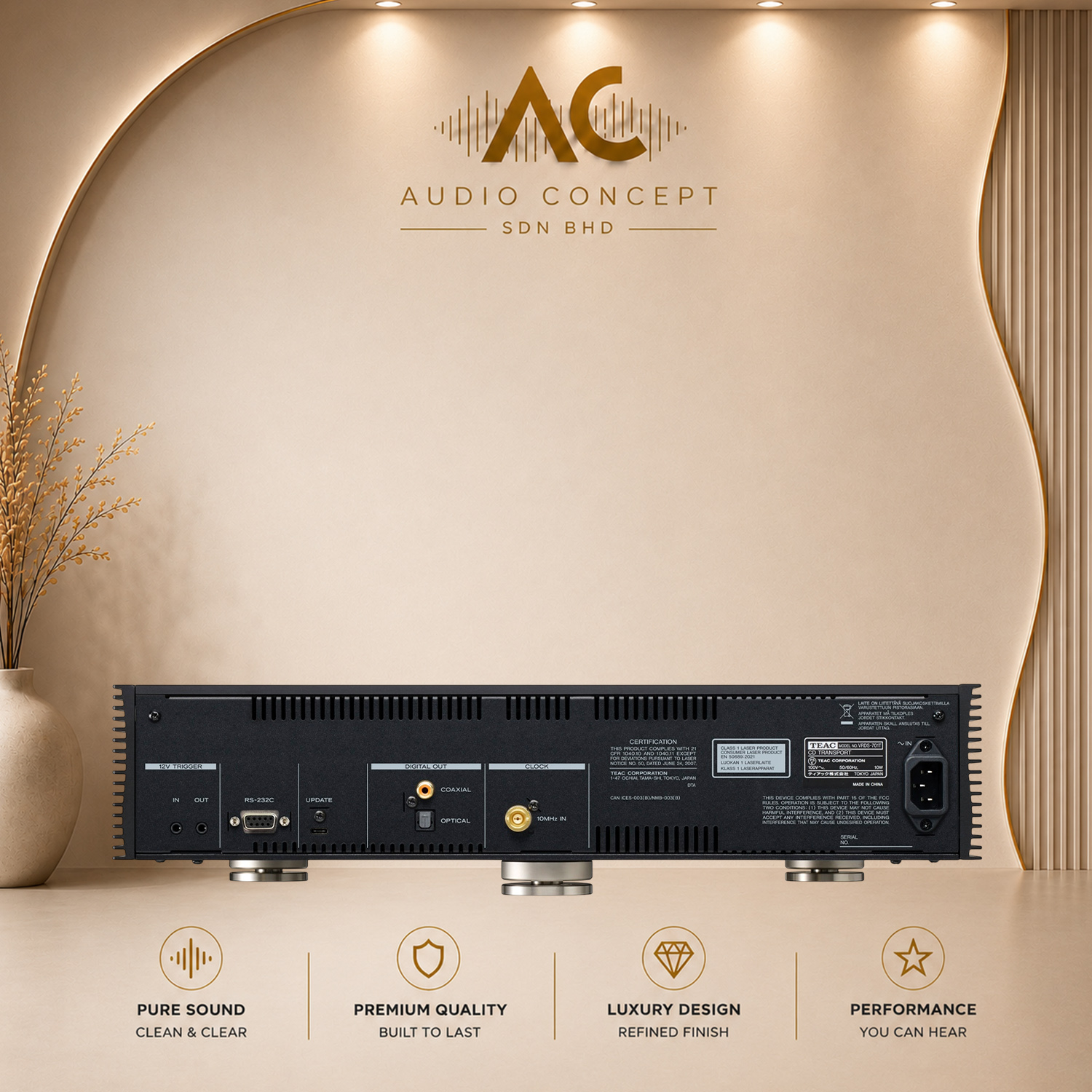

Digital audio outputs

• COAXIAL Connector – RCA × 1
• Output level – 0.5Vp-p
• Output impedance – 75Ω

OPTICAL

• ConnectorTOS (JEITA RC5720C) × 1
• Clock sync input
• Connector – BNC × 1
• Input frequency – 10MHz
• Input impedance – 50Ω

Input level

• Rectangle wave – Equivalent to TTL level
• Sine wave – 0.5 to 1.0Vrms

External control

• Trigger in (12V TRIGGER IN)
• Connector3.5mm Mono mini jack × 1
• Input level12V, 1mA
• Trigger out (12V TRIGGER THRU)
• Connector – 3.5mm Mono mini jack × 1
• Output level – 12V
• Maximum curret supply – 100mA
• PowerAC120V, 60Hz
• AC220-240V, 50/60Hz
• Power consumption – 10W
• Standby power – 0.4W

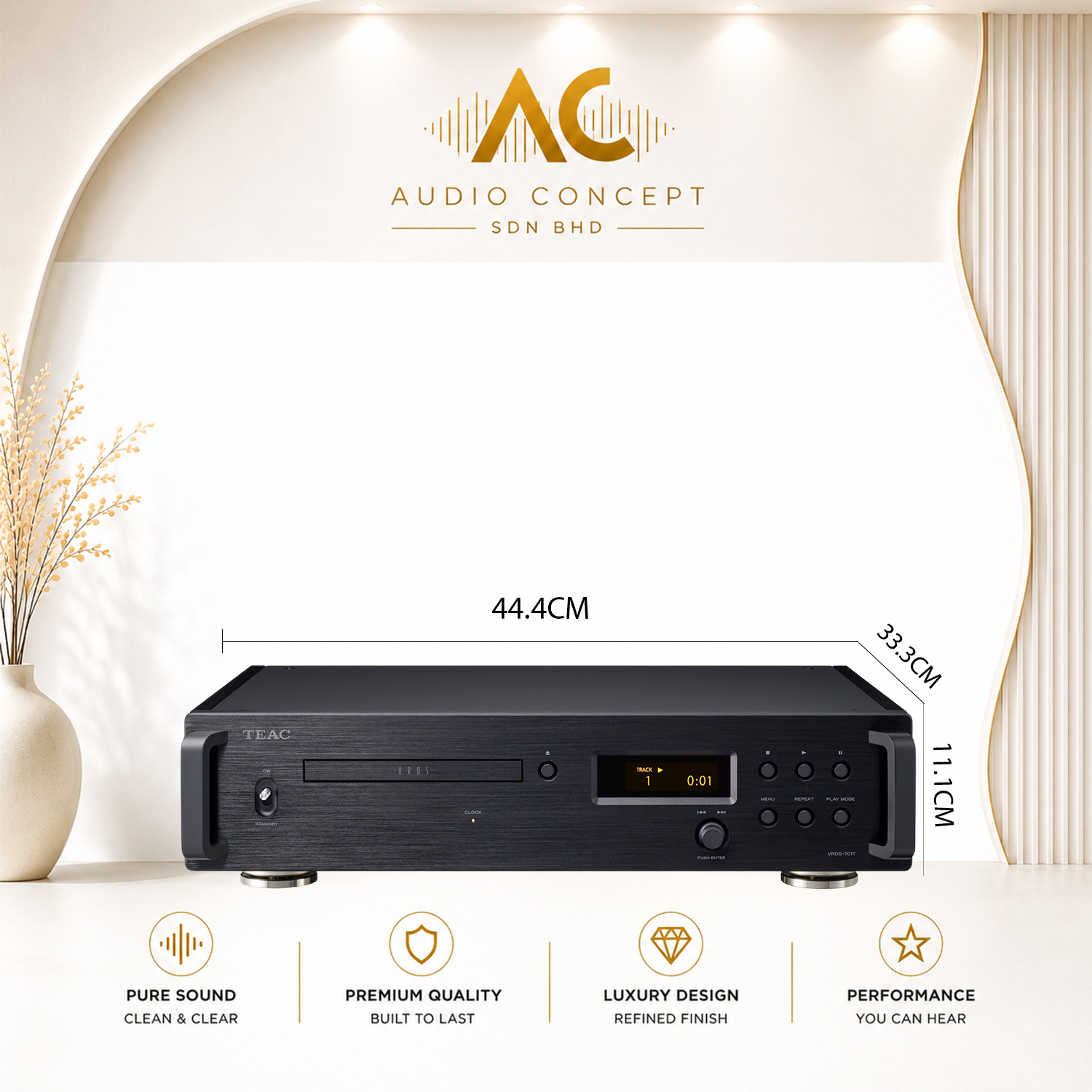

• Overall dimensions – 444 (W) × 111 (H) × 333 (D) mm (including protrusions)
• Weight – 10.1kg
• Operating temperature +5℃ to +35℃
• Operating humidity 5％ to 85％ (no condensation)
• Storage Temperature range −20℃ to +55℃

——————————————————
