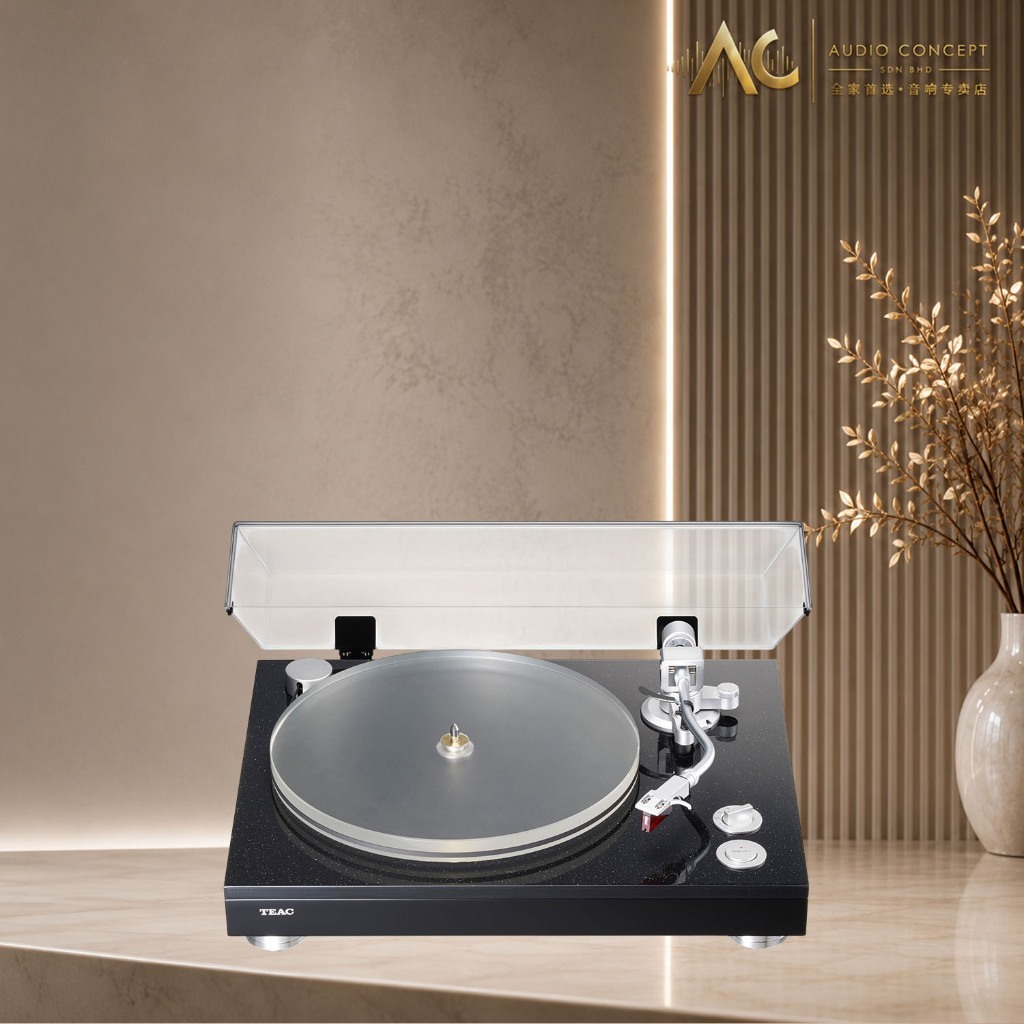

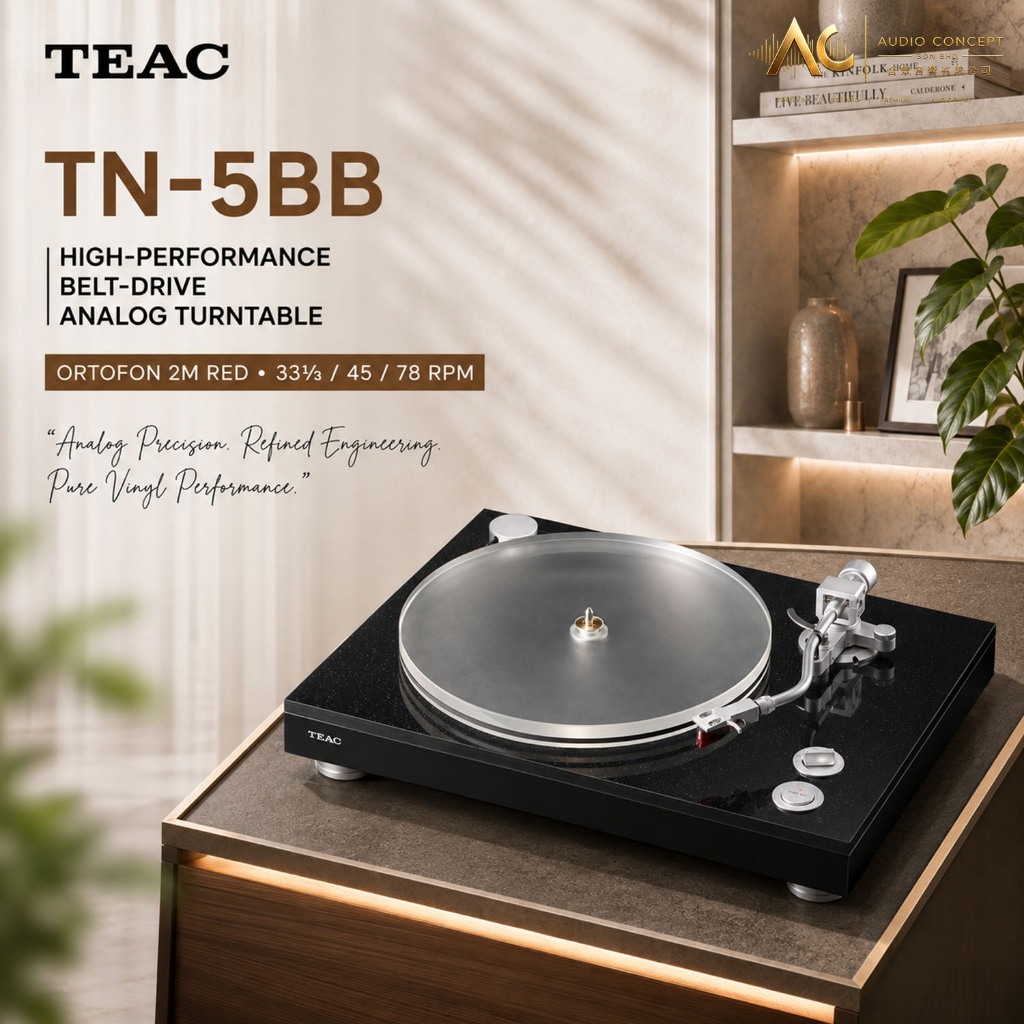

TN-5BB

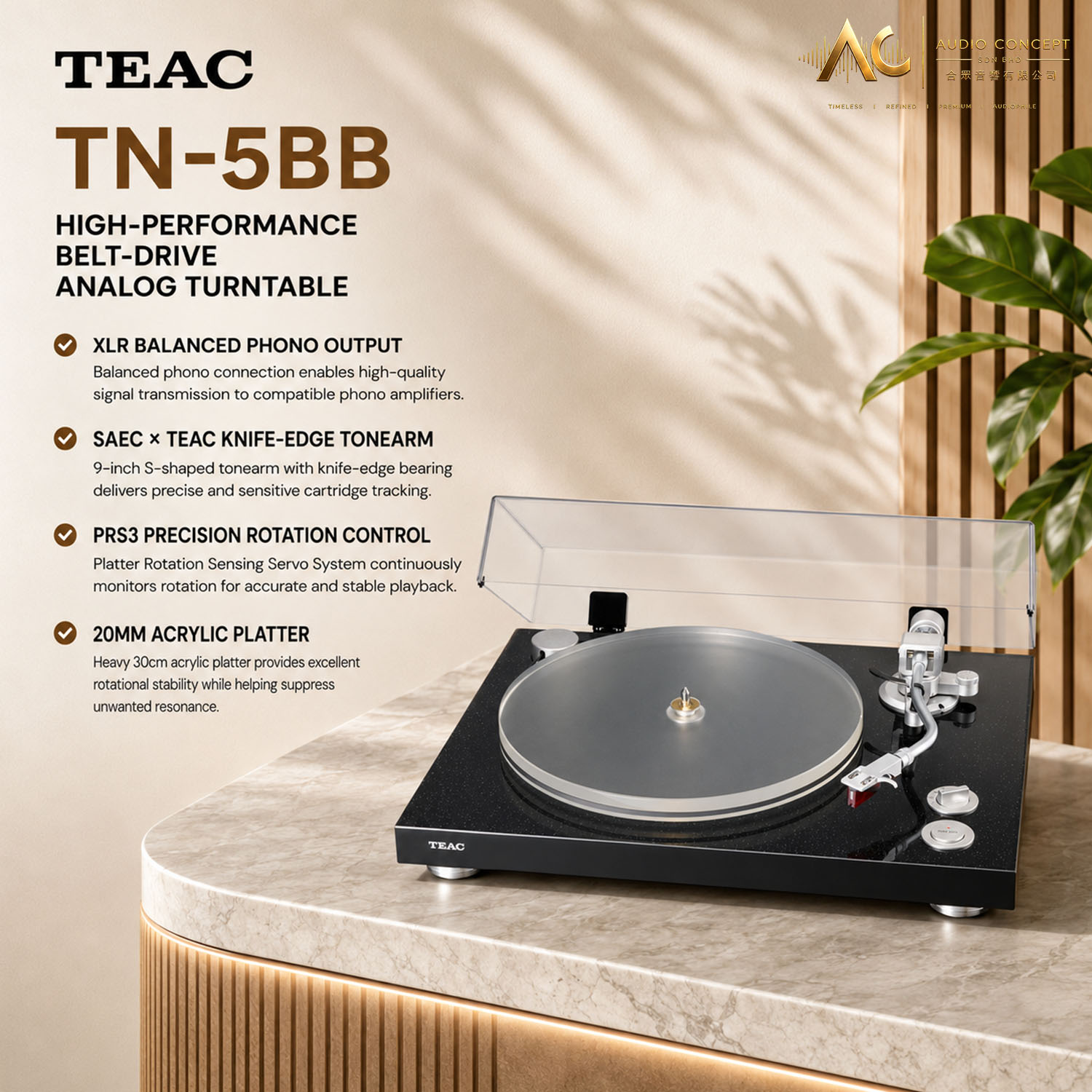

An Authentic Belt Drive Analog Turntable with XLR Balanced OutputThis analog turntable, which supports MC balanced output, features a hybrid chassis that combines synthetic marble, washi paper and MDF materials along with a 9-inch S-shaped universal arm that utilizes a knife-edge bearing.

Turntables are the stages for drawing out the passion of the artists and the magic of their engineers that have been infused into records. With jet black synthetic marble and MDF finished in piano black, the TN-5BB is a truly worthy stage that achieves both functional suppression of unwanted vibrations as well a stately and modern design.

Using the built-in XLR jacks to team up with a phono amplifier that supports balanced connection, the slightest signals transmitted by the cartridge can be re-created with even greater intensity.

The knife-edge tone arm, which is an SAEC×TEAC collaboration, is another component that further enhances this musical stage. The 20mm thick acrylic platter is driven by our original Platter Rotation Sensing Servo System

Spec Description

Turntable section

• Drive system – Rotation-detection-type high-precision control belt drive

Motor – DC motor

• Rotation speed – 33-⅓rpm, 45rpm, 78prm
• Wow and flutter – 0.1% or less
• Platter – Acrylic, 30cm diameter

Tonearm section

•  Arm type – Static-balanced S-shaped tone arm
• Effective arm length 223mm
• Suitable cartridge weight – 3.0 to 12.0g (14 to 23 g including head-shell)
• Overhang – 18mm
• Arm height adjustment range – approx. 6mm

Cartridge section

• Type – MM
• Output voltage – 5.5 mV (1kHz, 5cm/s)
• Tracking force – 1.8g
• Cartridge weight – 7.2g
• Included head-shell weight: – 11g (including screws, nuts and wires)
• Replacement record stylus model – Ortofon 2M Red • Stylus lifespan depends on use conditions but is usually about 1000 hours.

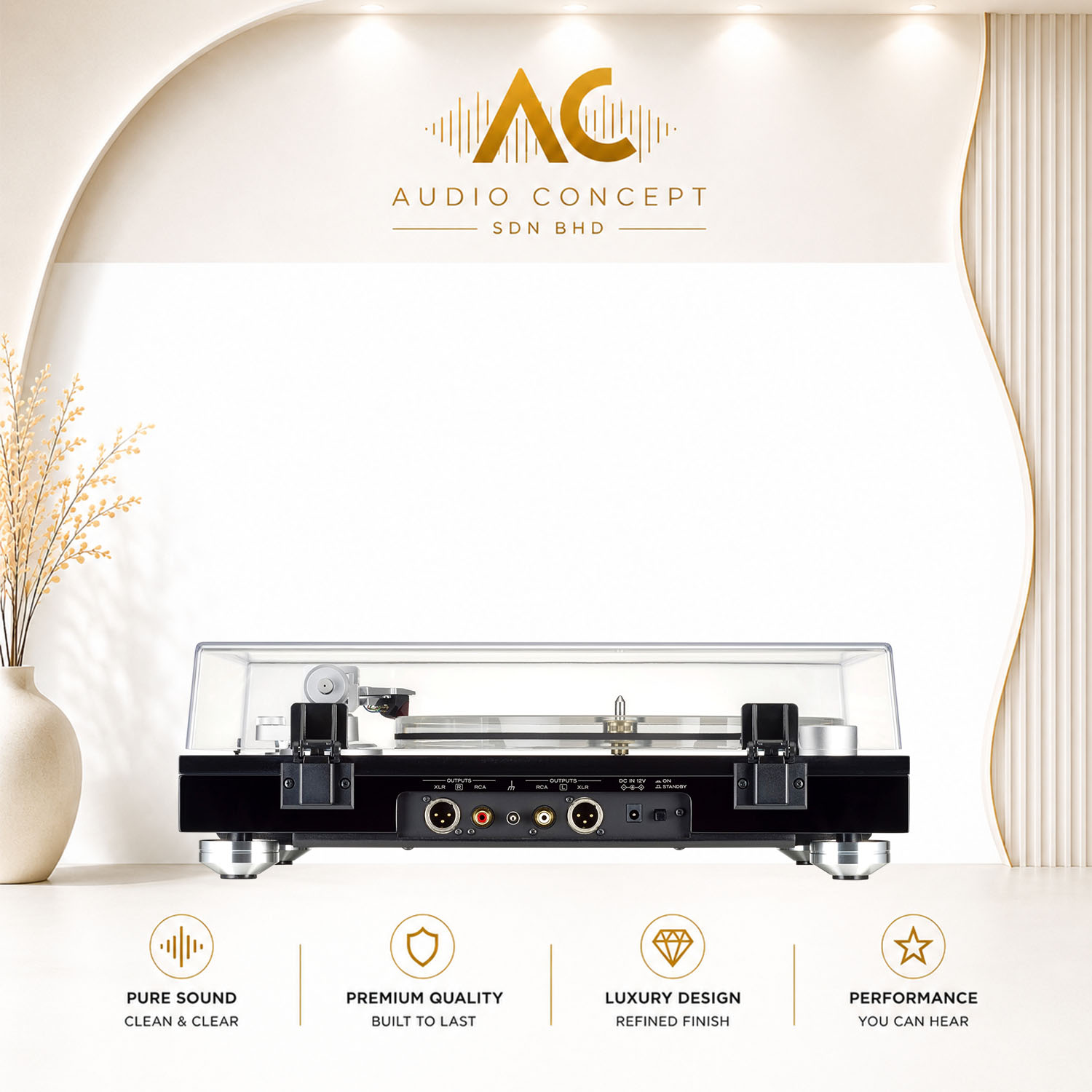

Phono Outputs

• Balanced Connector – XLR × 1 pair
• Unbalanced Connector – RCA × 1 pair
• Power – AC 100 to 240V, 50/60Hz (AC Adapter)
• Power Consumption – 2.0W or less (0.3W at Standby)

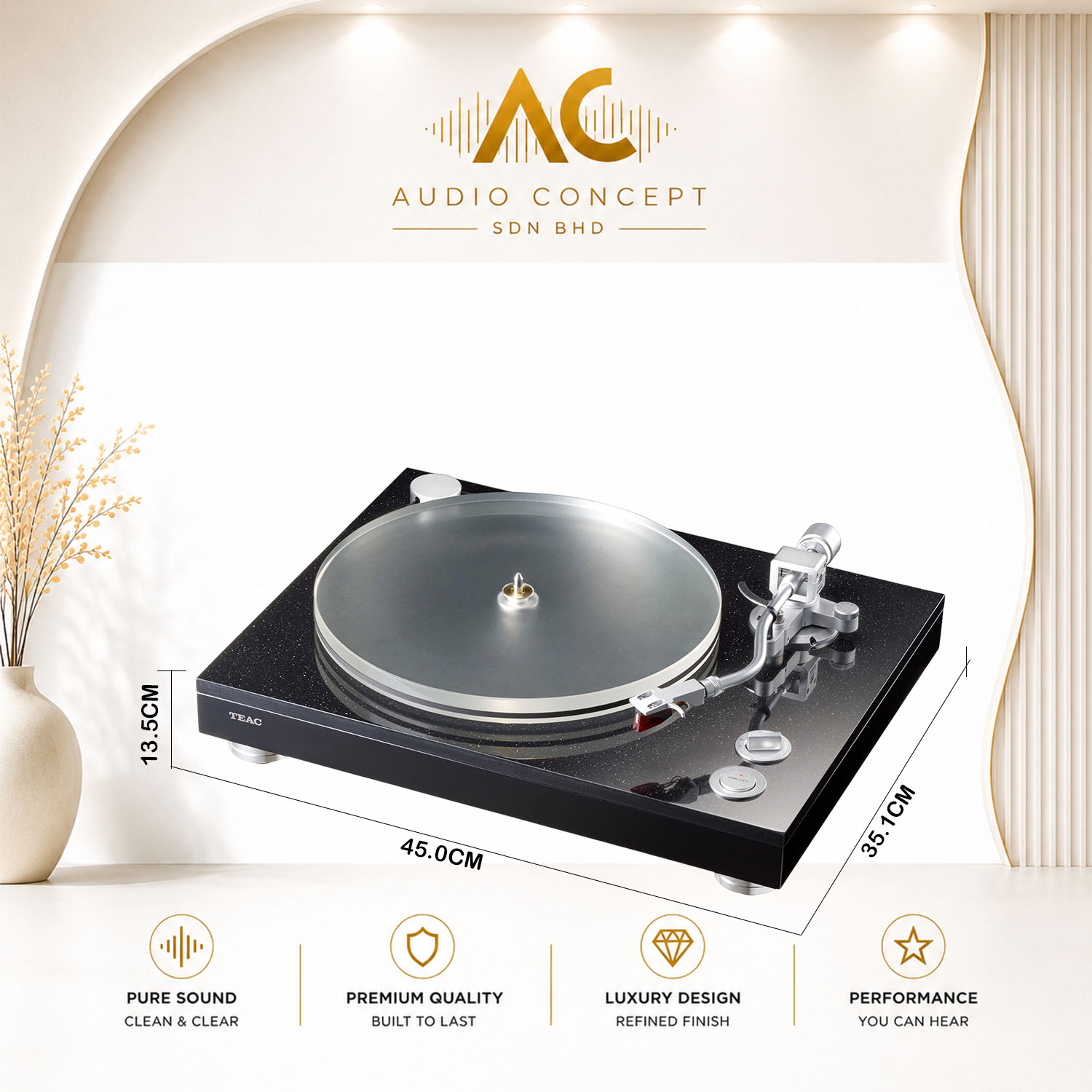

• Overall Dimensions (W×H×D)
• 450 × 148 × 351 mm / 17.1" × 5.8" × 13.8" (with dust cover closed)
• 450 × 420 × 410 mm / 17.1" × 16.5" × 16.1" (with dust cover open)
• 450 × 135 × 351 mm / 17.1" × 5.3" × 13.8" (with dust cover removed)
• Including protrusions (when arm holder at the highest position)
• Weight approx. 10.5kg / 23.2 lbs.

—————————————————–
