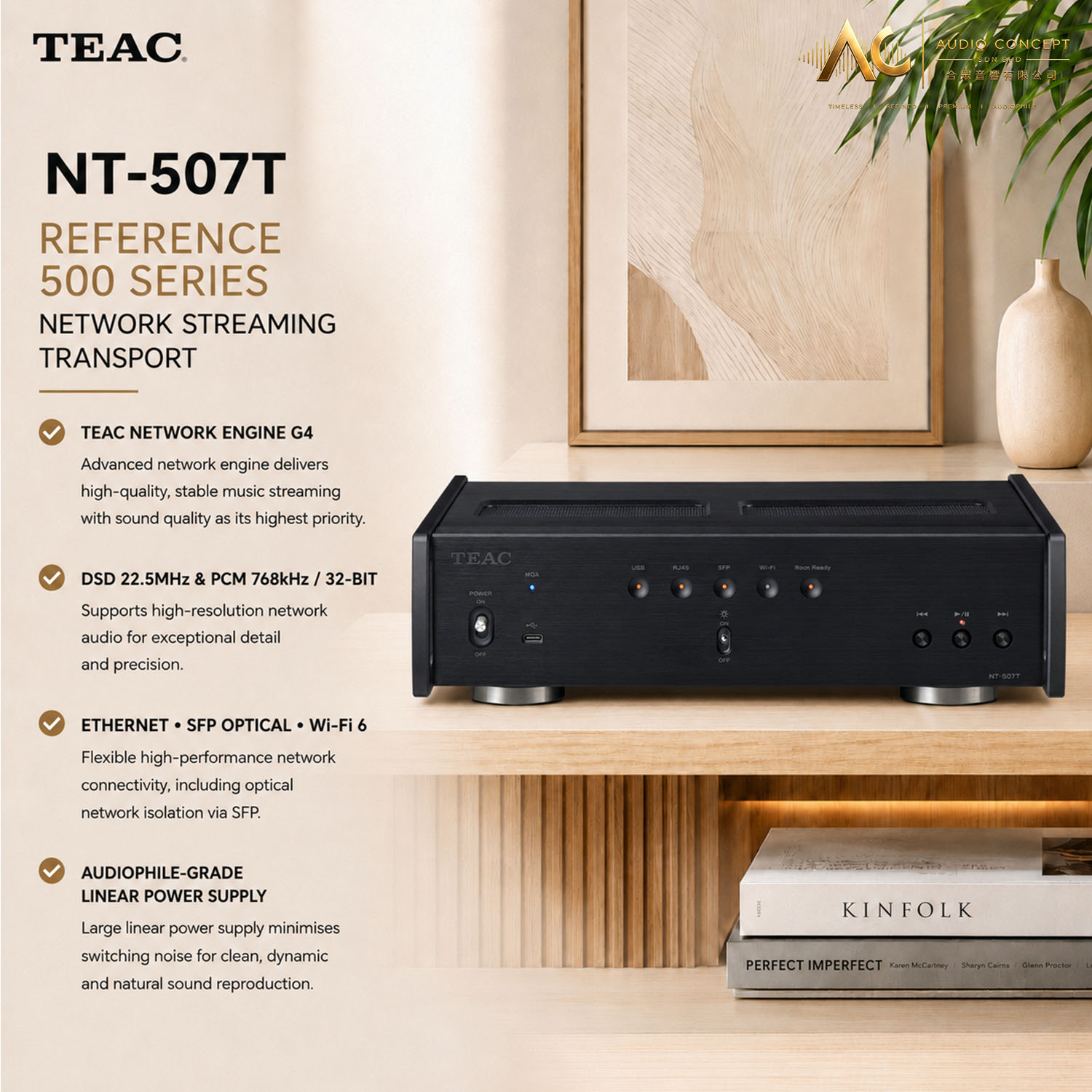

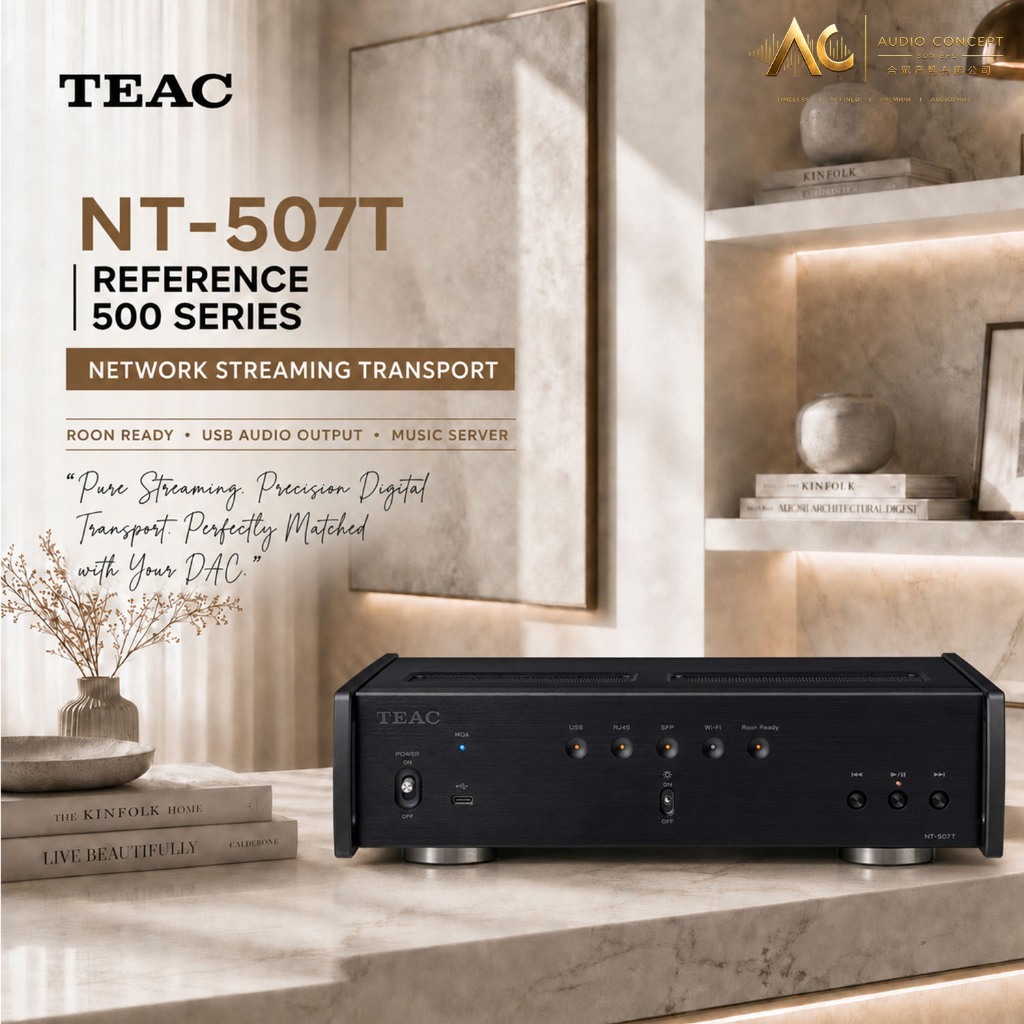

NT-507T
   A High-Quality Network Solution for Your DAC to Maximize Music Streaming Enjoyment
With TEAC's unwavering commitment to exceptional sound quality and intuitive operability, the NT-507T takes music streaming enjoyment to a new level. As a network streaming transport in the Reference 500 Series designed exclusively for USB digital output, it pairs seamlessly with your existing DAC, such as the UD-507, featuring TEAC’s proprietary discrete “TRDD 5” DAC to deliver reference-grade sound from online streaming and locally stored NAS audio sources.

   Driven by the advanced TEAC Network Engine G4, the NT-507T is engineered from the ground up with sound quality as its highest priority. A large linear power supply replaces noise-inducing switching circuits, ensuring dynamic, natural, and fluid sound reminiscent of vinyl playback. Network connectivity is equally versatile, offering Ethernet RJ45, SFP optical input, and Wi-Fi 6 support. Its high-fidelity USB output, equipped with an independent power supply section, guarantees pristine signal transmission to your DAC.

Spec description

 Network section

• Supported file formats – FLAC, ALAC, WAV, AIFF, MQA, DSF, DSDIFF (DFF) , DoP, MP3, AAC (m4a container)

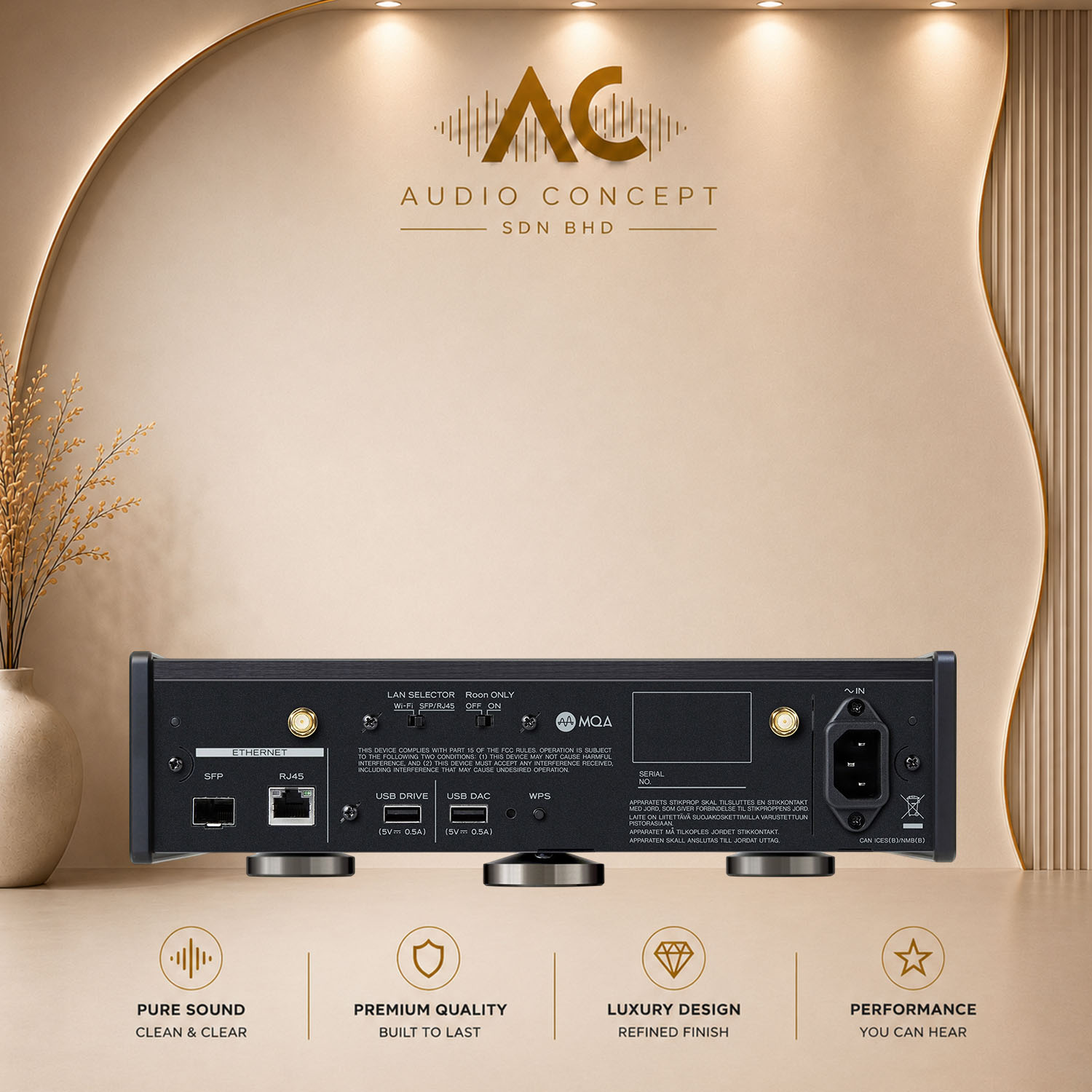

• ETHERNET – RJ45 × 1
• SFP – SFP Prot × 1
• Wireless LAN specifications – 802.11a/b/g/n/ac/ax (2.4GHz, 5GHz)
• USB drive ports – USB flash drive ports × 2 (Type A / Type C, USB 2 0 standard)
• Maximum current supply 0.5 A
• Supported file systems
• FAT32, exFAT and NTFS
• Single partition
• Supported sampling frequencies
•  PCM – 32k to 768kHz, 16 / 24 / 32bit (integer / floating format)
• DSD – 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz
• Digital output section
• USB Audio output – USB Type-A × 1

Power

• AC120V, 60Hz
• AC220-240V, 50/60Hz
• Power consumption – 28W

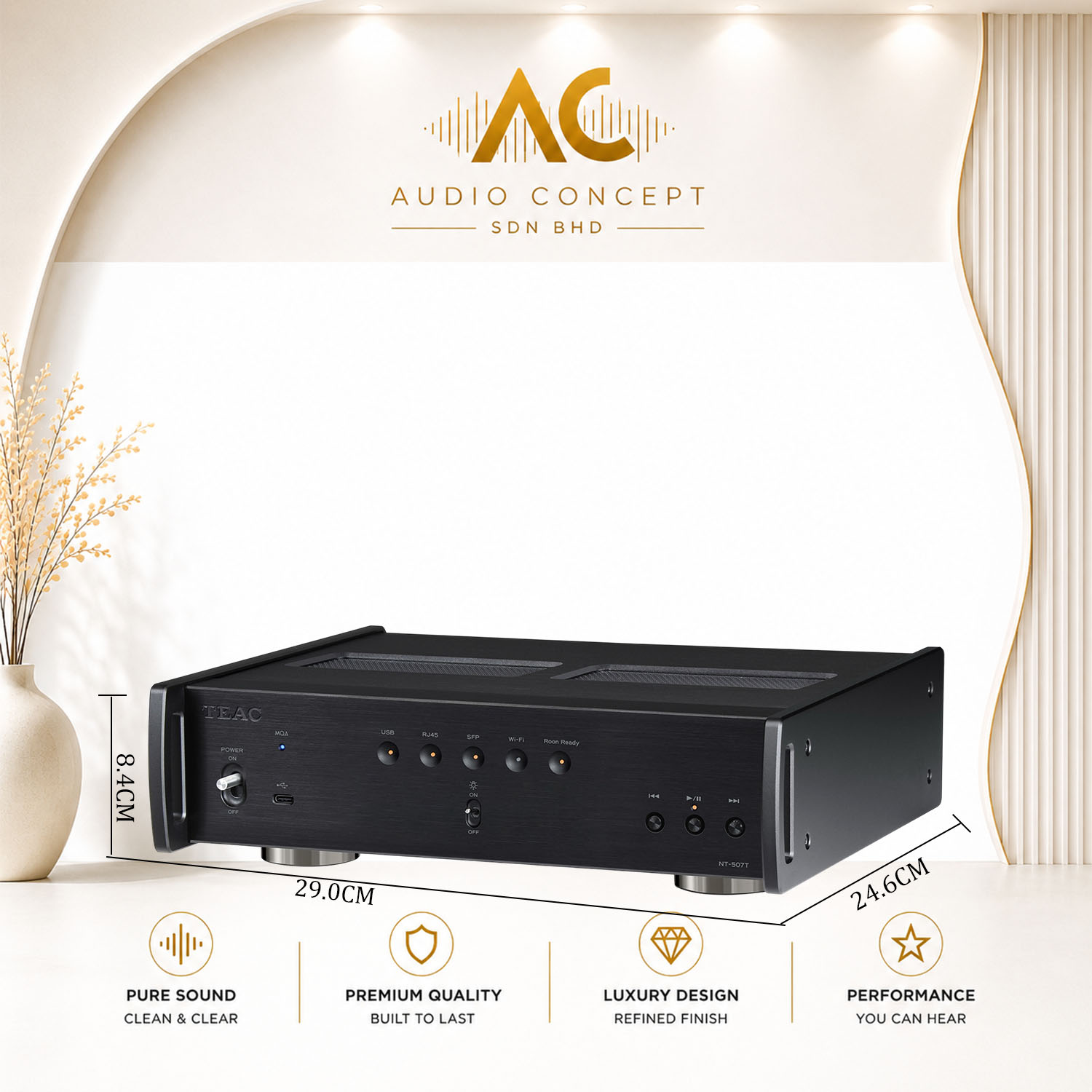

• Overall dimensions – 290 × 84.7 × 246mm / 11 ½” × 3 ⅜” × 9 ¾” (W×H×D, including protrusions)
• Weight – 4.3kg / 9 ½ lb.

—————————————————–
