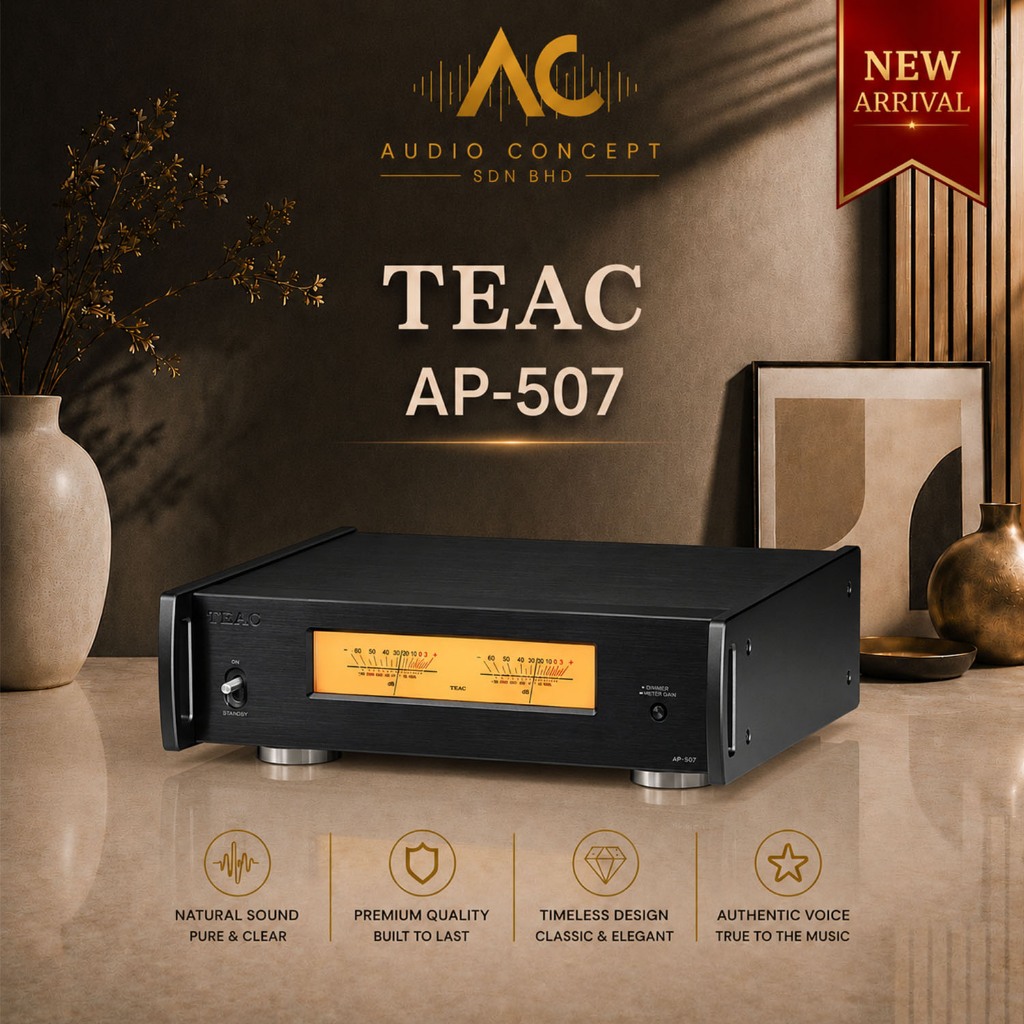

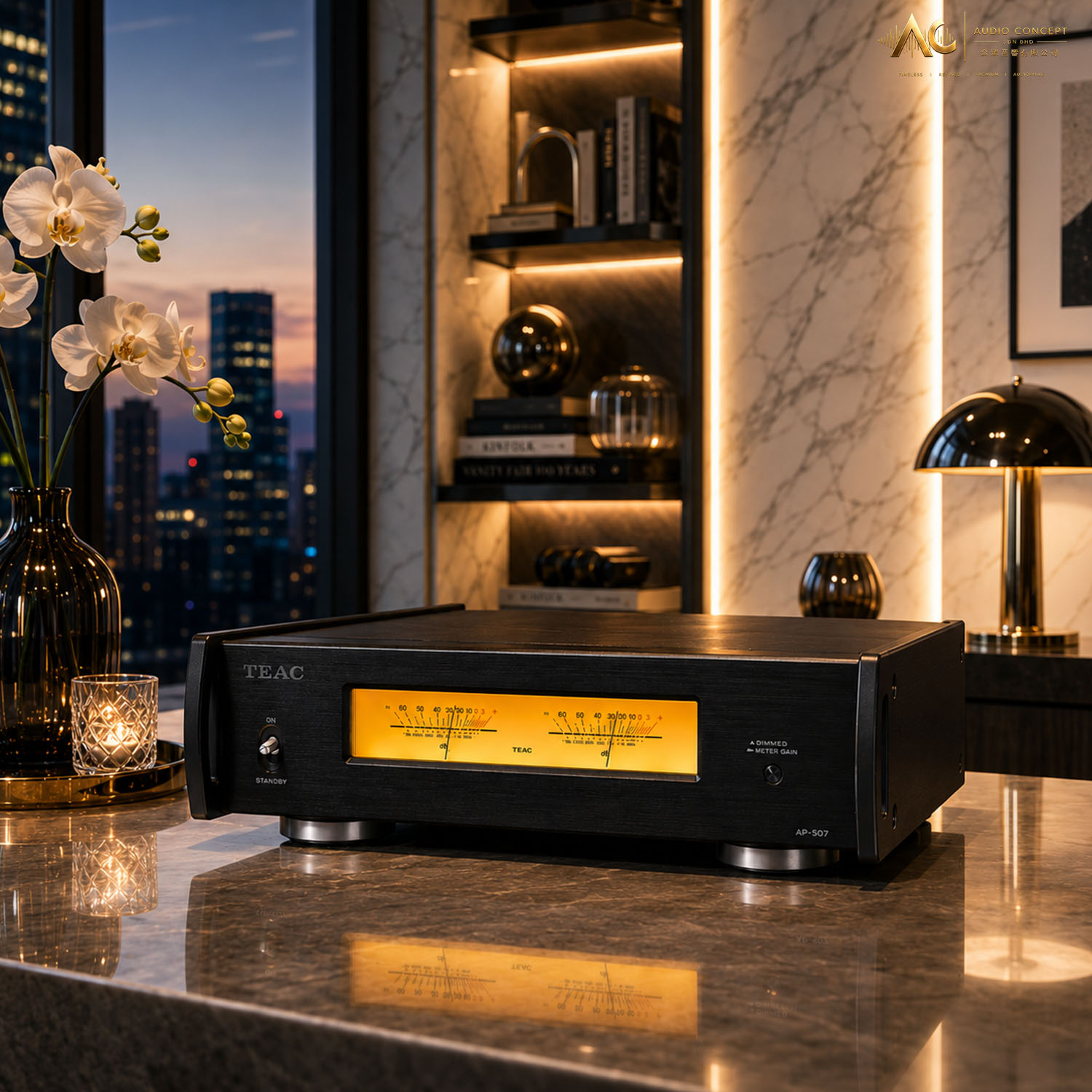

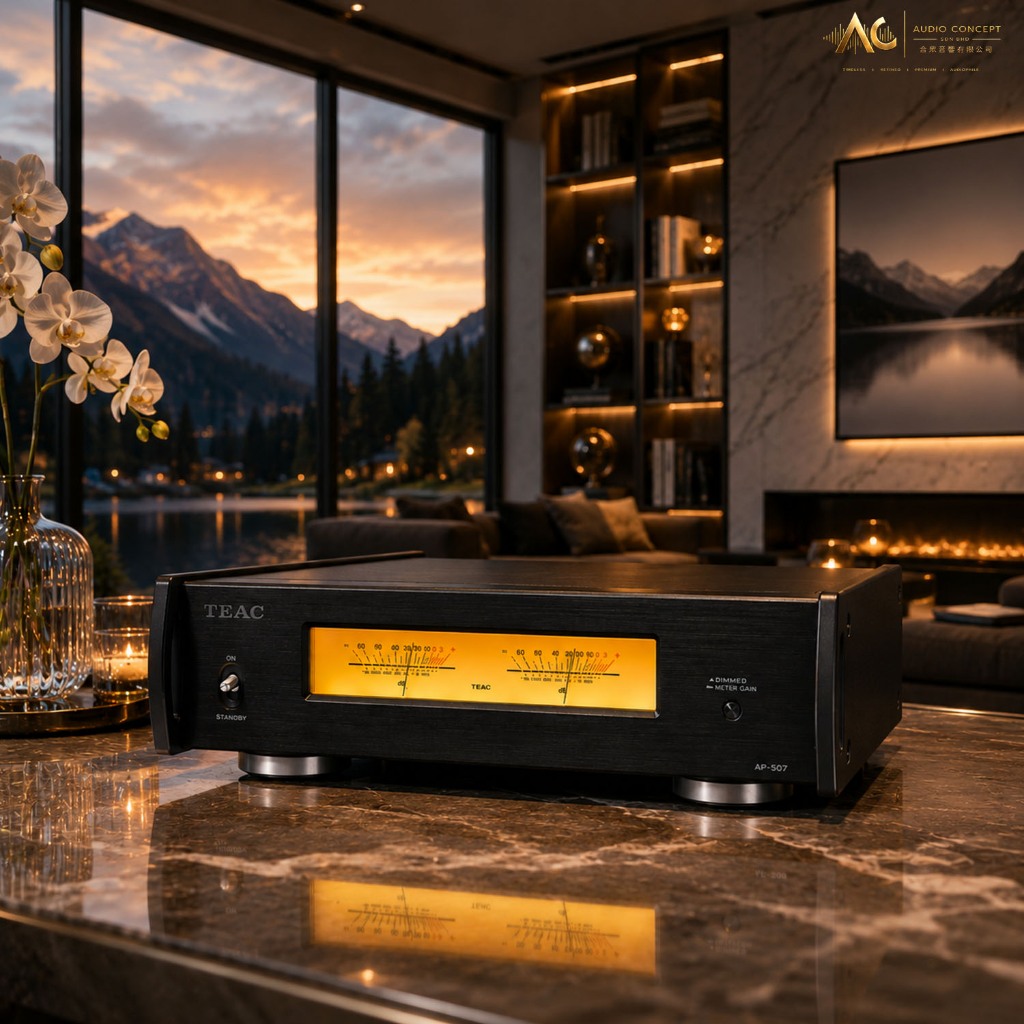

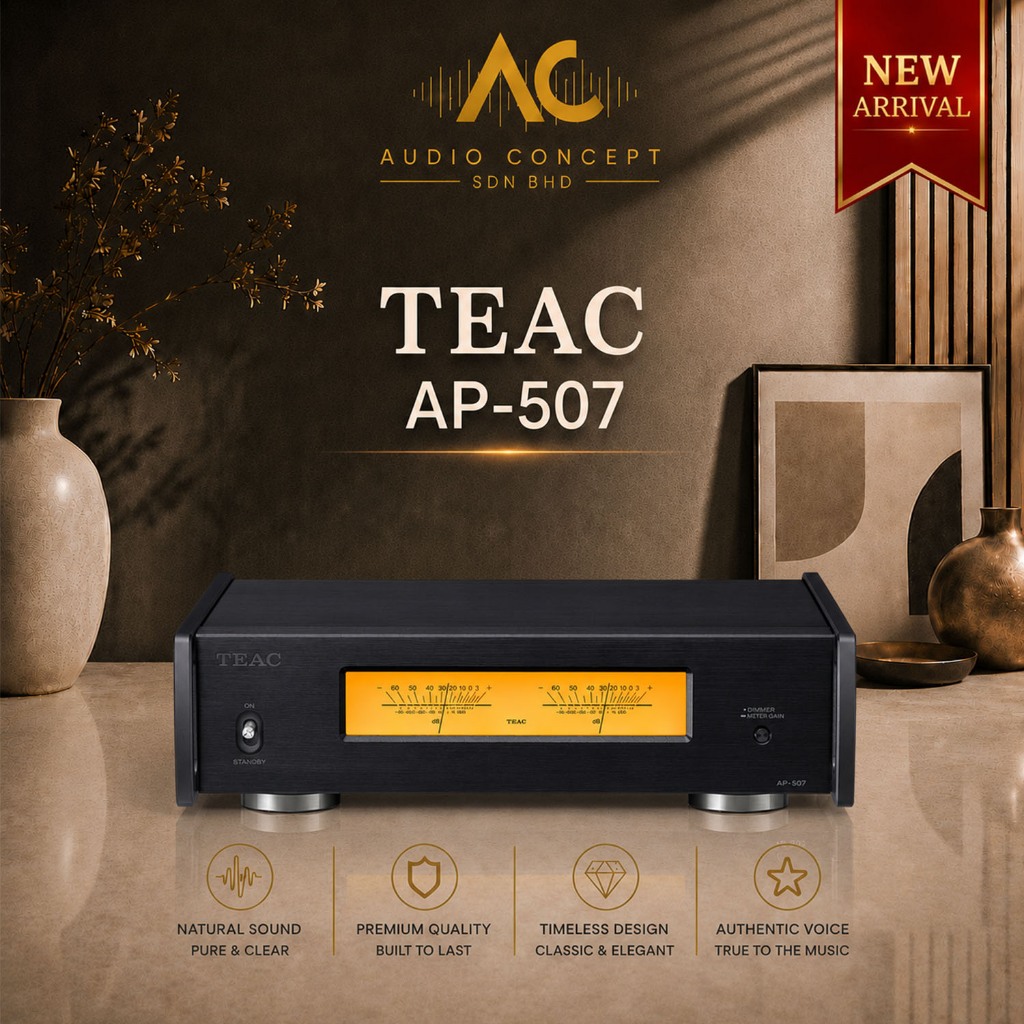

The AP-507 combines compact design with remarkable power, setting a new benchmark for sound quality compared to its predecessors. Pair it with the UD-507 Discrete DAC/Preamp or the HA-507 Preamp to create a high-performance, space-saving amplifier system with a sleek “letter size” footprint. Whether installed in a dedicated audio room, a living space, or even on your desktop, the AP-507 delivers exceptional versatility and performance.

Perfect for headphone enthusiasts looking to enhance their listening experience with speakers, the AP-507 is a powerhouse in a compact form. Designed to handle even the large floorstanding speakers, it offers outstanding sound quality and seamless drivability across any speaker setup.

The AP-507 is powered by the NCOREx, a cutting-edge power amplifier module crafted by Hypex in the Netherlands and expertly tuned by TEAC. Despite its compact design, the AP-507 delivers impressive performance, with high power output of 170 watts per channel at 4 ohms and up to 350 watts at 8 ohms in BTL mode.

This next-generation NCORE module sets a new standard in audio performance, offering enhanced spatial imaging, a three-dimensional soundstage, and unparalleled clarity. Tailored specifically for the AP-507, TEAC’s custom tuning ensures it delivers the precise sound signature the brand is renowned for. The in-house developed dual-mono buffer amplifier, a critical element for achieving superior sound, has been meticulously redesigned with optimized components and circuitry to elevate sound quality beyond previous models.

Amplifier section
Maximum effective output (1kHz)

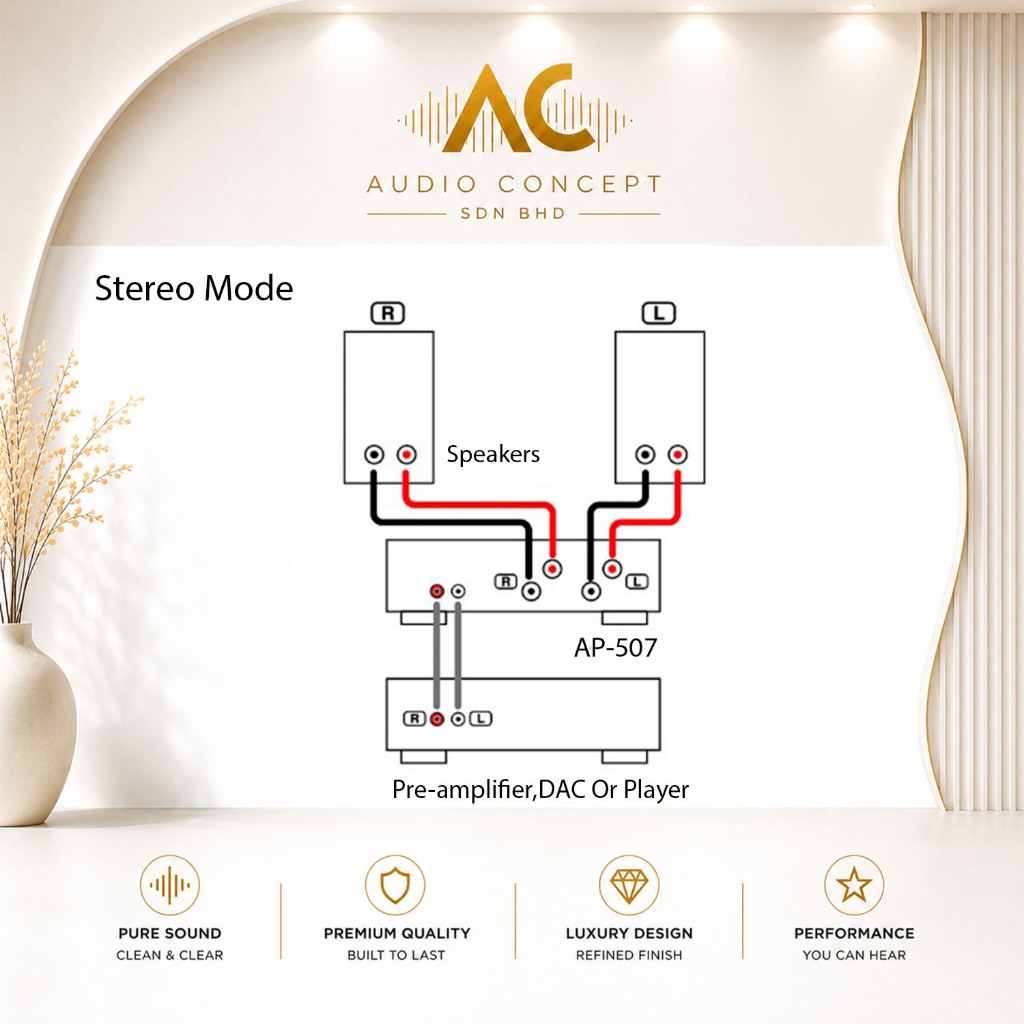

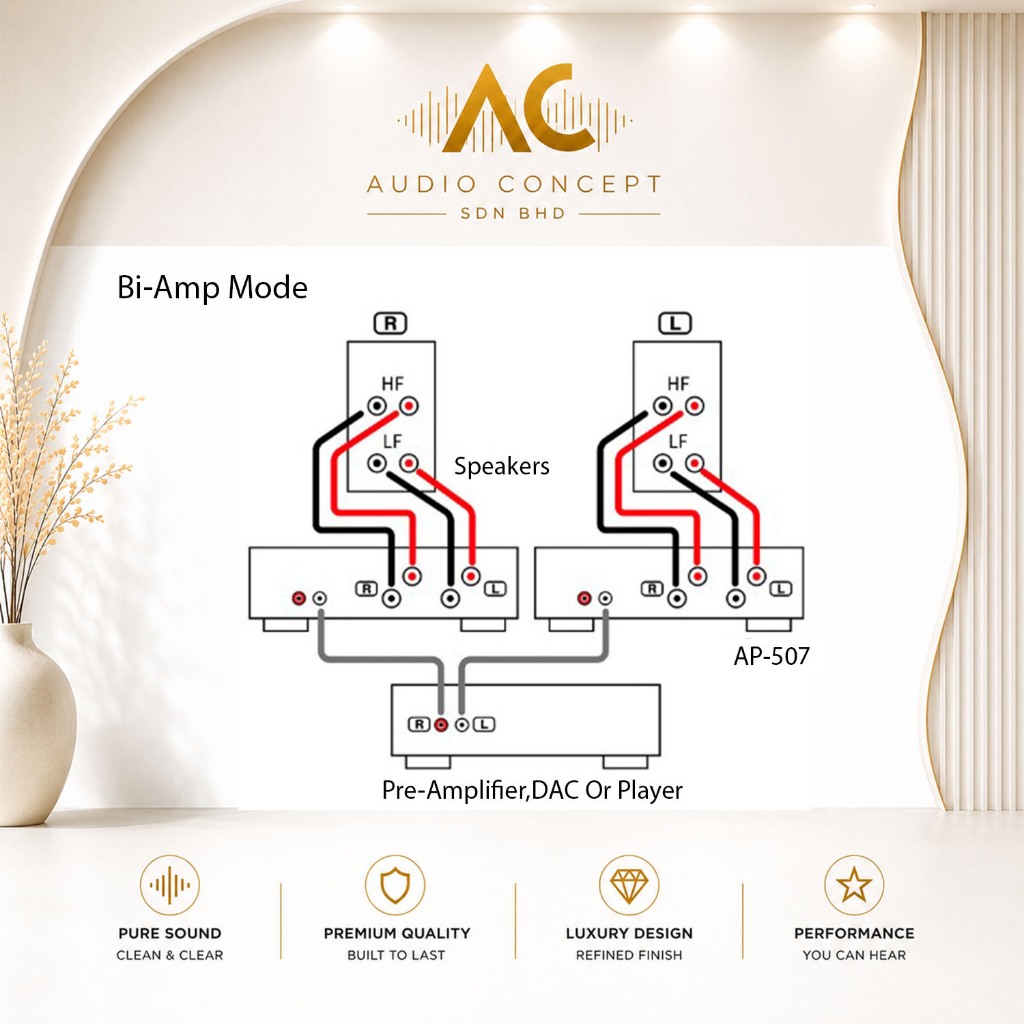

STEREO, BI-AMP – 170W + 170W (4Ω) / 95W + 95W (8Ω)

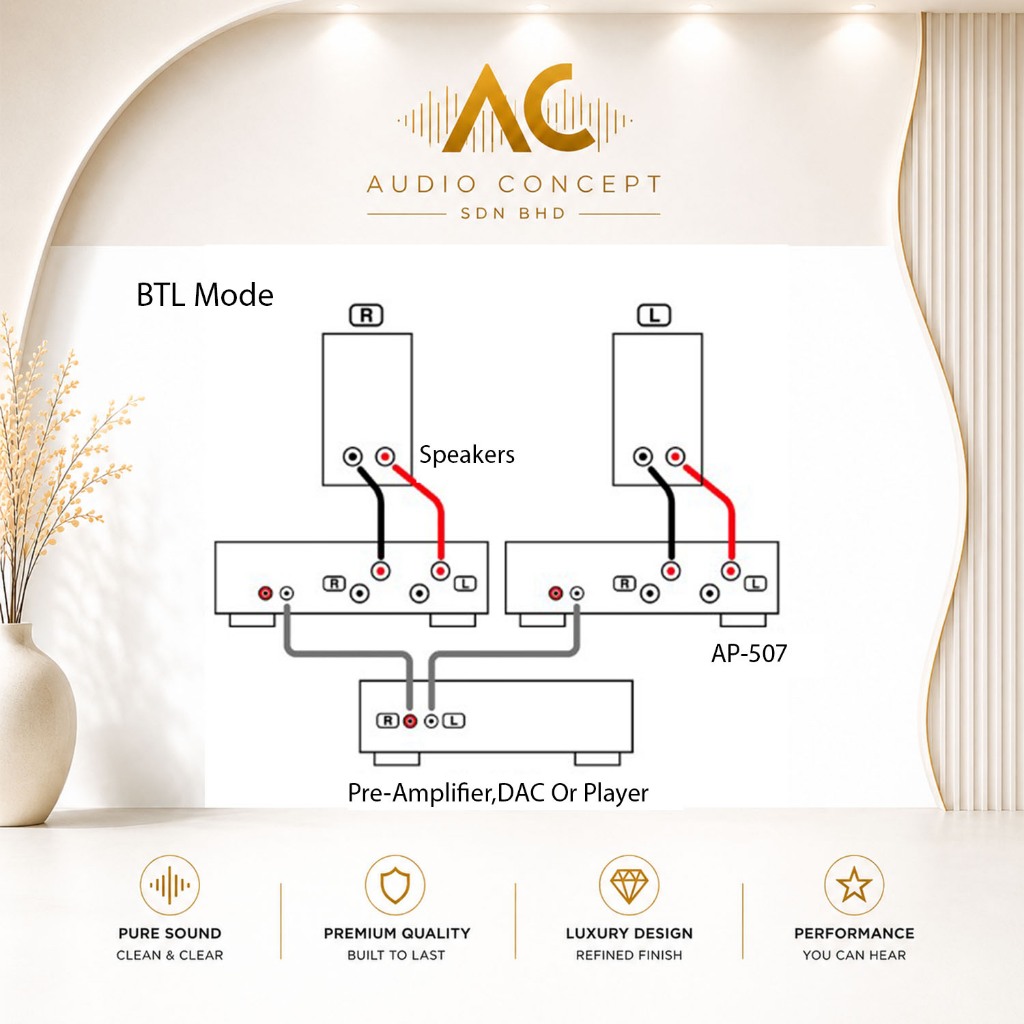

BTL – 350W (8Ω)

Rated Output (1% THD, 1kHz)
STEREO, BI-AMP – 125W + 125W (4Ω) / 70W + 70W (8Ω)
BTL – 230W (8Ω)

Allowable speaker impedance
STEREO, BI-AMP – 4Ω to 16Ω
BTL – 8Ω to 16Ω

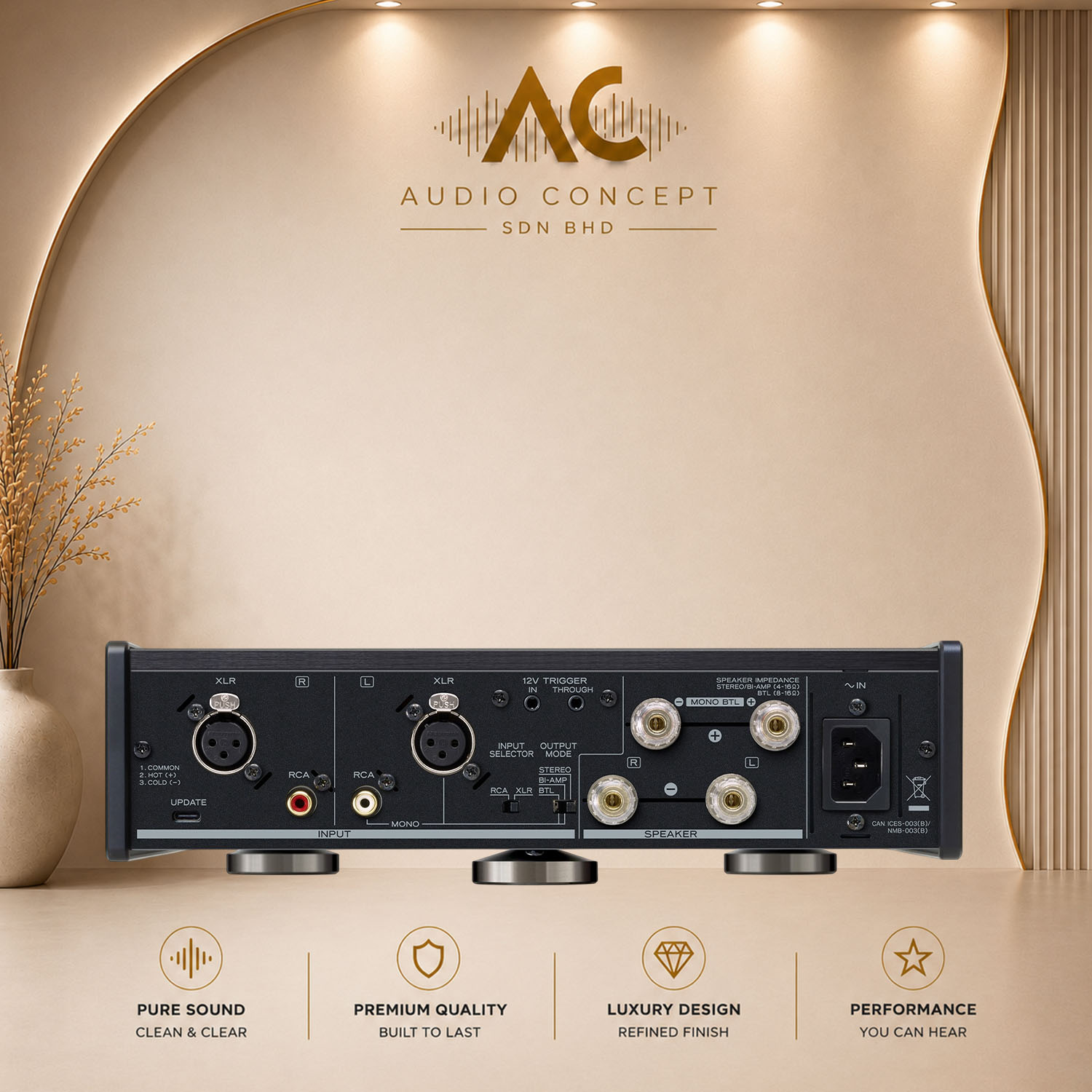

Analog audio inputs
Balanced – XLR × 1 pair
Input sensitivity – 1.3V (8Ω, 1% THD output)
Input impedance – 10kΩ or more
Unbalanced – RCA × 1 pair
Input sensitivity – 0.66V (8Ω, 1% THD output)
Input impedance – 10kΩ or more

Speaker output
Connector – Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible)

External control
12V Trigger in
Conenctor – 3.5mm Monaural Mini jack × 1

12V Trigger out (THRU)
Conenctor – 3.5mm Monaural Mini jack × 1

General
Power supply – AC 220 230V, 50/60Hz (Europe), AC 120V, 60Hz (USA/Canada)
Power consumption – 58W

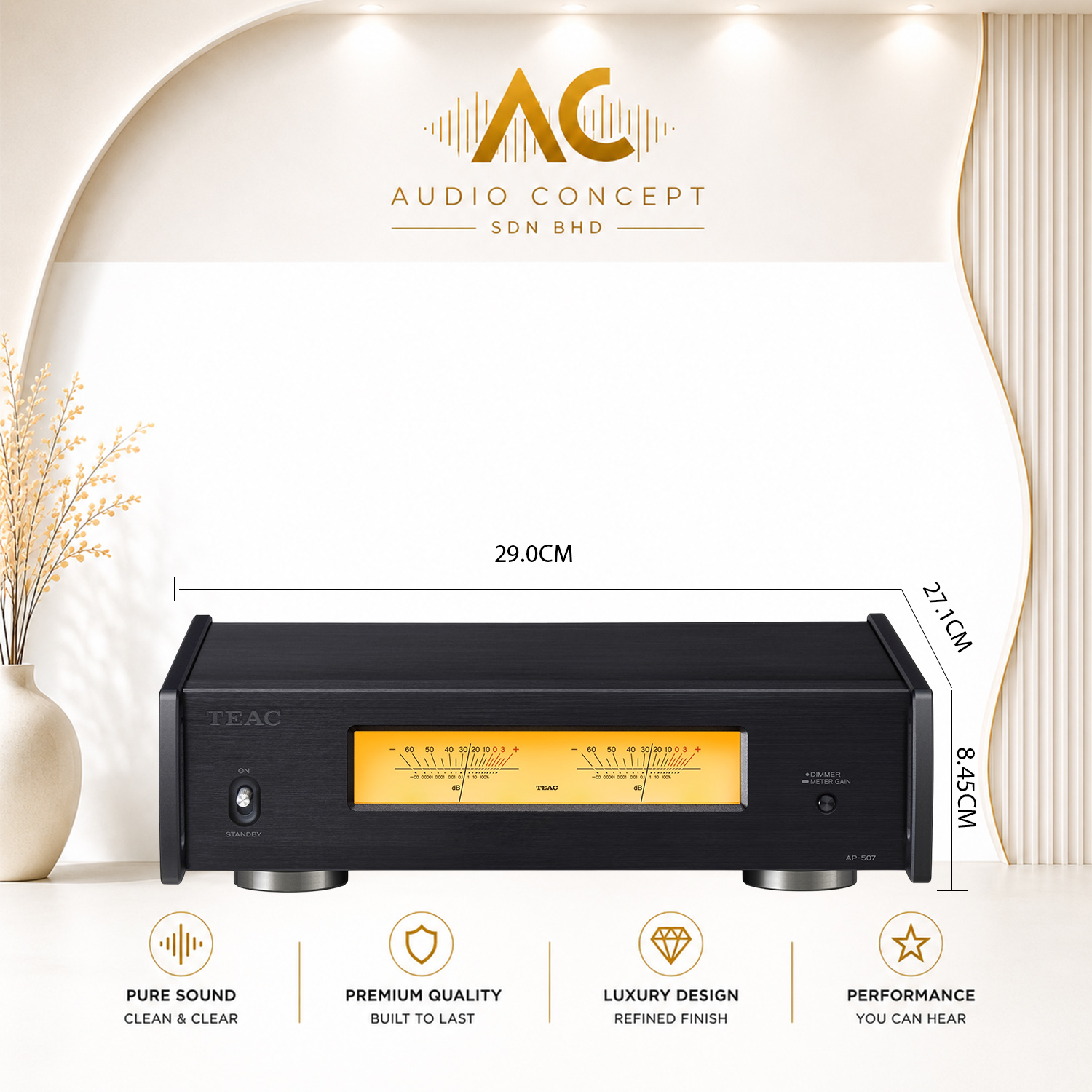

External dimensions (W×H×D)290 × 84.5 × 271mm, 11 ½” × 3 ⅜” × 10 ¾” (including protrusions)
Weight4.4kg / 9 ¾ lb
Included accessoriesPower cord × 1, Rubber pads × 3, Antistatic Cloth for level meters × 1, Owner’s manual

Audio performance
Frequency response – 10Hz-50kHz (+0dB, –5dB, 8Ω, 1kHz, 1W)
Total harmonic distortion – 0.0015% (8Ω1kHz, 12.5W)
S/N ratio – 113 dB (8Ω, 1kHz)
