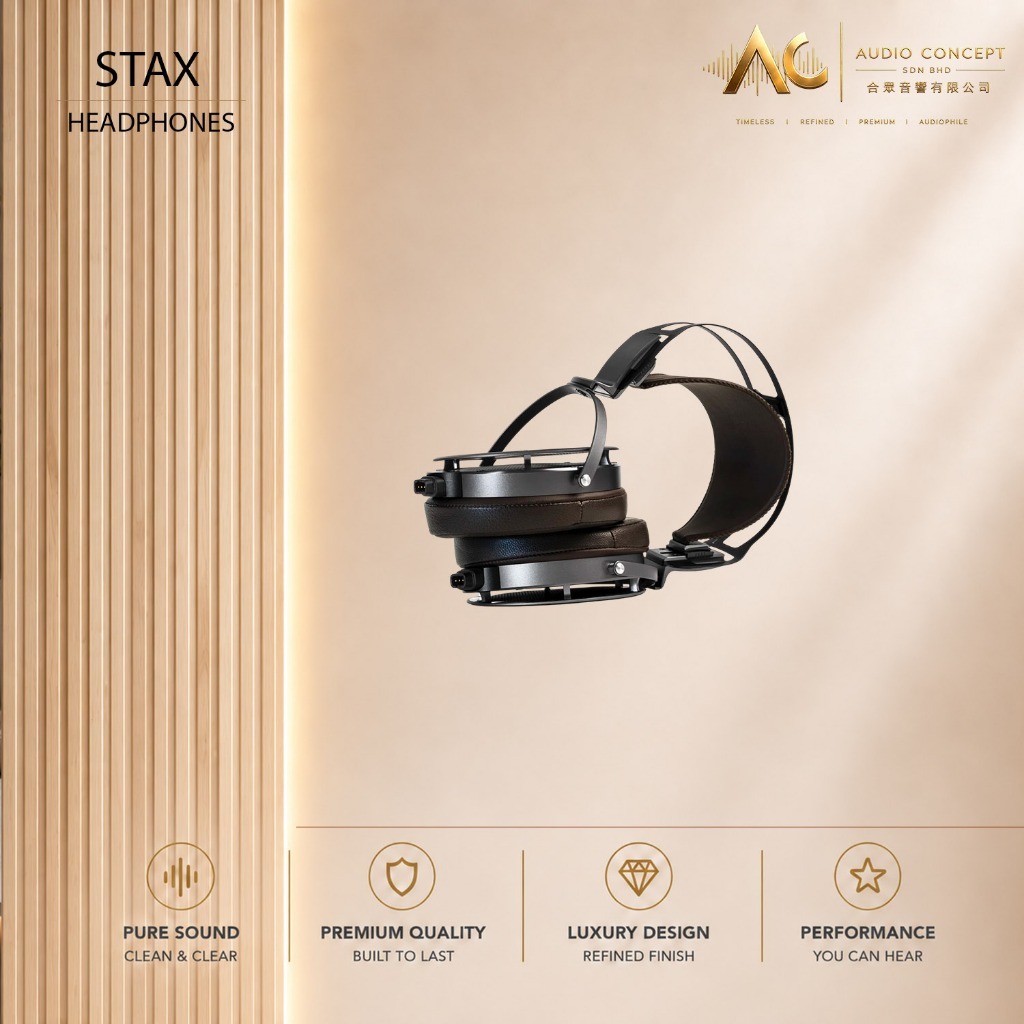

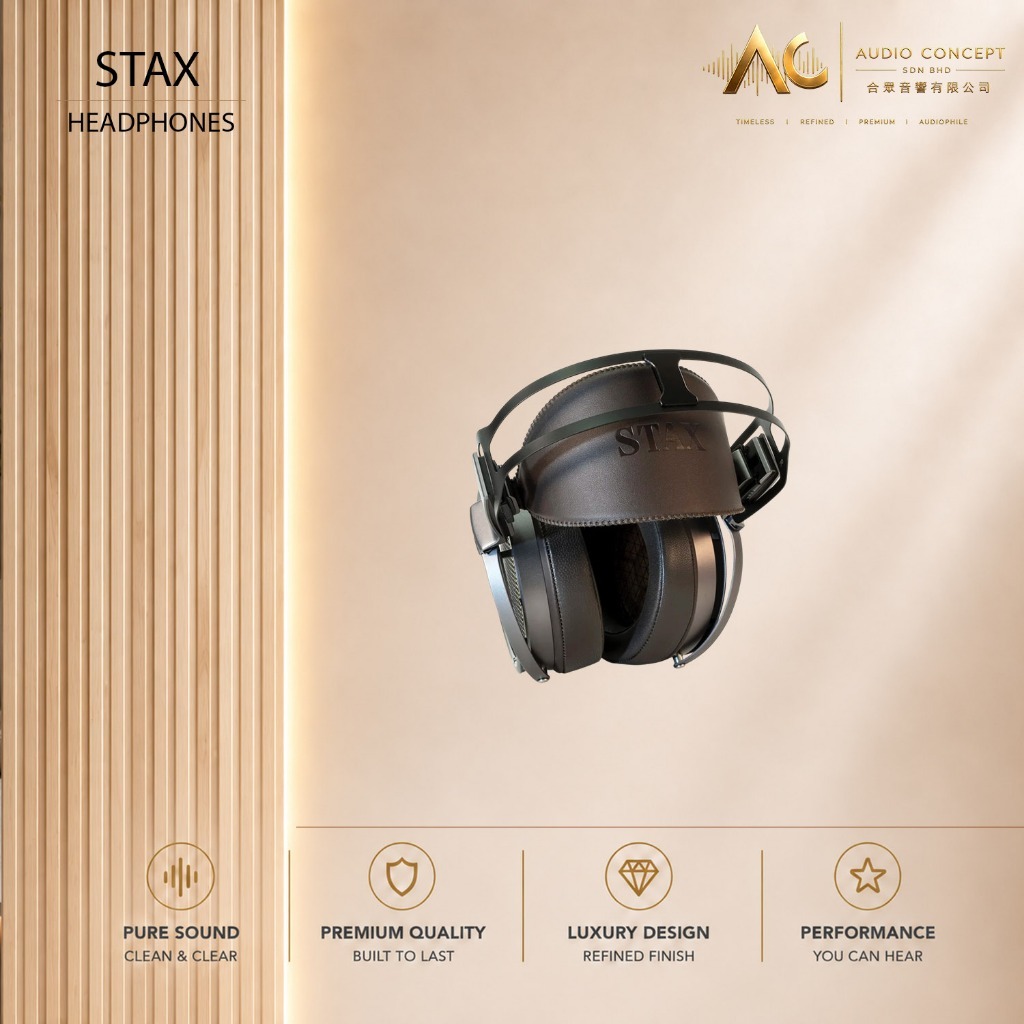

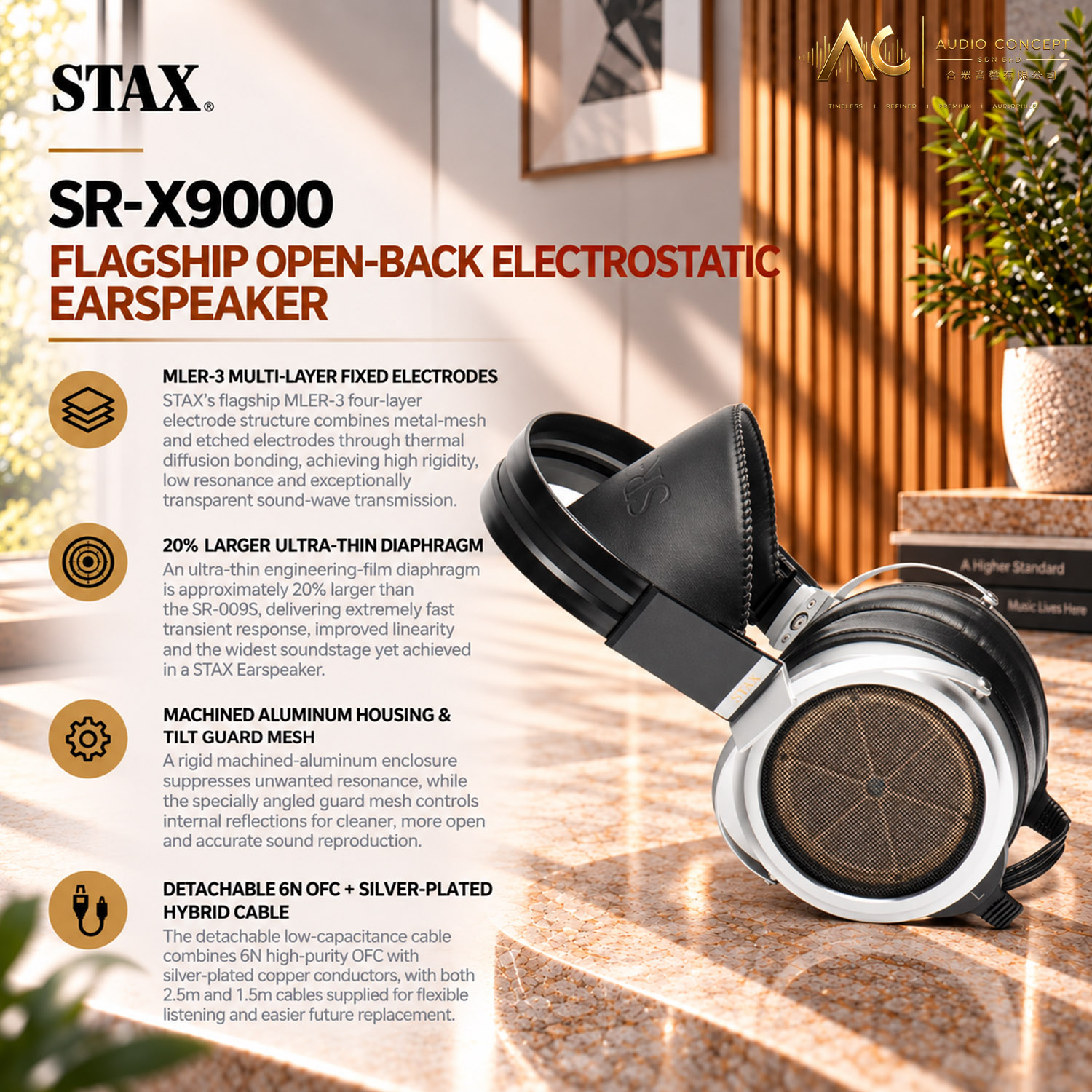

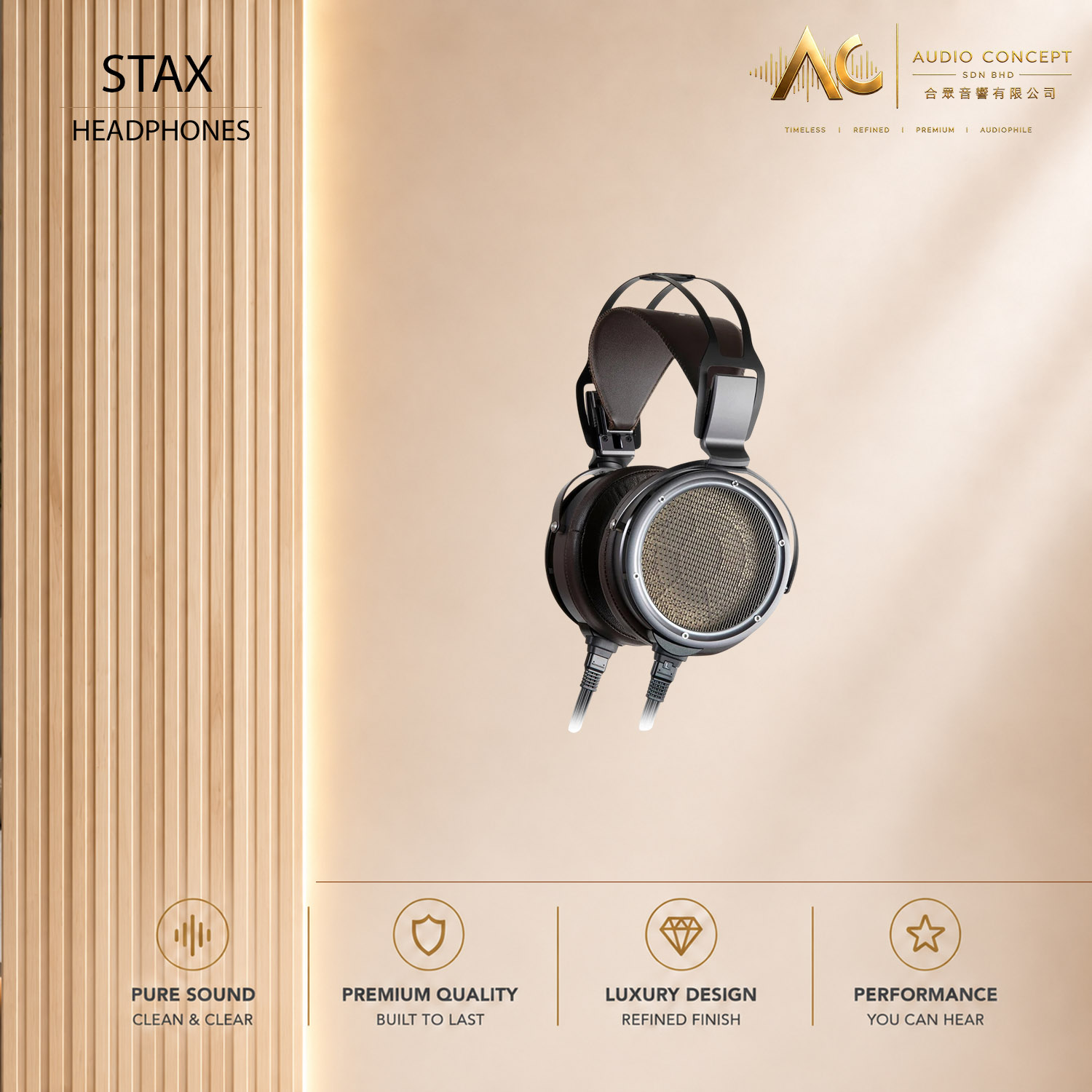

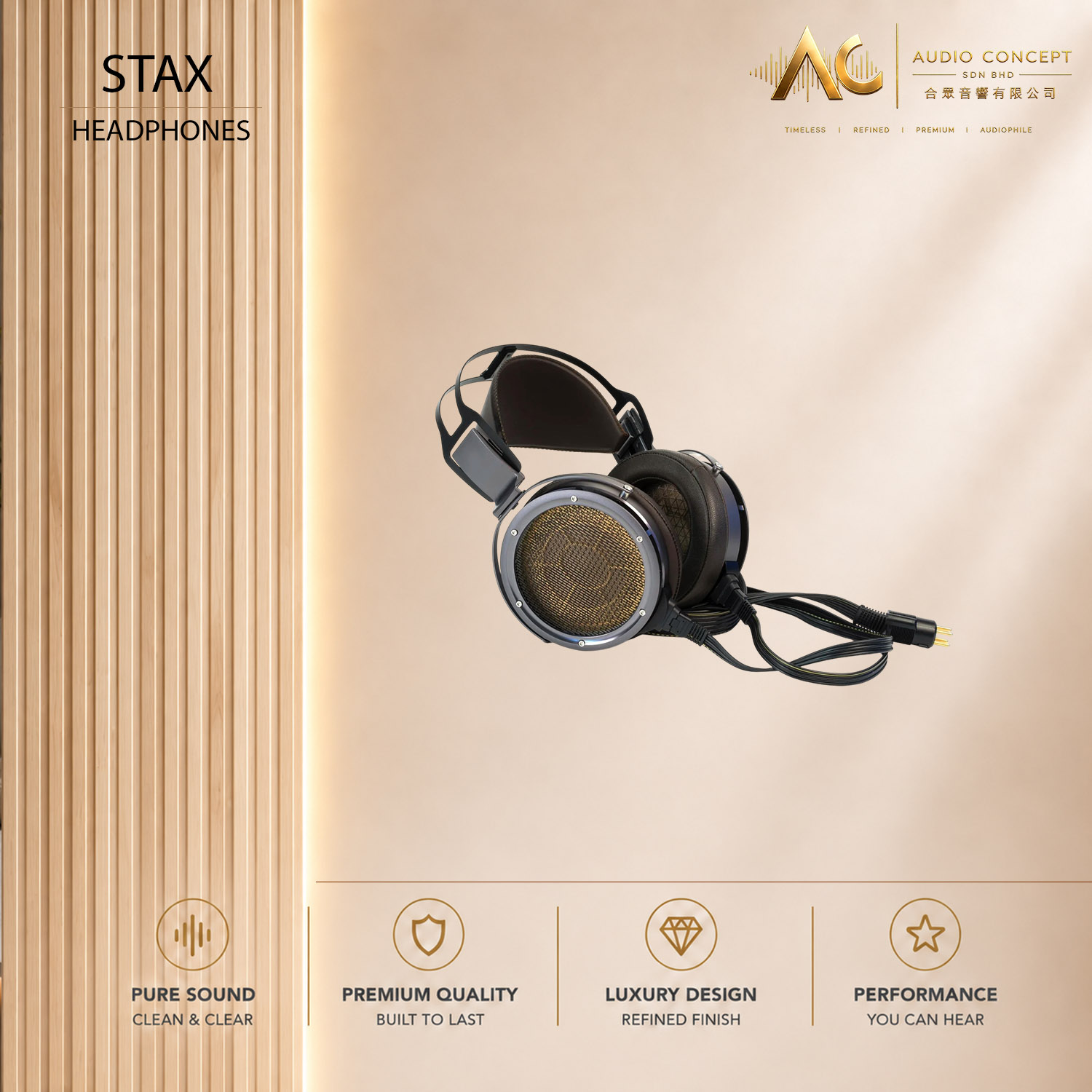

SR-X9000 Electrostatic Earspeaker (Flagship Model)

SR-X9000 is the new flagship Earspeaker that marks the pinnacle of Stax electrostatic headphones production. A major technology advancement is the “MILER-3” (Multi-Layer-Elect-Rords) – a four-layer fixed electrode combining mesh electrodes and conventional etching electrodes that are crimped by thermal diffusion bonding. The newly developed manufacturing technique matures through a 20-year accumulated research and development, allowing a rigid structure that is resistant to resonation while smoothly evolving the transmission characteristics of sound compared to conventional multilayer fixed electrodes.

A product development story: the circular metal mesh once mounted on the SR-X was one of the ideal electrodes to reduce the effects of air resistance and reflections and increase sound permeability. However, there was a big hurdle in installing metal mesh electrodes in products because they lack strength and are resonant-prone that causes playback sound to become muddy. In the 1990s, the original SR-Ω was developed with the goal of increasing the size of the metal mesh; however, the manufacturing technique was at its infancy as it was unpractical to produce stable products. As a matter of fact, there was only a few pairs of SR-Ω were made.

The SR-X9000 diaphragm is made of ultra-thin engineering film that is 20% larger than the previous flagship SR-009S. The diaphragm mass has been reduced to create a lightning-fast reaction speed and high-frequency response range that elevates headphone listening to a whole new level.

SR-X9000 SPECIFICATIONS:
● Type : push-pull electrostatic sound element, open-air type enclosure
● Sound element shape : large round shape
● Fixed electrode : MLER-3 (Multi Layer Electrodes)
● Frequency response : 5 – 42,000Hz
● Electrostatic capacitance : 110pF
● Impedance : 145kΩ
● Sound pressure sensitivity : 100dB
● Bias voltage : 580V DC
● Attached cable conductor : 6N(99.9999%)OFC + silver plated annealed copper wire ●Cable: parallel 6-strand, low-capacity wide cable
● Cable length :2.5m,1.5m
● Ear pad : genuine sheep leather (skin touching portion), artificial leather (surrounding portion)
● Weight: 432g (earspeaker)
——————————————————
