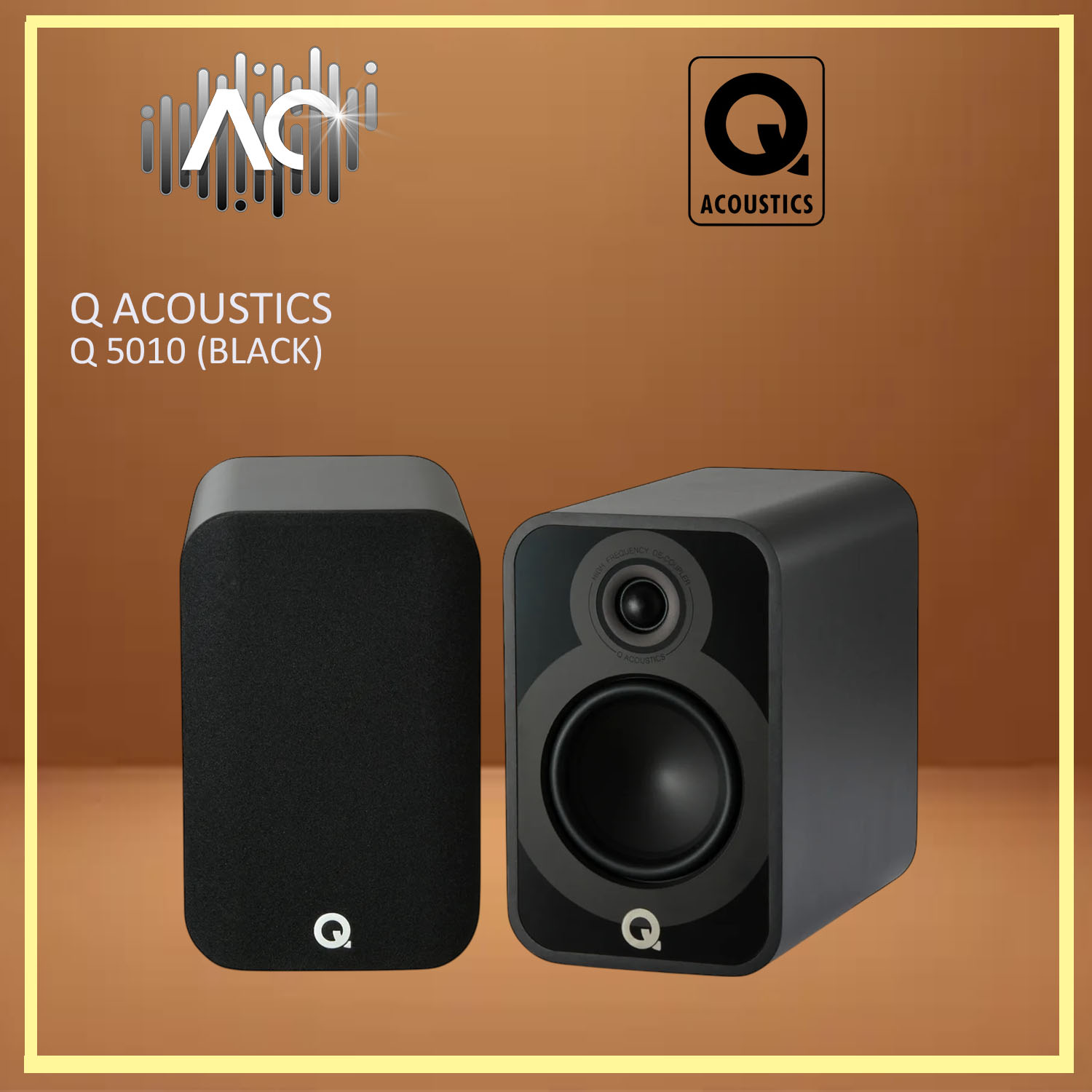

QA Q5010
- C³ Continuous Curved Cone™ design in the mid/bass driver ensures smoother high-frequency integration with the tweeter and superior bass dynamics.
- Sophisticated, clean and contemporary design with dark acrylic baffle motif mirrors the minimalist C³ Continuous Curved Cone™ profile.
- Available in four stylish finishes: Satin Black,Satin White, Santos Rosewood and Holme Oak.
- With a design taken from the Concept series but in a new housing, the high-frequency driver is fully hermetically sealed and mechanically isolated from the front baffle to protect from internal cabinet pressure and resonances from the mid/bass driver.
- Ground-up mid/bass driver design delivers increased power handling.
- Point-2-Point™ (P2P) internal bracing stiffens the cabinet to minimise lower frequency vibrations, while focusing stereo imaging and improving soundstage
- Bass unit 1 x 110 mm (4.5 in)
- Treble unit1 x 25 mm (1.0 in)
- Frequency response(-6dB) 56Hz – 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.3 Ω
- Sensitivity (2.83V @ 1kHz)86.3 dB/w/m
- Recommended amplifier power 15-90 W
- Crossover frequency 2.5 kHz
- Effective volume 5.0 L

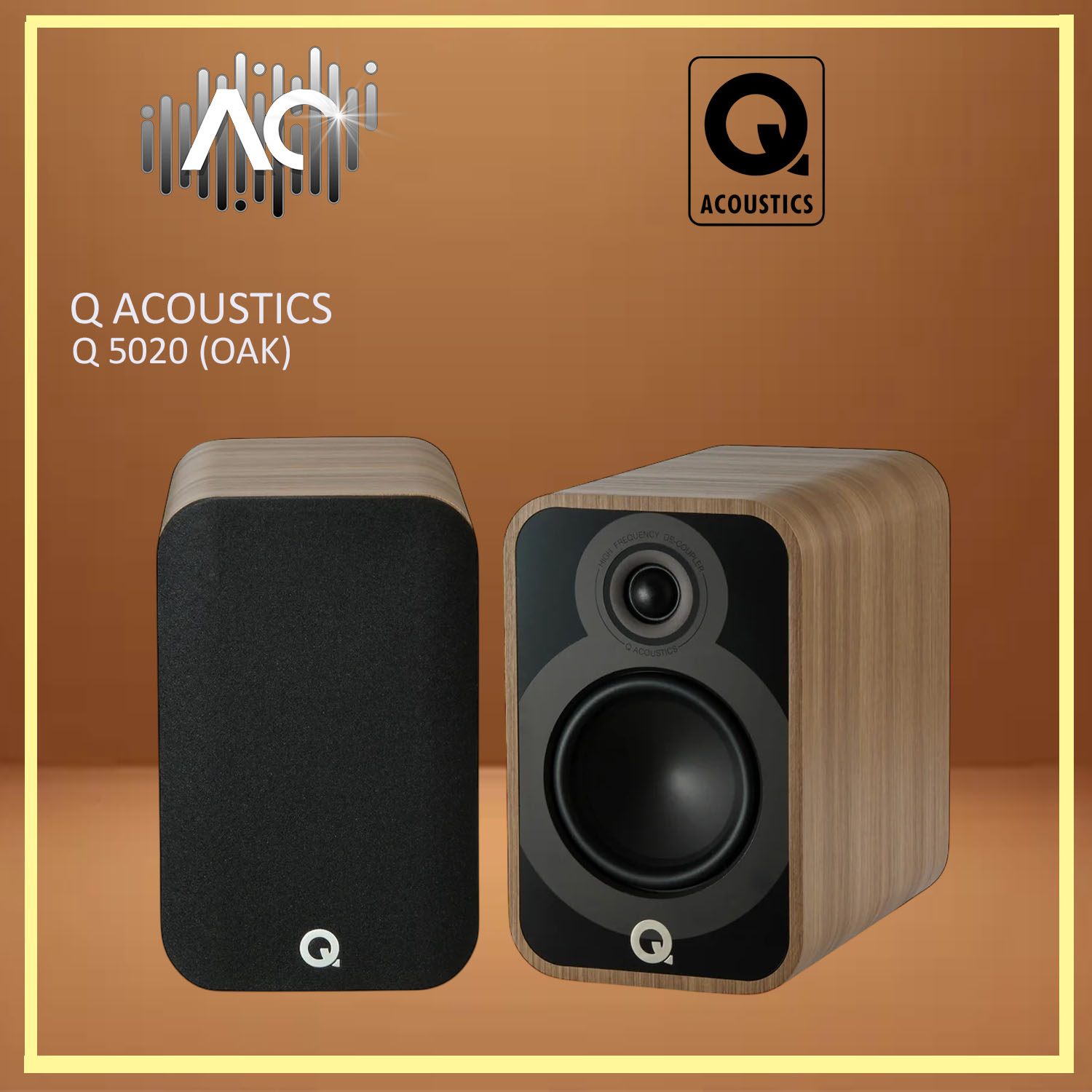

QA Q5020
Experience all the scale and power of your favourite music without letting your loudspeaker dominate your room. The 5020 standmounting speaker will put your right in the heart of the music without putting itself at the heart of your space.
- Bass unit1 x 125 mm (5.0 in)
- Treble unit1 x 25 mm (1.0 in)
- Frequency response(-6dB) 53 Hz – 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.3 Ω
- Sensitivity (2.83V @ 1kHz)87.9 dB/w/m
- Recommended amplifier power25-100 W
- Crossover frequency 2.5 kHz
- Effective volume6.8 L
- Dimensions (per loudspeaker / HxWxD)284 x 180 x 293 mm (11.2 x 7.1 x 11.5 in)
- Weight (per loudspeaker) 7.0 kg (15.4 lbs)

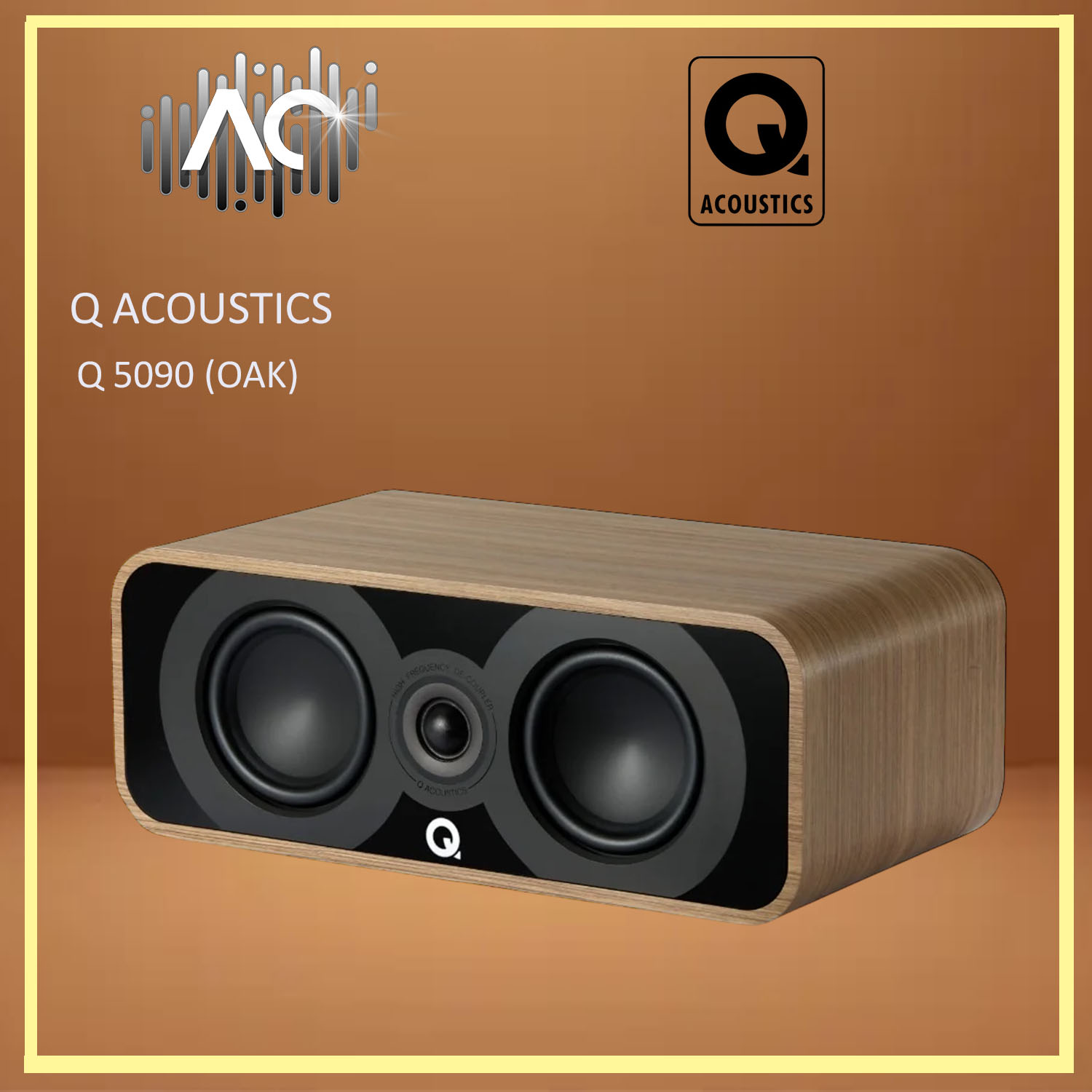

QA Q5090
Designed to project dialogue ahead of even the most full-on Hollywood action movie soundtrack, and to deliver all the subtlety and nuance of art-house favourites with equal ease and conviction. Put the 5090 at the centre of your home cinema system and get the complete picture.
- Bass unit2 x 110 mm (4.5 in)
- Treble unit1 x 25 mm (1.0 in)
- Frequency response(-6dB)57 Hz – 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance3.2 Ω
- Sensitivity (2.83V @ 1kHz)90.5 dB/w/m
- Recommended amplifier power25-150 W
- Crossover frequency2.1 kHz
- Effective volume7.8 L
- Dimensions (per loudspeaker / HxWxD)164 x 430 x 243 mm (6.5 x 16.9 x 9.6 in)
- Weight (per loudspeaker)8.5 kg (18.7 lbs)
By creating a single, smooth, continuous curve profile, the advantages are clear. Its excellent dispersion, alongside its well-controlled frequency response and reduced harmonic distortion, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this and tighter, damped low-end sound allowing more flexibility in in placement of speakers near the wall boundaries of the listening room.
