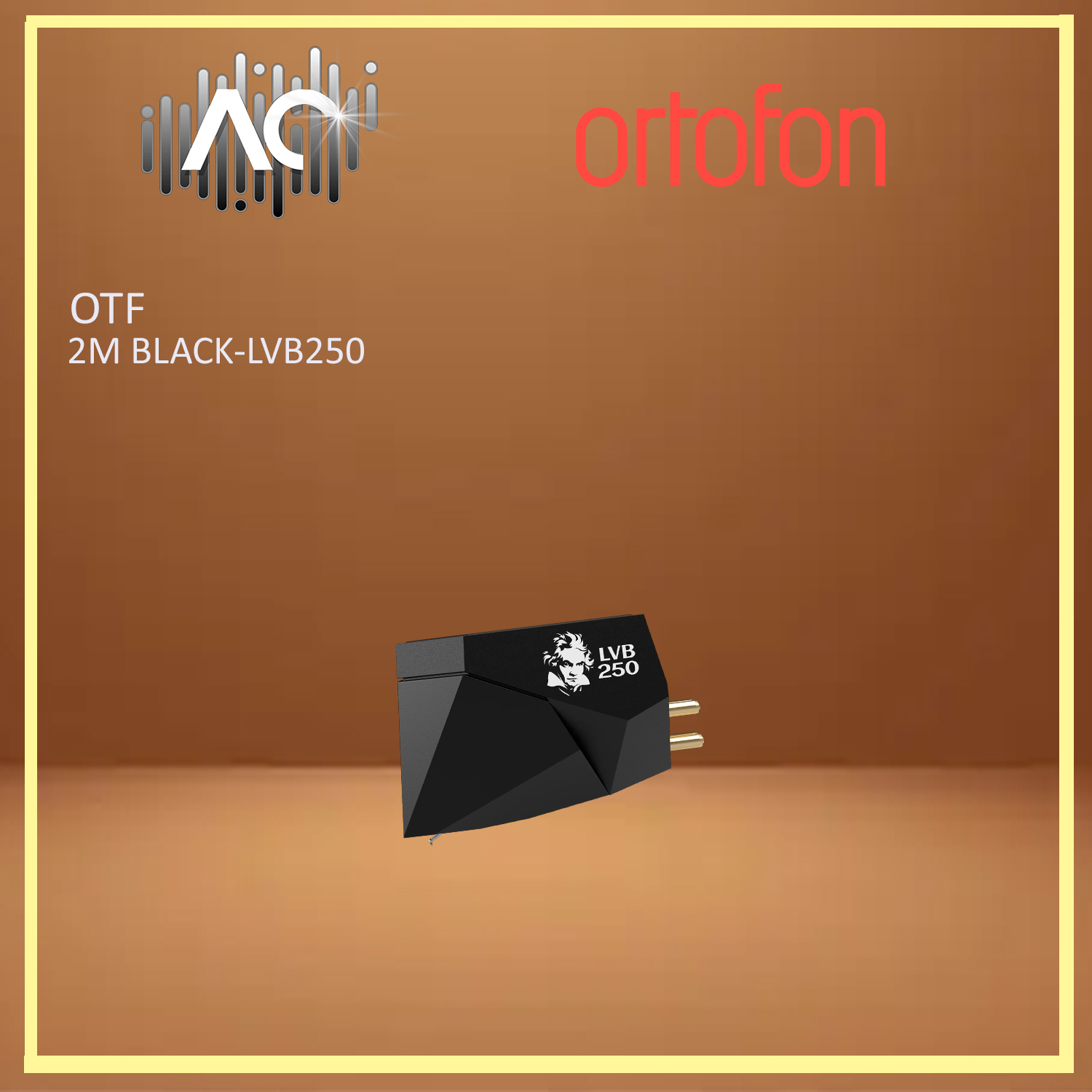

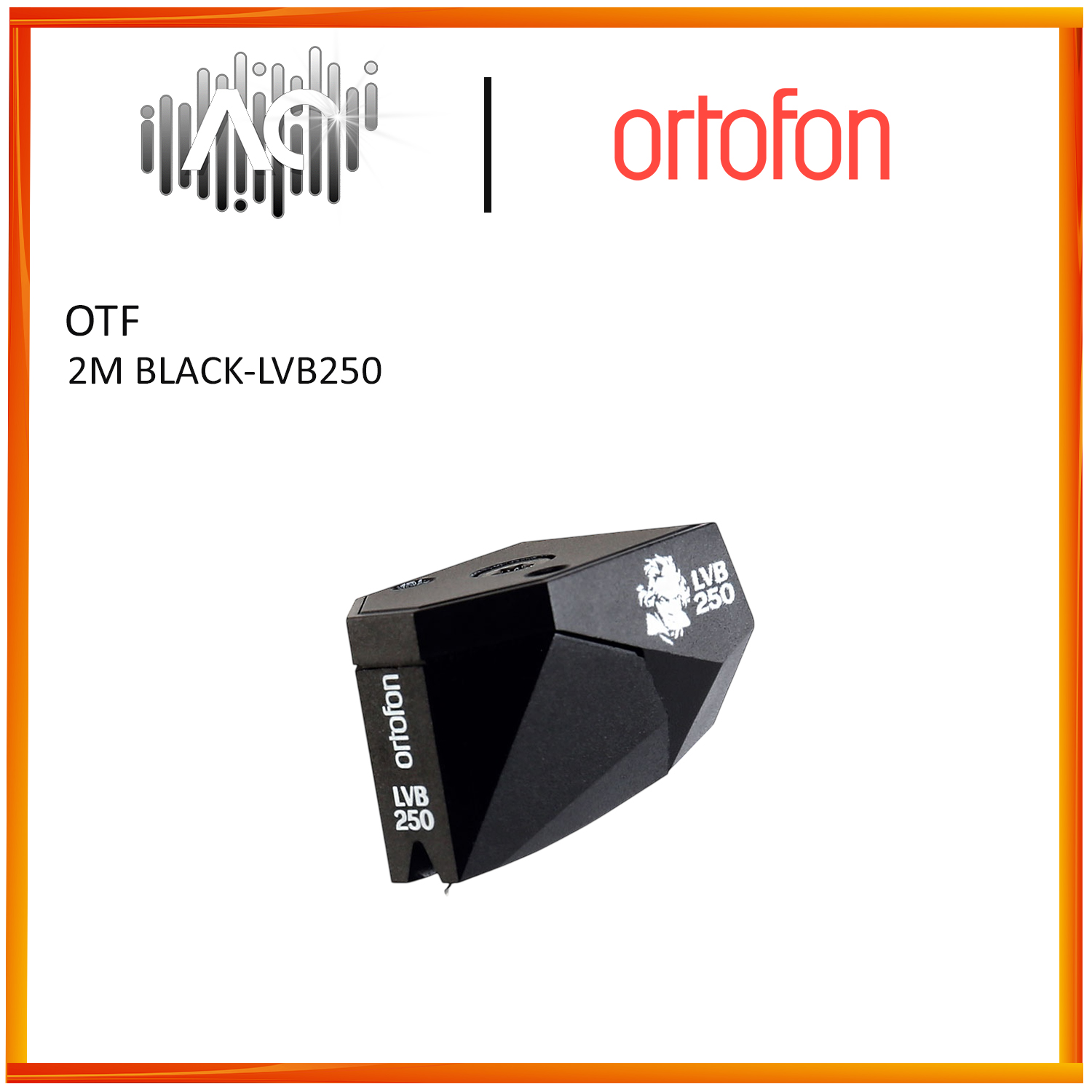

Ortofon Hi-Fi 2M Black LVB 250 MM Cartridge Turntable (For Rega Turntable)

RM4,459.00

  • Brand – Ortofon
  • Model – 2M Black LVB 250 MM Cartridge
  • Type – Turntable MM Cartridge
  • Warranty – No Warranty
  • Channel balance at 1 kHz – 1 dB
  • Output voltage at 1 kHz, 5cm/sec – 5 mV
  • Channel separation at 1 kHz – 27 dB
  • Frequency response 20 Hz – 20 kHz – + 2 / – 1 dB
  • Tracking ability at 315 Hz – 80 µm
  • Compliance, dynamic, lateral – 22 µm/mN
  • Cantilever material – Boron
  • Stylus type – Nude Shibata diamond
  • Stylus tip radius – r/R 6/50 µm
  • Tracking force range – 1.5-1.7 g (15-17 mN)
  • Tracking force, recommended – 1.6 g (16 mN)
  • Tracking angle – 20°
  • Internal impedance, DC resistance – 1.2 kOhm
  • Cartridge colour – Black/Black
  • Cartridge weight – 7.2 g
  • Premounted cartridge weight – 16.7 g
  • Recommended load resistance – 47 kOhm
  • Internal inductance – 630 mH
  • Recommended load capacitance – 150-300 pF

Availability: 20 in stock

SKU OTF X2M Black-LVB 250 Categories , Tag

The 2M Black LVB 250 upgrades the great build of the 2M Black with a boron cantilever and our very own Nano Tube suspension system. The result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

The 2M Black LVB was released to commemorate the 250th anniversary of the birth of Ludwig van Beethoven in December 2020.

The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood. The 2M Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

The Nude Shibata stylus’ slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the highest frequencies.

The 2M Black LVB 250 features our very own Nano Tube suspension system. The new rubber compound formula is based on the Multi Wall Carbon Nano Tubes' (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which ensure better damping and improve the overall performance of the cartridge.

In this video, Leif Johannsen explores the power of materials used in the different parts of a cartridge and demonstrates the differences in the damping properties of the rubber.

  • Channel balance at 1 kHz – 1 dB
  • Output voltage at 1 kHz, 5cm/sec – 5 mV
  • Channel separation at 1 kHz – 27 dB
  • Frequency response 20 Hz – 20 kHz – + 2 / – 1 dB
  • Tracking ability at 315 Hz – 80 µm
  • Compliance, dynamic, lateral – 22 µm/mN
  • Cantilever material – Boron
  • Stylus type – Nude Shibata diamond
  • Stylus tip radius – r/R 6/50 µm
  • Tracking force range – 1.5-1.7 g (15-17 mN)
  • Tracking force, recommended – 1.6 g (16 mN)
  • Tracking angle – 20°
  • Internal impedance, DC resistance – 1.2 kOhm
  • Cartridge colour – Black/Black
  • Cartridge weight – 7.2 g
  • Premounted cartridge weight – 16.7 g
  • Recommended load resistance – 47 kOhm
  • Internal inductance – 630 mH
  • Recommended load capacitance – 150-300 pF

Weight 0.50 kg
Dimensions 10.00 × 10.00 × 10.00 cm
