C 328
HYBRIDDIGITAL DAC AMPLIFIER
The NAD C 328 HybridDigital DAC Amplifier makes it easy to build a clean, modern hi-fi system with the musicality and precision NAD is known for. Its 50 Watts per channel HybridDigital UcD design delivers detailed, low-noise performance, while the built-in phono stage brings new clarity to vinyl playback. Support for Bluetooth adds simple wireless streaming, and versatile analogue and digital inputs make integration effortless. Compact and thoughtfully designed, the C 328 is an ideal first step into true high-fidelity sound.

Analogue In/Headphone Out

• Continuous output power into 8 Ohms and 4 Ohms : 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz) : <0.005 % at 1 V out
• Signal-to-Noise Ratio : >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
• Frequency response : ±0.3 dB (20 Hz – 20 kHz)
• Output impedance : 11 ohms

Analog In/Subwoofer Out

• THD (20 Hz – 20 kHz) : <0.005 % at 1 V out
• Signal-to-Noise Ratio : >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
• Frequency response : ±0.2 dB (20 Hz – 20 kHz)
• Output impedance : 200 ohms

Analog In/Speaker Out

• THD (20 Hz – 20 kHz) : <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio : >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
• Frequency response : ±0.3 dB (20 Hz – 20 kHz)

Phono In/Speaker Out

• THD (20 Hz – 20 kHz) : <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio : >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
• Frequency response(RIAA deviation) : ±0.3 dB (20 Hz – 20 kHz)

Power consumption

• at ECO Standby mode : 0.5 Watts*
• at Control Standby mode : 0.6 Watts**
• OFF mode (Power switched OFF) : 0 Watts

Dimensions & Weight

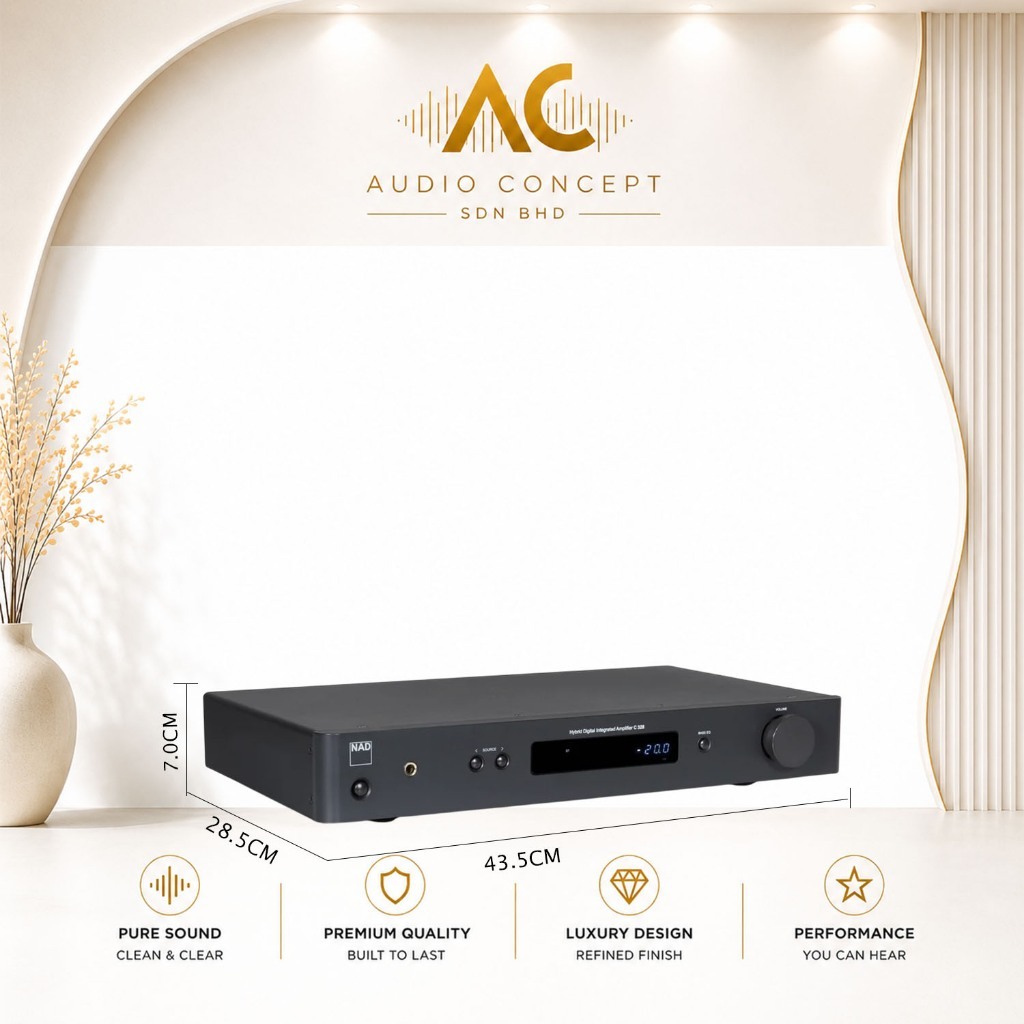

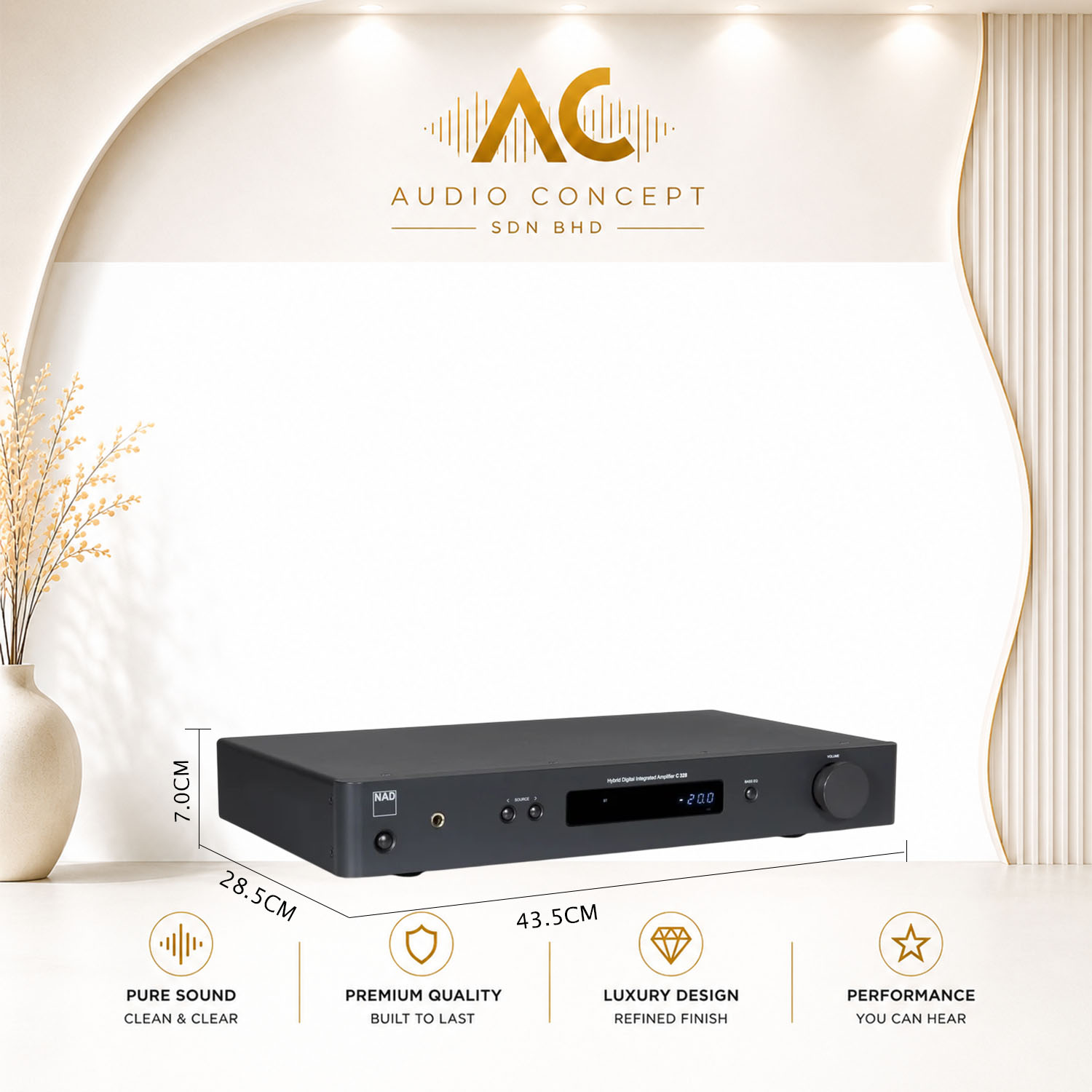

• Gross dimensions (W x H x D) : 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4")
• Net weight : 4.9 kg (10.8 lbs)
• Shipping weight : 5.9 kg (13.0 lbs)

——————————————
