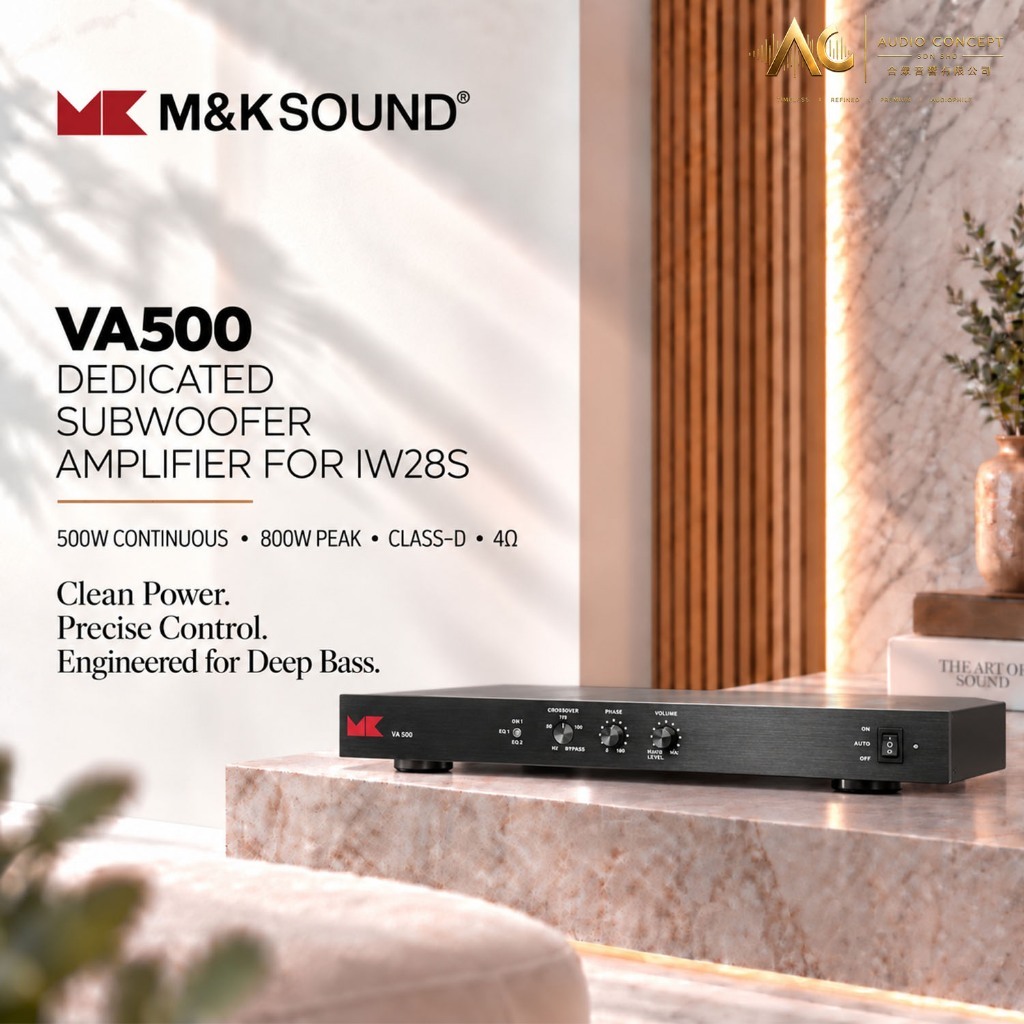

M&K Sound VA500 Subwoofer Amplifier
Dedicated High-Power Amplifier for the M&K Sound IW28S

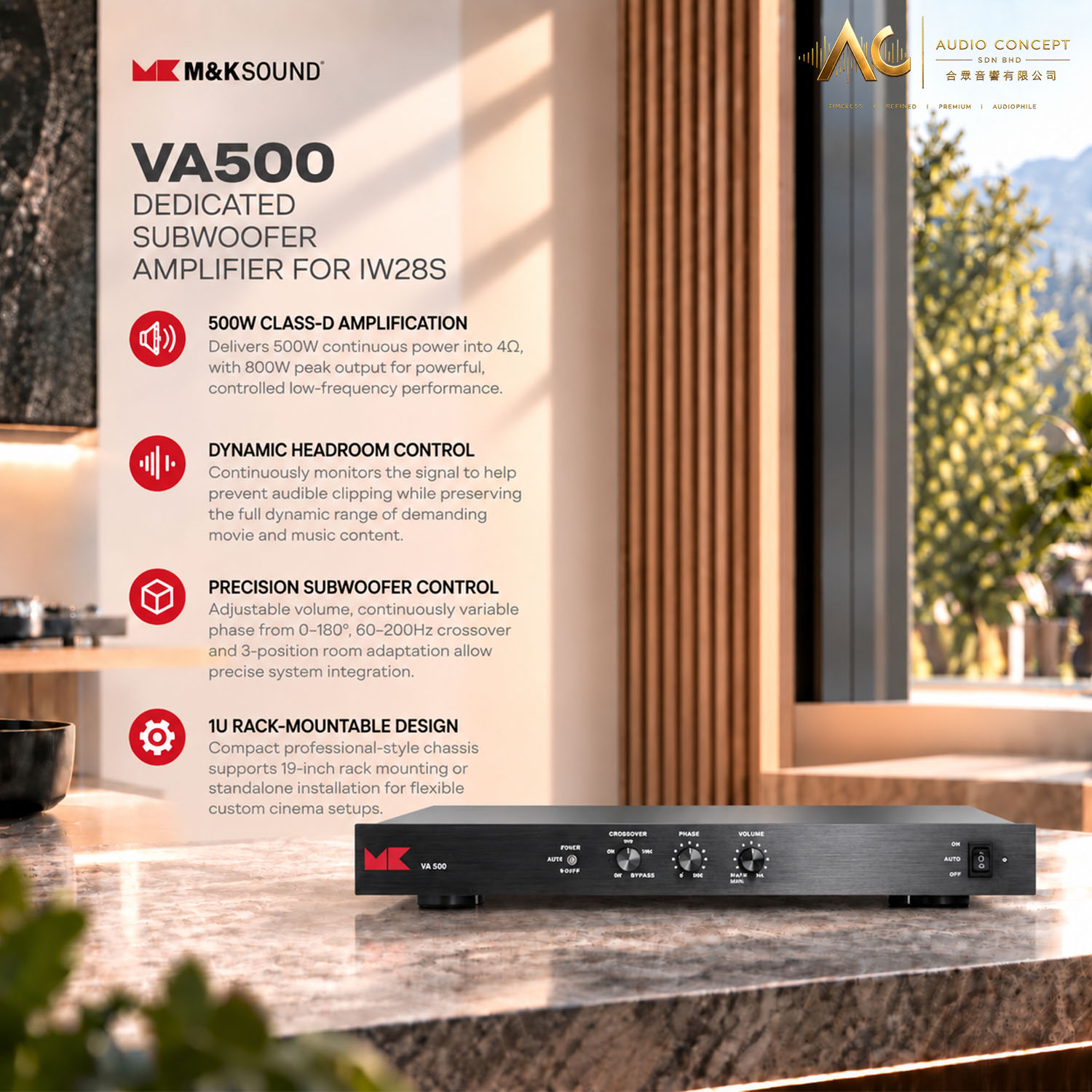

The M&K Sound VA500 Subwoofer Amplifier is purpose-built to power the M&K Sound IW28S in-wall subwoofer. Its high-efficiency Class D power stage delivers 500 watts of continuous output and up to 800 watts of peak power into a 4-ohm load, giving the IW28S the control and dynamic headroom required for deep movie effects and accurate music reproduction.

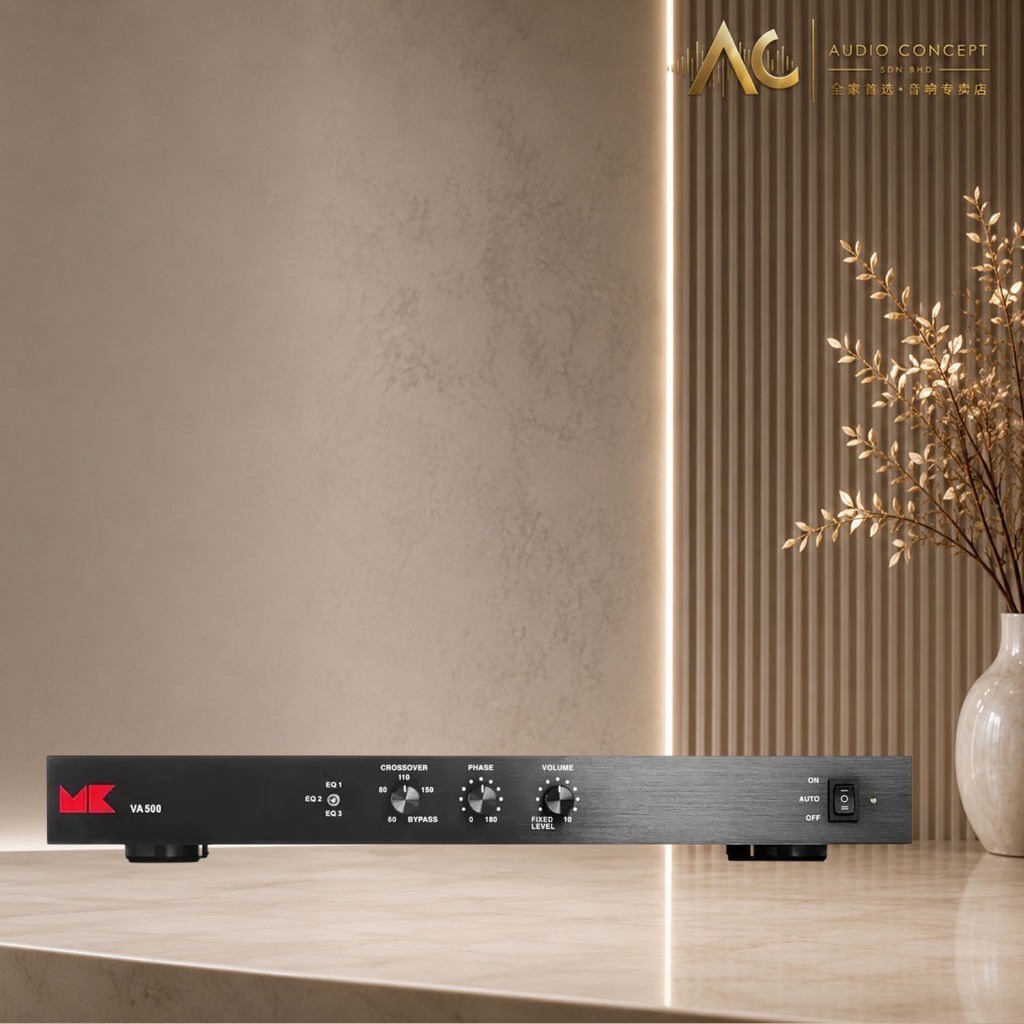

A compact one-rack-unit chassis allows the VA500 to fit neatly into a centralized equipment rack, while removable rack handles and supplied feet support standalone placement. Adjustable volume, continuously variable phase, a variable low-pass crossover and three room-adaptation settings make it easier to integrate the subwoofer with the room, main speakers and listening position.

M&K Sound VA500 Specifications

• Brand : M&K Sound
• Product Type : Dedicated In-Wall Subwoofer Amplifier
• Finish : Black
• Compatible Subwoofer : 1 × M&K Sound IW28S
• Amplifier Design : Class D switch-mode amplifier
• Continuous Output Power : 500 watts into 4 ohms
• Peak Output Power : 800 watts into 4 ohms
• System Preamplifier : Analog
• Total Harmonic Distortion : 0.5% at 500 watts

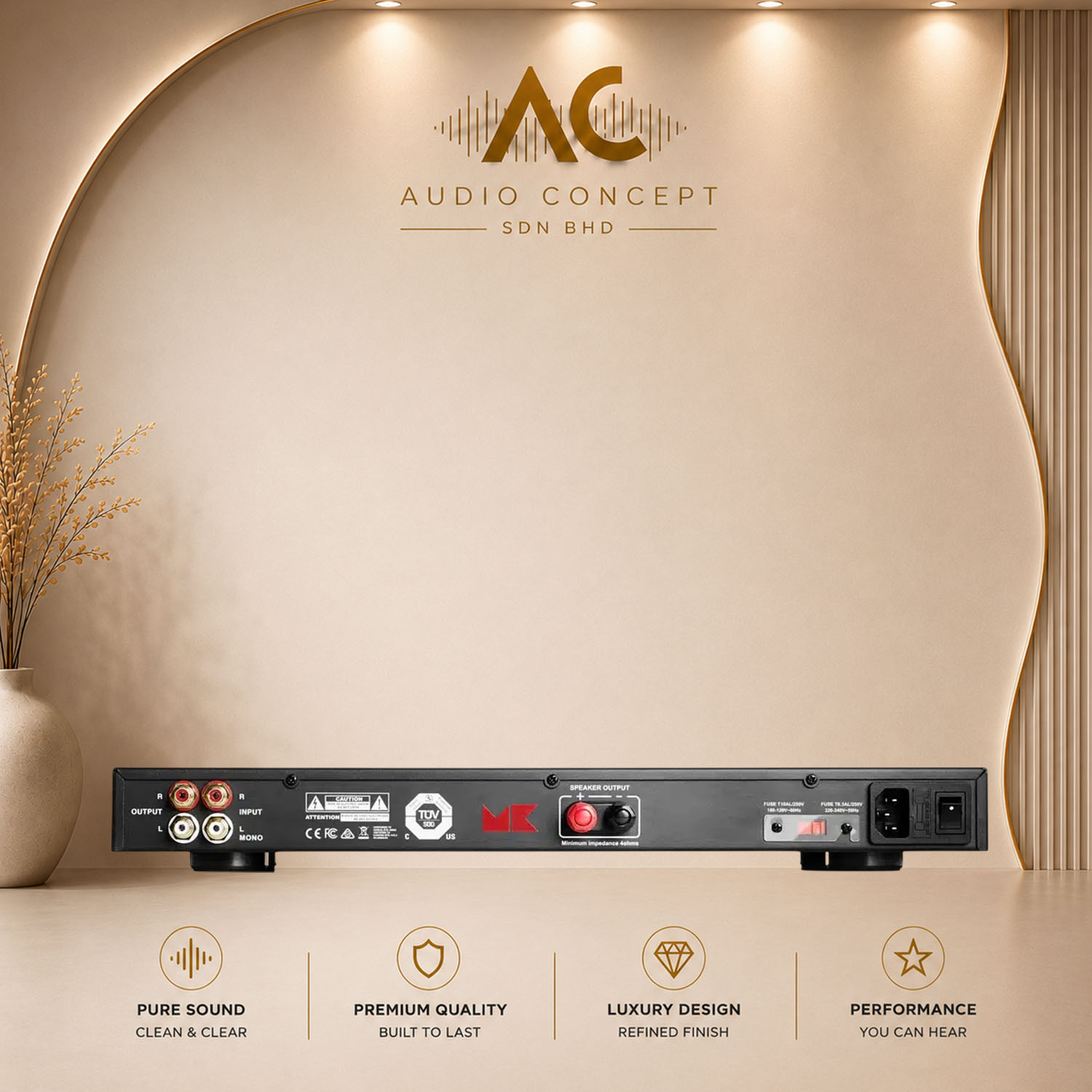

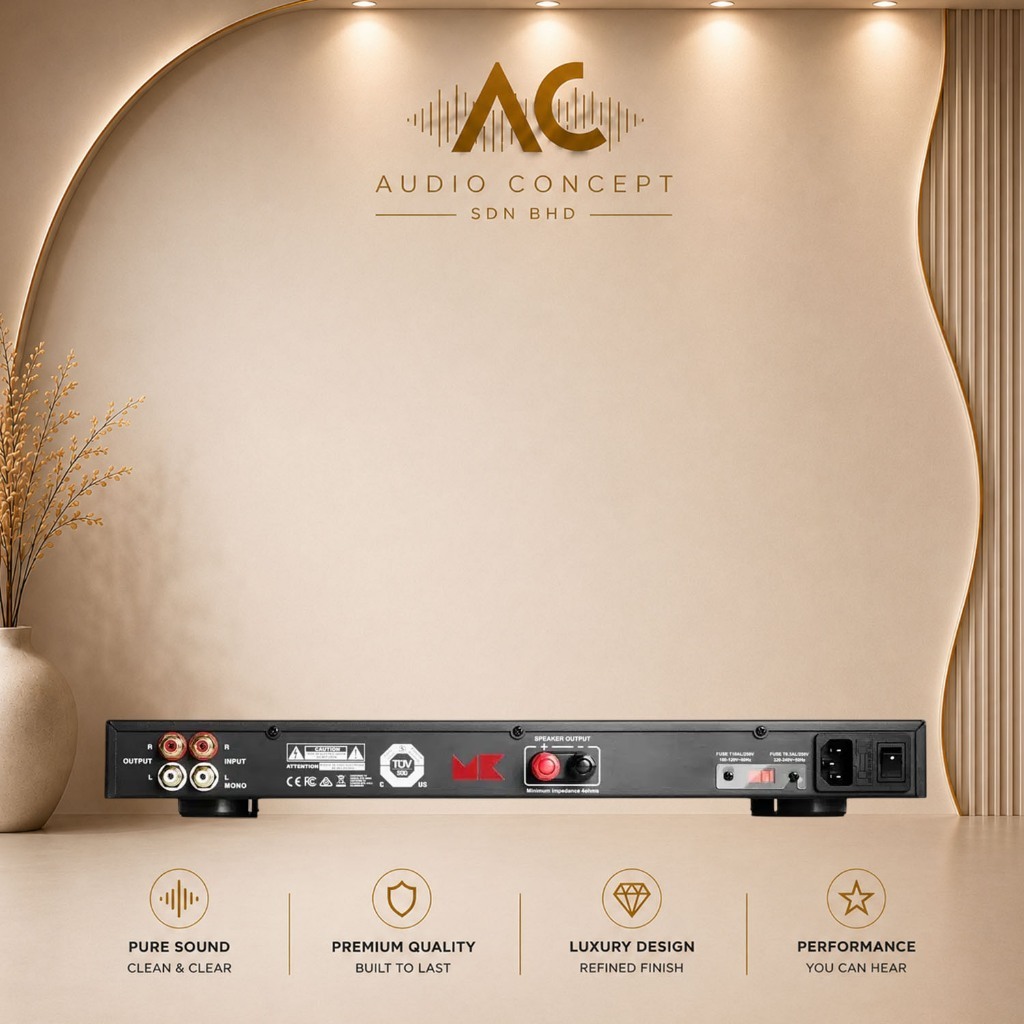

• Line-Level Inputs : Stereo RCA left and right
• Line-Level Outputs : Stereo RCA pass-through left and right
• Speaker Output Connections : 5-way binding posts
• Volume Control : Continuously variable with fixed reference-level position
• Phase Control : Continuously variable from 0° to 180°
• Low-Pass Crossover : Continuously variable from 60Hz to 200Hz with bypass setting
• Room EQ : Three-position room-adaptation switch
• Room EQ Position 1 : For one subwoofer placed away from corners
• Room EQ Position 2 : For one subwoofer placed near a corner
• Room EQ Position 3 : For one or two subwoofers placed in corners
• Power Modes : Off, Auto and On
• Input Voltage : 100–120VAC or 220–240VAC, switch-selectable
• AC Frequency : 50/60HzRack Height1U

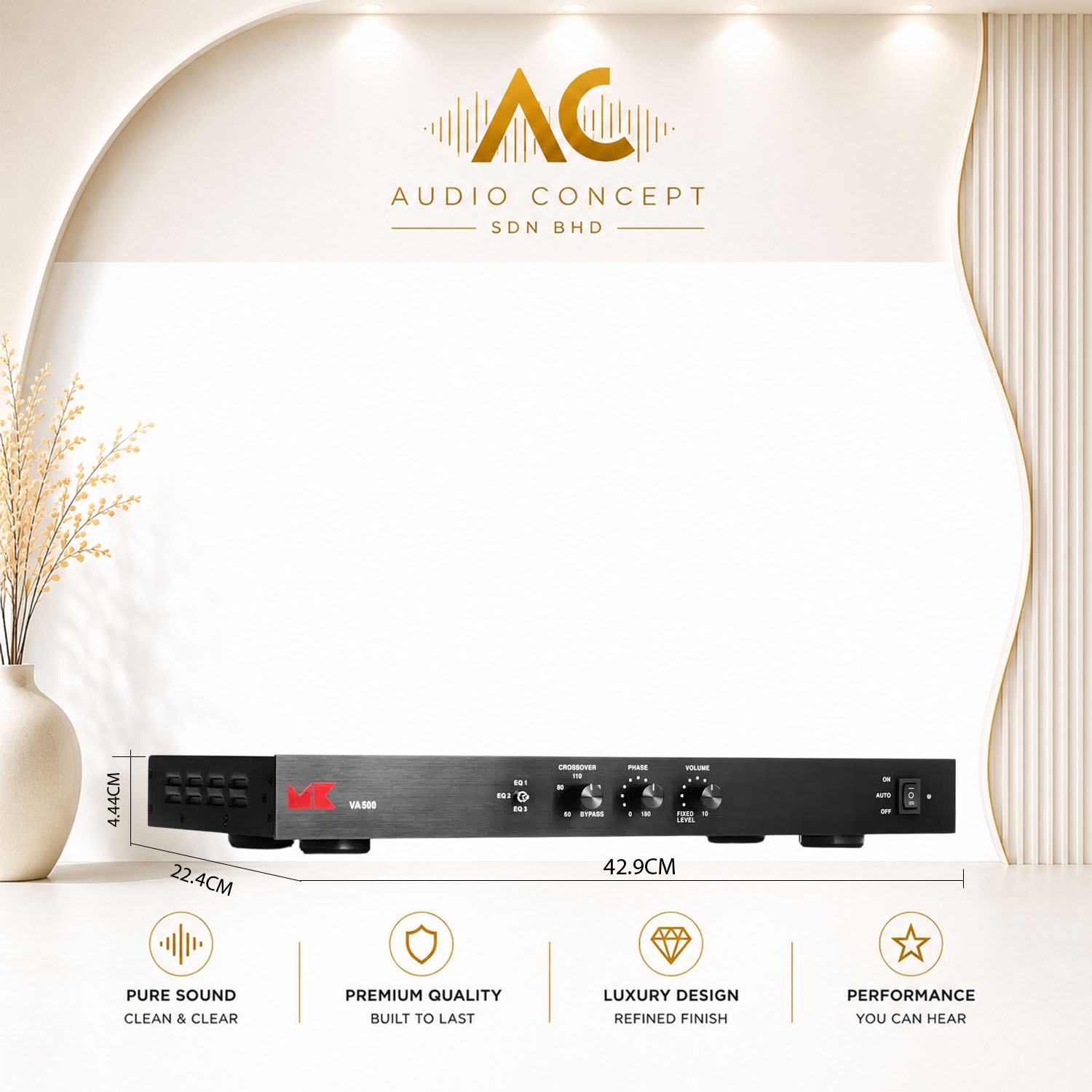

• Chassis Dimensions (W × H × D) : 16.88" × 1.74" × 8.81" / 429 × 44.4 × 224mm
• Rack Dimensions (W × H × D) : 19" × 1.74" × 8.81" / 483 × 44.4 × 224mm with rack handles
• Weight : 8.8 lbs. / 4kg

———————————–
