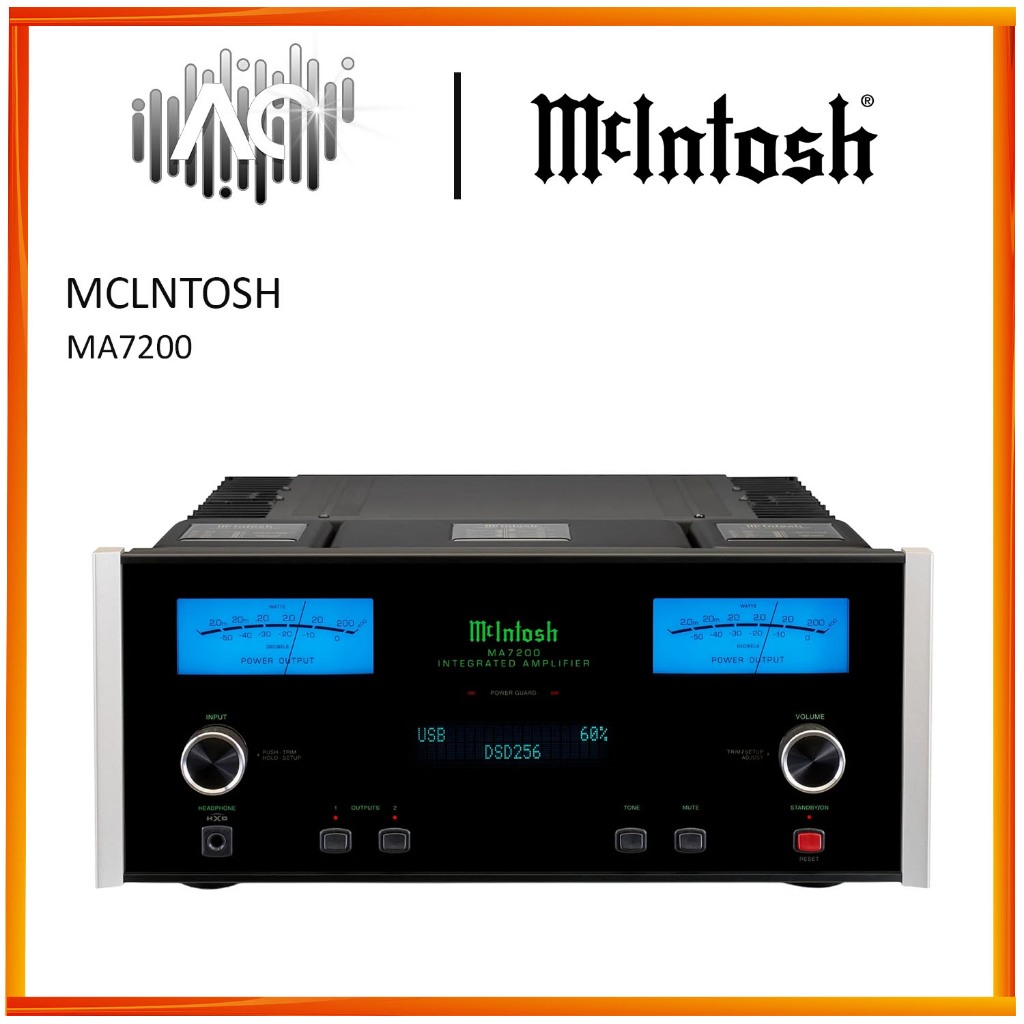

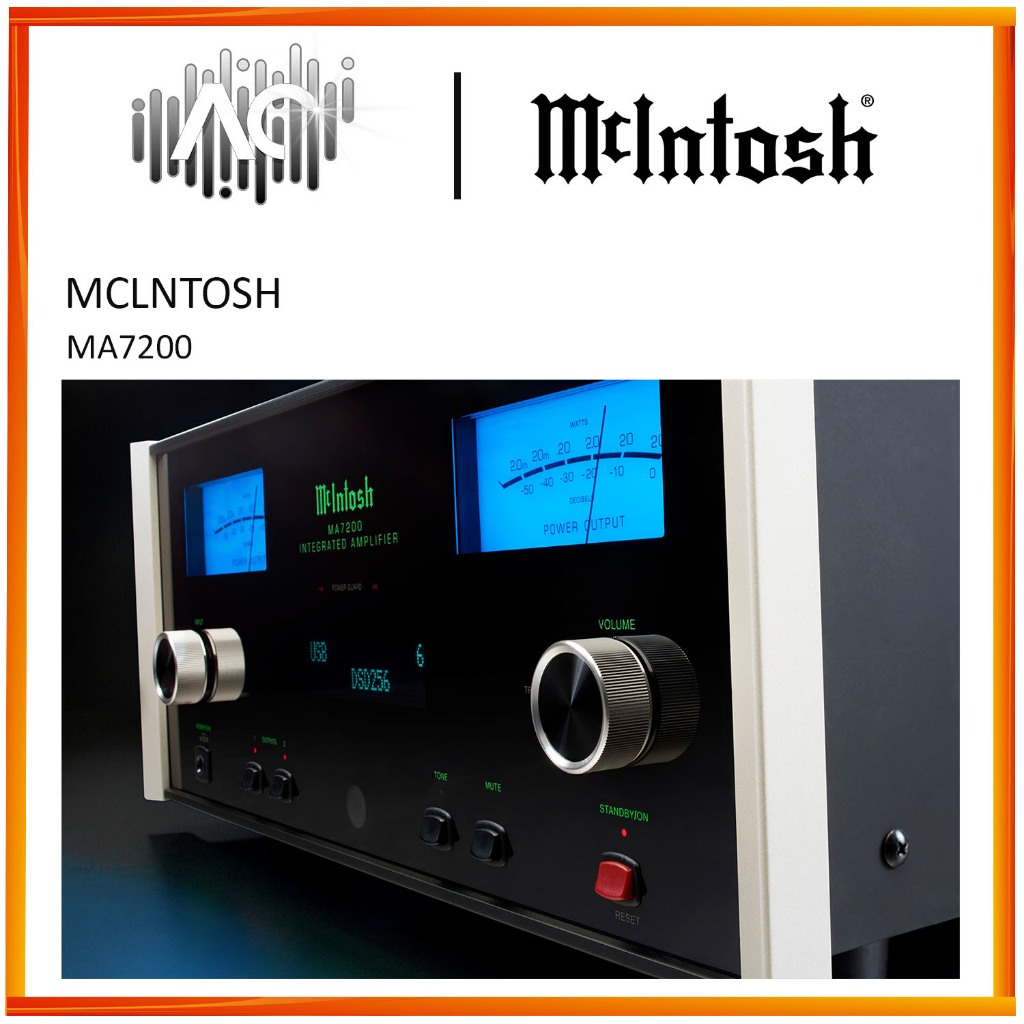

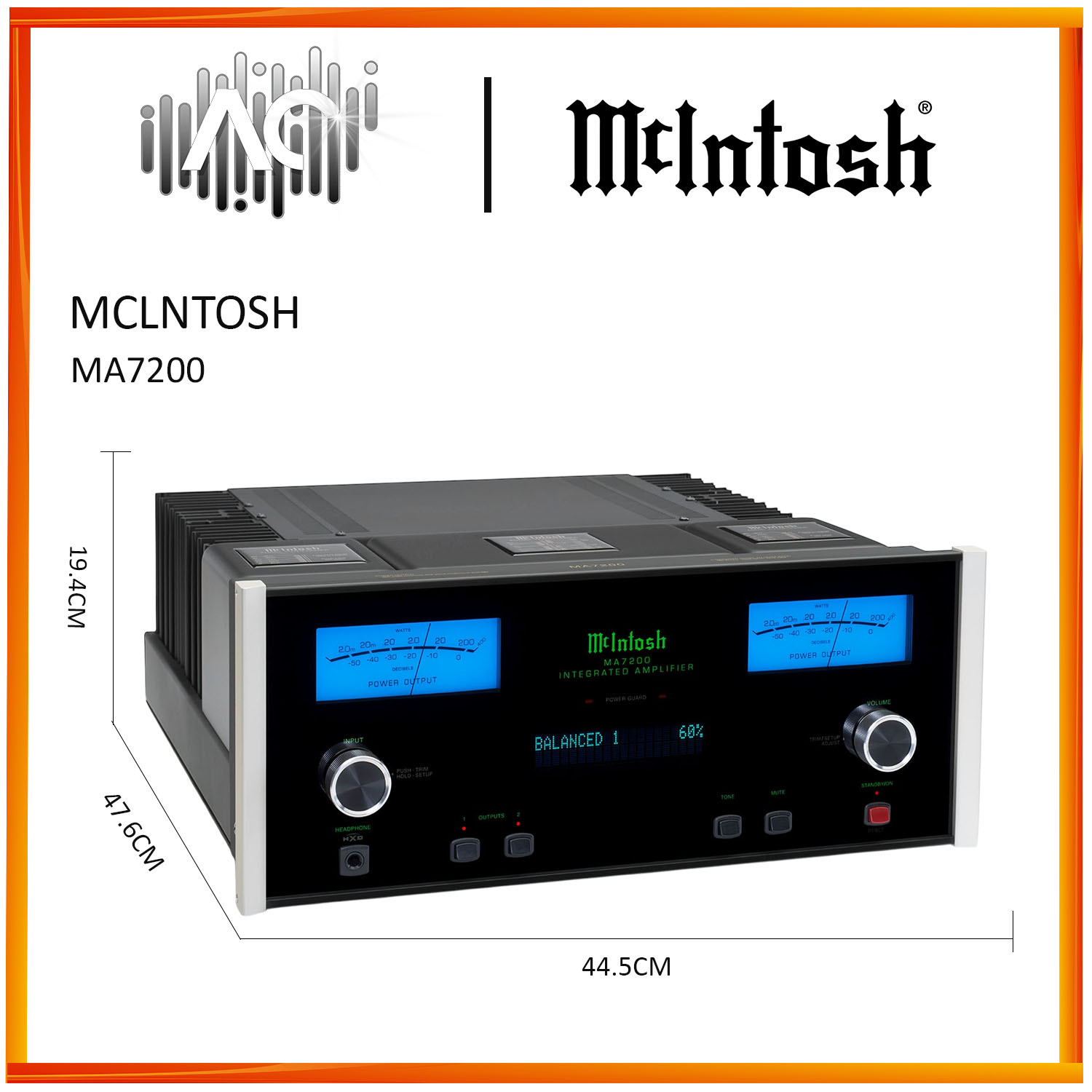

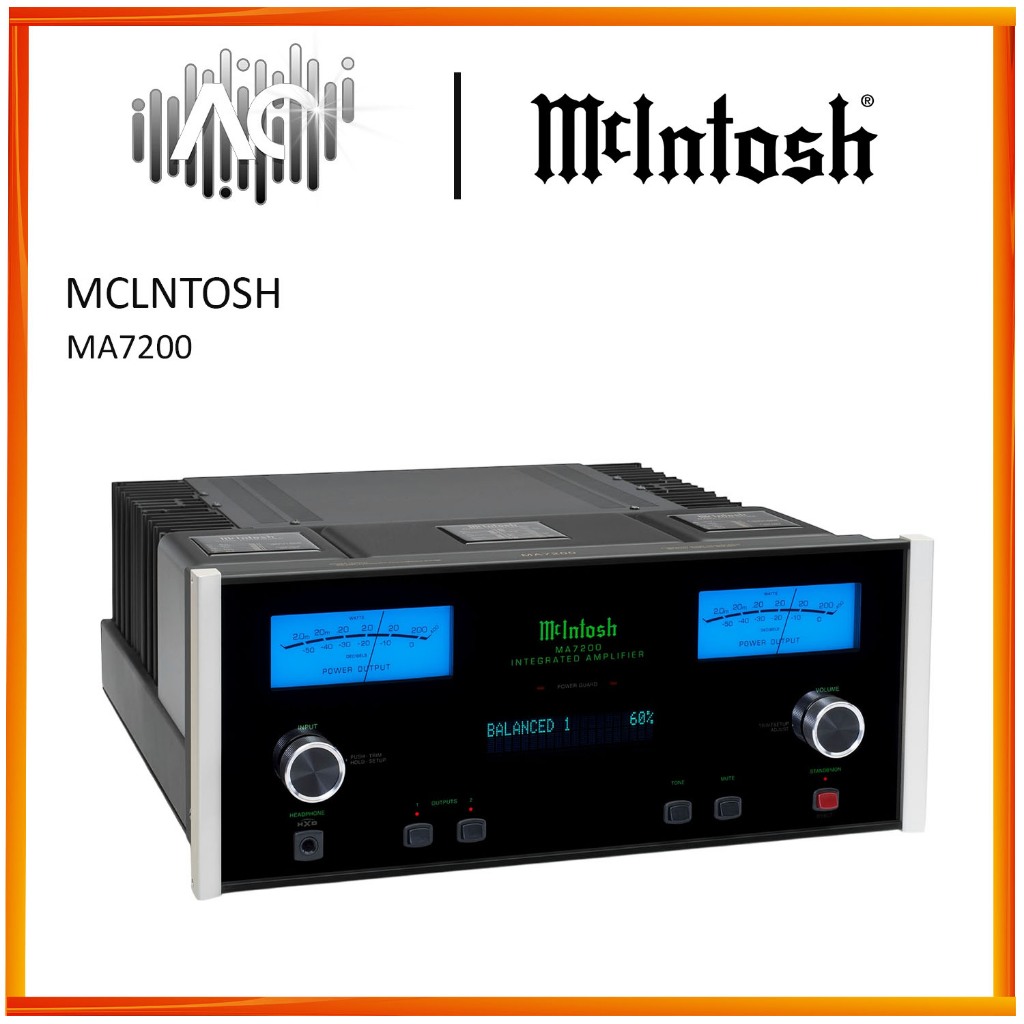

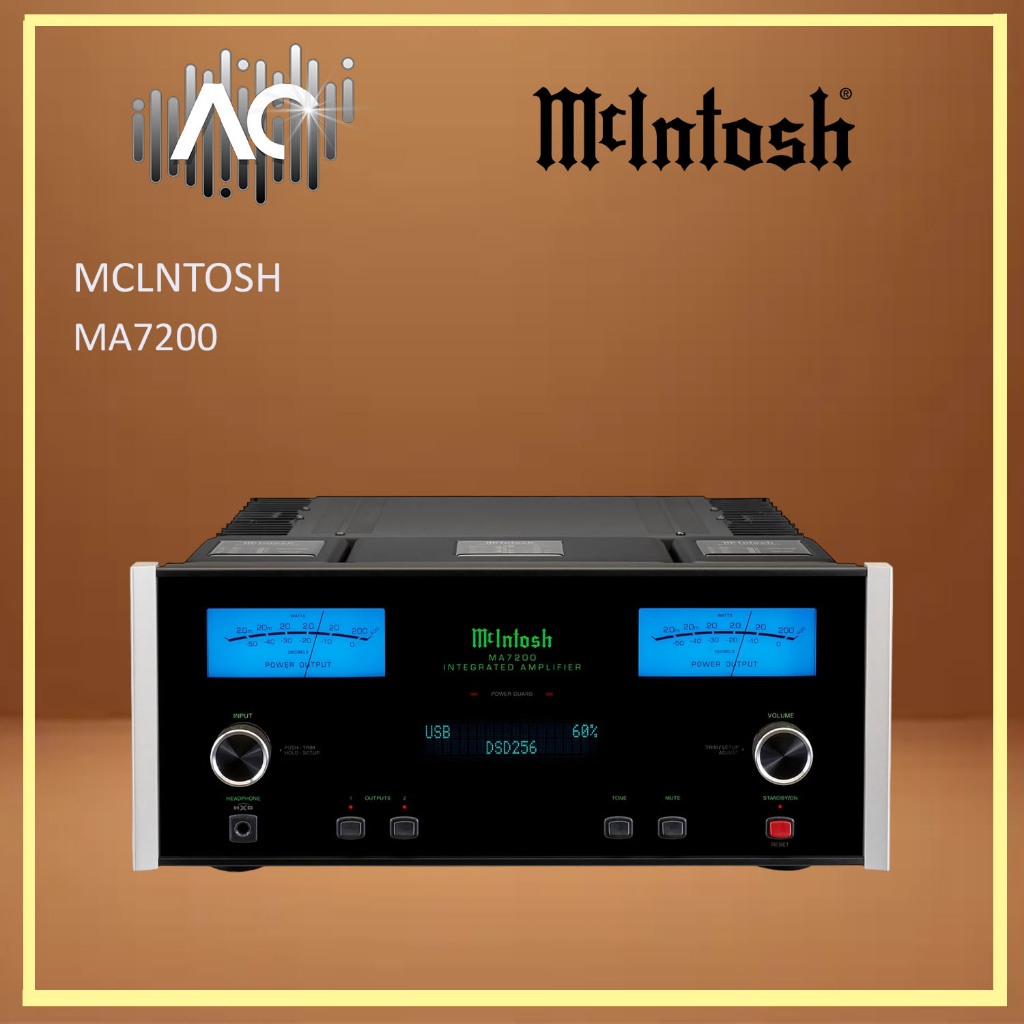

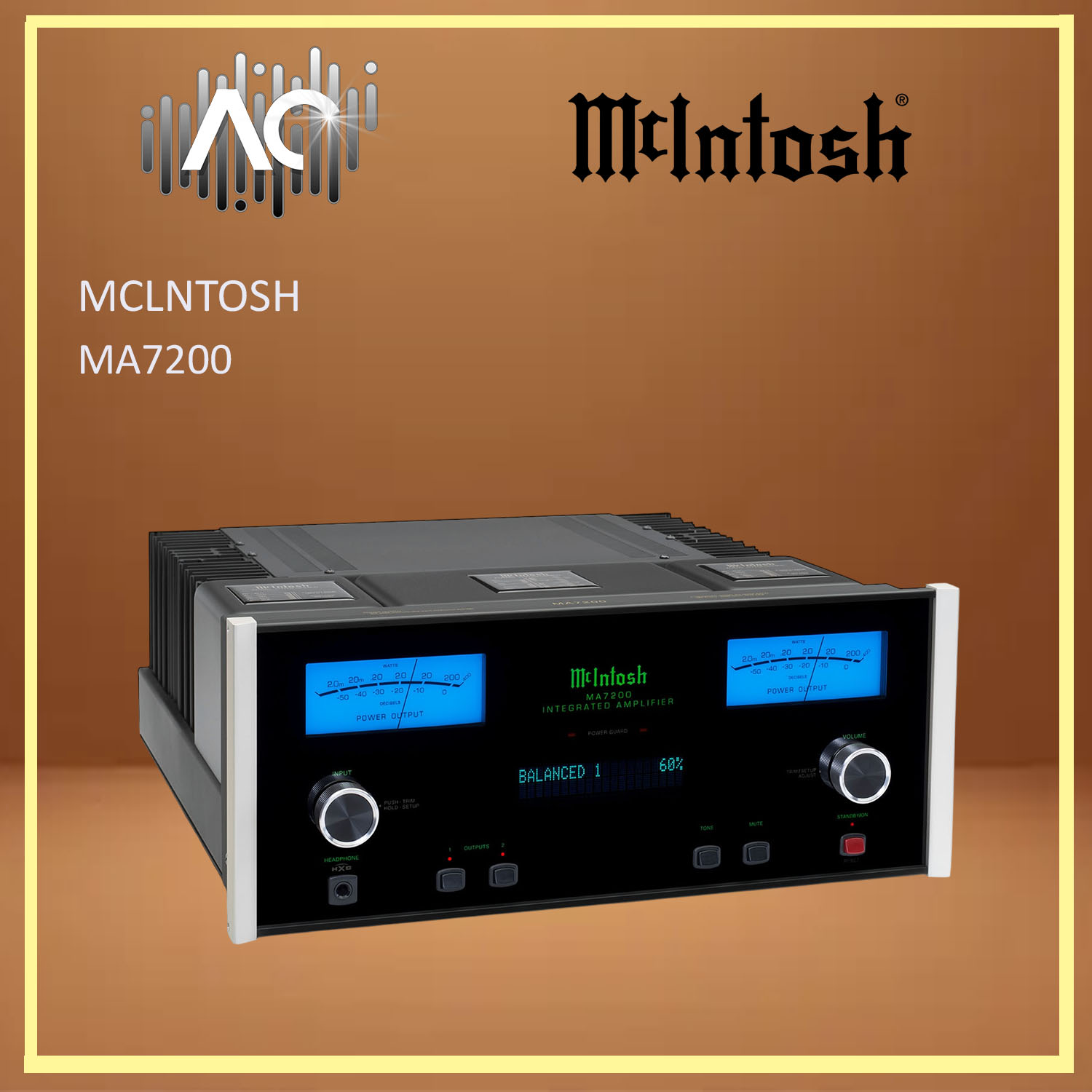

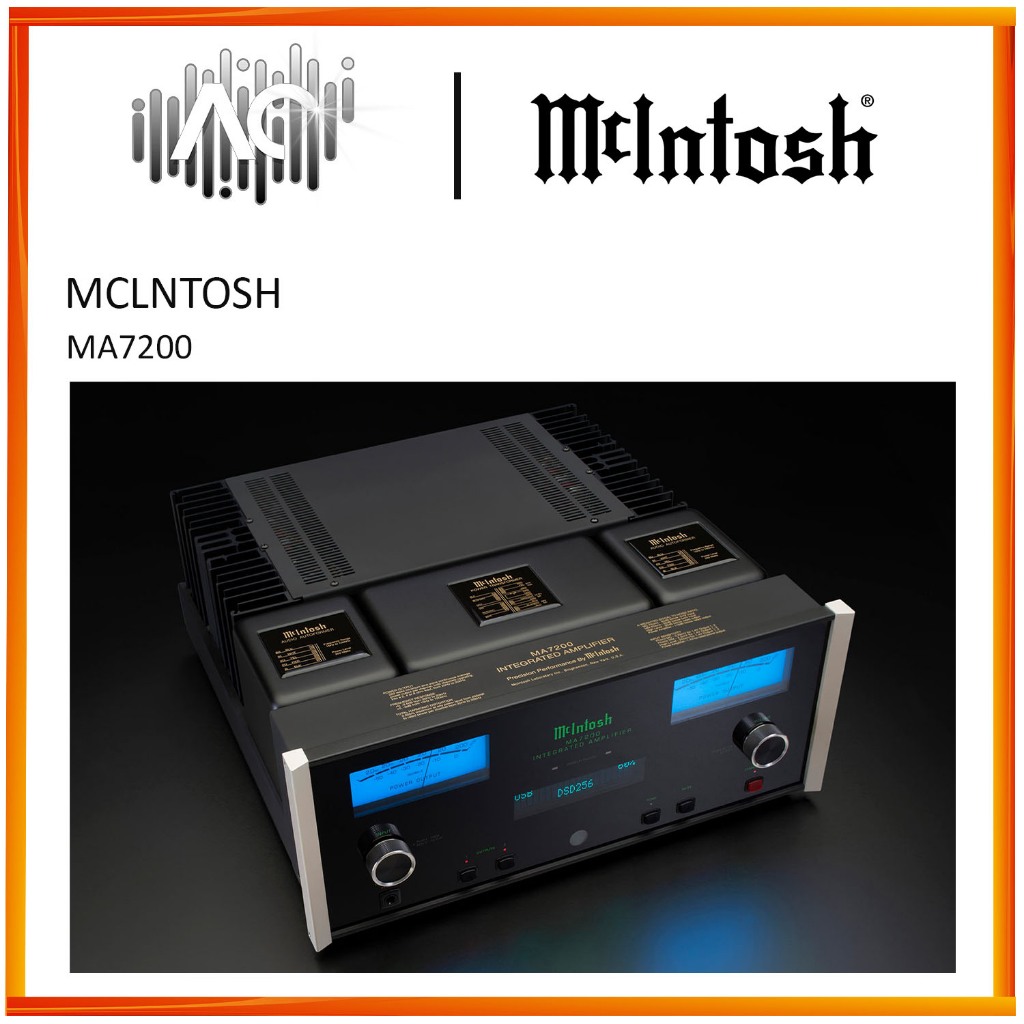

Mclntosh MA7200 / 2-Channel Integrated Amplifier

200 Watts x 2 channel
Comes with DA1 Digital Audio Module installed
Optional dealer installed upgrade to DA2 Digital Audio Module available

Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system.

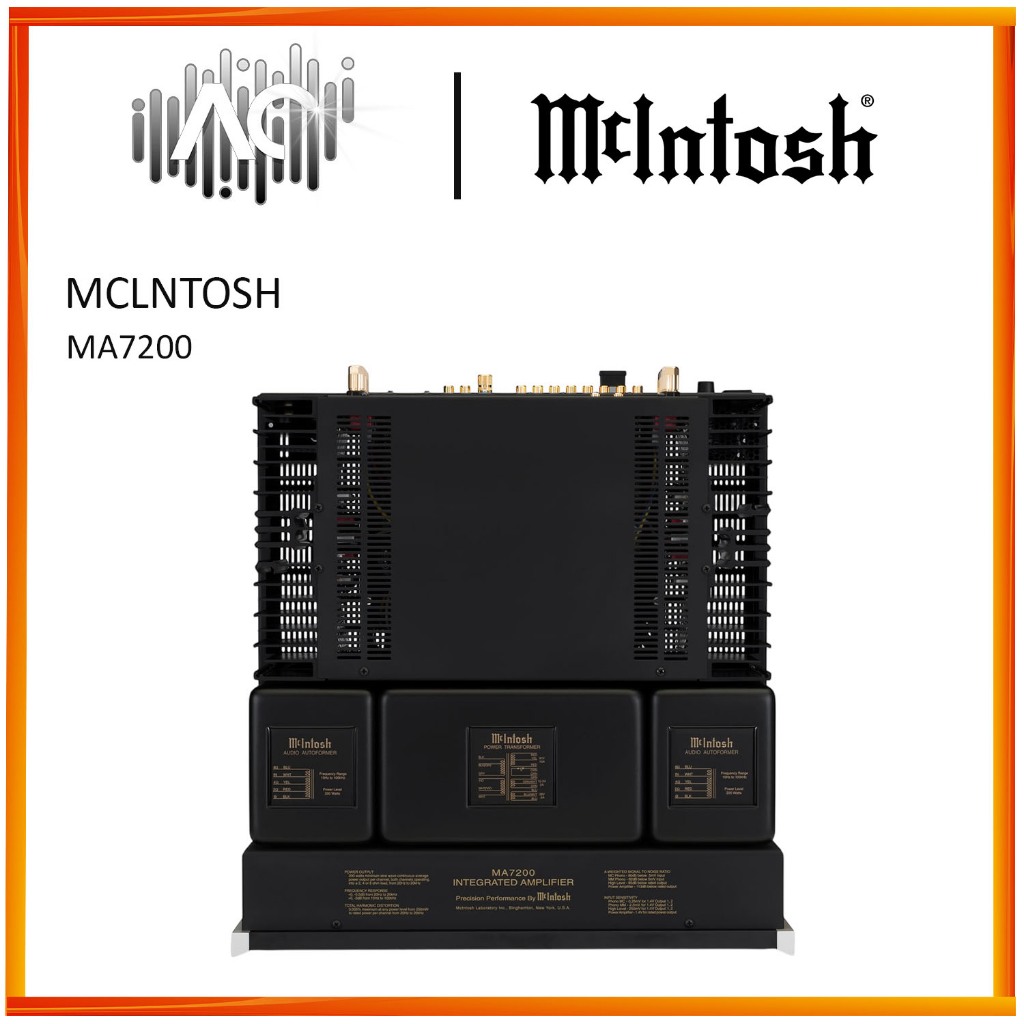

The MA7200 includes our Monogrammed Heatsinks™ which are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA7200’s full sonic capabilities from the moment you turn it on. The MA7200 is full of other McIntosh technologies including Autoformers™ to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard®, Sentry Monitor™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts.

Electronic Specifications
FTC Power Output Rating – 200 W
Power Output per Channel – 200 W into 2, 4, or 8 ohms
Number of Channels – 2
Rated Power Band – 20Hz to 20kHz
Total Harmonic Distortion – 0.005%
Dynamic Headroom – 2dB
Frequency Response +0,-0.5dB – 20Hz to 20kHz
Frequency Response, +0, -3dB – 10Hz to 100kHz
Sensitivity Phono (Moving Coil) – 0.25mV
Sensitivity Phono (Moving Magnet) – 2.5mV
Sensitivity High Level (Balanced / Unbalanced) – 0.5V/0.25V
Sensitivity (Power Amp input) – 1.4V

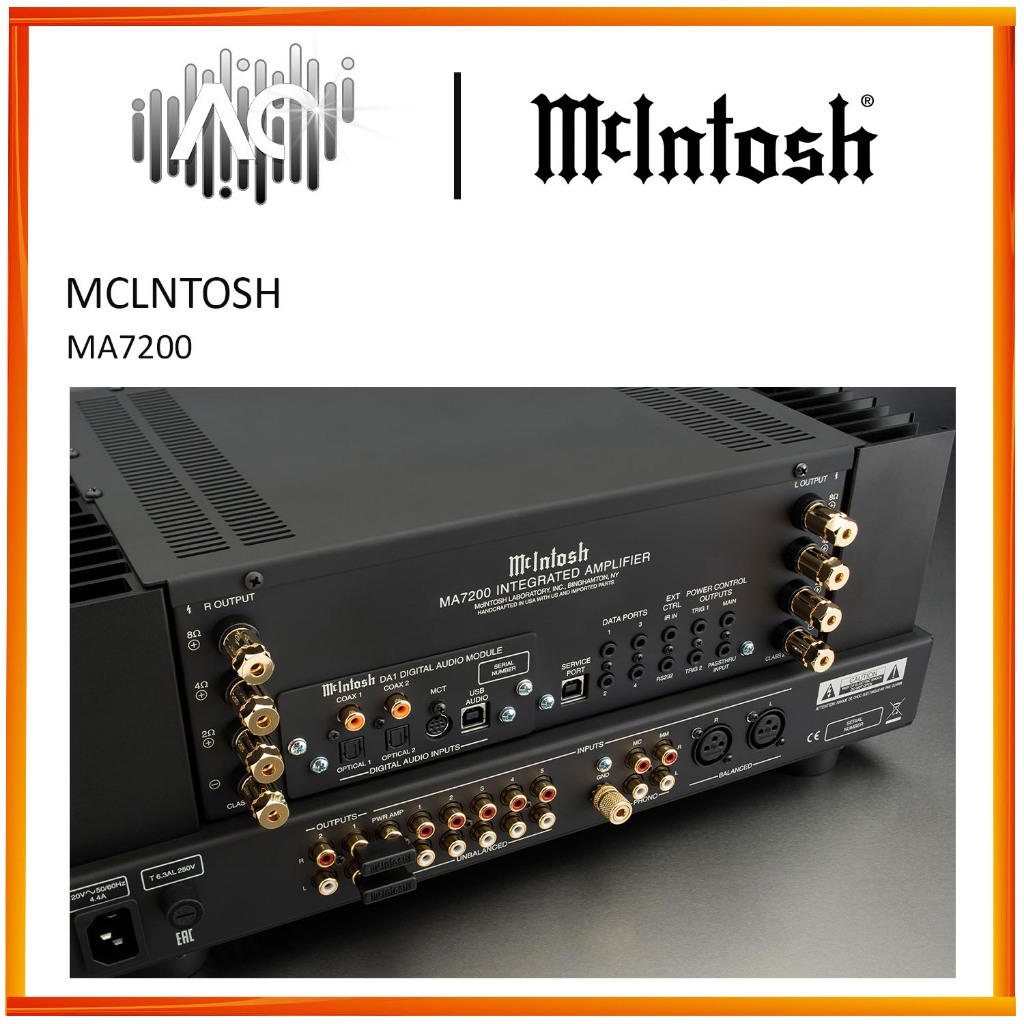

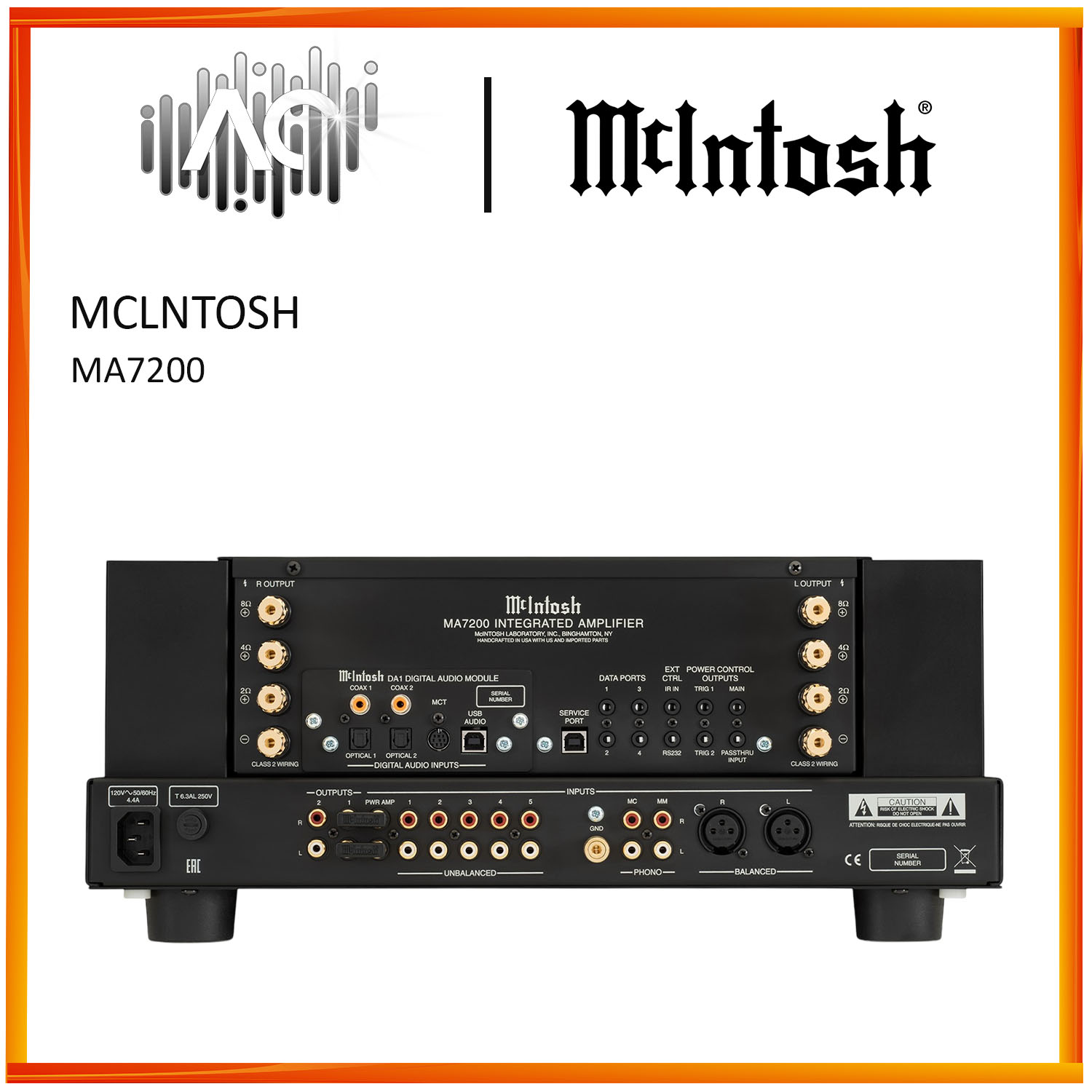

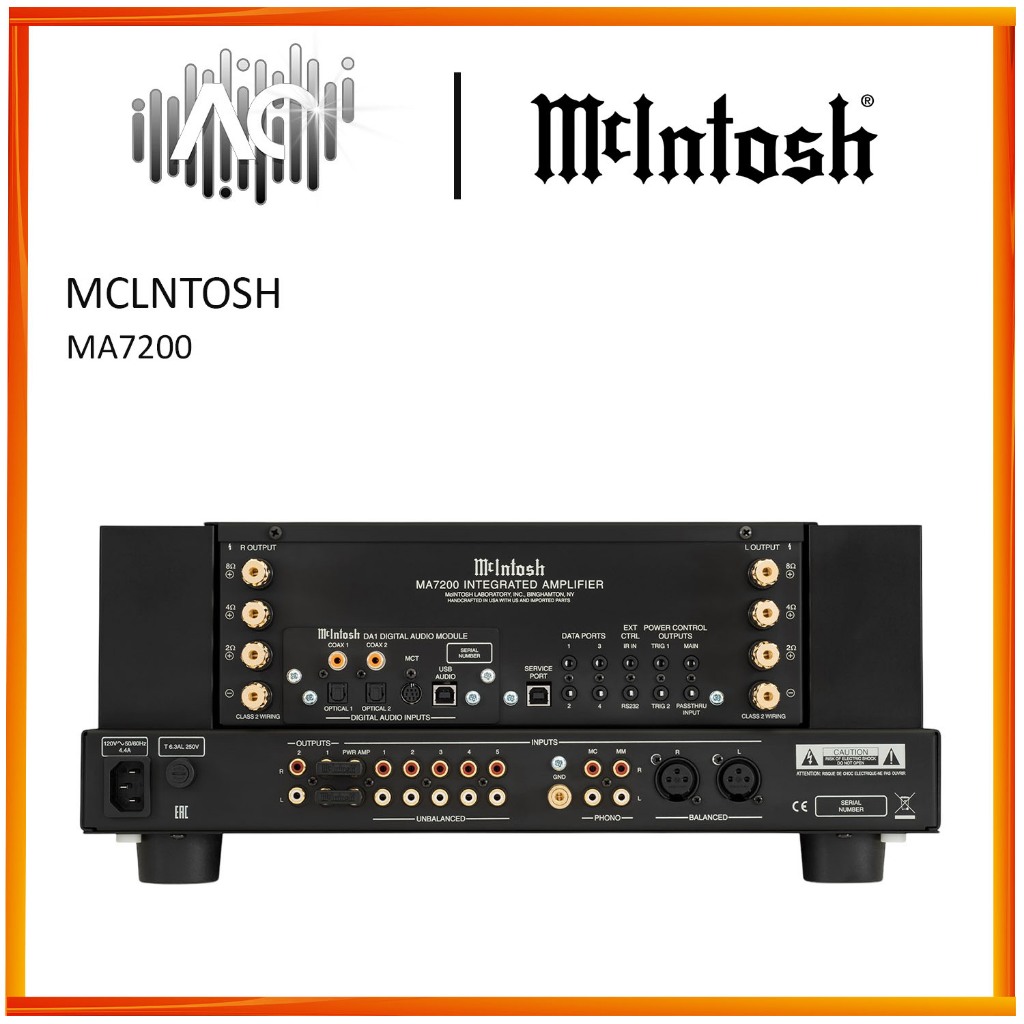

Phono Input Moving Coil – 1 (adjustable loading)
Phono Input Moving Magnet – 1 (fixed loading)
Upgradeable Digital Audio Module – Yes: DA1
Digital Coaxial Input – 2
Digital Optical Input – 2
Digital MCT Input – 1
Digital USB Input – 1

"An astonishingly good amplifier… Blending together the brand's modern take on traditional analogue approaches with a healthy dose of digital inputs plus a top flight phono stage, headphone amp and battleship build quality." – Audiograde

The MA7200 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.

Digital Audio Specifications

Digital-to-Analog Converter (DAC) Type – 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate – 24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate – 24-bit/44.1kHz to 192kHz
Digital MCT Input Sample Rate – 16-bit/44.1kHz (CD)

DSD64 (SACD)
