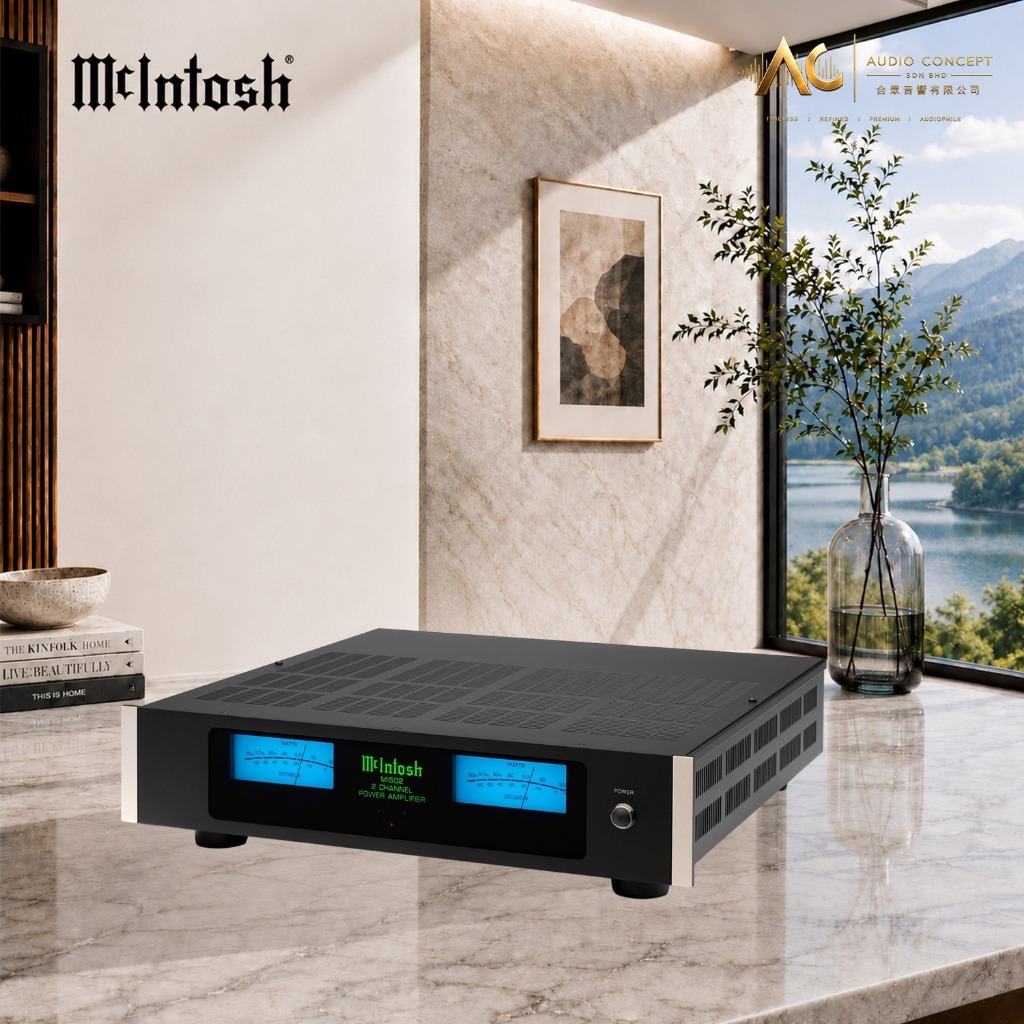

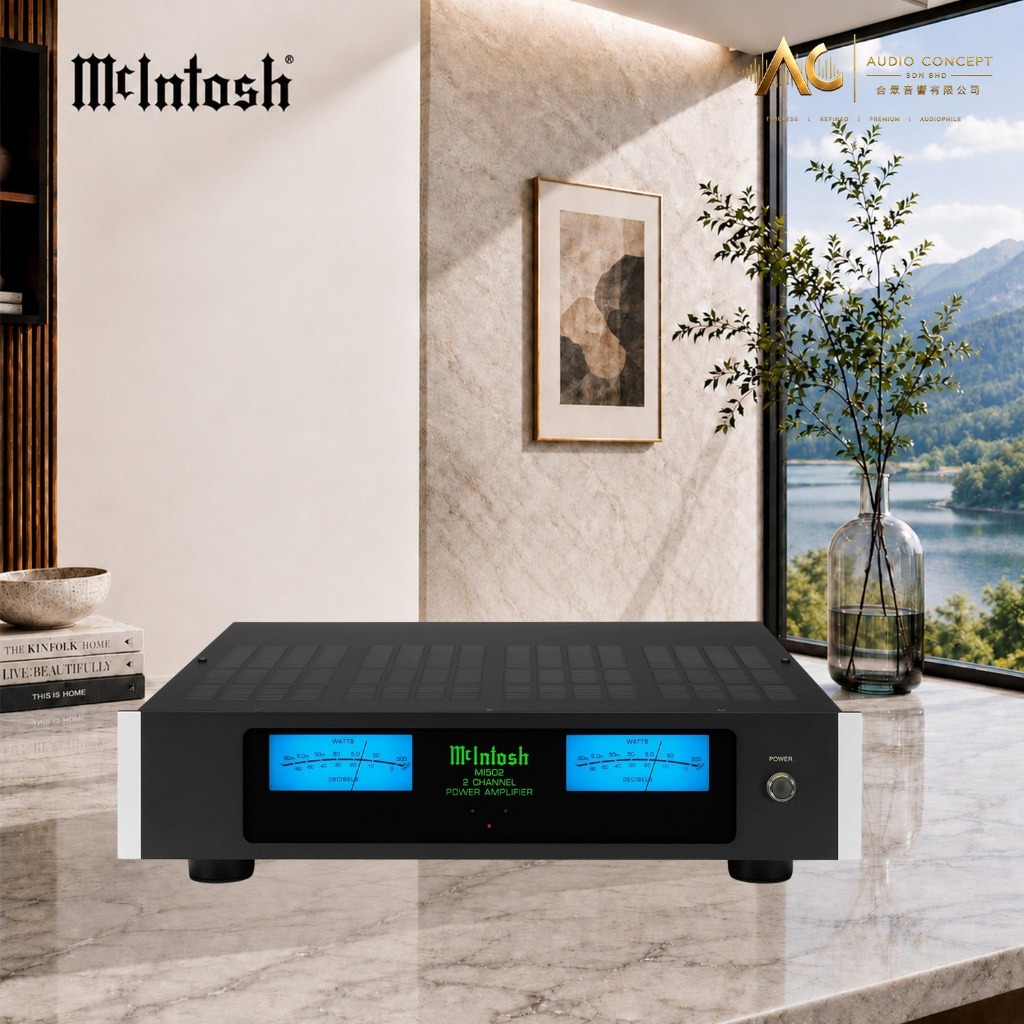

MI502 2-Channel Power Amplifier
Ideal for Distributed Audio Systems, 2-Channel Audio Systems & Home Theater Systems

The MI502 2-Channel Digital Amplifier is a flexible component and welcome addition to a custom installed home audio or home theater system. It delivers world renowned McIntosh sound quality at a rate of 500 Watts into 8 Ohm speakers or 800 Watts into 4 Ohm speakers. It uses highly high-tech closed loop digital switching amplifiers and resilient power supplies that produce performance levels seldom heard in custom install audio.

The applications are nearly limitless for how to use the versatile MI502 in your home entertainment system. It can be used to power the front left and right speakers in a home theater; to drive two in-wall subwoofers; a pair of MI502s could drive the three front channels of your in-home cinema plus one subwoofer; or to power a pair of outdoor speakers for when the party makes it way outside. Additionally, a stack of multiple MI502s could be used to power the distributed audio speakers installed throughout your home.

Other features that come with the MI502 are:

– Power Guard® signal overload technology that prevents overdriving the speakers

– Sentry Monitor™ short-circuit protection circuit that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal

– Power Control 12 Volt triggering capabilities

– Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time or automatically turns the amp on when it senses a signal

Specifications

Electronic Specifications

• FTC Power Output Rating : 500 W

Power Output per Channel :

• 500 W into 8 ohms
• 800 W into 4 ohms
• Number of Channels : 2
• Total Harmonic Distortion : 0.05%
• S/N below rated output : 98dB

Dynamic Headroom :

• 8 ohms: 2.7dB
• 4 ohms: 3.7dB

Damping Factor :

• 8 ohms: >85
• 4 ohms: >45
• Rated Power Band : 20Hz to 20kHz
• Frequency Response : +0, -0.9dB from 20Hz to 20kHz

Control :

• Remote Power Control : Yes
• Multi-Channel DB25 Cable : N/A

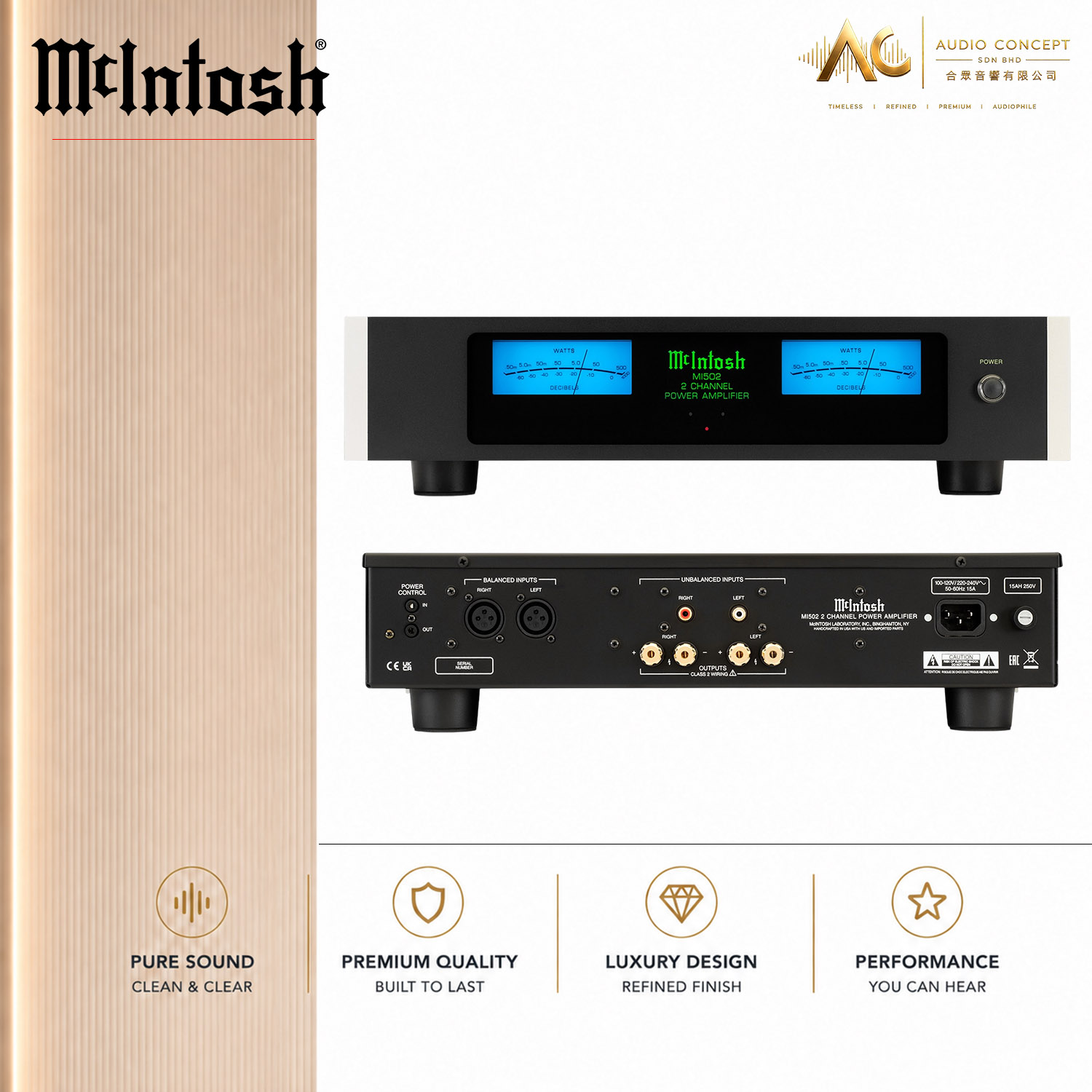

Connectivity :

• Speaker Binding Post Type : Standard
• Meters : Yes
• Meter Light Switch :No
• Balanced Input : 1

Weights & Dimensions :

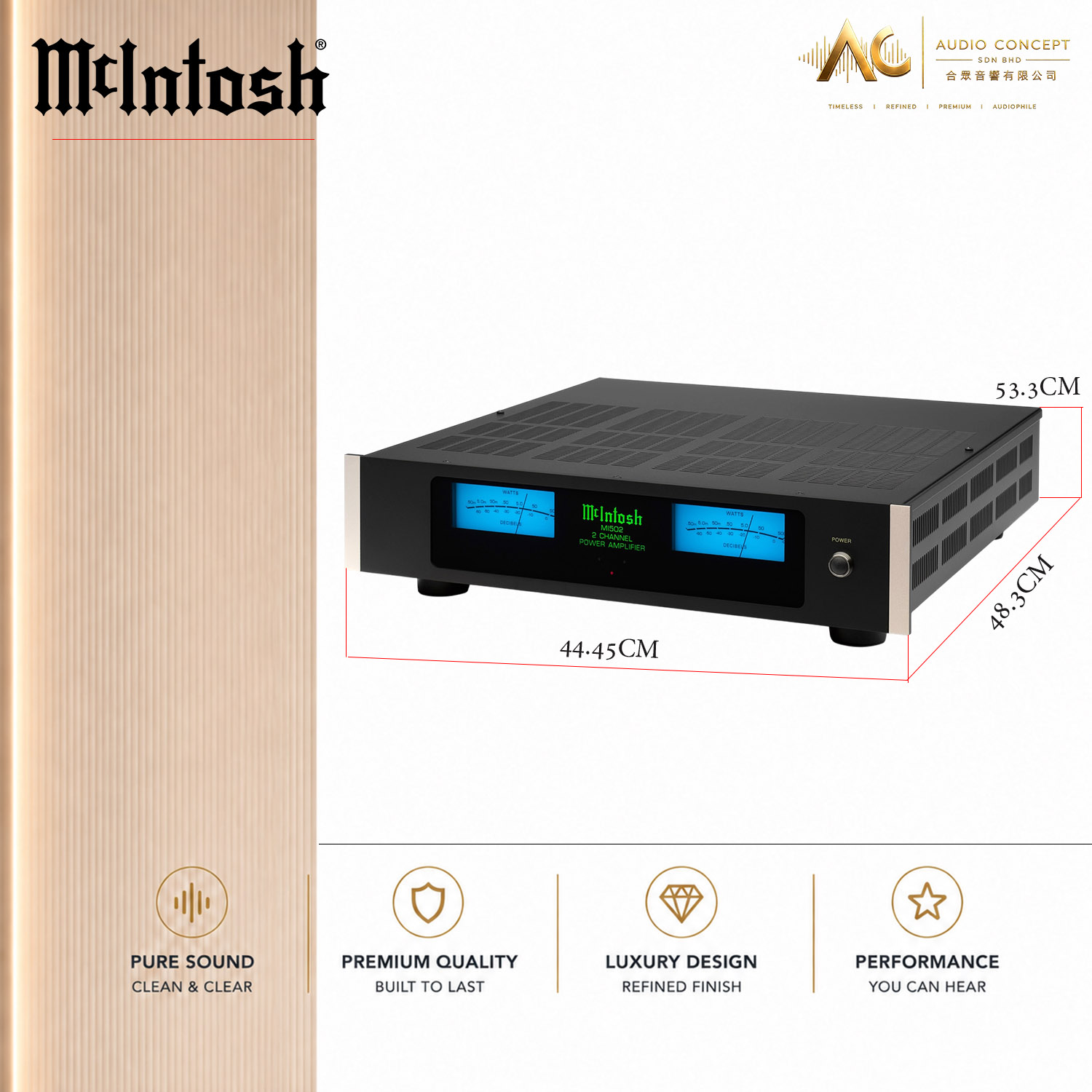

• Unit Dimensions (W x H x D) : 17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
• Unit Weight : 21.5 lbs (9.8 kg)
• Shipping Weight : 37.9 lbs (17.2 kg)

——————————————————
