MC830 1-Channel Power Amplifier

Ideal for 2-Channel Audio Systems & Home Theater Systems

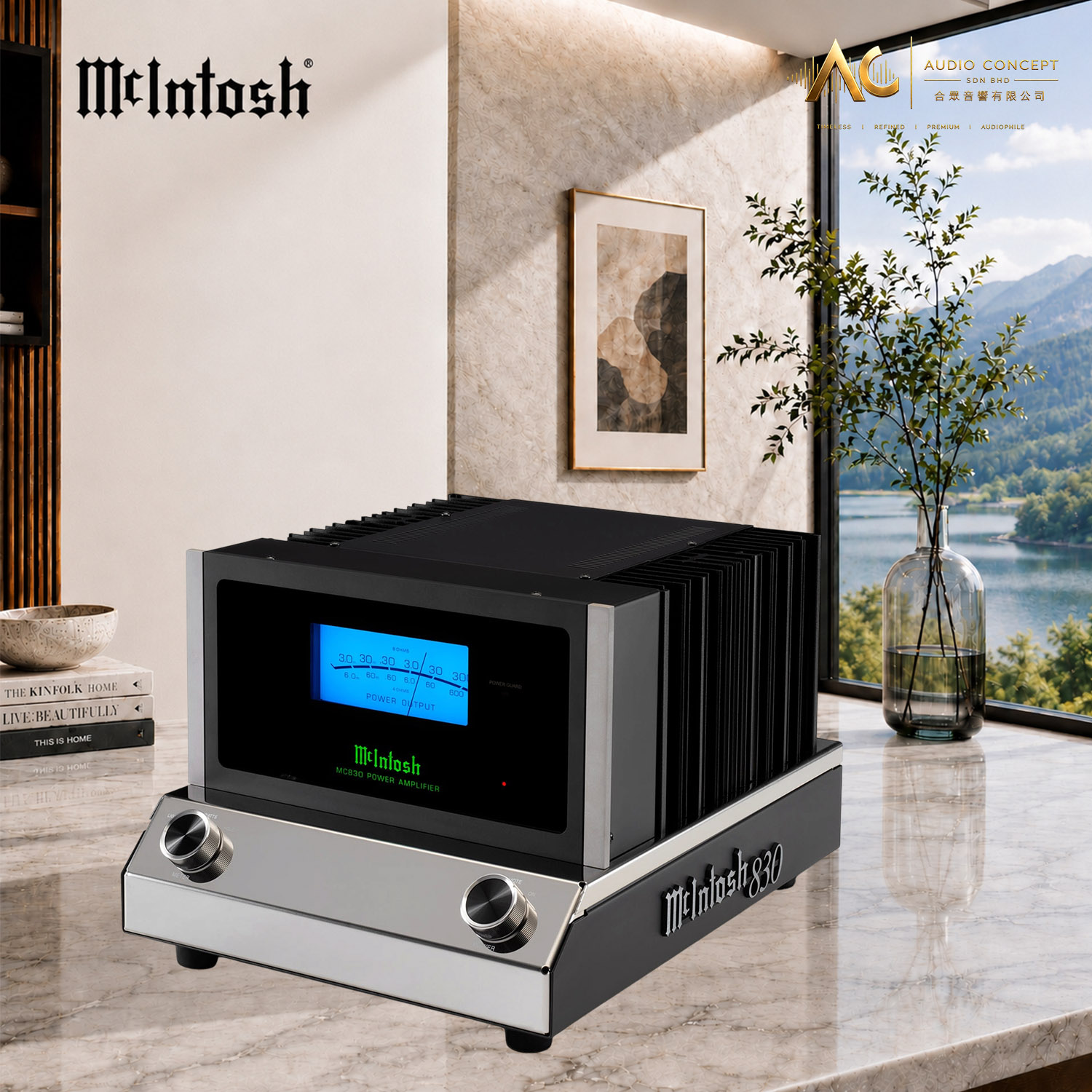

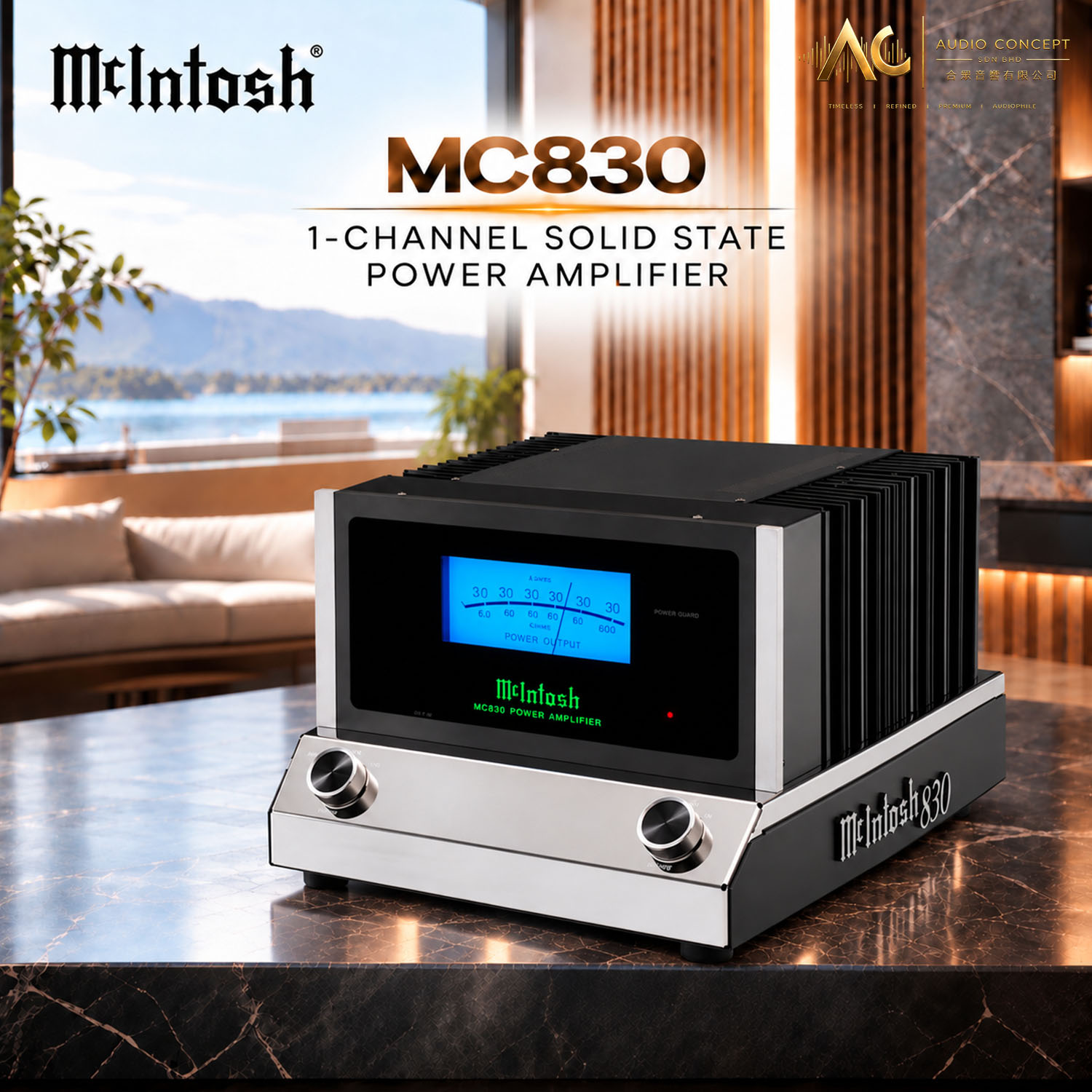

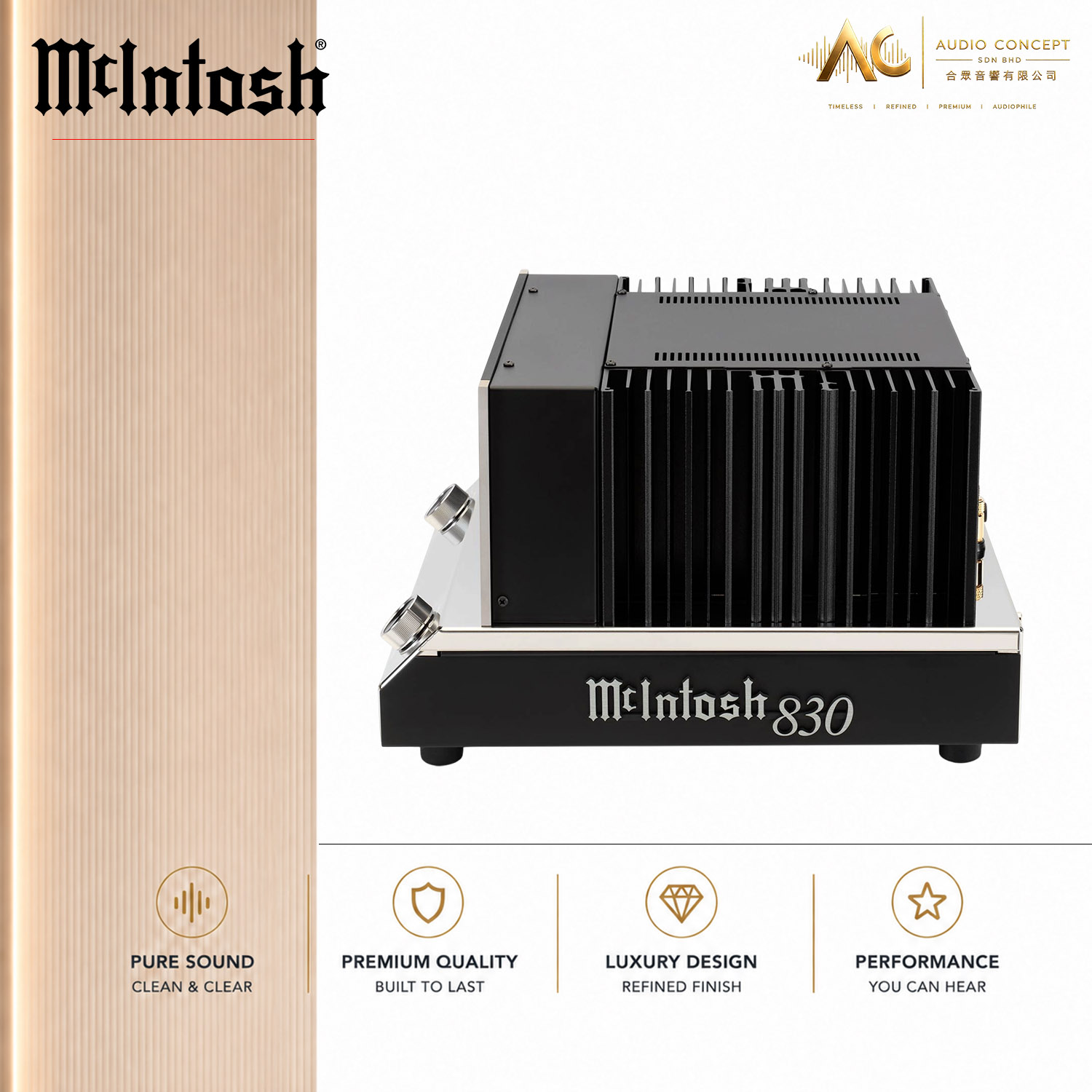

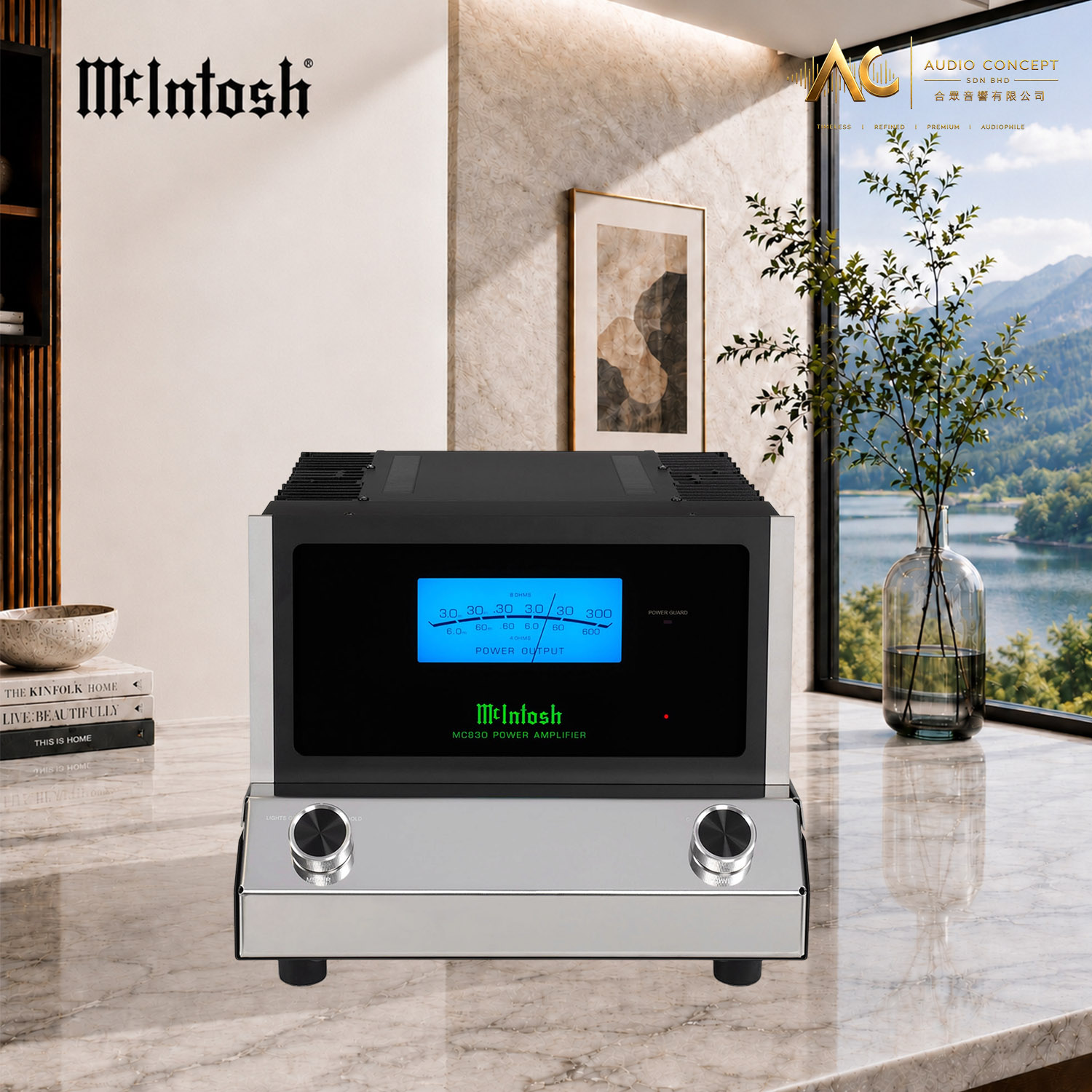

The MC830 is a 1-Channel Solid State Amplifier that features an open chassis industrial design similar to our popular MC275 Vacuum Tube Amplifier, and MA252 and MA352 Integrated Amplifiers. A pair of MC830s, when combined with a preamplifier (such as the matching C8 Vacuum Tube Preamplifier), source components like a turntable, CD player (see the matching MCD85 SACD/CD Player) or streaming music player, and a pair of speakers, can deliver a true-to-life home audio experience.

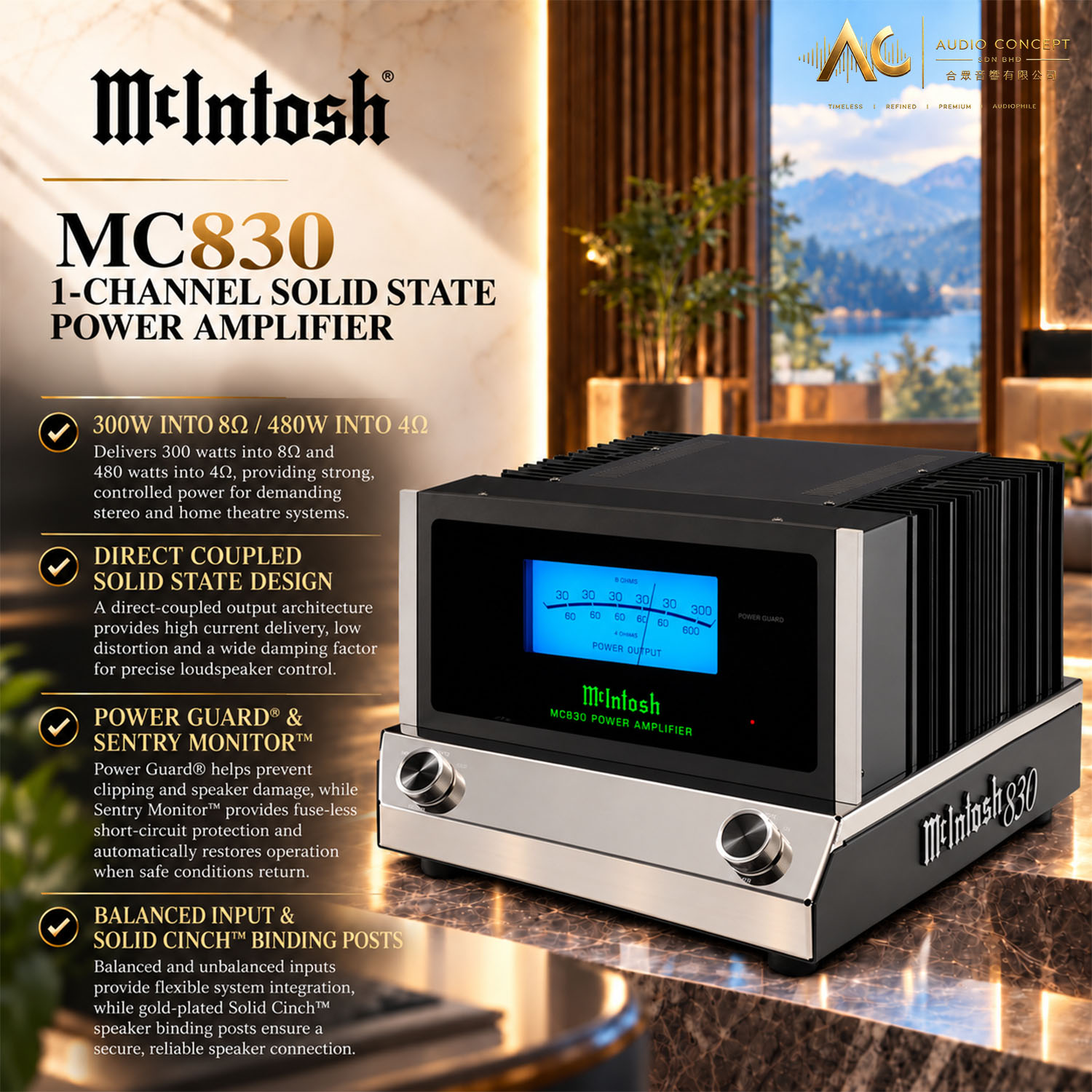

With a similar footprint to our MA252 Integrated Amplifier, the MC830 is a direct coupled output design that is rated at 300 Watts at 8 Ohms or 480 Watts at 4 Ohms. A fast-responding Dual Scale Watt meter gives an accurate readout of power output for both speaker impedances.

Our Monogrammed Heatsinks™ add visual appeal and will keep the MC830 running cool for optimum performance. Both a balanced and unbalanced input are included for connecting it to the rest of your home music system.

To protect your speakers and overall system, the MC830 includes two of our cornerstone home audio technologies. Our patented Power Guard® technology monitors the amplifier’s output signal to protect your speakers against being over driven; if necessary, it makes real time micro adjustments to the input signal to prevent clipping that could damage your speakers. Another level of protection is Sentry Monitor™, our fuse-less short-circuit protection circuit that will disengage the MC830’s output stage before current exceeds safe operating levels, and then will reset automatically when operating conditions return to normal.

Specifications

Electronic Specifications

• FTC Power Output Rating : 300 W

Power Output per Channel :

• 300 Watts into 8 ohms
• 480 Watts into 4 ohms
• Number of Channels : 1
• Total Harmonic Distortion : 0.005%

S/N below rated output :

• Balanced : 120dB
• Unbalanced : 118dB
• Dynamic Headroom : 2dB
• Damping Factor : >100 Wideband
• Rated Power Band : 20Hz to 20kHz

Frequency Response :

• +0, -0.25dB from 20Hz to 20kHz
• +0, -3.0dB from 10Hz to 100kHz

Control :

• Remote Power Control : Yes
• Multi-Channel DB25 Cable : N/A

Connectivity :

• Speaker Binding Post Type : Patented Solid Cinch™ Speaker Binding Posts

General Specifications :

• Circuit Configuration : Push-Pull Complementary
• Circuit Design : Solid State
• Mono Bridge : N/A
• Mono Parallel : N/A
• Output Type : Direct Coupled
• Meters : Yes
• Meter Light Switch : Yes
• Balanced Input : 1
• Front Panel : Glass
• Illumination : Direct LED
• Chassis Style : Polished Stainless Steel

Weights & Dimensions :

• Unit Dimensions (W x H x D) : 12-9/32″ (31.2cm) x 9-1/2″ (24.1cm) x 16″ (40.6cm)
• Unit Weight : 48 lbs (21.8 kg)
• Shipping Weight : 55 lbs (24.9 kg)
