MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOS® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.
- 60W per channel
- HEOS® Built-in
- HDMI ARC
- Marantz HDAM® circuits
- Hi-Res audio support
- CD and MM phono inputs
Stream in high-resoultion from today’s most popular music services, including TIDAL, with HEOS® Built-in.
Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.
Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.

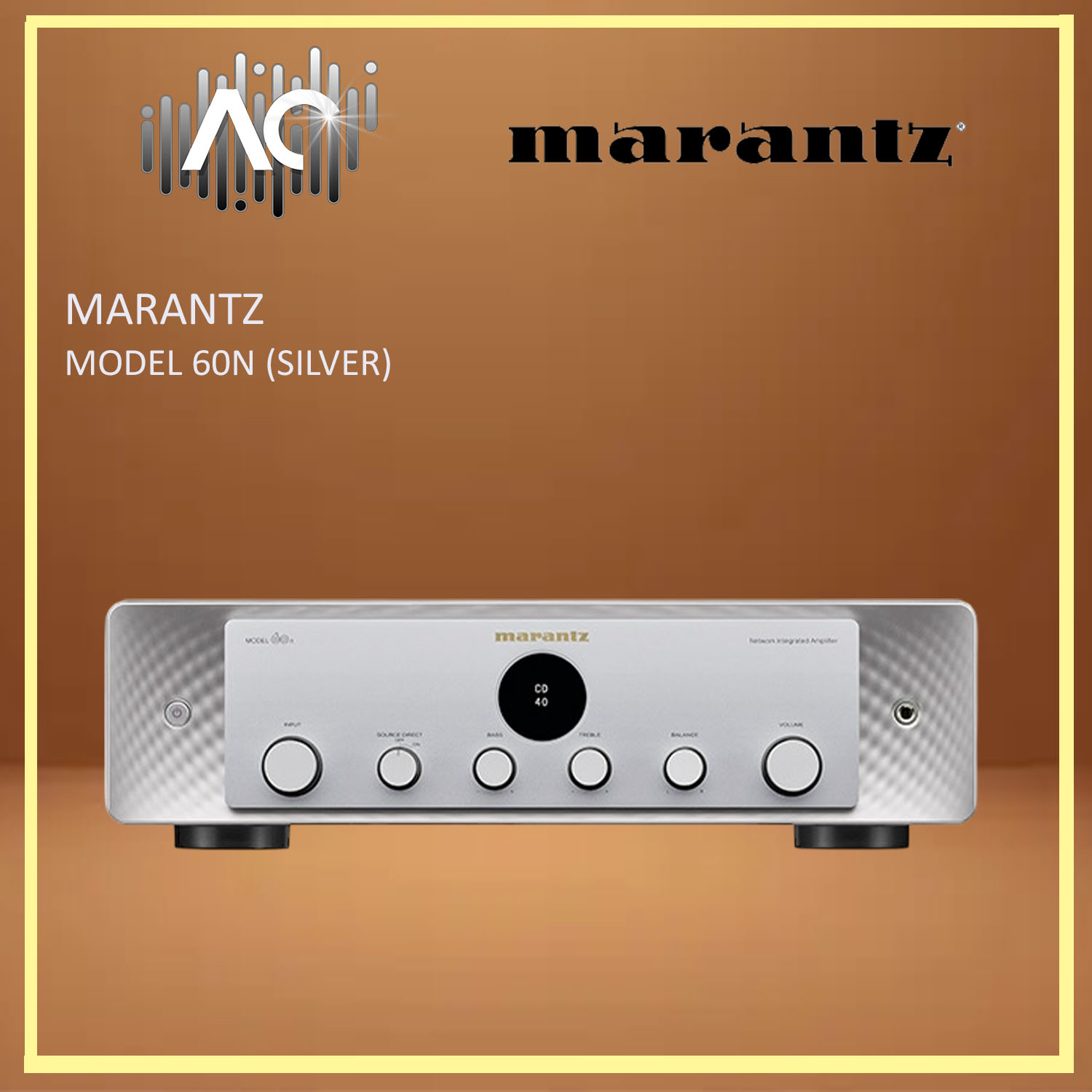

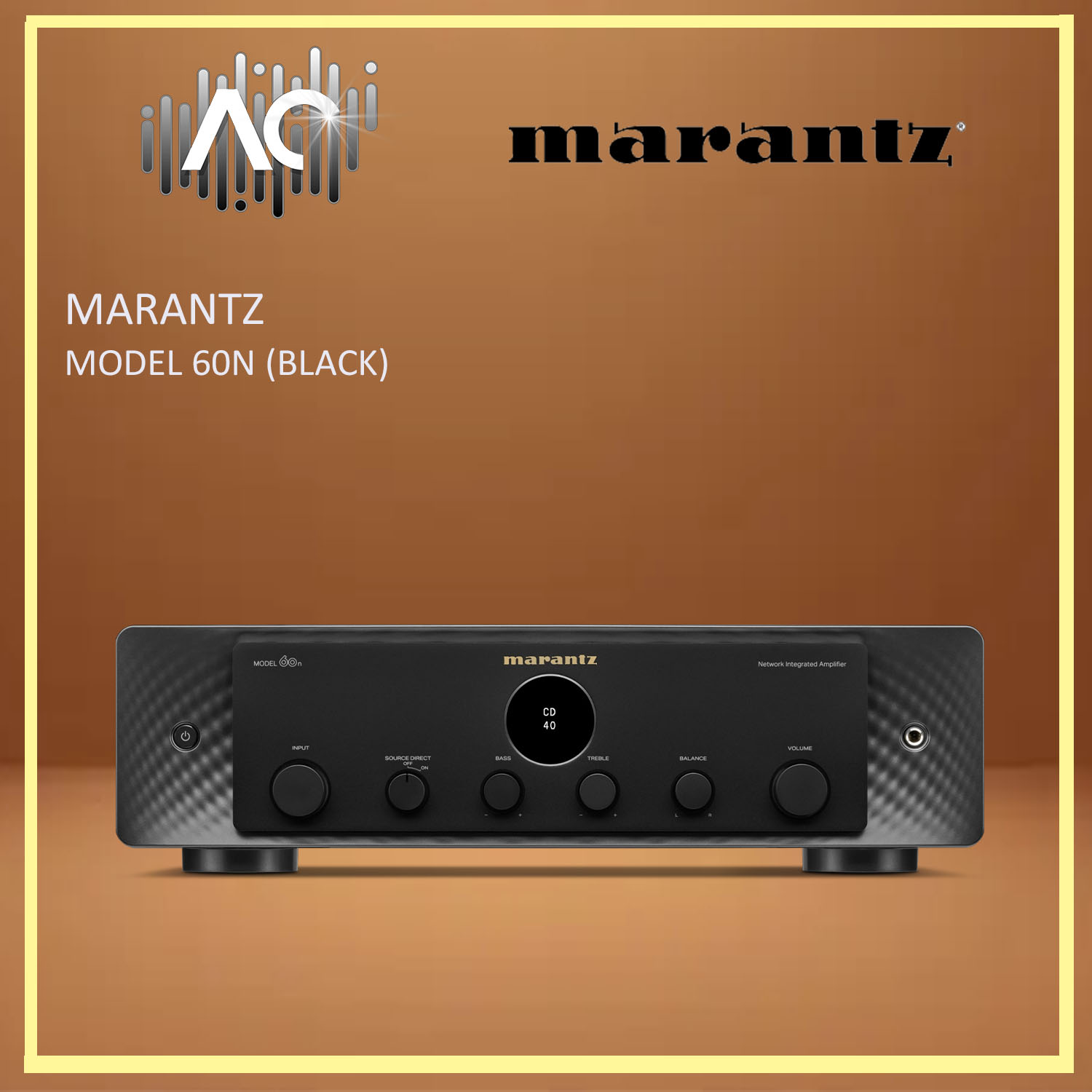

Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.
- Channels – 2
- PSU Transformer – Toroidal
- Speaker A / B – No
- Speaker Terminals – Marantz SPKT-1+
- Number of Terminals – 2
- Power Output (8 / 4 Ohm RMS) – 60 W / 80 W
- Topology – Class A/B
- Current Feedback Topology – Yes
- HDAM Version – SA3, SA2
- High Grade Audio Components – Yes
- Customised Components – Yes
- Symmetric PCB Layout – Yes
- Aluminium Extrusion Heat Sink – Yes
- Digital Inputs – Coaxial, Optical, USB-A
- Max PCM Sample Rate – 192 kHz / 24-bit
- Max DSD Sample Rate – DSD 4X (11.2 MHz)
- HDMI – 1 ARC
- Streaming Technologies – Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
- Streaming Services (subject to change and local availability)
- Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
- HEOS Multiroom and Streaming – Yes
- Lossy Formats – MP3, WMA, AAC
- Lossless Formats – DSD/DSF, FLAC, ALAC, WAV
- Gapless Playback – Yes
- HEOS App – iOS, Android
- Wi-Fi / Wired LAN – Yes / Yes
- Frequency Response – 5 Hz-100 kHz
- Total Harmonic Distortion – 0.02 %
- Damping Factor – 100<
- Input Sensitivity: MM – 1.9 mV / 47 kOhm
- Signal to Noise Ratio: MM/MC – 87 dB / –
- Input Sensitivity: High Level – 190 mV / 20 kOhm
- Signal to Noise Ratio: High Level – 113dB
- Treble Control – ± 10 dB at 15kHz
- Bass Control – ± 10 dB at 50Hz
- Power Consumption in W – 220
- Maximum Dimensions (W x D x H) mm – 442 x 431 x 129
