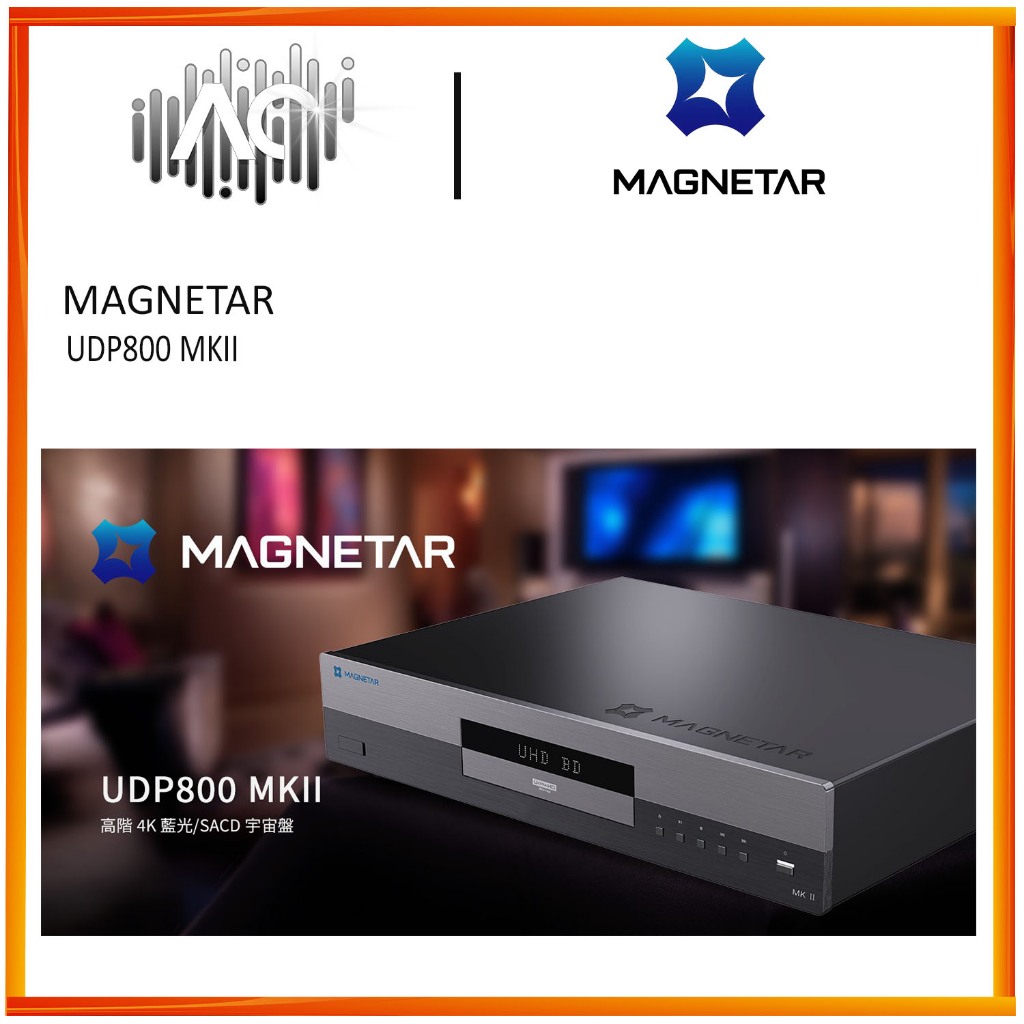

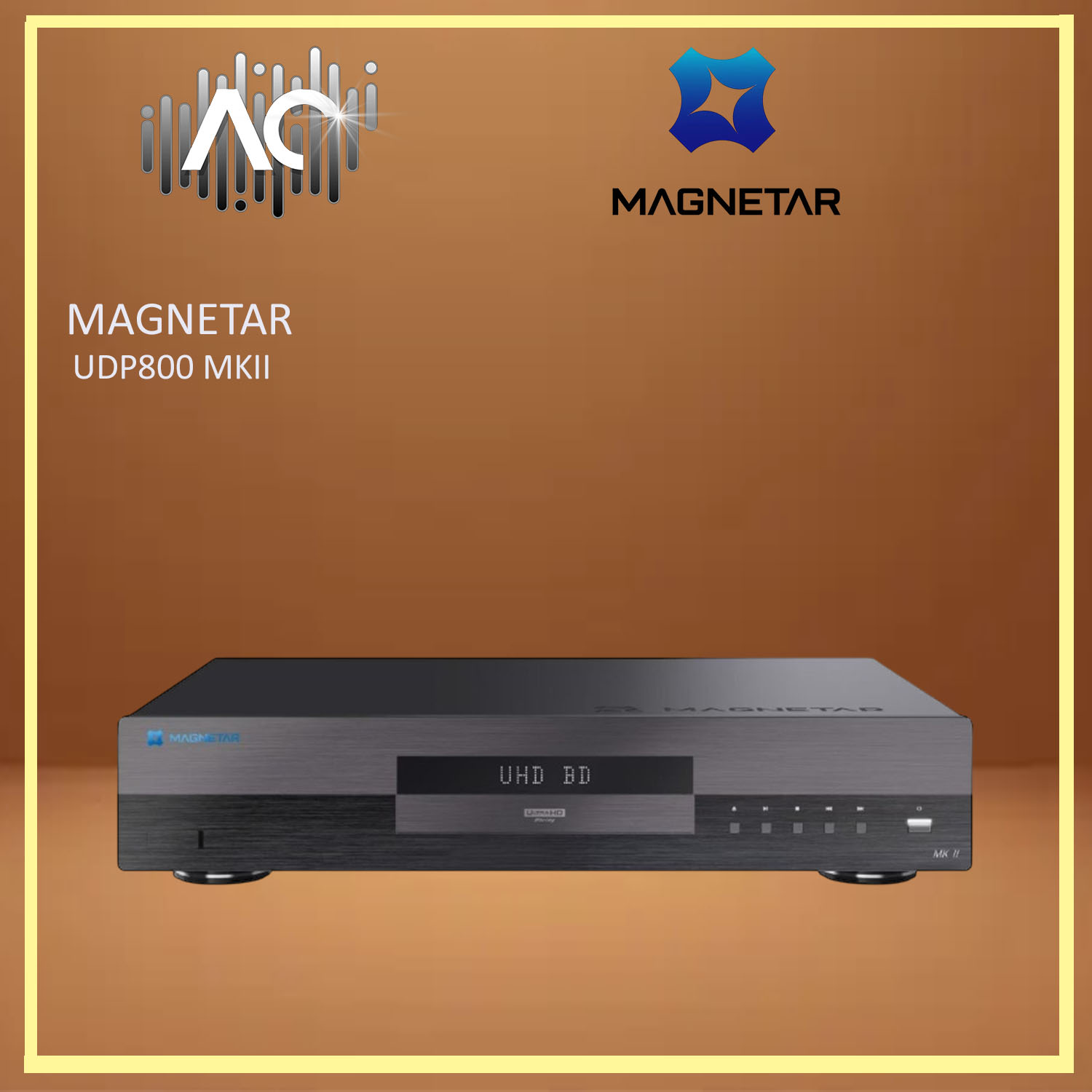

Magnetar UDP800 MKII 4K UHD BluRay Player

Roon Ready in certification

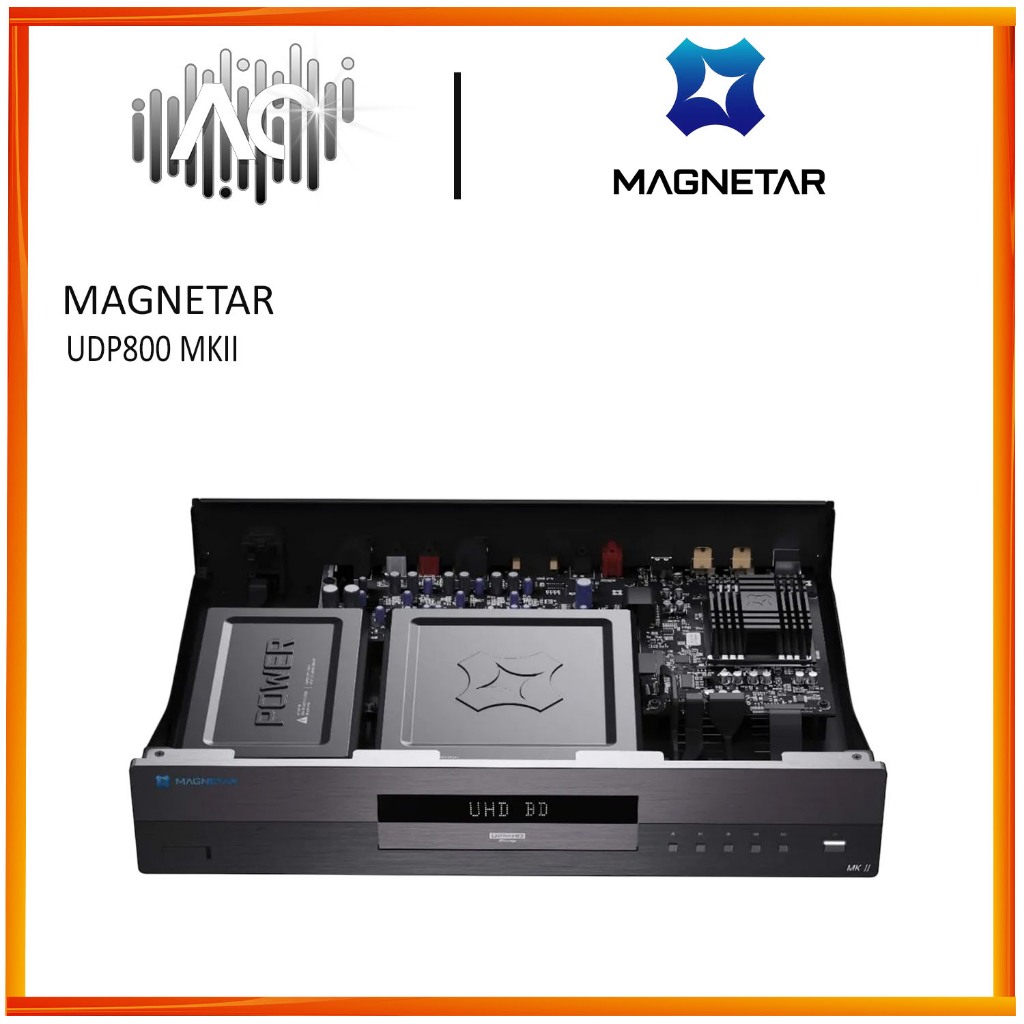

Newly redesigned 2.0 audio boards with seven OPA1602 op-amps
TMDS retiming on HDMI audio port
Enhanced USB 3.0 system with isolated power
Upgraded copper wiring and Amphenol/JST connectors
Control 4 Support
Crestron Support
Jailbreak Version

Advanced Image/Audio Processing Technology

High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.

Stunning Audio – Visual Quality

Adding the TMDS retiming function to the mainboard’s HDMI AUDIO port, which can effectively compensate for random jitter, provide better signal quality and load-carrying capacity, and further improve the HDMI audio quality, making the sound details richer.

Versatile Compatibility

Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. The optimization also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.

Operational Amplifier

Replacing the operational amplifiers with seven OPA1602s. Its low noise reduces audio distortion for clearer sound. High precision ensures accurate signal reproduction, creating audiophile-grade sound.

Disc formats

UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

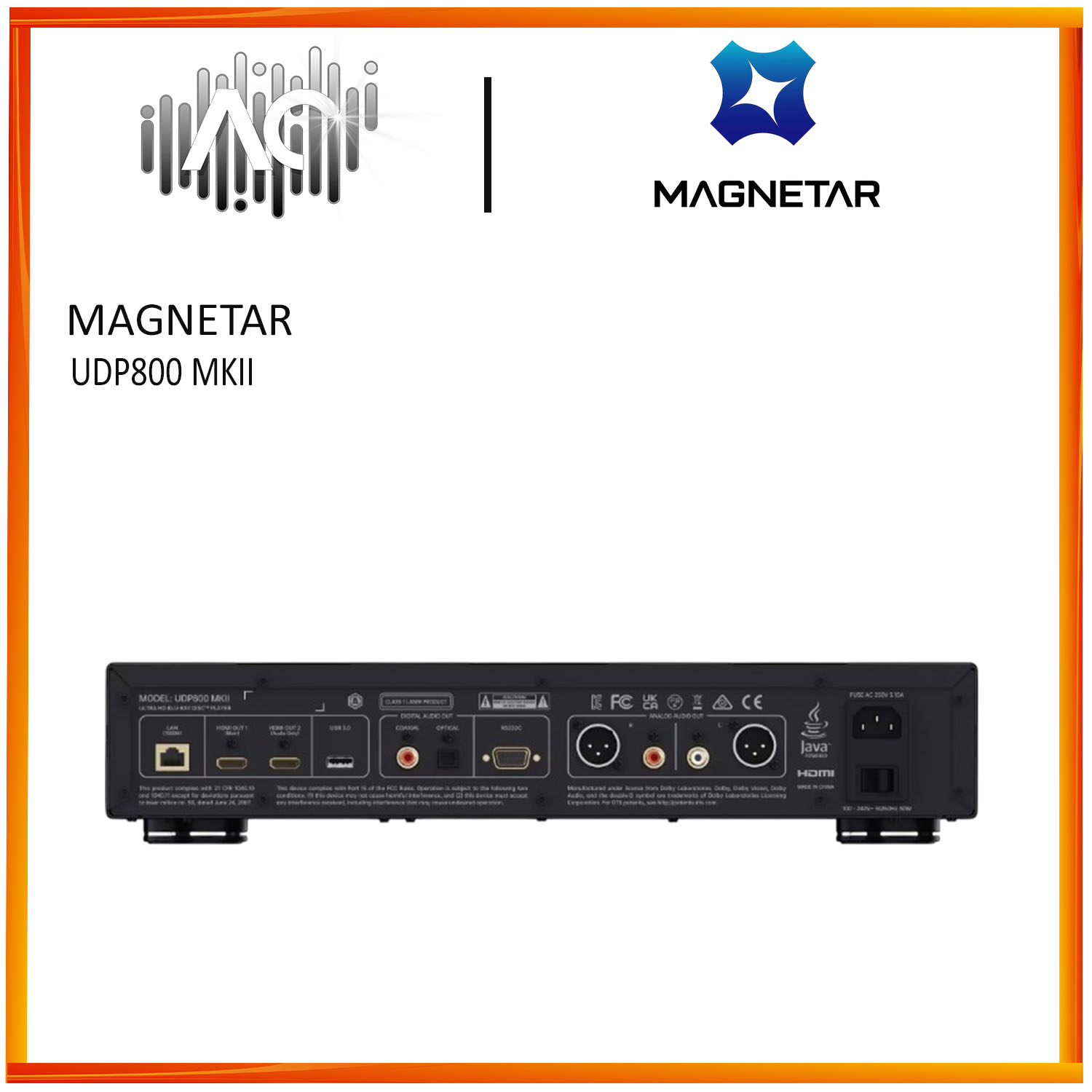

Outputs

Analog audio: stereo
Independent stereo analog audio: XLR balanced output, RCA output
Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.

Analog audio characteristics
Frequency range: 20Hz-20kHz (±0.05dB)
Signal-to-noise ratio: ≥120dB
Total harmonic distortion + Noise: ≤0.01%
Output level: (RCA) 2. 1±0.2Vrms; (XLR) 4.2±0.4Vrms
Dynamic range: AGT: ≥120dB
Channel separation: ＞100dB (RCA); ＞120dB (XLR)

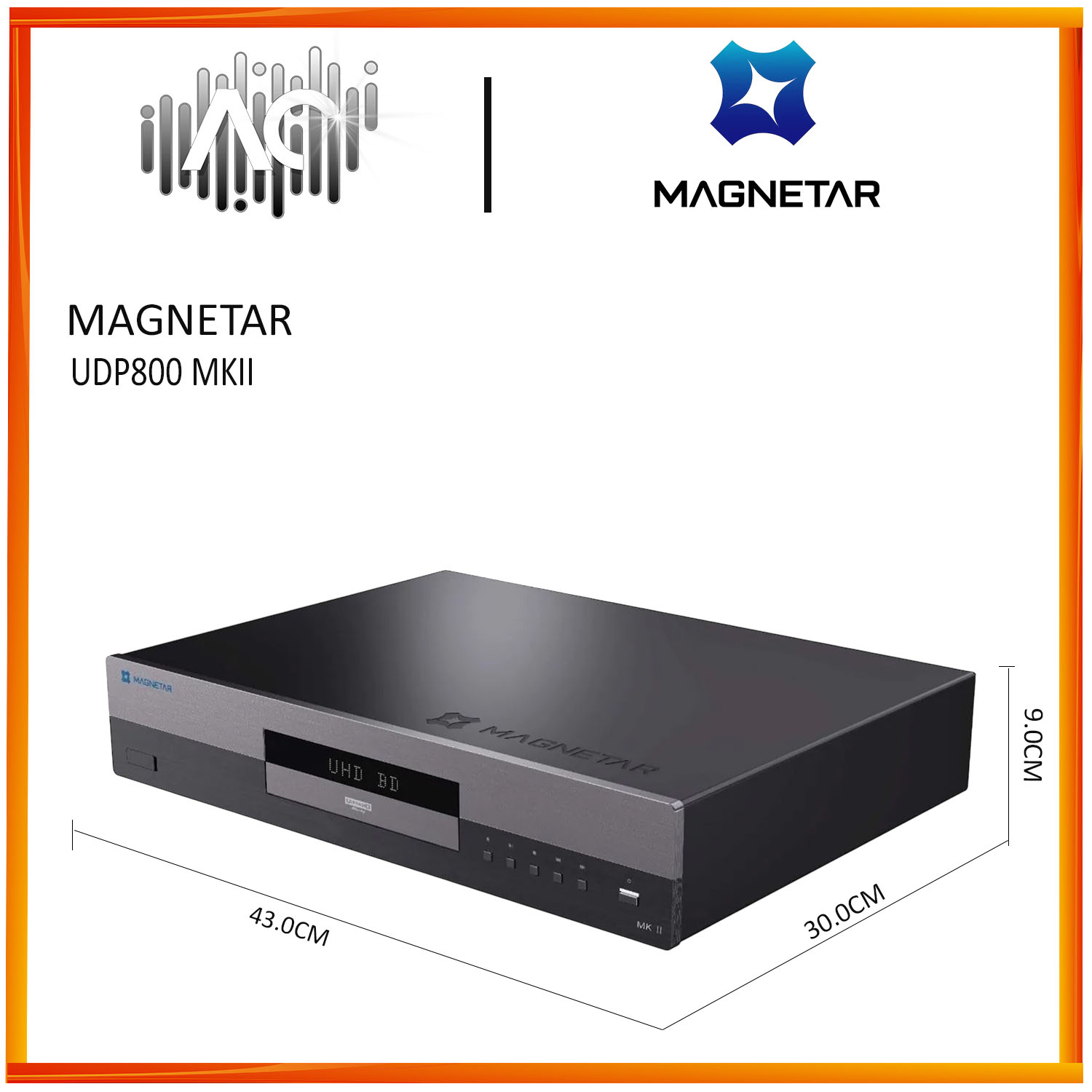

General specification
