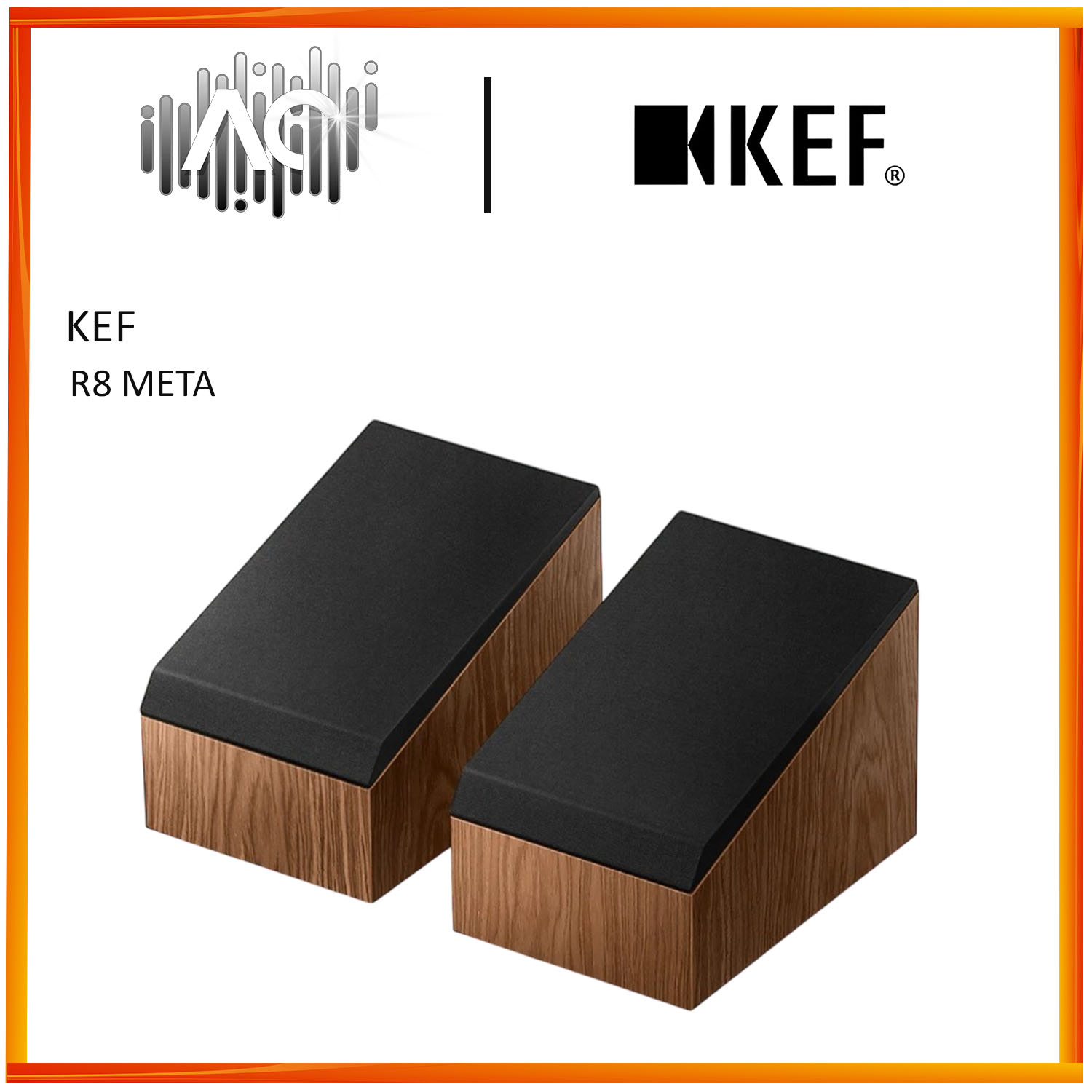

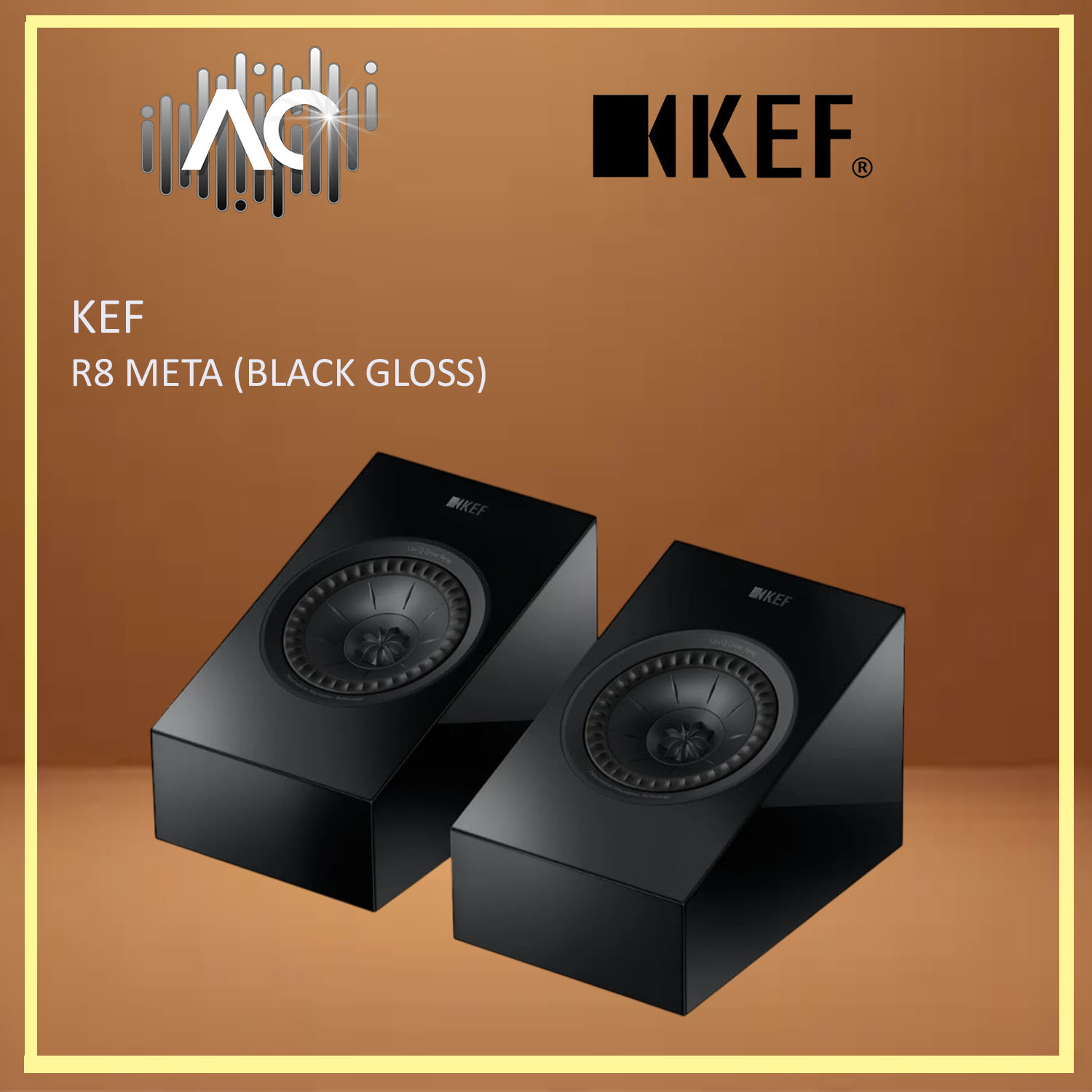

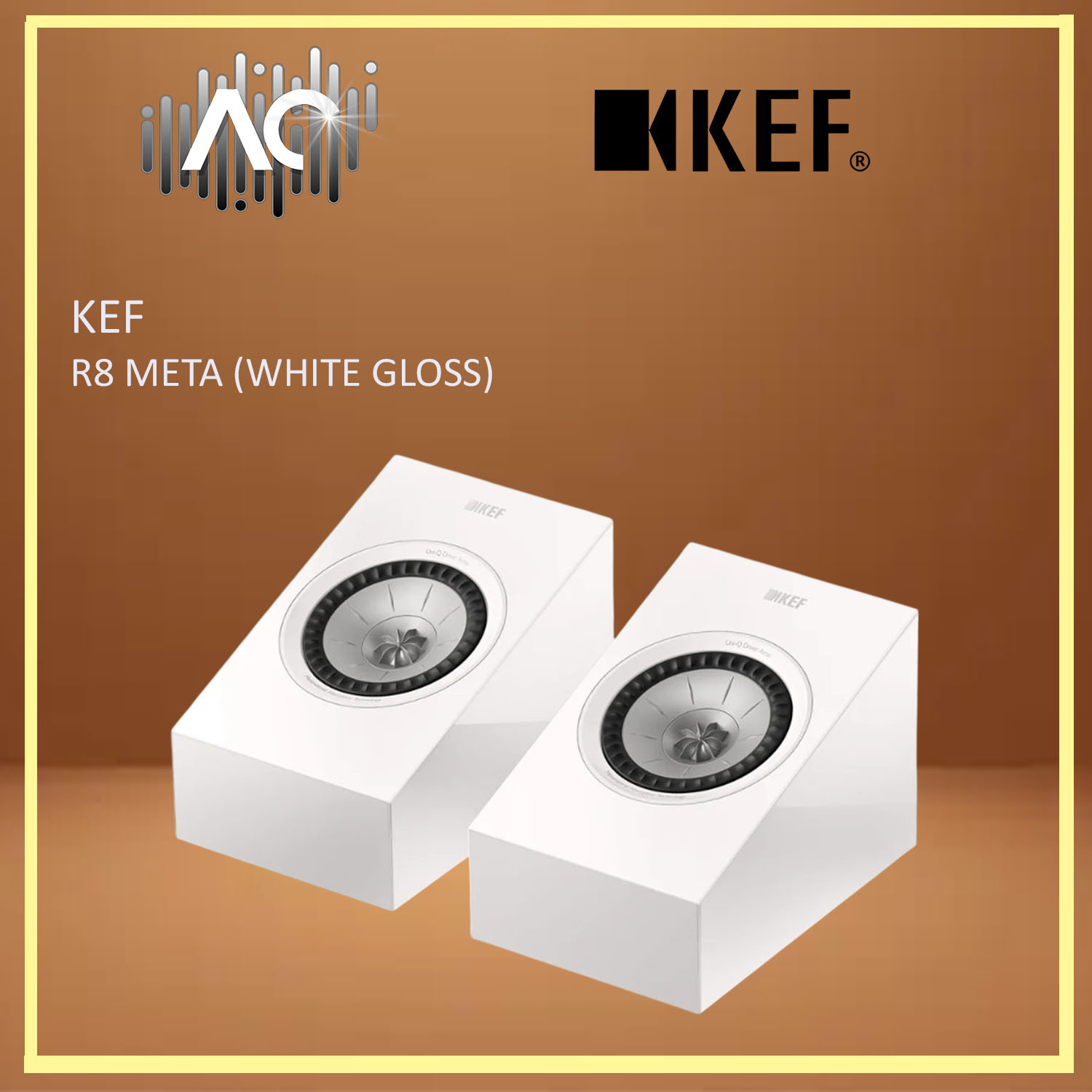

The R8 Meta can serve as a surround or rear speaker with the integrated wall mount feature, or be placed upon another speaker for Dolby Atmos height to bounce sound off the ceiling, bringing Dolby Atmos to the room with no need for custom installation. It has a 12th generation Uni-Q® array with MAT™ to steer the sound for genuine 3D results.
EISA LOUDSPEAKER SERIES 2023 – 2024
“Whether used for music or movies, across the speakers there’s a dynamic, detailed and thrillingly natural sound combining controlled, extended lows with open, wide-reaching highs.” – Aug 2023
A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance
Absorbs 99% of unwanted sound for pure and natural sound.
Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.
A versatile solution that can be wall-mounted as a surround or rear speaker, or placed on another speaker to bounce sound off the ceiling.
DRIVE UNITS
Uni-Q Driver Array:
- HF: 25 mm (1 in.) vented aluminium dome with MAT
- MF/ LF: 130 mm (5.25 in.) aluminium cone
HARMONIC DISTORTION (90dB, 1m)
- <1% 220 Hz and above
- <0.5% 320 Hz – 20 kHz
- DESIGN – Two-way closed box
- CROSSOVER FREQUENCY – 2.6 kHz
- FREQUENCY RANGE (-6dB) – 88 Hz – 19.5 kHz
- FREQUENCY RESPONSE (±3dB) – 97 Hz – 17.5 kHz
- MAXIMUM OUTPUT – 106 dB
- AMPLIFIER REQUIREMENTS – 25 – 150W
- NOMINAL IMPEDANCE – 4 Ω (min. 3.2 Ω)
- SENSITIVITY (2.83V/1m) – 85 dB
- WEIGHT * – 4.5 kg (9.9 lbs.)
- DIMENSION (H x W x D) WITH TERMINAL * – 174 x 175 x 259 mm (6.9 x 6.9 x 10.2 in.)
