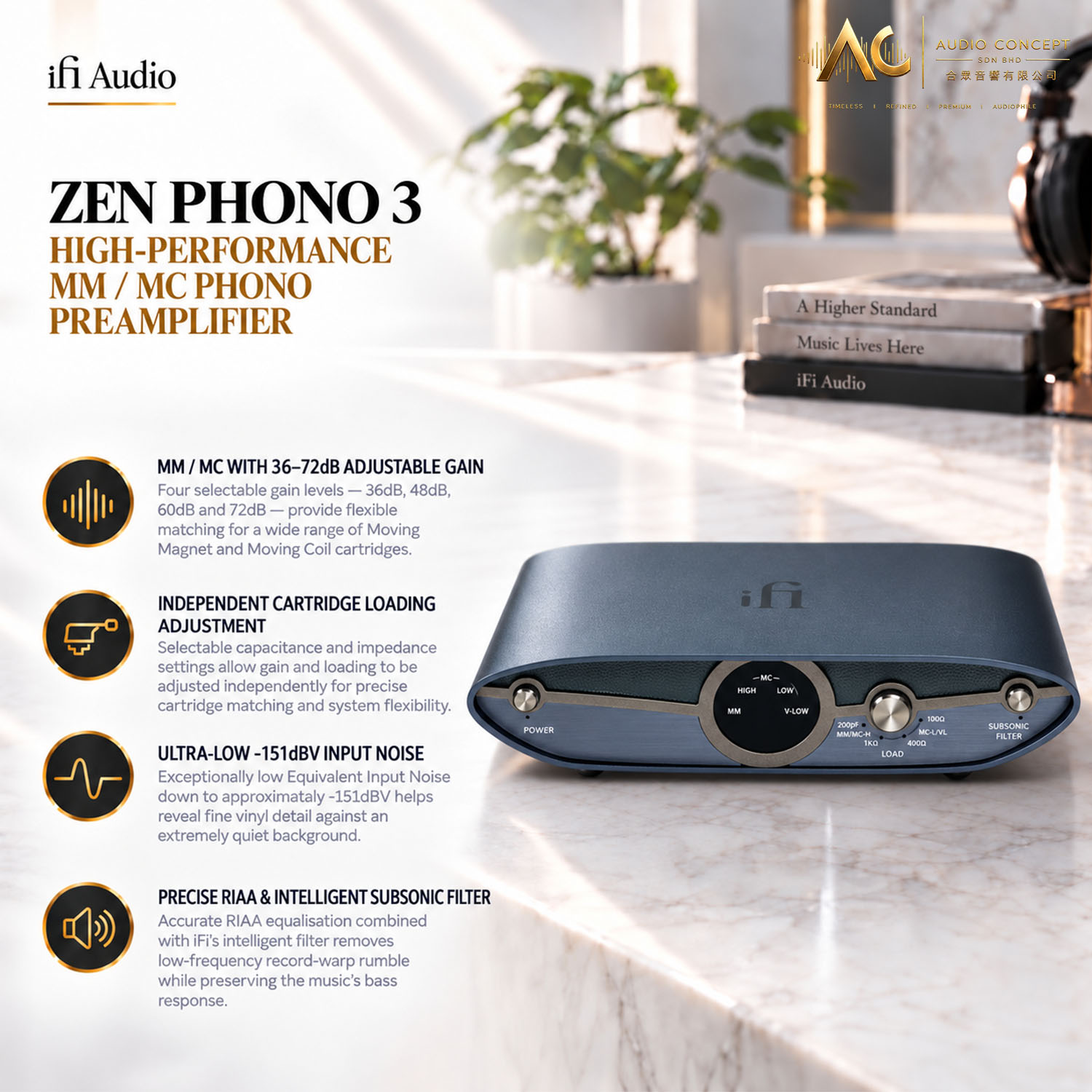

The ZEN Phono 3 redefines what your turntable can do. Its intelligent subsonic filter corrects warped LPs, while an ultra-quiet noise floor and adaptable loading options unlock a new level of clarity from your cartridge.

The ZEN Phono 3 supports four MM/MC gain selections from 36 to 72dB and four input impedance settings. Mix and match gain and loading settings independently of each other with the all-new loading button, ensuring optimum compatibility with a wide range of cartridges and allowing you to get the sound ‘just right’.

Specifications
CHANNEL SEPARATION : >75dB (1kHz all modes)

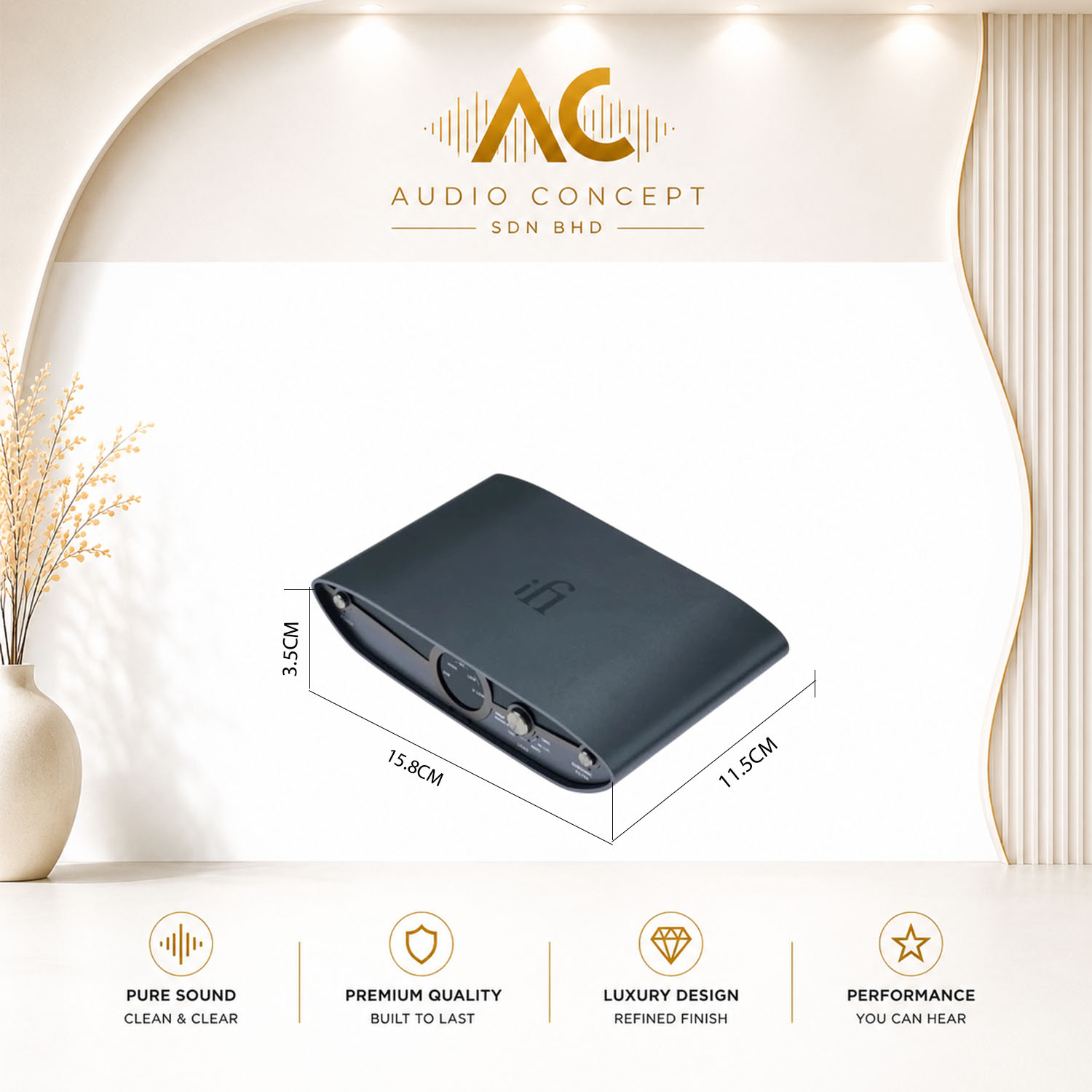

DIMENSIONS (Length x Width x Height)
158 x 115 x 35mm (6.2” x 4.6” x 1.4”)
FREQUENCY RESPONSE
BAL : 20Hz-80kHz (-3dB)
SE : 20Hz-20kHz (-0.15dB)

GAIN SETTINGS
MM : 36dB
MC High : 48dB
MC Low : 60dB
MC V-Low : 72dB

INPUT IMPEDANCE
MM : 47KΩ (100/200pF)
MC High: 47kΩ (100/200pF)
MC Low : 1k/400/100Ω
MC V-Low : 1k/400/100Ω

MAXIMUM OUTPUT VOLTAGE
BAL :100kΩ: ≥19.98V (THD+N <1%), 600Ω: ≥12.75V (THD+N <1%)
SE : 100Ω
NET WEIGHT : 456g
OUTPUT IMPEDANCE
BAL : 200Ω
SE : 100Ω
POWER CONSUMPTION : No Signal ~1.5W; Max Signal ~1.8W

SNR
MM : 91dB(A)/82dB (unweighted 80kHz BW)
MC High : 81dB(A)/72dB (unweighted 80kHz BW)
MC Low : 89.6dB(A)/80dB (unweighted 80kHz BW)
MC V-Low : 78.6dB(A)/69dB (unweighted 80kHz BW)

TOTAL HARMONIC DISTORTION
MM : <-91dB/0.0027%
MC High : <-80dB/0.0095%
MC Low : <-70dB/0.031%
MC V-Low : 1k/400/100Ω
POWER SUPPLY REQUIREMENTDC : 5V/0.5A (centre positive)

—————————————-
