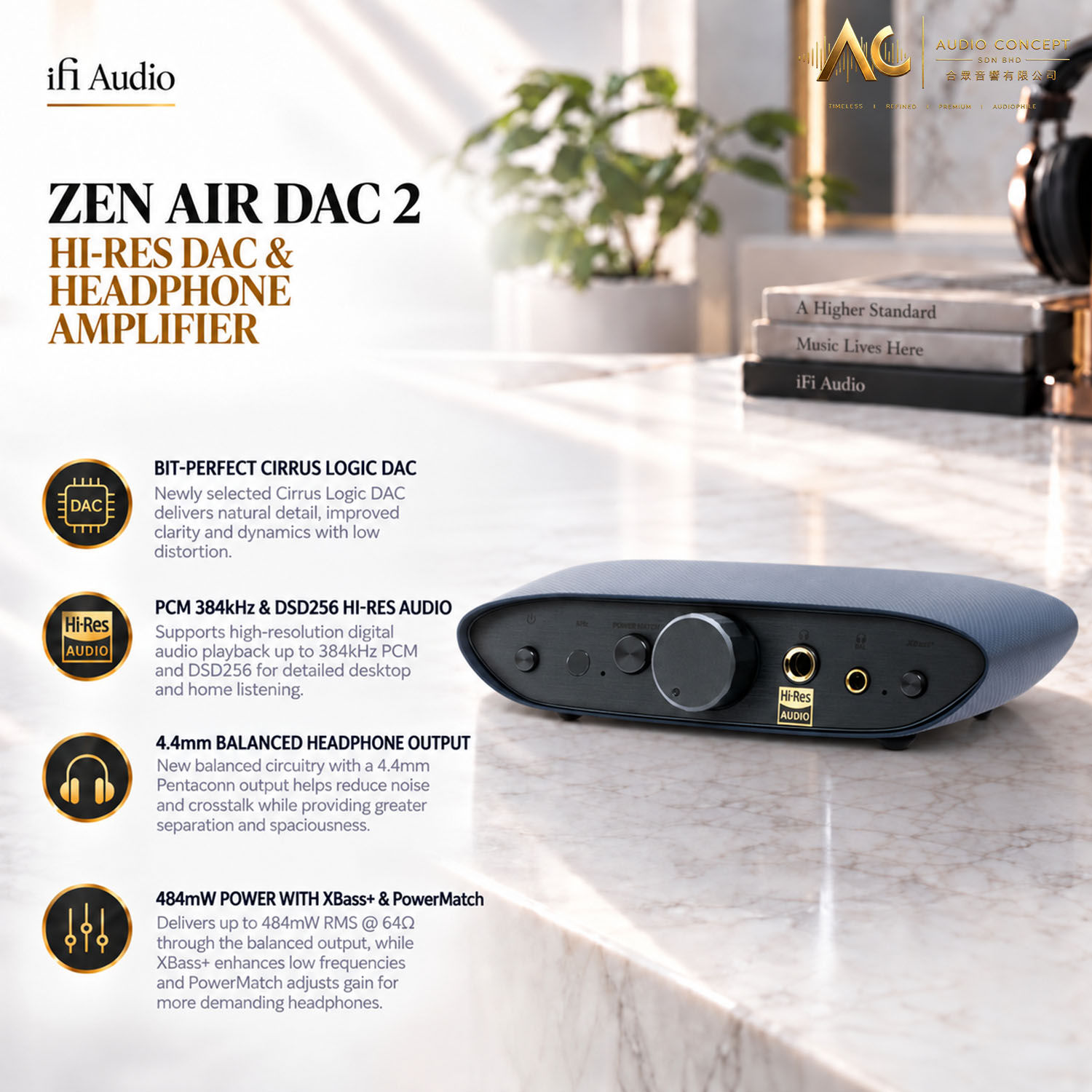

ZEN Air DAC 2
Made for Listening.
The ZEN Air DAC 2 is your key to more involving music listening at home, bringing our emotionally engaging house sound to yours with little cost and complexity.

Finished in midnight blue, Generation 2 introduces a more premium look and feel, a more expressive headphone listening experience, and a newly chosen DAC – selected for its natural ability to connect you with your music, not the technology behind it.

We’ve built the ZEN Air DAC 2 around our favourite bit-perfect DAC from Cirrus Logic, selected for how naturally it presents detail without sounding forced or analytical.

As a result, this generation brings measurable gains in clarity, dynamics and distortion, building a better connection between you and your music.

Specifications

• HI-RES SUPPORT : PCM 384kHz , DSD256
• LINE OUTPUT VOLTAGE : 2V , 3.4V max. (variable gain)

HP OUTPUT POWER RMS :

• ≥5.57V/484mW @ 64Ω (4.4mm)
• ≥3.02V/286mW @ 32Ω (6.3mm)
• HP OUTPUT IMPEDANCE : <0.7Ω (3.5mm); <1.4Ω (4.4mm)

OUTPUT IMPEDANCE :

Line Section:

• ≤50Ω

Headphone Section:

• <1Ω

• DYNAMIC RANGE : 118dBA (both outputs)
• SNR : 118dBA (both outputs)
• FREQUENCY RESPONSE : 20Hz-90kHz (-3dB)

THD+N :

• ≤0.0011% (6.3mm, 1.27V @ 16Ω);
• ≤0.0015% (4.4mm, 2.4V @ 32Ω);
• POWER CONSUMPTION : No signal ~0.55W; Max signal ~3.55W

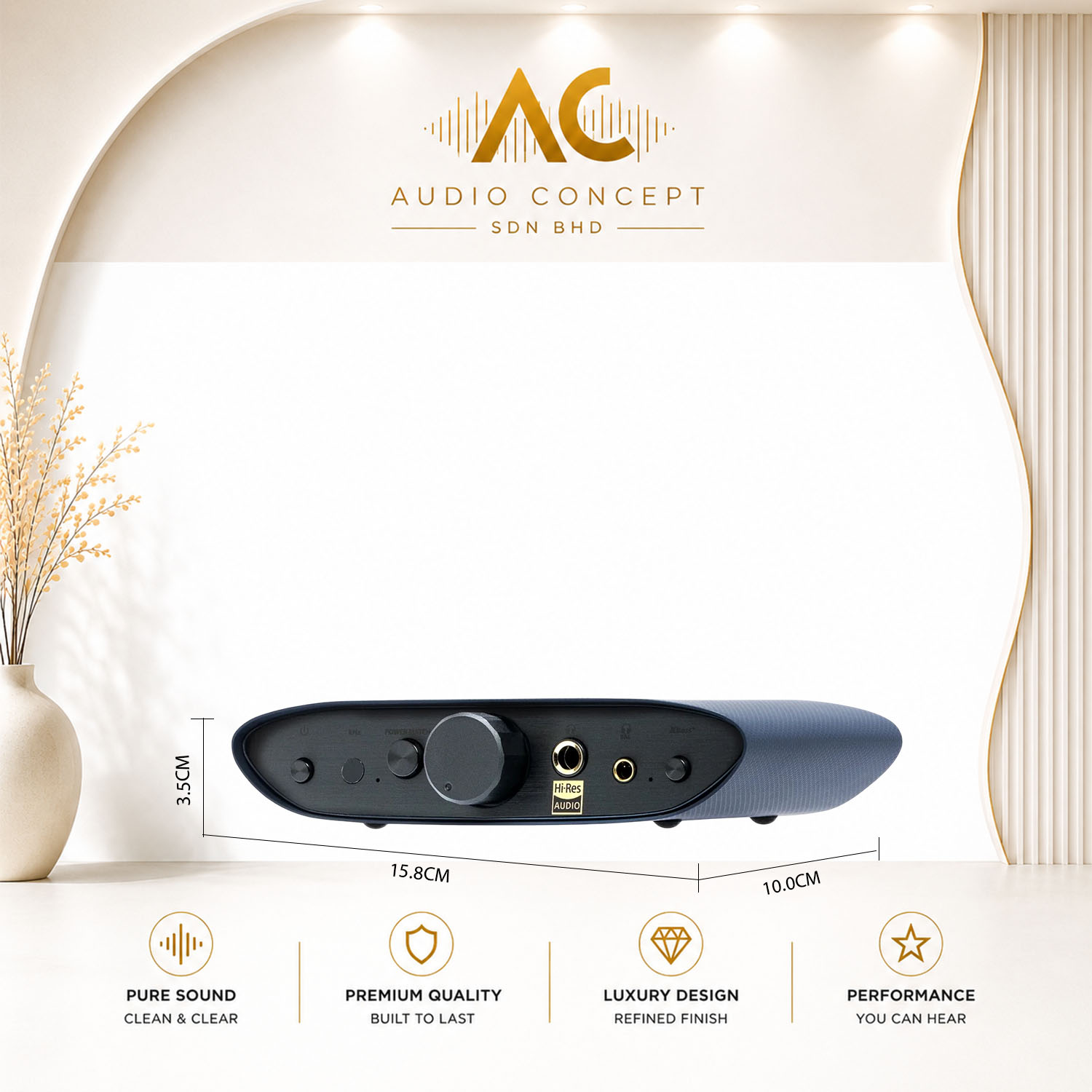

• DIMENSIONS : 158 x 100 x 35mm (6.2 x 3.9 x 1.4”)
• NET WEIGHT : 315g (0.69lbs)

—————————————-
