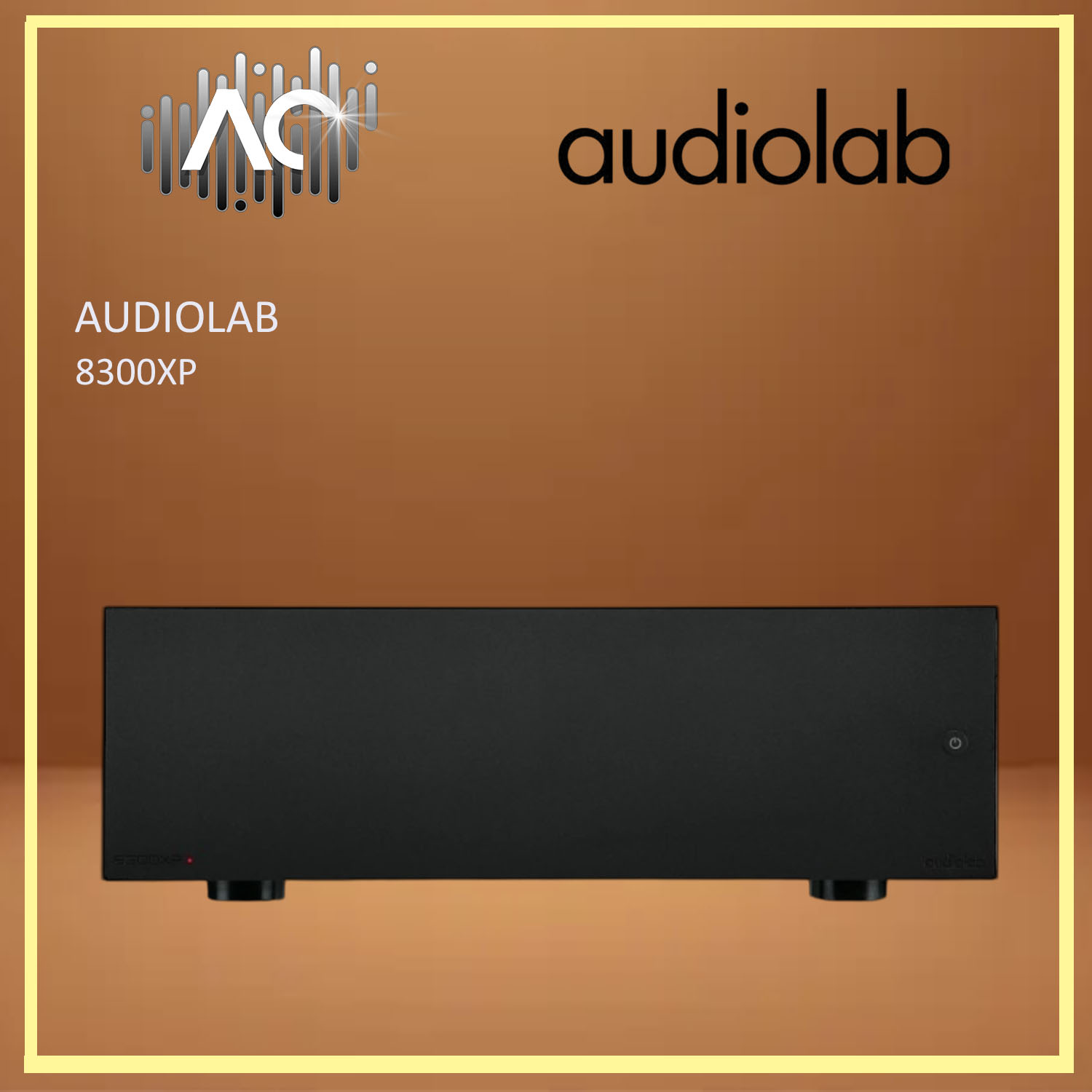

Audiolab 8300XP Stereo Power Amplifier

The 8300XP is a classic audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior.

Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

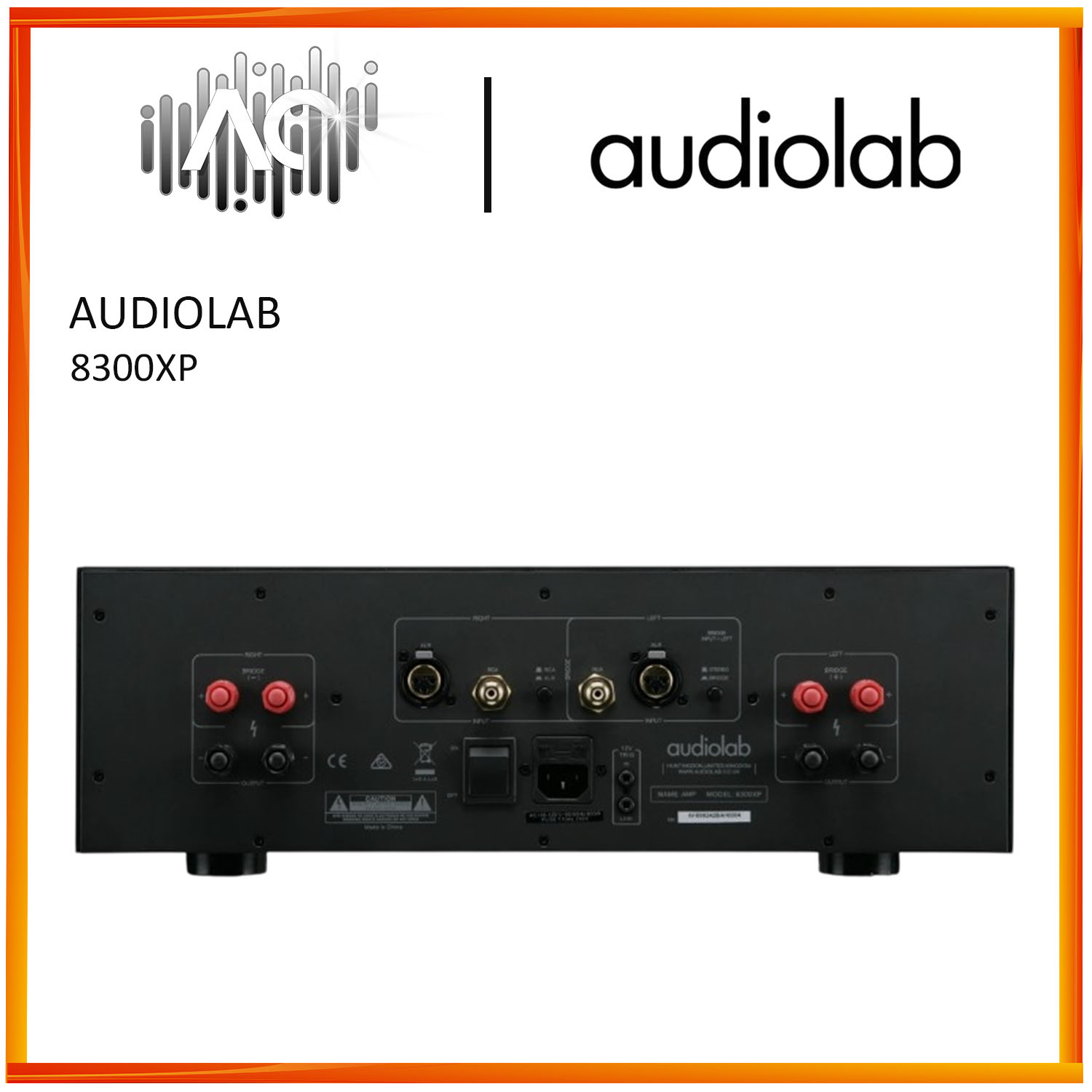

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.

Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All audiolab amplifiers are gain-matched, ensuring perfect integration with other audiolab components.

Thrilling to listen to and utterly dependable, the 8300XP is a genuine audio thoroughbred – the perfect partner for audiolab 8300CD, or peerless M-DAC range.

Rate power output

• 140W RMS (8Ω <1% THD, 1kHZ stereo)
• 230W RMS (4Ω <1% THD, 1kHZ stereo)
• 480W RMS (8Ω <1% THD, 1kHZ bridge)

Gain

• 29dB @ 1kHz (stereo)
• 36dB @ 1kHz (bridge)

Power Requirement

• 240V ~ 50-60Hz
• 230V ~ 50-60Hz
• 115V ~ 50-60Hz
• 100V ~ 50-60Hz

• Input sensitivity – 1100mV
• Input impedance – 15k (balanced) 10k (unbalanced)
• Frequency response -3dB – 20Hz – 80kHz
• +/-1dB – 20Hz – 30kHz
• Total harmonic distortion (THD) – 0.004% (20W, ref. 1kHZ)
• Intermodulation distortion (IM) – 0.004% (20W, ref. 7kHz + 60Hz)
• Transient inermodulation distortion (TID) – 113dB (A Weighted, ref. 140W)
• Signal-to-noise ratio (S/N) – 140W / 113dB
• Damping factor – 160

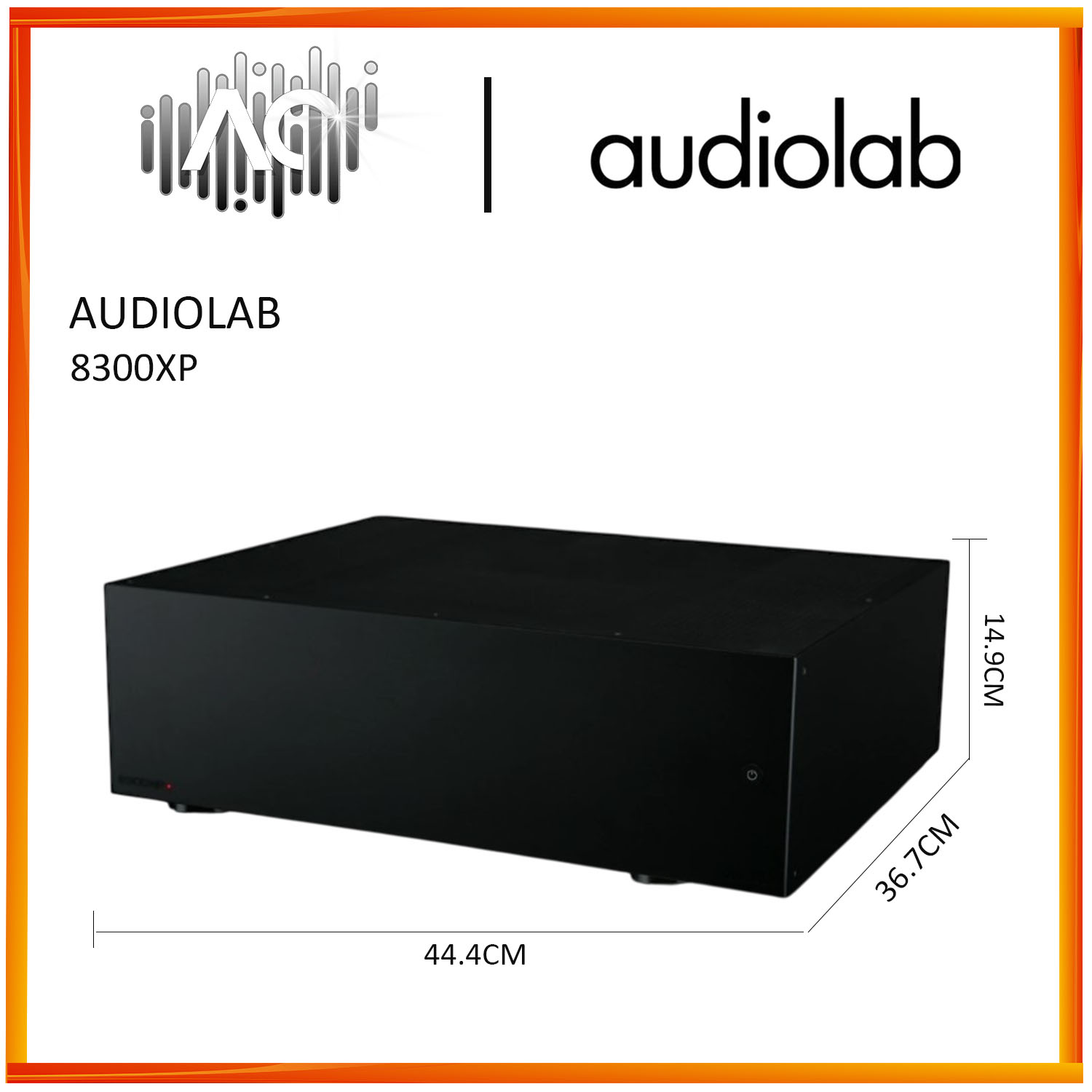

• Dimension (mm) (WxHxD) – 444 x 149 x 367
• Weight – 16Kg (Net) 18.5Kg (Gross)
