The 8300CD demonstrates a level of fine detail, transparency, soundstage depth, dynamic range and musical flow across all sources. It is both an exceptional CD player and a top-class external DAC/digital preamp, able to make the most of your CD collection. While delivering an enormous sonic boost to external digital audio sources it now extends its resolution to 32-bit/384kHz and DSD compatibility via USB.
We’ve worked long and hard to ensure that the 8300CD improves upon its illustrious predecessor in key areas, delivering even better performance as both a CD player and a DAC/preamp for external digital sources. Built around the peerless ESS Sabre DAC, the 8300CD now extends resolution to 32-bit/384kHz and adds DSD compatibility via USB.
- General Description – CD Player, Digital-to-Analogue Converter
- Finish – Fine Textured Aluminium (Black)
- Display – POLED 128×64 pixels 2.7″
- Standby Feature – Yes
- 12V Trigger – Yes
- CD Mechanism – Slot-Loading
- DSD Compatible – Yes (DSD64 / DSD128 / DSD256)
- Disc Compatibility – CD/CDR
- DAC – ESS Sabre32 9018 chip
- Resolution – 32 bits
- Sampling Frequency – Optical,Coaxial, AES: 32kHz – 192kHz / USB:32kHz – 384kHz(PCM) / DSD64, DSD128,
DSD256
- Maximum Sampling Frequency – Optical,Coaxial, AES: 192kHz / USB: 384kHz (PCM) / 11.2M (DSD256)
- Digital Input – 2 x Coaxial, 2 x Toslink Optical, 1xAES/EBU, 1 x USB for PC USB,
- Digital Output – 1 x Coaxial, 1 x Toslink Optical,1 x AES
- Output Voltage – 4.2Vrms ±0.1 (Balanced) / 2.1Vrms ±0.1 (Unbalanced)
- Output Impedance – 10Ω
- THD (1kHz 0dB 20Hz – 20kHz A wtd. – <0.002%
- Frequency Response +/-0.2dB – 20Hz – 20kHz (± 0.2dB)
- Signal-to-Noise Ratio (S/N) A wtd – RCA:<-98dB ,XLR<-100dB
- Dynamic Range (A wtd.) – RCA:>98dB ,XLR>100dB
- Crosstalk @1K – RCA:<-120dB , XLR <-130dB
- Gain Error – <0.5W

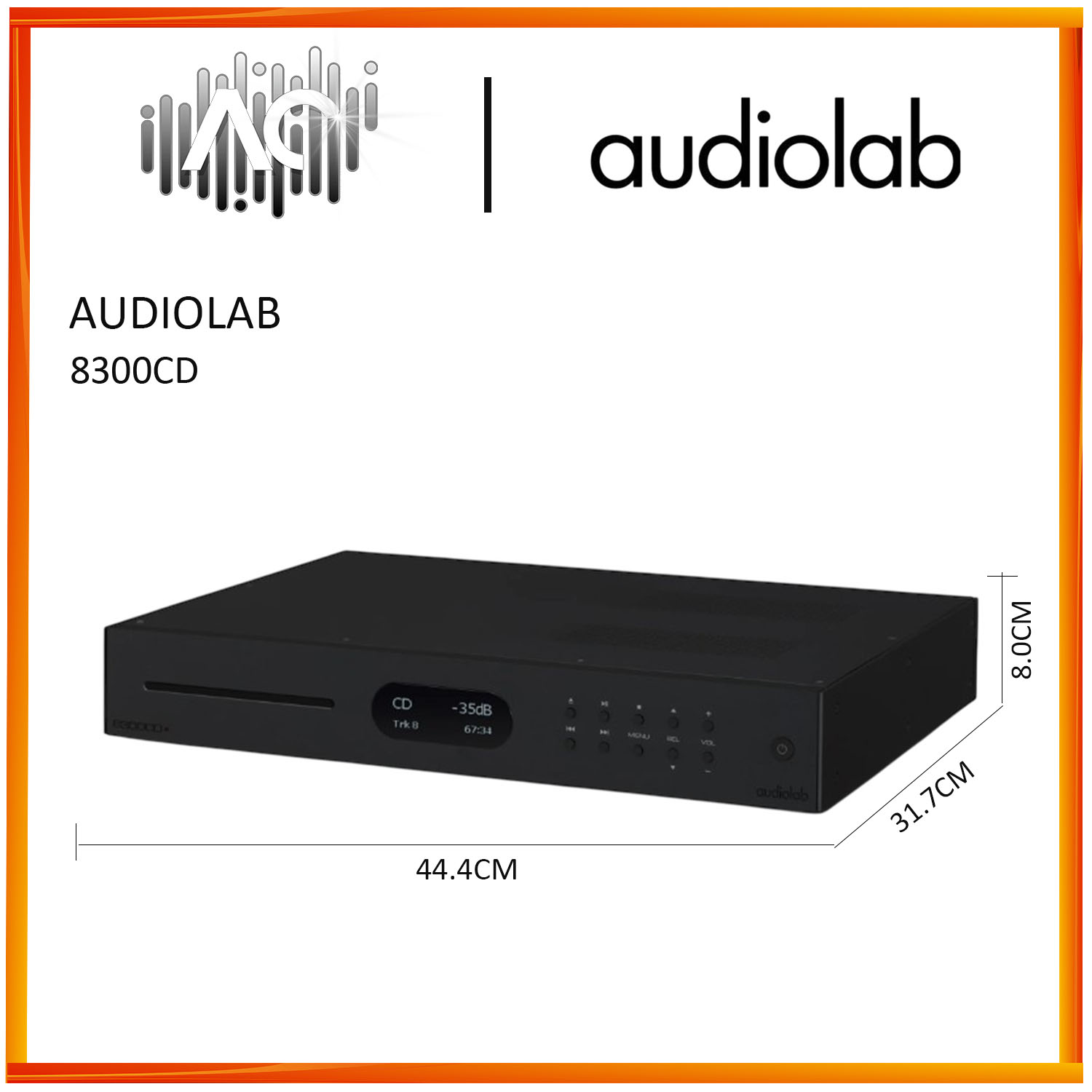

- Dimensions (H x W x D) – 80 x 444 x 317mm
- Weight – 6kg
