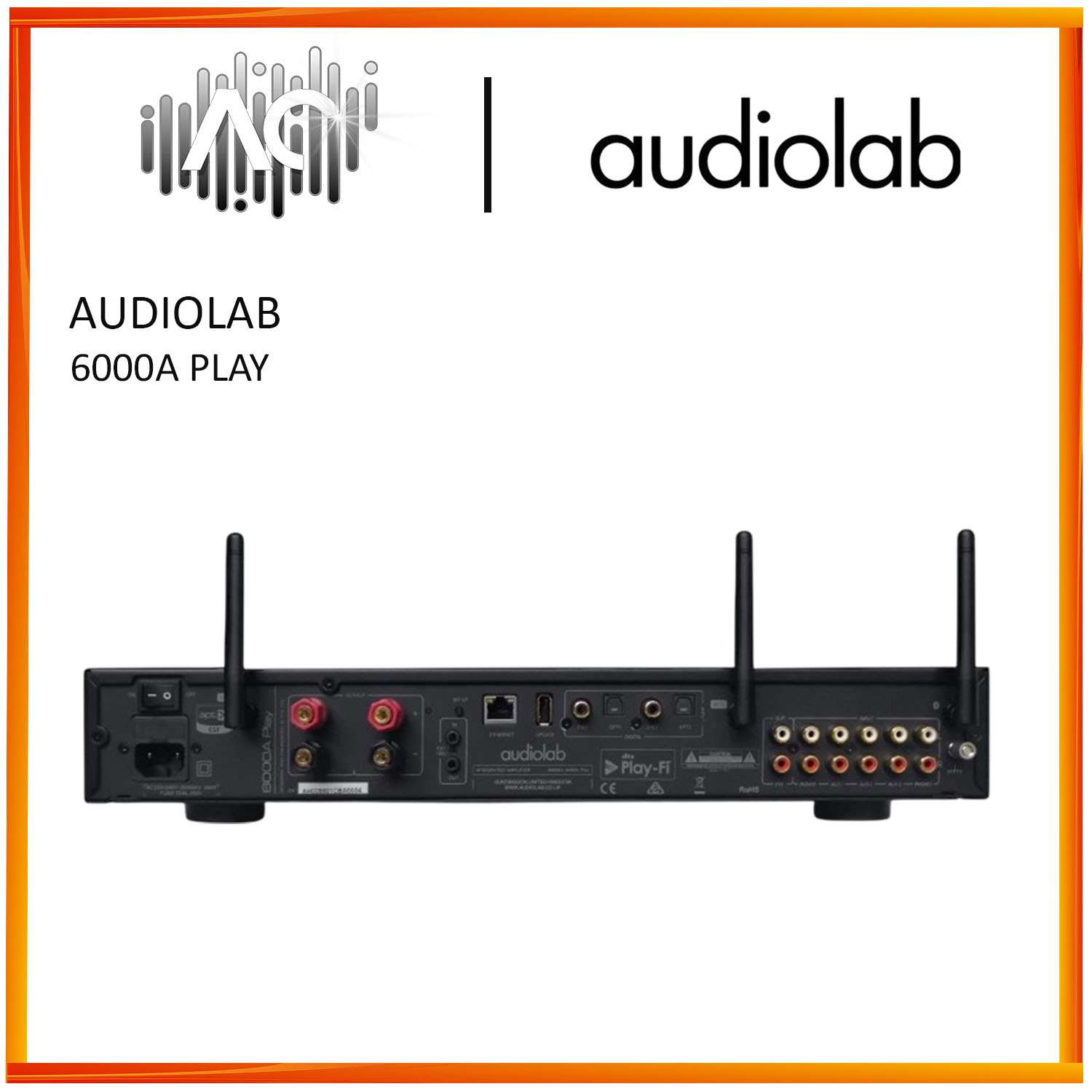

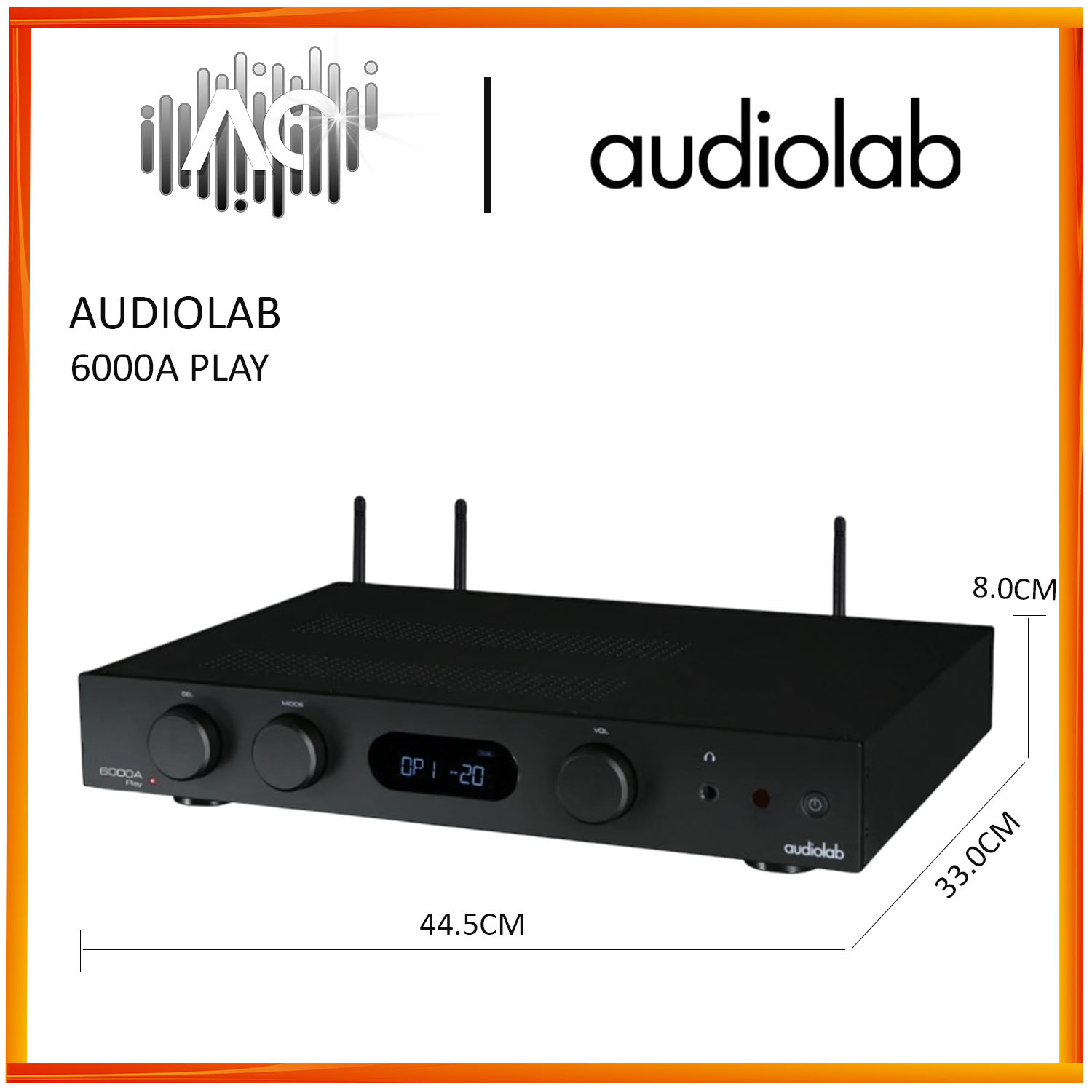

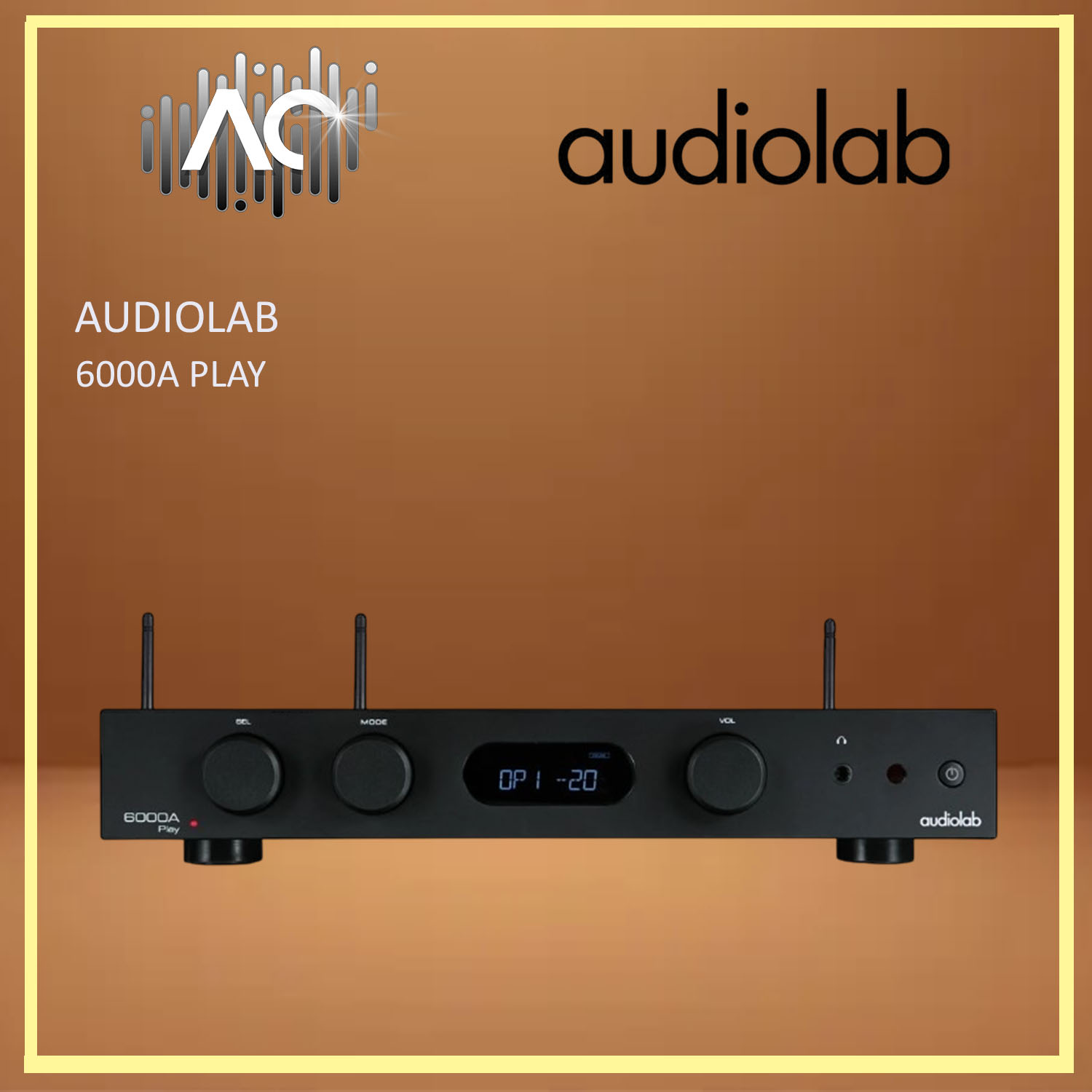

Audiolab 6000A Play Integrated Amplifier With Wireless Audio Streaming

The audiolab 6000A Play, is the latest addition to the globally acclaimed 6000 series.

A combination of the illustrious and class-leading 6000A integrated ampliﬁer with the acclaimed 6000N Play wireless audio streaming player, the audiolab 6000A Play is a richly speciﬁed, all-encompassing audio solution.

Adapting to the modern world of music streaming but retaining all of the awarding-winning analogue and digital audio circuitry from the 6000A, the 6000A Play oﬀers almost universal source compatibility.

The audiolab 6000A Play incorporates the acclaimed DTS Play-Fi® platform for built-in high-resolution wireless streaming playback (up to 24bit / 96kHz with compatible services such as TIDAL or Qobuz). You can stream from any source on your wireless network, including smartphones, tablets or PCs as well as a NAS Drive. So, however you want to play your music, audiolab ’s 6000A Play will deliver outstanding performance.

The DTS Play-Fi platform oﬀers a wealth of music options from around the globe. Spotify, Qobuz, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox and Sirius XM, to name a few. Browse a radio guide with thousands of stations and podcasts, or stream from a home media server with DLNA compatibility.

Above all, the audiolab 6000A Play oﬀers ﬂexibility without compromise. With deep, well-deﬁned bass, expressive midrange and sweet, subtle treble – the 6000A Play oﬀers an open window on the music being played, as all great hi-ﬁ should, engaging the listener with natural, unforced energy that is fully reﬂective of the source material.

DTS Play-Fi Technology

IEEE 802.11a/b/g/n/ac Supports global, popular streaming content (Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, Pandora, SoundMachine, Qobuz, QQmusic ) Supports Speaker Groups Supports Android/iOS/Kindle Fire/Windows PC Control

Analogue Inputs – 3 x AUX , 1x Phono (MM), 1x Power In
Digital Input – 2 x Coaxial, 2 x Toslink Optical, Bluetooth (aptX/aptX LL)
Analogue Output – 1x RCA Pre Out
Gain – +8dB (Line) +55dB (Phono MM)
Input Sensitivity – 720mV (Line, Volume = 0dB) 3.1mV (Phono MM, Volume=0dB)
Input Impedance – 10K (Line) 47K//100pF (Phono MM)
Total Harmonic Distortion (THD) – < 0.0004% (1KHz @ 2V, Volume = 0dB)
Frequency Response – 20Hz-20kHz (+/-0.1dB)
Output Voltage – 2.3V max. (Volume=0dB)
Output Impedance – 120 ohm
Signal-to-Noise Ration (S/N) – > 110dB (Line, A-weighted) / > 76dB (Phono MM, A-weighted)
D To A Converter – ES9018K2M
Total Harmonic Distortion (THD) – < 0.0006% (1KHz @ 0dBFS)
Output Level (0dBFS, 1KHz) – 2.05V
Max. Sampling Frequency – 192KHz
Signal-to-noise ratio (S/N) – > 112dB (A-weighted)
Digital Filters – Fast Roll-oﬀ , Slow Roll-oﬀ , Minimum Phase
Gain – +29dB
Rated Max. Power Output – 2 X 50W (8 ohm, THD<1%) 2 X 75W (4 ohm, THD<1%)
Frequency Response – 20Hz-20kHz (+/-0.3dB)
Input Sensitivity – 720mV (Volume=0dB)
Total Harmonic Distortion (THD) – < 0.003% (1kHz @ 40W/8ohm)
