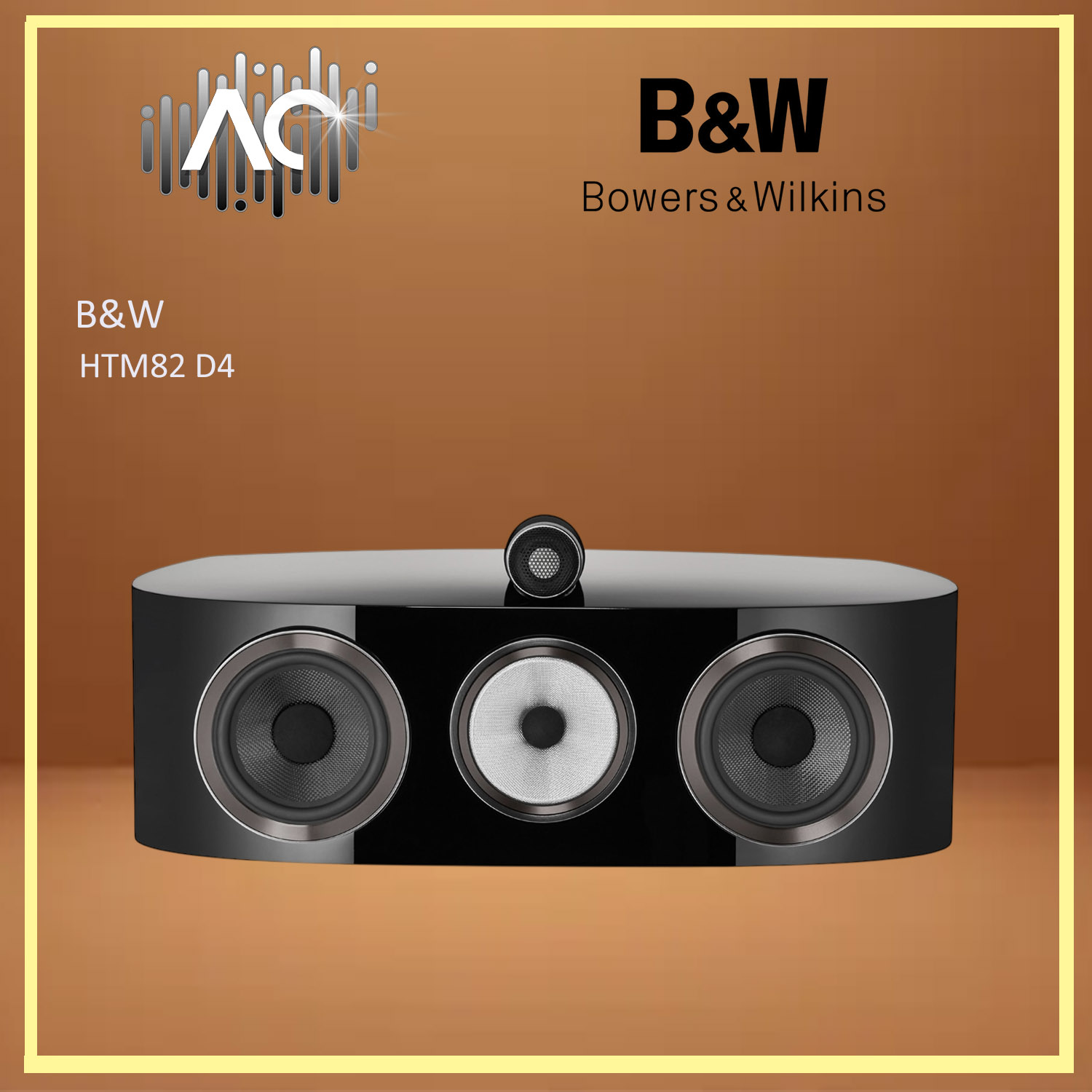

B&W Bower & Wilkins HTM82 D4 Center-Channel Speaker-Gloss Black

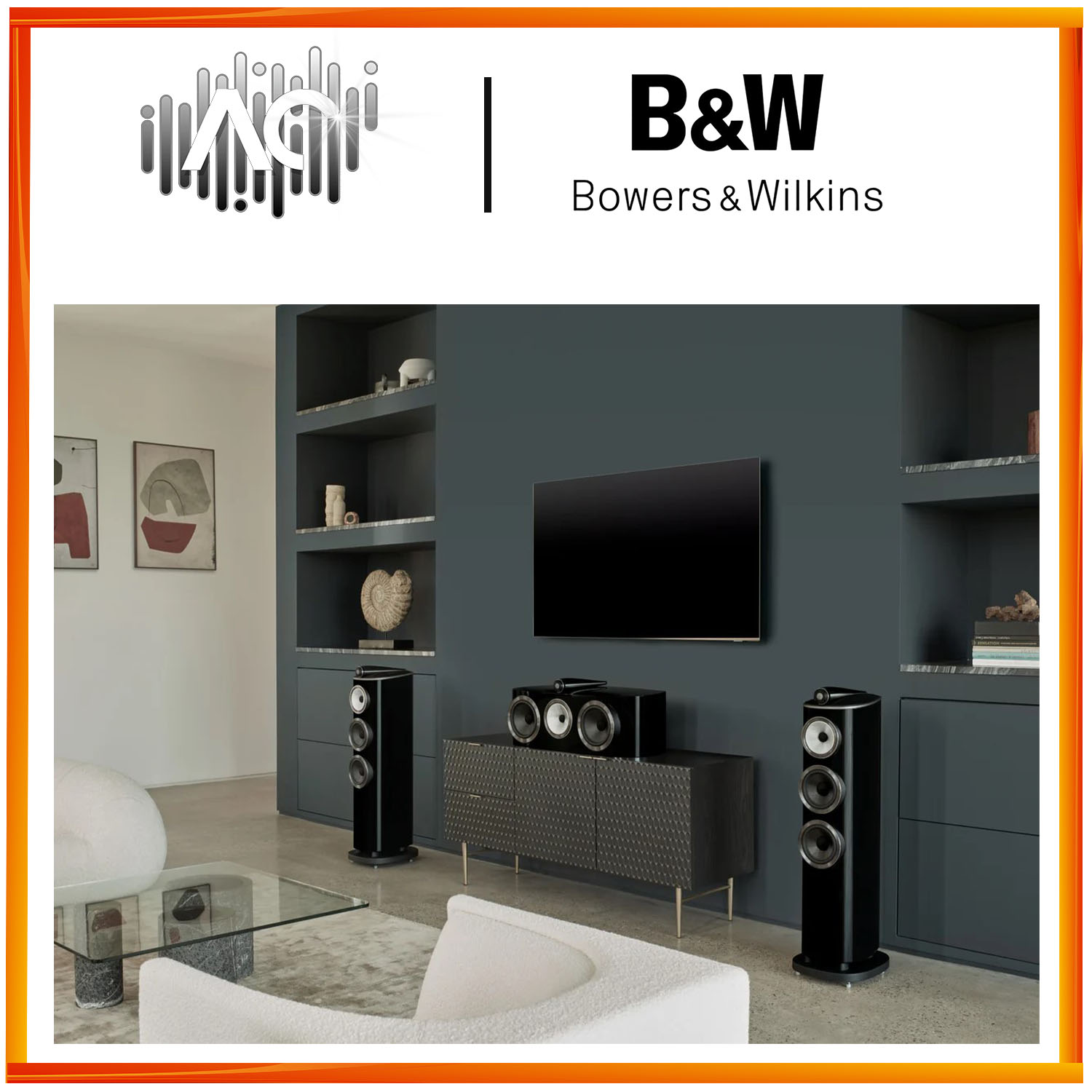

For theatre systems based on the more compact 803 D4 or 804 D4, the HTM82 D4 centre-channel speaker is the perfect solution. Its more compact midrange drive unit is ideally sized to match those of its siblings.

The new HTM82 D4 may be our most compact center-channel speaker, but it shares the design DNA of its larger siblings, including the Reverse Wrap cabinet and Matrix™ bracing. The combination of the two technologies ensures a quieter, more acoustically efficient and better-sounding speaker than ever.

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Introduced as a huge evolutionary change for us in 2015, the Continuum cone midrange drive has swiftly become a fundamental element in every Bowers & Wilkins loudspeaker. With exceptionally low noise, it ensures outstanding resolution without coloration or masking of detail.

HTM82 D4 has a dedicated midrange cone using three key Bowers & Wilkins technologies: the Continuum cone, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers. The result is outstanding clarity.

Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond™ so special here.

• Net weight – 25.15kg (55.4 lb)

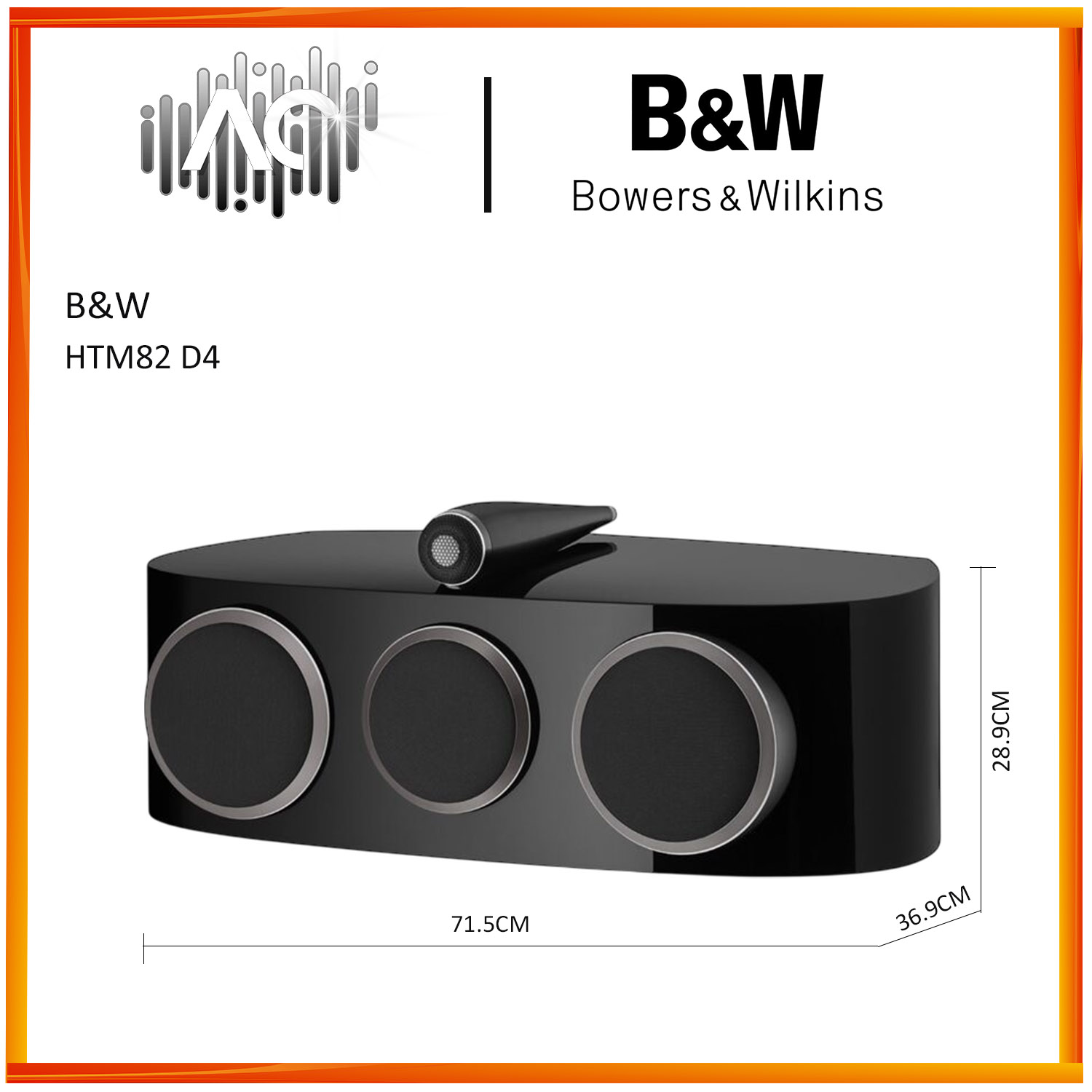

• Dimensions – Height: 289mm (11.4 in) / Width: 715mm (28.1 in)

Technical features

• Diamond tweeter
• Solid body Tweeter-on-Top
• Continuum™ cone FST
• Matrix™
• Anti-Resonance plug
• Biomimetic Suspension
• Aerofoil™ cone bass units
• Flowport

• Description n- 3-way vented-box system
• Nominal impedance – 8Ω (minimum 3.0Ω)
• Frequency range – 33Hz to 35kHz
• Frequency response – 45Hz to 28kHz (+/-3dB from reference axis)
• Sensitivity – 89dB (on axis at 2.83Vrms at 1m)
• Recommended amplifier power – 50W – 200W into 8Ω on unclipped programme
• Max recommended cable impedance – 0.1Ω

Drive units

• 1x ø25mm (1in) Diamond dome high-frequency
• 1x ø130mm (5in) Continuum cone FST midrange
• 2x ø165mm (6.5in) Aerofoil cone bass units

Harmonic distortion

• 2nd and 3rd harmonics (90dB, 1m on axis)
• <1% 100Hz – 20kHz
• <0.3% 100Hz – 20kHz
